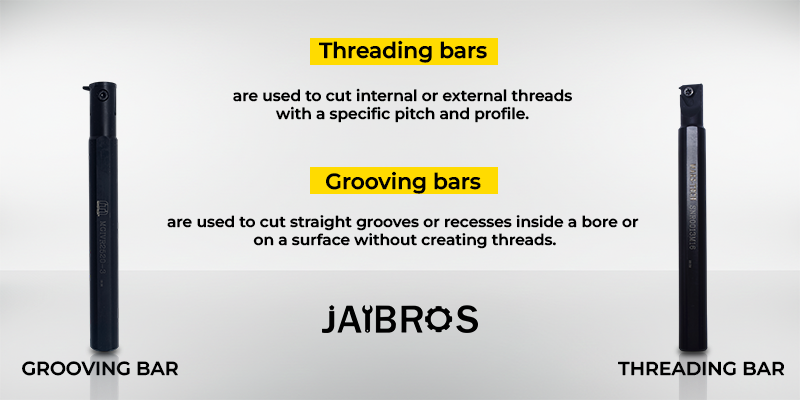

How Grooving Bar and Thread Bar Differ in CNC Turning

In CNC turning, selecting the correct cutting tool directly affects machining accuracy, surface finish, and overall productivity. One common area of confusion for machinists is understanding the difference between a grooving bar and a threading bar. While both tools are used on CNC lathes and may appear similar in setup, their purpose and cutting behaviour are completely different.

What Is a Grooving Tool?

A grooving bar is designed to cut precise grooves or slots into a workpiece. These grooves are essential for functional features such as O-ring seats, retaining rings, and clearance channels. The cutting action is straight, either radial or axial, and the tool removes material across a fixed width.

For internal machining, a grooving boring bar combined with an internal grooving tool is commonly used to achieve accurate results in bores with limited space.

Key Characteristics of Grooving Tools

• Designed for straight cutting motion


• Produces grooves with fixed width and depth


• Uses flat, width-specific inserts


• Suitable for external and internal grooving


• Requires strong rigidity to prevent vibration

What Is a Threading Bar?

A threading bar is used to cut threads that allow parts to be assembled or fastened together. Unlike grooving, threading follows a spiral or helical cutting path to generate a defined pitch and profile.

For internal threading, machinists rely on a threading boring bar, which allows precise control over depth, pitch, and thread consistency. Threading usually requires multiple passes to gradually form the final thread shape.

Key Characteristics of Threading Tools

• Designed for helical cutting motion


• Produces internal or external threads


• Uses thread-profiled inserts


• Requires synchronised feed and spindle speed


• Commonly used in fastening applications

Cutting Motion: The Core Difference

The cutting motion is the biggest technical difference between these two tools.

A grooving bar removes material in a straight path to form grooves, while threading tools move continuously along the workpiece surface to create threads. As a result, CNC programming, insert geometry, and cutting parameters differ significantly between the two operations.

Internal Machining Applications

Internal operations highlight the importance of using the correct tool.

Internal Grooving

• Performed using an internal grooving tool


• Requires precise depth and width control


• Common in seal grooves and snap-ring slots


• Needs excellent chip evacuation

Internal Threading

• Performed using a threading boring bar


• Requires accurate pitch control


• Used for nuts, housings, and assemblies


• Typically completed in multiple passes

Although both tools operate inside bores, they are not interchangeable.

Insert Design and Tool Geometry

The shape and design determine how effectively a tool performs.

A grooving bar uses flat inserts designed to withstand high radial cutting forces across a narrow edge. Threading inserts are shaped according to specific thread standards, ensuring accurate thread form and finish.

Insert Comparison

• Grooving inserts: flat, width-specific


• Threading inserts: angled, profile-specific


• Grooving focuses on dimensional accuracy


• Threading focuses on profile and pitch accuracy

Typical CNC Turning Applications

Understanding applications helps avoid costly mistakes.

Grooving Applications

• O-ring grooves


• Retaining ring slots


• Undercuts and relief grooves


• Clearance features

Threading Applications

• Bolts and screws
• Nuts and threaded holes
• Mechanical assemblies

Using the wrong tool can lead to poor quality and tool damage.

Stability and Performance Considerations

A grooving bar is more sensitive to vibration, especially in deep internal operations. Proper tool holder selection and minimal overhang are critical.

Threading tools face continuous cutting engagement, making insert coating, edge strength, and machine synchronisation extremely important for consistent results.

How to Choose the Right Tool

Choose a grooving bar when:

• You need accurate slots or grooves


• Width and depth tolerance are critical


• Internal grooving is required

Choose a threading bar when:

• Threads are needed for fastening


• Pitch accuracy is essential


• The application allows multiple passes

Correct selection improves tool life and machining efficiency.

Conclusion

Although they may look similar on a CNC lathe, a grooving bar and a threading bar serve very different roles in CNC turning. Their cutting motion, insert geometry, and applications are not interchangeable. Understanding these differences allows machinists to select the right tool, reduce errors, and achieve consistent machining quality.

FAQs

1. Can one tool perform both grooving and threading?

   No, each tool is designed for a specific cutting motion and insert profile.



2. What is internal grooving mainly used for?

   It is used for seal grooves, retaining rings, and clearance features inside bores.



3. Why are threading operations done in multiple passes?

   Multiple passes ensure accurate pitch and reduce cutting stress on the insert.



4. Which tool is more prone to vibration?

   Grooving tools are more vibration-sensitive due to narrow cutting widths.



5. How do I improve tool life in threading operations?

   Use correct inserts, stable boring bars, and proper cutting parameters
