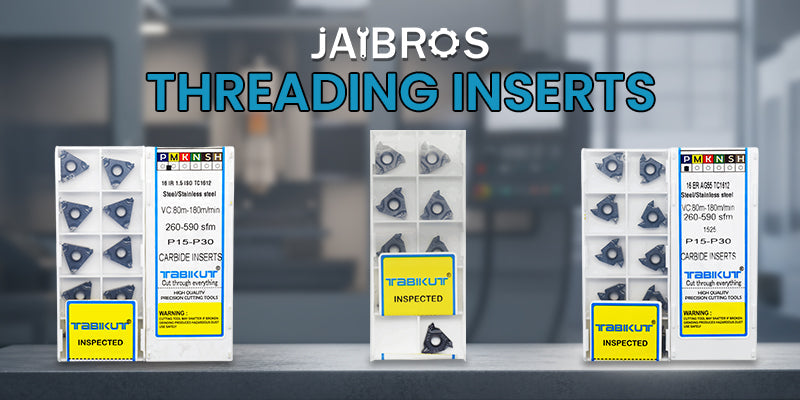

Understanding CNC Threading Inserts: Precision, Efficiency, and Durability

A threading insert is a detachable cutting tool used in CNC lathes and turning machines for cutting threads on materials such as steel, aluminum, and brass. The use of inserts eliminates the need to cut threads by hand, and instead, the machinist utilizes inserts that are installed into a tool holder. The machine will then follow the instructions that are programmed, allowing the threads to be cut with precision.

CNC threading inserts produce accurately detailed thread shapes, cutting speeds are much quicker, and the tool life is longer than with traditional methods. The insert can produce either internal or external threads, depending on the type of insert. Threading inserts are made from hard materials, such as carbide, coated alloys, and ceramics, which can withstand the heat and wear that occur during machining.

Importance of CNC Threading Inserts in Modern Machining

There are many reasons why CNC threading inserts are important; the first is that they save time, decrease fabrication effort, and improve the quality of the product. In a manual process, it was very easy to end up with threads that were not uniform or torqued out (rough). With CNC machines, you could manufacture thousands of parts with the same accuracy and finish.

Another positive aspect is how long they last. The CNC threading insert is manufactured out of a material that is durable and can cut hard metals without the cutting edge becoming dull when cutting hard metals. The opportunities to break tooling are limited, and there is always a smooth tap with the thread inserts. Threading can be done in the aerospace, automotive, and general engineering industries, to name a few.

Different Threading Insert Types

Machining uses many different threading insert types, and each type is made for a specific operation.

• Internal Threading Insert: Cuts threads inside holes or cylindrical parts.

• External Threading Insert: Cuts threads on the exterior of parts.

• Full Profile Insert: Cuts the entire shape of the thread form, allowing perfect accuracy.

• Partial Profile Insert: Can be used for cutting multiple thread pitches, with minor adjustments to the feed rate.

• Threading Insert: Designed for better performance and long tool life. One of the best threading insert brands for all types of threading work in the industry.

The insert type is usually determined by the thread design, material being cut, and finish quality.

Threading Inserts: High Performance, Durability, and Heat Resistance

Delved into the effectiveness and reliability of the threading insert is second to none for cutting strength and durability. Recommended for use in rough and fine threading, this insert provides superior performance for high-speed cutting applications compared to other types of screw machine tooling.

These inserts are made from quality carbide material and are often coated, which also contributes to their heat-resistant properties. This markdown of heat assists with the retention of tool sharpness, which reduces downtime within production. Reliable tooling and efficiency are just what a shop is looking for, and this insert delivers on both of those.

How to Choose the Best Threading Inserts

Selecting the best threading inserts depends on a few key factors:

• Material of Workpiece: Hard materials like stainless steel require tougher inserts, such as cermet inserts.

• Thread Standard: Make sure the insert matches your thread type—metric, UN, or BSP.

• Cutting Conditions: Check speed, feed rate, and depth of cut for better results.

• Machine Compatibility: The insert must properly fit your CNC holder and setup.

• Ferrous and Non-Ferrous: Choose Non-Ferrous uncoated inserts for non-ferrous material like Aluminium, Brass, Copper for better life and superior finish.

You can also consult trusted suppliers like Jaibros to get expert advice and choose the right CNC threading insert for your specific machine and material.

Applications of Threading Inserts

Threading inserts are commonly used in many industries due to their accuracy and consistency. In the automobile industry, they are used for the production of engine parts, bolts, and nuts. In aerospace, threading inserts are used for parts that are required to be created with tight tolerances. In a metalworking workshop, threading inserts are used for general machining, tool making, and maintenance jobs.

Even small-scale industries are converting to threading inserts based on CNC because of the improved finish and uniformity across every part. Because manufacturing in India is growing, the demand for quality threading inserts is growing as well.

Benefits of Using CNC Threading Inserts

Utilizing a CNC threading insert provides many advantages for a machine shop or factory:

• High Accuracy: Threads made this way are precise, reliable, and of a higher quality.

• Time Savings: Operation is faster than manual threading.

• Longer Lasting: Inserts last longer, even with high pressure and speed.

• Smooth Finish: Each part is cleaner and perfectly consistent in its threads.

• Reduced Cost: Reduced costs of tool replacement and maintenance.


These qualities serve to make CNC inserts an indispensable product in contemporary manufacturing environments.

Recommendations to Maintain Threading Inserts

If properly taken care of, they can extend the life and productivity of the threading inserts. A few things you can do include:

• It is a good practice to clean your holder before mounting inserts as frequently as needed.

• Preventing over-tightening of the insert will help further prevent cracking from being forcibly over-tightened, as well as increase overall tool life.

• Check the edges regularly and replace dull edges as needed.

• Using the appropriate coolant when working with metals to control temperature will help you to prevent damage and, in effect, extend tooling life.

• Placing inserts without touching each other, as both are the same hardness, will destroy each other's sharp corners

Following the steps laid out above for threading inserts will ensure you are receiving the best output and the extension of the life of the tool on CNC.

FAQs About Threading Inserts

Q1: What is the purpose of a threading insert?

When it comes to CNC machines, threading inserts perform the task of cutting threads into metal parts. They can help to create internal threads (inside holes) as well as external threads (on a rod or bolt). Threading inserts provide a means to make accurate, smooth, and repeatable threads quickly, efficiently, and with relative ease, even for beginner machinists.

Q2: What are the different types of threading inserts?

The different types of threading inserts include internal, external, full profile, partial profile, and threading inserts for threading CNC-machined parts and/or components.

Q3: What is the best material for a CNC threading insert?

The best materials for CNC threading are carbide or coated alloys, since they are very hard, wear-resistant, and can cut threads into metals like steel, aluminum, or brass accurately.

Q4: What is unique about threading inserts?

Threading inserts provide high durability, smooth cutting, and longevity of tool life. They perform well under heavy machining and at high speed, making these inserts one of the best threading inserts available for industrial use.

Q5: Where can you get the best threading inserts in India?

The best and genuine threading inserts with various brands for cutting steel, stainless steel, cast iron, and non-ferrous material can be found at Jaibros.com.

Conclusion

A CNC threading insert may be small, but it is a key component in today's machining processes. It provides various industries with the ability to produce very robust, precise threads, worthy of industry standards, while providing great surface finishes and repeatability. The more you learn about all types of thread inserts, coupled with trusted products such as threading inserts, will provide the opportunity for you to push harder with less cost in
