VNMG Tool Holder Guide for CNC Turning Performance
In CNC turning operations, selecting the right tooling is critical for achieving precision, efficiency, and repeatability. Among the array of tooling options available, one component stands out for versatility and performance: the vnmg tool holder. By enabling the most stable and accurate mounting of diamond-shaped VNMG inserts, this category of holders is trusted across the automotive, aerospace, and general engineering industries. Choosing the right holder involves understanding design nuances, performance factors, and how geometry influences cutting behaviour in real machining applications.
What Is a VNMG Tool Holder?
A VNMG tool holder is a type of indexable turning tool designed to carry VNMG-style inserts—diamond-shaped cutting edges frequently used in turning and profiling operations. These holders feature robust clamping systems that securely hold the insert in the correct orientation, enabling stable cutting performance on CNC lathes.
The precision and rigidity of a good holder are fundamental to achieving consistent surface finishes and dimensional accuracy. A poorly chosen holder can lead to vibrations, insert instability, and inconsistent results, even with high-quality inserts.
How Tool Holder Geometry Affects Machining Performance
One of the most important aspects of tool holder design is geometry. This includes the approach angle, rake orientation, and overall interface between the insert and the holder body.
VNMG Tool Holder Angle
The vnmg tool holder angle refers to the lead and approach angles engineered into the holder body. A well-designed angle ensures that a VNMG insert engages the workpiece at the proper orientation, balancing cutting forces and minimising deflection. For example, holders with a neutral orientation maintain equal loads on both sides of the insert, which is especially helpful in finishing operations and when machining materials prone to chatter.
VNMG Neutral Tool Holder Angle
The vnmg neutral tool holder angle refers to a configuration where the holder positions the insert without creating a positive or negative rake bias. In this setup, cutting forces are balanced across the tool, improving stability and prolonging insert life. Neutral holders are particularly effective when machining delicate features or when a consistent surface finish is more critical than aggressive material removal.
Neutral holders are ideal for general turning applications and are often a first choice for shops that prioritise repeatable accuracy.
Key Benefits of Using the Right Holder
Stability and Rigidity
With a firm clamping mechanism, a vnmg tool holder provides stability that directly translates into better surface finish and dimensional control. High rigidity is especially crucial in high-speed or high-feed operations, where insert motion can compromise results.
Improved Chip Flow and Reduced Vibration
Tool holders designed for VNMG inserts—such as a balanced vnmg neutral tool holder—help guide chips away from the cutting zone. This reduces the risk of recutting chips, which can cause chatter and surface irregularities. In addition, proper geometry minimises vibration, ensuring smooth cuts.
Versatility Across CNC Turning Tasks
VNMG holders are compatible with a range of insert sizes and types, making them versatile for external turning, profiling, and even light roughing. They also handle a variety of materials, from mild steel to stainless steel and harder alloys, making them a preferred choice in mixed-workload environments.
Ease of Insert Change
Using a vnmg insert holder simplifies maintenance. With standardised clamping mechanisms and insert seats, operators can quickly replace worn inserts without recalibrating setups.
Types of VNMG Tool Holder Configurations
Tool holders come in various designs to suit different machining needs. The main categories often focus on cutting direction and geometry:
Neutral Holders
Neutral holders provide balanced cutting orientation with no positive or negative rake bias. They are commonly used for general turning and finishing operations where consistency and surface quality are priorities. Variants such as the MVVNN series embody this design philosophy, offering a stable base for VNMG inserts to operate with balanced cutting forces.
Directional Holders
Some holders are engineered with a slight positive or negative rake to enhance chip flow in specific cutting directions. These are useful when the process demands specific chip-break characteristics or when rail-machining approaches require direction-biased cutting.
Choosing the Right Holder: Practical Considerations
Here are key factors to consider when selecting a VNMG holder for your CNC lathe:
Machine Compatibility
Ensure that the shank size and mounting style of the holder match your lathe’s turret or tool post. Standard sizes like 25×25 mm are common, but always cross-check with machine tooling standards.
Cutting Application
Identify whether you need the holder primarily for roughing, finishing, or a mix. Neutral holders often offer balanced performance, but specific operations may benefit from altered rake angles.
Workpiece Material
Different materials generate different cutting forces. When machining tougher materials, a robust, neutral holder that minimises deflection and vibration becomes critical to maintain tool life and surface finish.

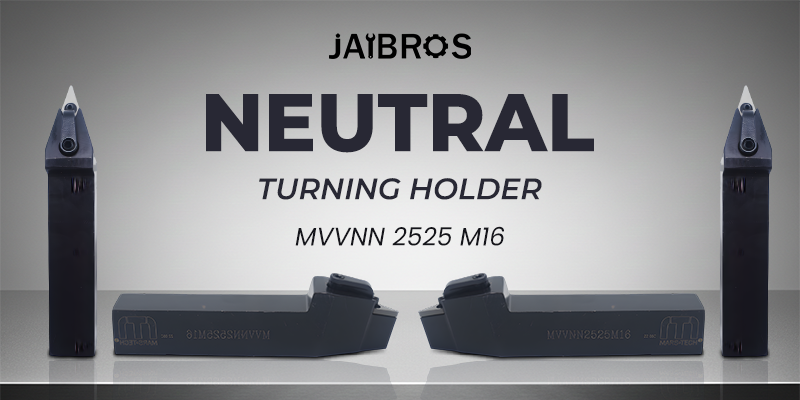

Real-World Example: MVVNN 2525 M16 Neutral Turning Holder
A specific example is the MVVNN 2525 M16 Neutral Turning Holder designed for VNMG inserts. This holder features a stable clamping system, a 25×25 mm shank, and support for common VNMG insert sizes like 1604 and 1608, making it suitable for diverse turning operations on CNC lathes.
Because this model holds the insert in a neutral orientation, it benefits from balanced cutting forces—especially useful in finishing passes where dimensional accuracy and surface quality are paramount. Its design also simplifies setup and reduces downtime during insert changes.
Maintenance Tips for Long-Term Performance
- Clean the seat area before installing inserts to prevent debris from affecting seating accuracy.
- Check clamping screws for wear and replace as needed.
- Maintain a consistent tightening torque to avoid overstress or underclamping, which can cause insert movement.
- Inspect holders regularly for wear that could affect tool performance.
Proper maintenance ensures that your tooling investment yields consistent results over its lifespan.
Applications Across Industries
The versatility of the vnmg tool holder makes it suitable for a wide range of CNC turning tasks:
- Automotive component machining: where consistency and tight tolerances are required.
- Aerospace parts: where surface finish and dimensional accuracy are critical.
- General engineering: for mixed materials and varied job types.
These holders offer the right balance of rigidity and adaptability, making them an invaluable part of modern CNC tooling systems.
FAQs
-
What is a VNMG tool holder used for?
A VNMG tool holder securely positions VNMG turning inserts on a CNC lathe, providing stability for turning and profiling operations. -
. What does a neutral tool holder mean in VNMG systems?
A neutral holder positions the insert without positive or negative rake bias, balancing cutting forces for stable performance. -
How does the vnmg tool holder angle affect machining?
Proper holder angles influence chip flow and cutting forces, reducing vibration and enhancing surface finish. -
Can VNMG holders be used for both roughing and finishing?
Yes, but holders with neutral angles are typically best for finishing and balanced loads, while directional holders may be better for aggressive operations. -
What factors should I consider when choosing a holder?
Consider machine compatibility, insert size support, cutting direction, and the type of operation you are performing
Conclusion
Selecting the right vnmg tool holder is more than choosing a clamping device—it’s about ensuring stability, precision, and long-term performance in CNC turning operations. Understanding elements like vnmg neutral tool holder angle, vnmg tool holder angle, and how they interact with insert geometry allows machinists to optimise tool life and surface finish.
With versatile designs and strong clamping systems, VNMG holders remain a popular choice for modern machining applications due to their ability to support stable cutting in a wide variety of materials and operations.
