Turnmax CNC Heavy Duty Revolving Model with Interchangeable (Extended Point)
Turnmax CNC Heavy Duty Revolving Model with Interchangeable (Extended Point) - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description

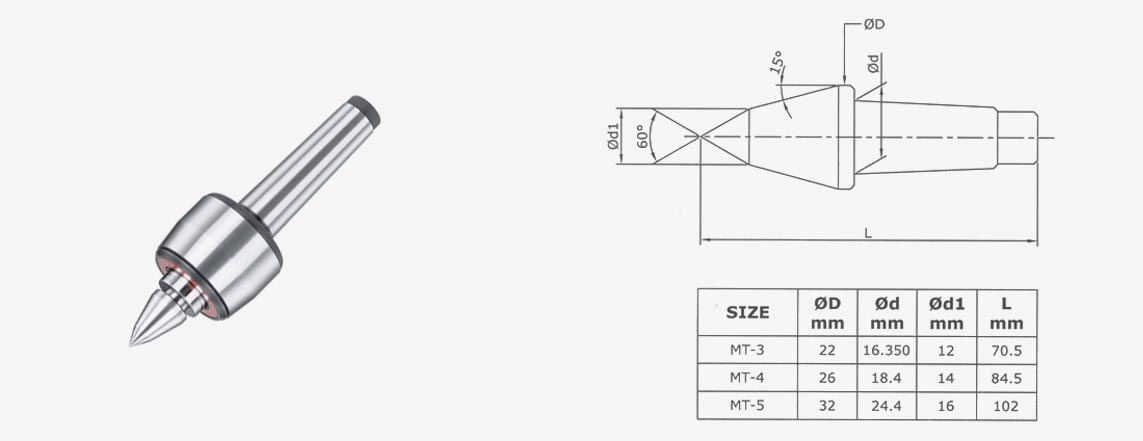

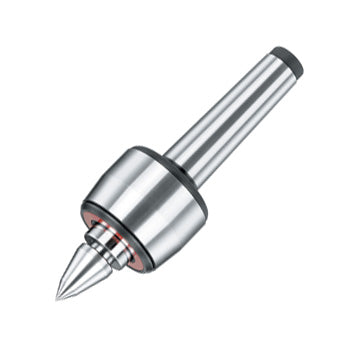

The Turnmax CNC Heavy Duty R-Model with Interchangeable Extended Point is a high-precision revolving center designed for CNC and high-speed turning applications, especially where deep reach and extended workpiece support are required. It combines heavy-duty construction with an interchangeable extended point system for enhanced flexibility and productivity.
This model is engineered with a long (extended) point design, allowing better access to deep center holes, long shafts, and difficult-to-reach machining areas. The interchangeable point system enables quick replacement, reducing downtime and ensuring continuous production efficiency.
Built with high-quality bearings and precision components, it ensures smooth rotation, high accuracy, and long service life even under high-speed and heavy-load conditions.
Key Features
- Interchangeable Extended Point System
- Allows easy replacement of points, improving flexibility and reducing maintenance time.
- Extended Point Geometry
- Ideal for long and deep workpieces where standard or stub points are not suitable.
- Heavy Duty Construction
- Designed to withstand high axial and radial loads during demanding CNC operations.
- High-Speed Capability
- Suitable for high RPM applications with stable and vibration-free performance.
- Precision Bearings
- Fitted with premium German/Japanese bearings for smooth and reliable rotation.
- Lifetime Lubrication
- Pre-lubricated with high-grade grease (e.g., Klüber Isoflex NBU-15) for maintenance-free operation.
- High Accuracy
- Concentricity accuracy up to 0.01–0.015 mm, ensuring precise machining results.

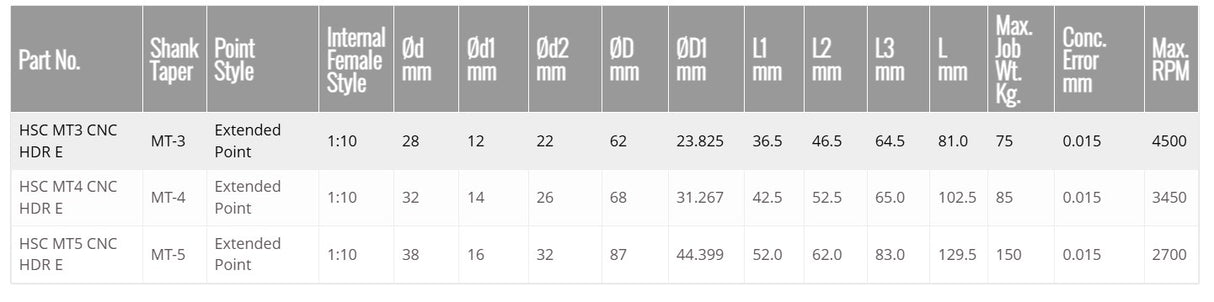

Technical Highlights

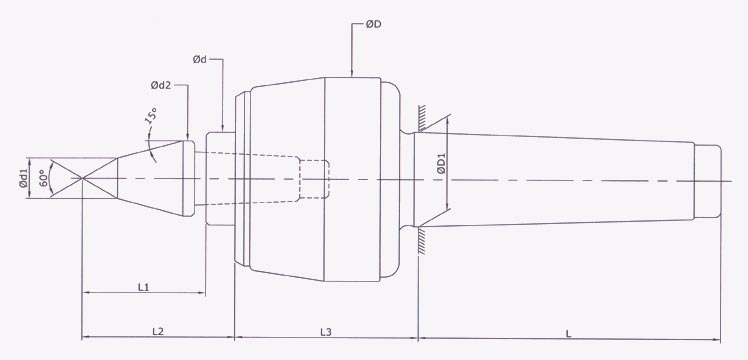

- Point Type: Extended Point (Interchangeable)
- Internal Taper: 1:10 for secure and precise point fitting
- Max RPM Range:
- MT3 → ~4500–5000 RPM
- MT4 → ~3450–3800 RPM
- MT5 → ~2700–3000 RPM

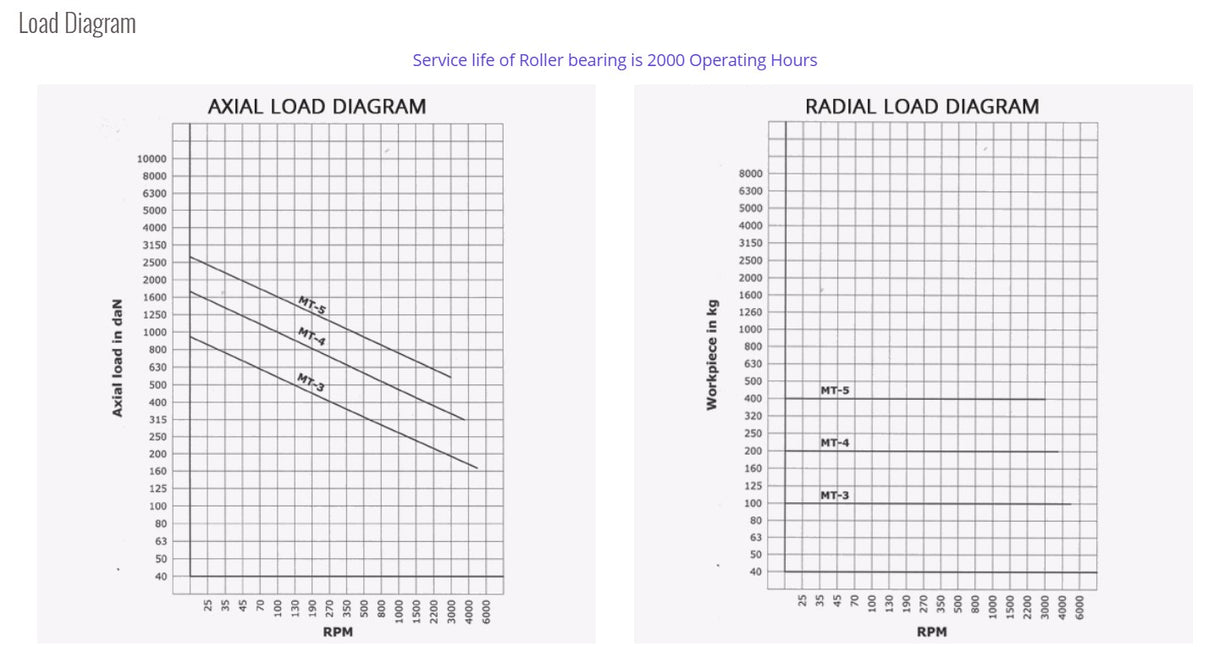

- Load Capacity: Approx. 75 kg to 400 kg (depending on taper size)
- Bearing Life: Approx. 2000 working hours under normal conditions
Applications
- Long shaft and bar turning
- Deep center hole machining
- CNC high-speed production work
- Automotive and precision engineering industries
- Jobs requiring extended reach and clearance
