Description
Description

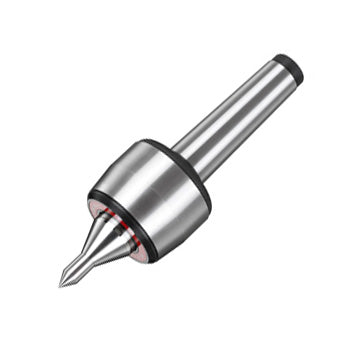

Turnmax High Speed CNC Revolving Centers (Profiled Point Type) are specially designed live centers featuring a custom-shaped (profiled) point for supporting non-standard, contoured, or special workpieces. These centers are ideal for CNC turning operations requiring precise support on irregular profiles while maintaining high speed and accuracy.
They are part of the CNC HD-R series, engineered for high RPM, heavy load capacity, and continuous industrial use.
Key Features:
- Profiled Point Design: Specially shaped tip for supporting contoured or non-standard components
- High Speed Capability: Operates efficiently at very high RPM under heavy loads
- Precision Bearings: Uses high-quality German/Japanese bearings for smooth rotation
- Lifetime Lubrication: Pre-lubricated with Klüber grease for maintenance-free operation
- Low Run-Out Accuracy: Concentricity accuracy up to approx. 0.008 mm
- Hardened & Ground Body: Ensures durability and long service life
- Custom Profile Options: Available in different profiles as per job requirement
Available Models & Variants:
- Heavy Duty CNC HD-R Profiled Point Models – For high load & continuous production
- Medium Duty Slimline Profiled Point Models – Compact design for lighter applications

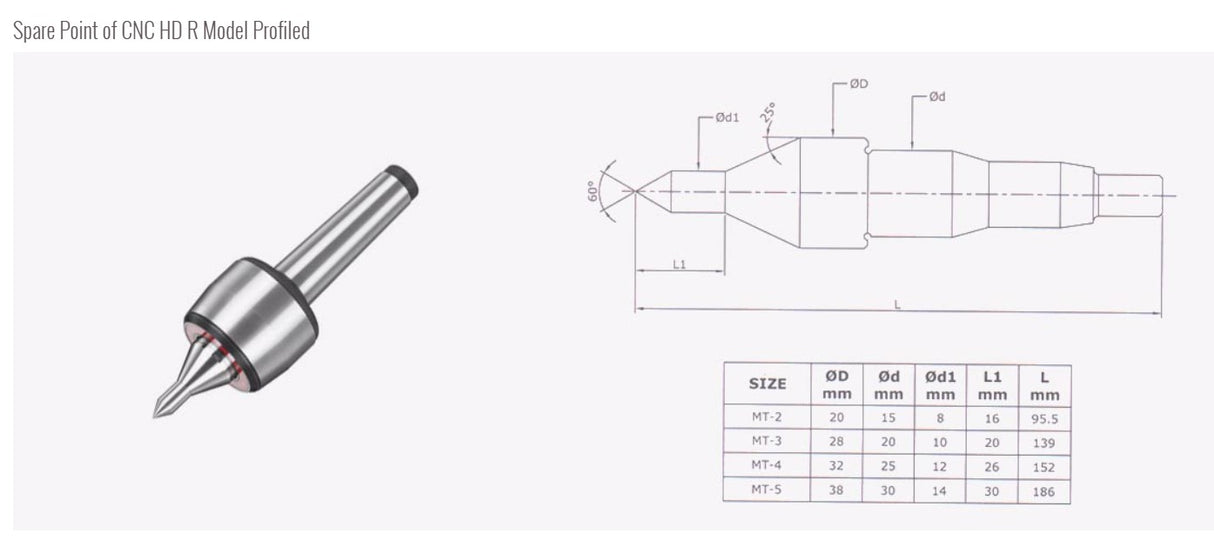

- Interchangeable Profiled Point – Replaceable custom tip system
- Carbide Tipped Profiled Point – Extended tool life and wear resistance
Applications:
- CNC turning of irregular or contoured components
- Automotive and precision engineering industries
- Supporting components with special shapes or profiles
- Mass production with customized job holding requirements
- High-speed machining environments
