Description
Description

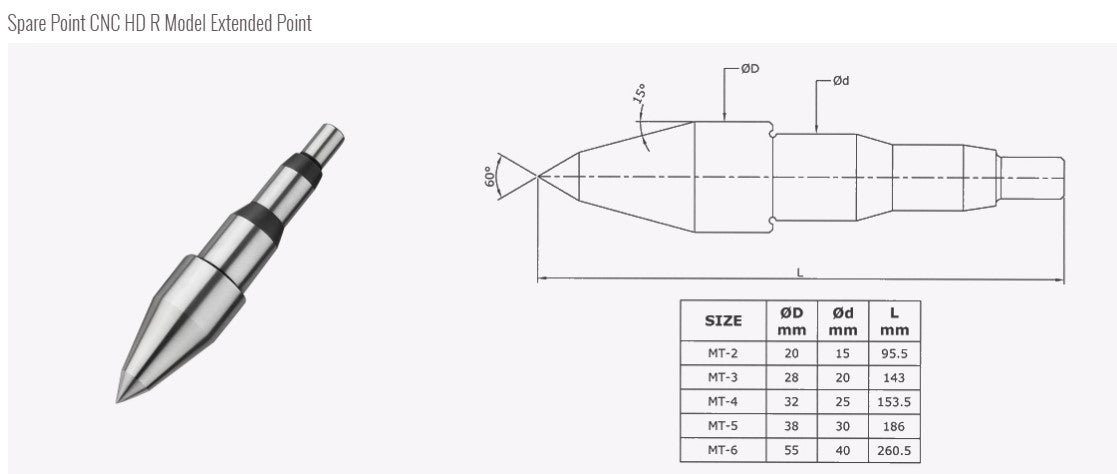

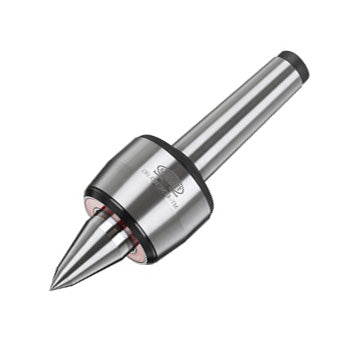

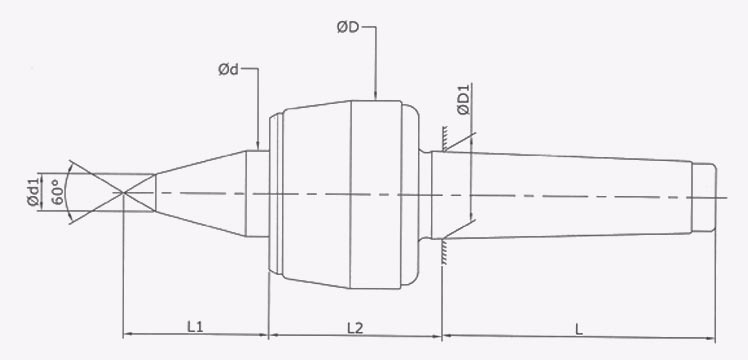

Turnmax High Speed CNC Revolving Centers (Extended Point Type) are precision-engineered live centers designed for high-speed CNC turning applications where extended reach and accessibility are required. The extended point allows machining of deep, recessed, or hard-to-reach work areas while maintaining excellent accuracy and stability.
These centers are part of the CNC HD-R series, suitable for heavy-duty, high RPM, and continuous production environments.
Key Features:
- Extended Point Design: Provides longer reach for deep or recessed machining operations
- High Speed Capability: Designed to withstand very high RPM under heavy loads
- Heavy Duty Performance: Suitable for CNC and high-speed turning centers
- Precision Bearings: Equipped with German/Japanese bearings for smooth and vibration-free rotation
- Lifetime Lubrication: Pre-lubricated with high-performance Klüber grease for maintenance-free operation
Low Run-Out Accuracy: Concentricity accuracy up to approx. 0.008 mm
Hardened & Ground Body: Ensures long service life and wear resistance
Available Variants:
- Extended Plain Point (60°) – General purpose turning
- Extended Carbide Tipped Point – Longer life & wear resistance
- Interchangeable Extended Point – Replaceable tip system
- Extended Point with Draw-off Nut – Easy removal from tailstock
- Slimline Extended Point Models – For compact CNC machines

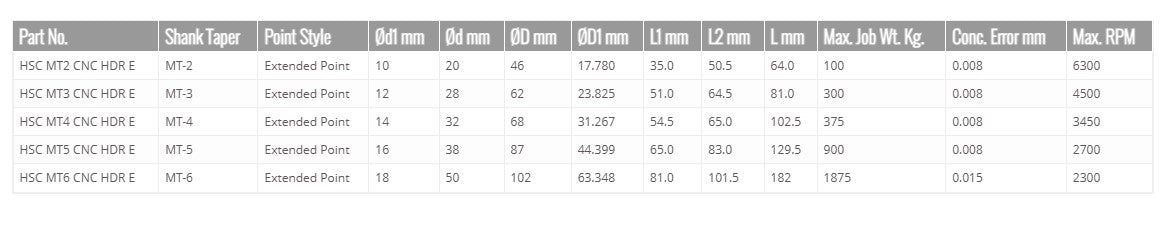

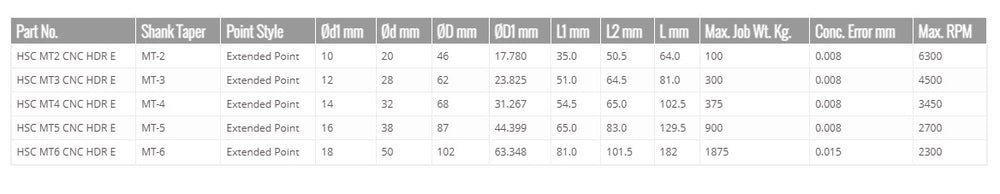

Technical Highlights (Typical):
- Morse Taper Range: MT-3 to MT-6
- Max RPM: Up to approx. 4500 RPM (MT-3)

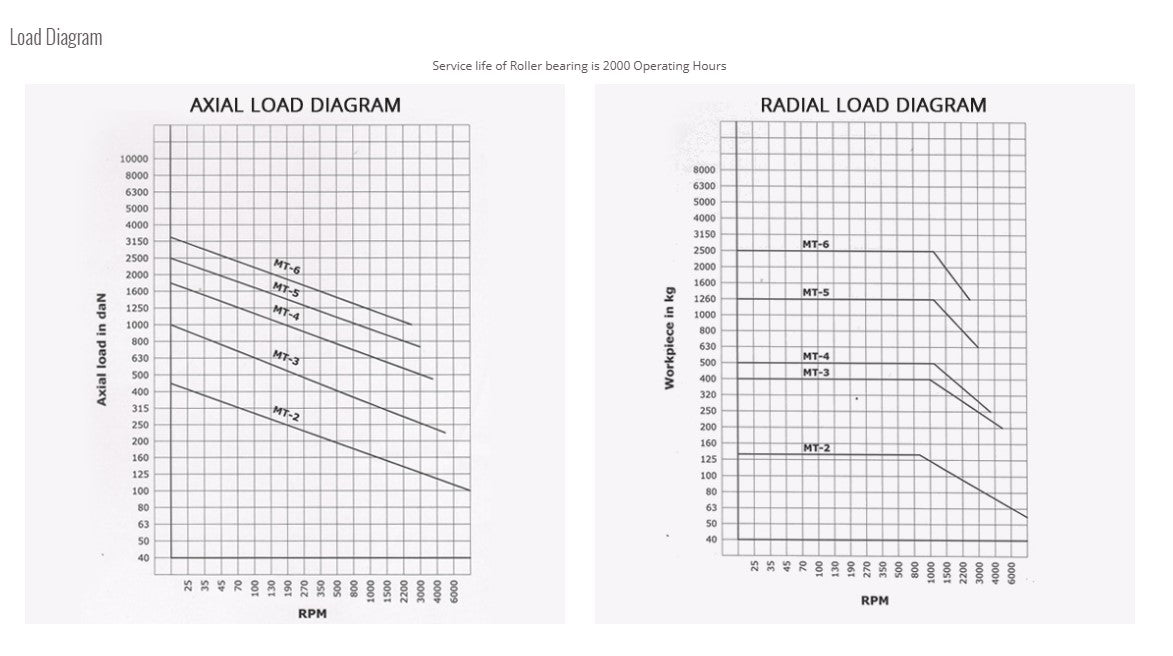

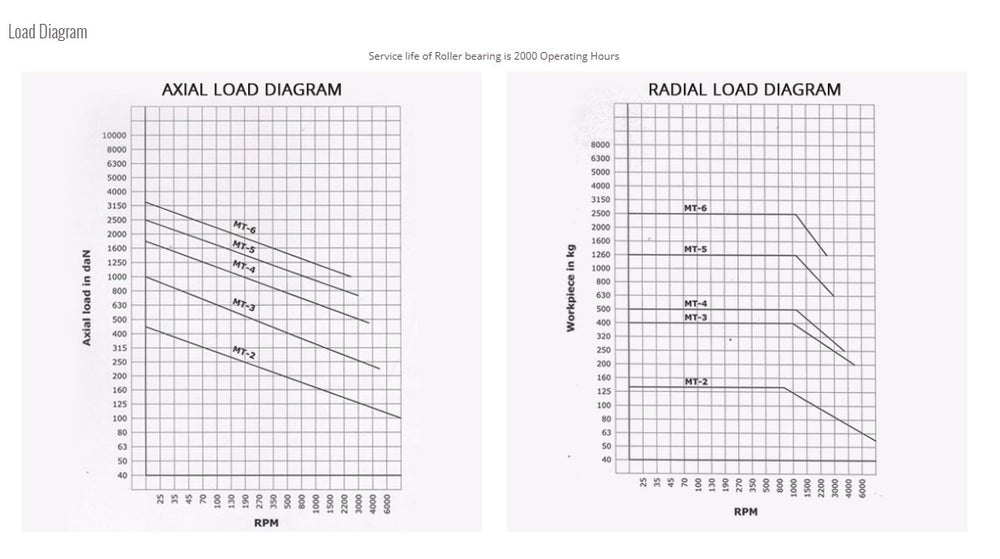

- Load Capacity: Up to 900 kg (MT-6 models)
- Bearing Life: Approx. 2000 operating hours
Applications:
- CNC turning centers (high-speed operations)
- Deep hole and long shaft machining
- Automotive and precision component manufacturing
- Pipe, hollow, and recessed job machining
- Continuous production environments
