Description
Description

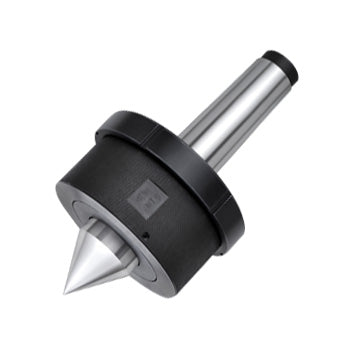

The Turnmax Jumbo Heavy Duty Revolving Center is specially engineered for extreme load applications in slow-speed conventional lathes. It is one of the most powerful models in the slow-speed range, designed to handle very large, heavy, and high-inertia jobs with maximum rigidity and stability.
The Jumbo Heavy Duty revolving center features a massive body construction and oversized bearing system, making it ideal for supporting extra-large workpieces. Its compact yet highly rigid design ensures smooth rotation and reliable performance under very high load conditions.
This model is widely used in heavy industries where maximum load capacity and durability are critical.
Key Features
- Jumbo Heavy Duty Construction
- Extra-large and stronger than Super Extra Heavy Duty models, ensuring superior strength for extreme applications.
- Very High Load Capacity
- Designed to handle jobs up to 6500 kg, depending on taper size.
- Oversized Bearing System
- Heavy-duty bearings provide smooth rotation and excellent load distribution even under extreme pressure.
- Compact Heavy Design
- “Jumbo Compact” structure allows high load handling with optimized size and better machine compatibility.
- High Rigidity & Stability
- Minimizes vibration and deflection, ensuring accurate machining of large components.
- Precision Accuracy
- Maintains runout accuracy up to 0.015 mm for reliable performance.
- Multiple Taper Options
- Available in MT5, MT6, suitable for large conventional lathes.

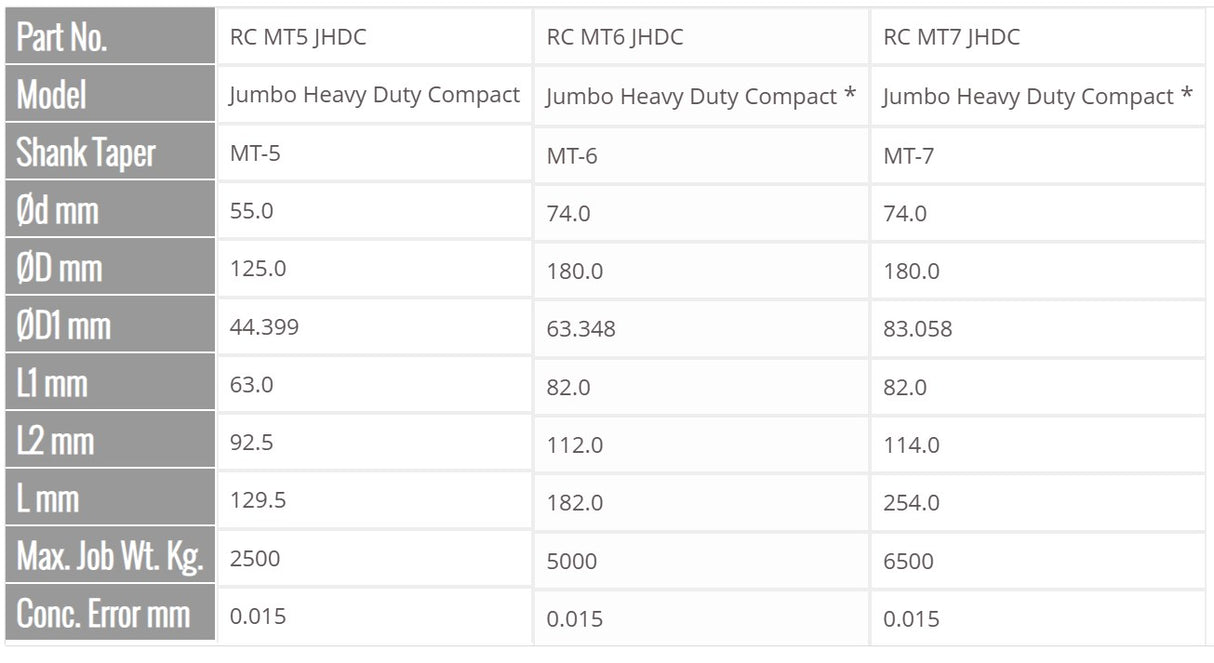

Technical Highlights
- Application: Conventional / Slow Speed Lathe Machines
- Model Type: Jumbo Heavy Duty / Jumbo Compact
- Runout Accuracy: ~0.015 mm
- Maximum Load Capacity:
- MT5 → ~2500 kg
- MT6 → ~5000 kg
Construction: Oversized body with reinforced structure
Applications
- Large shaft and rotor machining
- Heavy fabrication industries
- Steel plants and shipbuilding
- Repair of oversized components
- Low-speed, high-load turning operations
