Turnmax High Speed Cnc Revolving Centers Stub Point
Turnmax High Speed Cnc Revolving Centers Stub Point - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description

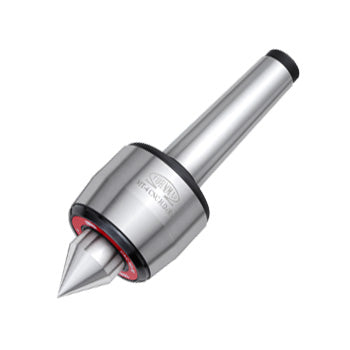

Turnmax High Speed CNC Revolving Centers (Stub Point Type) are specially designed live centers for high-speed CNC turning operations where short projection and maximum rigidity are required. The stub point design provides enhanced stability, reduced deflection, and improved machining accuracy, especially for heavy-duty and high RPM applications.
These centers are part of Turnmax’s CNC HD-R series, built to withstand high loads and continuous production environments
Key Features:
- Stub Point Design: Short and rigid point minimizes vibration and deflection
- High Speed Performance: Suitable for high RPM CNC turning operations
- Heavy Load Capacity: Designed for handling large and heavy workpieces
- Precision Bearings: Uses German/Japanese angular contact bearings for smooth rotation
- Lifetime Lubrication: Pre-lubricated with high-performance grease (Kluber Germany)
- Low Run-Out Accuracy: Ensures excellent concentricity and fine surface finish
- Hardened & Ground Construction: Long service life and wear resistance

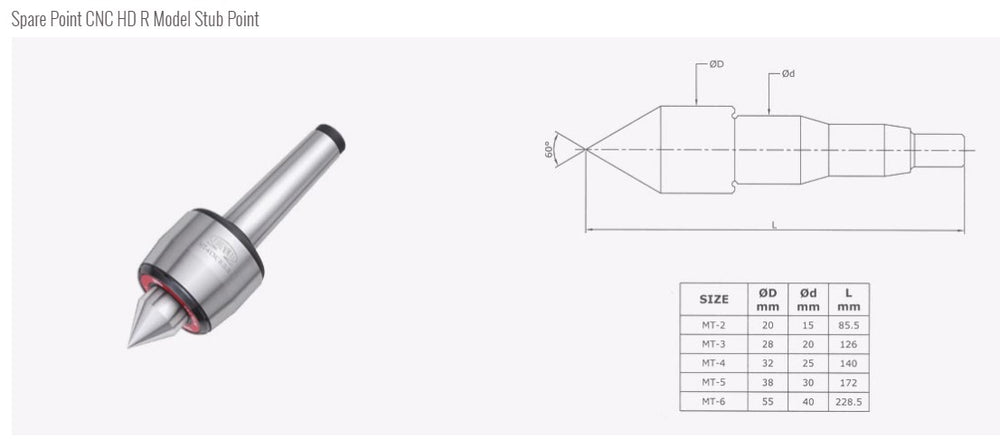

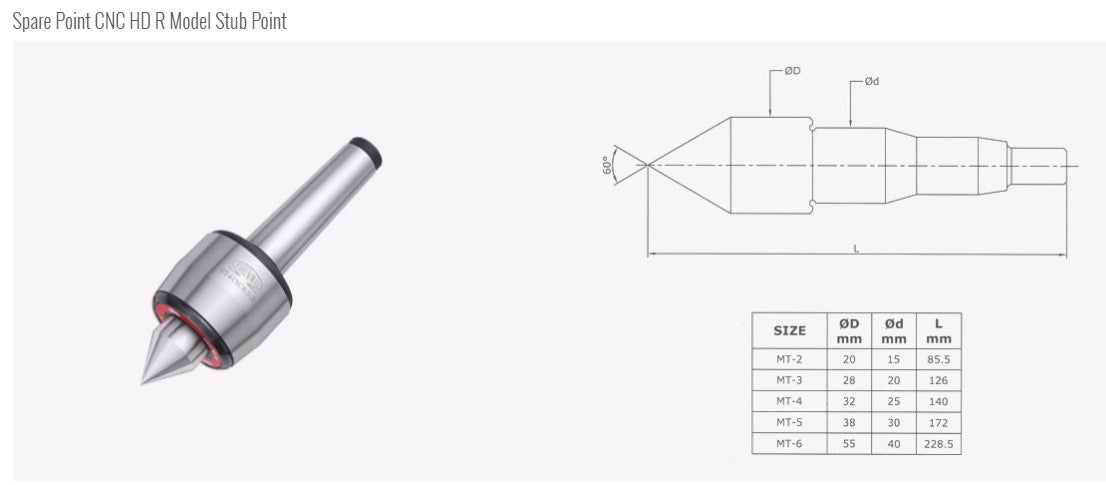

Types of Stub Point Models:
- Standard Stub Point (Plain Tip) – General high-speed CNC turning
- Carbide Tipped Stub Point – Enhanced wear resistance for long life
- Interchangeable Stub Point – Flexible usage with replaceable tips
- Female Stub Point – For hollow jobs and pipe applications
- 90° Stub Point – For special machining requirements
Turnmax also offers stub point variants with draw-off nut and special configurations for customized applications.
Applications:
- High-speed CNC turning centers
- Heavy-duty shaft machining
- Short-length workpieces requiring high rigidity
- Automotive and precision component manufacturing
- Mass production with tight tolerances
