Description
Description
ACCEPT ONLY PREPAID ORDERS

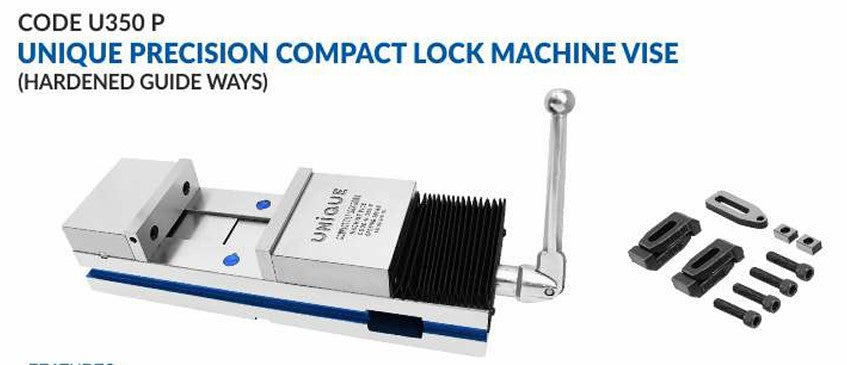

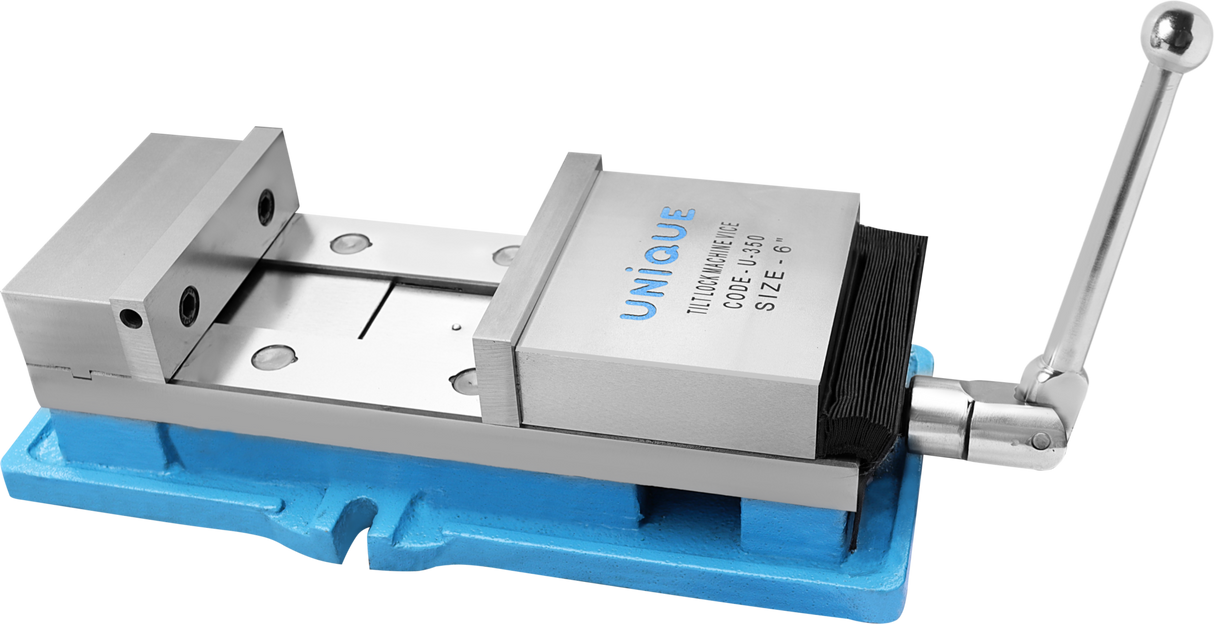

The UNIQUE U-350P Precision Compact Lock Machine Vise is a compact, high-accuracy workholding solution designed for CNC machining, milling, drilling, and tool room applications. It features a compact lock (tilt-lock / down-thrust) mechanism that ensures firm downward pressure on the workpiece, eliminating lift and improving machining accuracy.
Its hardened and ground guide ways, along with a rigid ductile iron body, provide excellent durability, smooth operation, and long service life even under continuous industrial use.
Key Features :
- Compact Lock / Tilt-Lock Design: Prevents workpiece lifting and ensures downward clamping
- Hardened Guide Ways: Precision ground for smooth sliding and long-term accuracy
- High Clamping Force: Achieved with effortless handle movement (no hammering required)
- Ductile Iron Body: High rigidity and vibration resistance for stable machining
- Sealed Bearing System: Reduces friction and increases component life

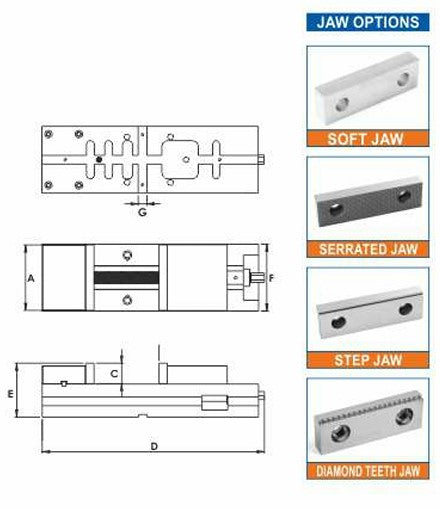

- Hardened Alloy Steel Jaws: Maintain accuracy over extended use
- No Workpiece Tilt: Ensures stable and accurate clamping
- Flexible Mounting: Can be mounted vertically or horizontally
- Interchangeable Parts: Easy maintenance and servicing
- Tenon & Slot Arrangement: Enables quick and precise alignment on machine table
- Production Stopper Included: Ideal for repetitive batch production

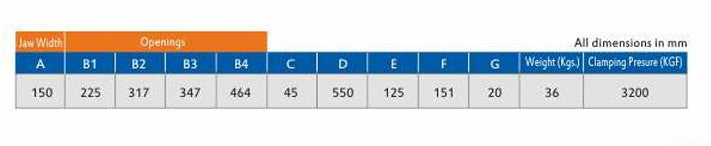

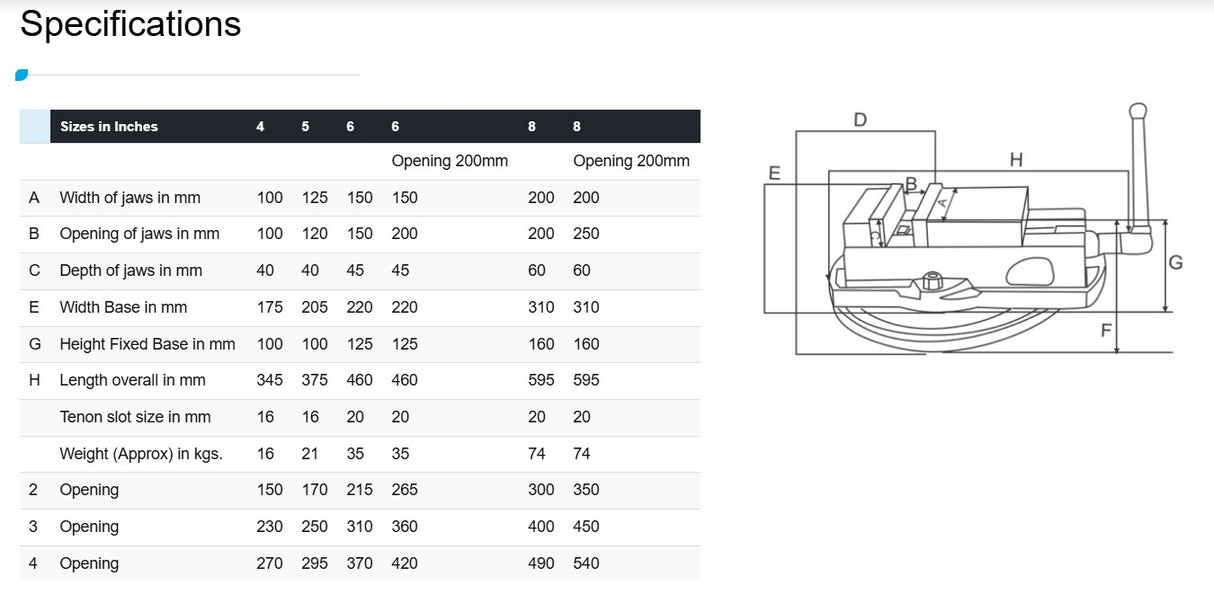

Technical Specifications (Typical – 6” Model)
Parameter : Value
Model : U-350P
Jaw Width :150 mm
Jaw Opening (Standard) 200 mm

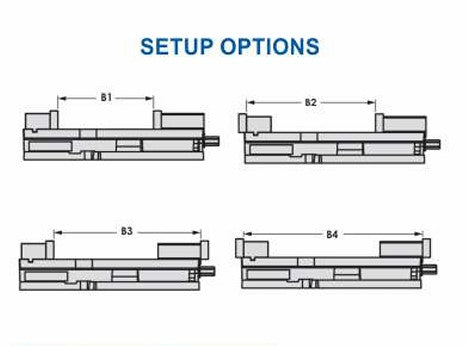

Jaw Opening (Reversed) Up to 430 mm
Jaw Depth : 45 mm
Overall Length : 515 mm
Height: 125 mm
Weight Approx. 35 kg
Tenon Slot Size 20 mm
Accuracy : 0.02 mm / 100 mm
