Enhance Your Welding Accuracy with a Weld Fillet Gauge

Whether you are engaging in metal fabrication or welding, the difference between a good-grade weld and a bad-grade weld comes down to precision. All welders, no matter their expertise, need consistency and reliability in order to check weld size and specifications. One of those reliable tools is a weld fillet gauge—a small but robust tool that will provide accuracy and consistency in welding applications.

This informational guide will focus on how a fillet gauge can help you improve your welding precision, the various types of fillet gauges, and the importance of professionals using a gauge as an inspection tool.

What is a weld fillet gauge?

A fillet gauge is a tool for measuring the size of a fillet weld. Fillet welds can be identified simply—they are welded joints where the two metals being connected are welded together at a right angle by a bead of weld material. The fillet gauge is used to measure the leg length and throat thickness. While it is a simple measuring tool, it serves an important function to manufacturers, builders, and fabricators.

A fillet weld gauge enables the welder to quickly establish whether the size of the welds is undersized or oversized. Undersized fillet welds can hurt the overall joint load resistance capacity, while oversized welds can reduce the attractiveness of the joint. The fillet gauge will help you achieve the design requirements and specifications for safety.

The Significance of a Weld Fillet Gauge for Welding to Specification

Quality welding is based upon precision. A small difference in the size of the weld can lead to a structural capability that is compromised, if not reworked, and possibly, in the worst-case scenario, to failure, and can be an additional cost. The fillet gauge is the easiest and most efficient way to confirm weld dimensions before, during, and after the welding occurs.

So, why should you have one?

• Accuracy: It allows the welder to accurately measure the leg length and the throat thickness.

• Consistency: It ensures that the welds in the project will be consistent with the project specifications.

• Quality Control: It is used during the inspection process to verify that the weld is of acceptable quality

• Efficiency: It saves time and reduces the risk of error. It can provide readings almost instantly.

Fillet gauges will be the best method to achieve consistent results while reducing rework on all of the welded assembly completion, and to create a quality finished product.

Types of Weld Fillet Gauges

All fillet gauges serve the same purpose, but their designs differ based on the application. Below are a couple of types that are common and widely used by welders and inspectors.

1. Adjustable Weld Fillet Gauge

The Adjustable Fillet Gauge helps simplify the measurement of different sizes of fillet welds with only one gauge. This works well in situations where more than one size of weld is likely. The adjustable arm allows the user to set the measurement required quickly and accurately for measurements that can be repeated.

The Adjustable Fillet Gauge also eliminates the need for more than one gauge to carry, making it a handy option for people who work on multiple types of projects. With repeatability, it is the perfect choice while using a gauge on a job or in the shop.

2. Long Weld Fillet Gauge

If you're measuring a big weld or have to reach into tight areas, a long fillet gauge could be very helpful. This type of gauge has a long body, allowing the gauge to read deep welds or difficult-to-reach weld joints. Long fillet gauges are great for verifying that every inch of the weld checks out with the design requirement, even if difficult to get to.

The long fillet gauge is commonly used in heavy fabrication work, shipbuilding, and industrial structures where weld size needs to be verified.

Benefits of a Fillet Gauge Set

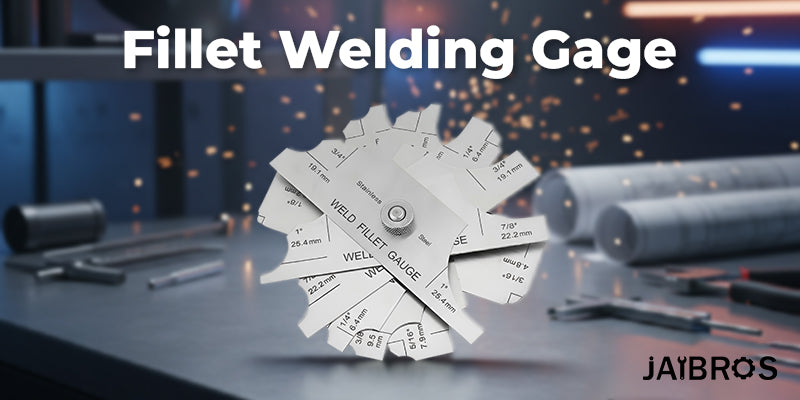

If you work on various welding projects, a fillet gauge set is a worthwhile investment. A full set includes several gauge sizes and shapes, allowing you to quickly and easily measure the welding shapes.

Not only does a fillet gauge set save time, but it also lets you rest easy, knowing you have the right gauge for every job to get done properly. Whether doing a small repair or inspecting a large industrial build, having a full set allows for flexibility and increased accuracy and reliability.

How to Use a Weld Fillet the Right Way

Using a fillet gauge is simple, but using the correct method will allow you to be consistent:

• Clean the Weld Area: Be sure that you remove any slag, spatter, or debris before measuring.

• Position the Gauge: Be sure that the gauge is perpendicular to the weld joint.

• Align the Legs: Make sure the legs are aligned with the legs of the weld being checked.

• Check the throat size: Measure the throat size by using the inner scale of the gauge.

• Record readings: Record the reading to continue quality control records.

By following these steps, the welder is able to quickly check each joint, as well as verify compliance with quality criteria.

How to Maintain Your Weld Fillet Gauge

A welder’s fillet weld gauge can last longer and give you more accurate measurements if the gauge is properly maintained. Here are the most practical suggestions:

•  Upon finishing the job, make sure to clean up the gauge and dry it.

• Make sure to store the gauge in a protective casing so that it will not incur damage.

• When using the gauge in the shop, it is important to check for possible incorrect measurement against the calibration gauge every so often.

• Avoid extreme temperatures and corrosive materials.

If you take care of your fillet weld gauge, it will last longer and give you an accurate measurement.

FAQs (Frequently Asked Questions)

1. Why is a weld fillet useful in welding?

A fillet gauge is useful in ensuring that every weld is fit, sound, and meets specifications.

2. Can a beginner use a weld fillet gauge easily?

Fillet gauges are easy to use and perfect for beginners and professionals alike.

3. What materials are fillet gauges made from?

Most fillet gauges are made from durable stainless steel to ensure accuracy and long life.

4. How often do you suggest checking your welds with a gauge?

You should check every weld with a gauge during and after the weld to ensure quality and consistency.

5. How do I choose the right fillet gauge for my work?

Select based on your weld type—adjustable, long, or set gauges suit different applications.

Conclusion

Enhancing the quality of a weld begins with the right tools. The weld fillet gauge is essential in evaluating if a weld has the required strength and safety. Whether you have an adjustable fillet gauge, a long gauge, or a complete gauge set, the measuring capacity of your tool assures the best quality workmanship.
