Understanding Indexable Cutters and Carbide Cutters in CNC Machining

In modern machining, choosing the right cutting tool directly affects productivity, cost, and surface finish. Two of the most commonly used options are indexable cutters and solid carbide cutters. While both are widely used in CNC and conventional machining, their designs, operating principles, and applications differ significantly. Understanding these differences helps machinists and manufacturers select the right solution for specific operations.

Understanding Cutting Tool Basics

Cutting tools are designed to remove material efficiently while maintaining dimensional accuracy. Tool selection depends on factors such as material type, cutting speed, depth of cut, and production volume.

An Indexable tool uses replaceable inserts mounted on a tool body, whereas a solid carbide cutter is made entirely from carbide. Each has its own strengths depending on the machining requirement.

What Is an Indexable Tool?

An Indexable tool is a cutting tool that uses removable inserts instead of a fixed cutting edge. When the cutting edge wears out, the insert can be rotated or replaced without changing the entire tool.

Key Characteristics

• Replaceable cutting inserts

• Multiple cutting edges per insert

• Lower long-term tooling cost

• Ideal for heavy and repeated cutting operations

This design is especially beneficial in production environments where downtime and tool change time must be minimised.

What Are Solid Carbide Cutters?

Solid carbide cutters are made from a single piece of carbide material. These tools offer excellent rigidity, sharp cutting edges, and high accuracy.

Key Characteristics

• One-piece construction

• High precision and surface finish

• Suitable for high-speed machining

• Limited reusability once worn.

These cutters are commonly used for acceptable tolerances and detailed machining.

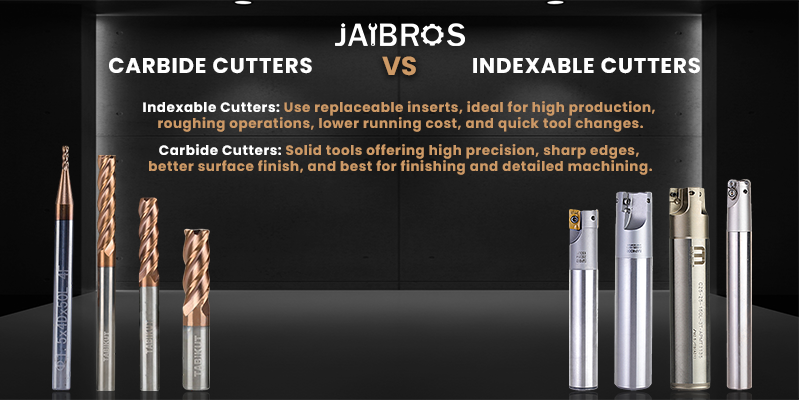

Indexable Cutters vs Carbide Cutters: Key Differences

1. Design and Construction

An indexable cutting system consists of a tool holder and inserts, whereas carbide cutters are a single, solid tool. This makes indexable systems more flexible for edge replacement.

2. Cost Efficiency

Indexable cutting tools are generally more cost-effective for long production runs. Only inserts are replaced, not the complete tool. Solid carbide cutters have higher replacement costs when worn.

3. Machining Applications

An Indexable tool performs well in roughing, facing, and heavy material removal. Carbide cutters are better suited for finishing, contouring, and precision work.

4. Tool Life and Maintenance

Indexable inserts can be indexed to use multiple edges, extending usable life. Carbide cutters require regrinding or replacement once worn.

Role of Indexable Milling Cutter in CNC Machining

An indexable milling cutter is widely used for face and shoulder milling. These cutters handle higher cutting forces and deliver consistent performance over extended machining cycles.

In real-world CNC shops, operators prefer indexable milling cutters for steel and cast iron machining because inserts can be quickly replaced, reducing machine idle time.

Applications of Indexable Cutting Tools

Indexable cutting tools are commonly used in:

• Heavy rough milling

• High-volume production lines

• Automotive and general engineering

• Large component machining

An Indexable tool provides flexibility in insert grades and geometries, making it adaptable to different materials and cutting conditions.

Where Carbide Cutters Perform Better

Solid carbide cutters are preferred for:

• High-speed machining

• Precision slots and profiles

• Mould and die work

• Aluminium and non-ferrous materials

Their rigidity and sharp edges result in superior surface finish and dimensional accuracy.

Indexable End Mill Cutter vs Solid End Mill

An indexable end mill cutter is ideal for large-diameter milling and aggressive cuts. It reduces tooling costs by enabling insert replacement. Solid carbide end mills, on the other hand, are better for small diameters and complex shapes.

Choosing between them depends on:

• Required surface finish

• Depth of cut

• Material hardness

• Production volume

How to Choose the Right Tool for Your Application

When selecting between indexable and carbide options, consider:

• Material being machined

• Machine power and rigidity

• Tool change frequency

• Cost per component

Experienced machinists often use both types in the same setup—indexable tools for roughing and carbide cutters for finishing.

Benefits of Using Indexable Tools in Production

• Reduced tooling cost over time

• Faster tool change and less downtime

• Consistent cutting performance

• Wide insert selection for different materials

These advantages make indexable systems a practical choice in industrial-scale machining.

Conclusion

Both indexable cutters and solid carbide cutters play essential roles in modern machining. An Indexable tool is highly efficient for heavy-duty, high-volume applications, delivering cost savings and operational flexibility. Solid carbide cutters excel in precision and finishing tasks where accuracy is critical. Understanding their differences allows manufacturers to optimise machining performance, tool life, and overall productivity.

FAQs

1. What is the main advantage of indexable tools?
They allow insert replacement rather than replacing the entire tool, reducing cost and downtime.

2. Are indexable tools suitable for precision machining?
They are best for roughing and medium-precision work; finishing often uses solid carbide tools.

3. When should I use solid carbide cutters?
They are ideal for high-speed, high-precision, and detailed machining operations.

4. Are indexable cutting tools expensive?
The initial cost may be higher, but the long-term cost is lower due to reusable inserts.

5. Can both tools be used in the same machining process?
Yes, indexable tools are often used for roughing and carbide cutters for finishing.
