Types of Endmills: How to Select the Right One for Your Machining Needs

For metalworking, presentation, efficiency, and tool life are all critically influenced by the cutting tool you choose. Oftentimes, the end of the tool that makes the most significant impact is the lowly but highly engineered end mill. Whether you're cutting aluminum, steel, or tougher alloys, knowing the differences in endmills will allow you to pair tool geometries with applications. In this article, we will introduce and review the types of endmills and how they differ, along with their best applications.

What is an end mill?

An endmill is a category of cutter commonly used in milling machines or CNC machining centers. Many people call the overall tool an "endmill," but there can be many variations (ie, flute counts, coatings, shapes, and uses). Therefore, we will use the term "endmill" (as the primary keyword) and go on to sort through the differences of many of the common endmill variants: the 2-flute endmill, 3-flute endmill (also known as the 3-flute endmill), 4-flute endmill, etc.

Types of Mills Explained

Prior to examining each of the flute types, it is important to note that endmills are a variety of configurations based on flute count, material, coating, and geometry. Flute count determines chip evacuation, cutting speed, and surface finish.

In general, end mills can be separated into three key categories based on flute count:

• 2 flute end mill – designed for better chip removal

• 3-flute end mill (or end mill 3-flute)—balanced speed and chip clearance

• 4 flute endmill – suitable for finishing applications and harder materials

Each option holds specific values depending on the application you are using it for in metalworking, and knowing the difference can help you decide on which tool to use when machining parts.

Key Differences Between Various Endmills

The primary disparity among different endmills is the number of flutes and the material they are meant to cut. Endmills with fewer flutes provide more room for chip removal, which is preferred in softer materials, such as aluminum. End mills with a greater number of flutes deliver a finer surface finish and work better on harder materials.

For example, a 2-flute end mill will evacuate the chips better, while a 4-flute end mill can give a more refined finish. A 3-flute end mill is in the middle, providing the best of both sides, with 2-flute evacuation capabilities and 4-flute surface finish. Flute variation is responsible for how well the tool cuts, the life of the tool, and the finish you'll have on your workpiece.

2-Flute Endmills: When Less is More

If you're working with softer materials like aluminum or plastics or performing slotting operations where chip removal is a factor, a 2-flute end mill is likely to be the tool for you. A two-flute end mill gives you additional space for chips to escape due to its increased space in between cutting edges and to reduce clogging during higher feed rates. The geometry is typically more open, which helps push the material through faster.

Best uses:

Aluminium, brass, and softer, copper-alloy metals

Plunge cuts and slot cuts, where chip removal is an issue

Full slotting operations, where fewer flutes are an advantage

Key benefits:

Effective chip removal with the wide flute spacing

Less chip and friction issues than with softer materials

Often, lower tooling costs

Trade-offs:

With only 2 flutes, you have less cutting-edge mass, so you may get tool wear faster in harder materials or larger loads

Surface finish may not be as fine as with more flutes in some milling operations and a weak core, as 2 flutes have higher space in helix angle, so core strength is more likely to break in an accident.

3-Flute End Mill: A Versatile Companion for Mixed Use

The 3-flute end mill, also known as the end mill 3-flute, is a balance between the number of edges and the need for chip clearance. These kinds of options are used for general-purpose milling and are deemed a good compromise for chip evacuation and efficiency in a variety of materials.

Best Uses:

- General milling of steel and cast materials

- Mixed operations that require slotting and side-milling

- Whenever a good compromise of an open geometry of two flutes is needed and efficiency is needed for more than 2 flutes

Benefits:

- Surface finish can be better than that of a 2-flute in many situations

- Chip clearance is decent compared to high-flute tools

- Versatile range of materials

Downsides:

- Not efficient as a finishing tool vs a high flute-count tool

- You may need a stronger tool body if you are using the tool aggressively in tougher materials.

4-Flute End Mills: Productivity and Finish

When surface finish and productivity are the end goals, a four-flute end mill is best suited for either application. By engaging more cutting edges per revolution, higher material removal rates can be achieved at a finer finish, depending on the machine, workpiece, and setup.

Best applications:

Harder steels, stainless, and high-alloy materials, where more edges contribute to the finish

Finishing passes and semi-finishing where finish quality is critical

High feed operations, where machine rigidity and spindle power permit the use of more edge-counting tools.

Key benefits:

Higher productivity due to more edges engaged

Very good surface finish potential

Good for heavier side-milling operations.

Trade-offs:

Less clearance of chips with more flutes => risk of packing chips in deep slots or softer materials

Requires a more robust machine setup (Spindle, rigidity, holder)

Coating strength and tool body construction will become more important.

How to Choose the Right Endmill

Considering the decision of whether to use a 2-flute end mill, a 3-flute end mill, or a 4-flute end mill requires considering these items.

• Material being machined—cutting softer materials favors fewer flutes for chip clearance, while cutting harder materials behaves better with a higher flute count.

• Operation type—slotting, profile milling, and finishing all have different geometry requirements. Fewer flutes for slotting, more flutes for finishing.

• Capabilities of the machine—down to spindle power, rigidity, tool holder setup and the allowed coolant will all impact which tool you can efficiently and safely use.

• Chip evacuation and toolholder—If you are deep pocketing or deep slotting, then your tool geometry and flute count must allow for proper chip clearing to avoid recutting of chips.

Example of Real-World Application

If you are machining a block of soft aluminum and need a deep or slot, tooling, a 2-flute end mill is a strong option. If you are machining steel and need to do both a rough and a finished profile, a 3-flute end mill is easier to work with. Once moving to stainless steel and needing a good finish of 20 µm, a 4-flute end mill is the way to go—as long as your machine can handle that cutter load and depth of cut.

Why Tool Offering is Important: Practical Example

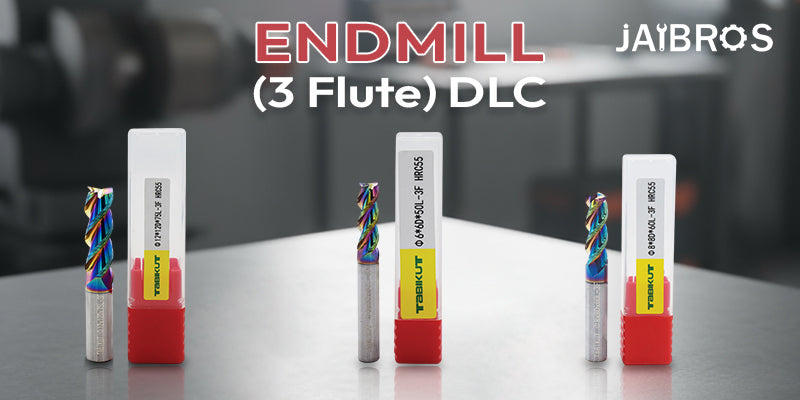

When you go to a tool supplier, you always want options of the right tools: for instance, the website Jaibros, as an example, shows a full offering of 3 flute endmills (such as an "Endmill (3 Flute) DLC") that gives you layouts of what these can be stocked as a diameter and length example. Jaibros, it is a good point to be able to find the right flute count, coating, diameter, and length needed for the actual job.

FAQs

Q1. Can you describe what an end mill is and how it functions in the metalworking process?

An end mill is a precise tool that is used in a milling machine or CNC system to cut material from a part to make ultra-precise shapes. End mills are utilized for slotting, profiling, and contouring metal components.

Q2. What is the difference between a 2-flute end mill and a 3-flute end mill?

A 2-flute end mill offers improved chip clearance, making it more optimal for softer materials such as aluminum. A 3-flute end mill provides the balance between chip evacuation and strength while being effective in many applications across all materials.

Q3. When should I consider using a 4-flute end mill?

A 4-flute end mill is best when finishing and machining harder metals. A 4-flute end mill allows for quicker feed rates, as it has more cutting edges, which also does a great job of allowing for a smooth surface finish on a solid CNC machine.

Q4. Why is a 3-flute end mill an effective choice for CNC machining?

A 3-flute end mill is strong and offers great chip clearance. In addition, it is a versatile end mill that has excellent use for both roughing and finishing metal parts, and improves both cutting performance and tool life.

Q5. How do I select what endmill to use?

To choose the right endmill, consider the material you’re cutting, the operation type (slotting, finishing, or profiling), and your machine’s capabilities. For high-quality tools, explore those that offer reliable 2-flute, 3-flute, and 4-flute endmills for all machining needs.

Conclusion

Choosing the proper endmill is not merely a matter of picking a number; it is a matter of geometry, material, machine, and operation. Whether you have selected a 2-flute end mill for best chip removal, a 3-flute end mill for best, or a 4-flute end mill for high production with good finish... the number of flutes will invariably change cycle time, quality, and cost. Understand your job, select the proper geometry, and make sure your machine is capable, and you will get performance.

When obtaining quality tools, be sure to find a reputable supplier, check that coatings are appropriate, and ensure that the flutes opted for are suitable for the application. Suppliers and brands with full ranges and who provide tooling advice can make a major difference.

If you are ready to advance your tooling, browse Jaibros's lines, specifically for 3-flute end mills with DLC coating, and ensure proper matching of tool type to material and cut. If you can do this, you will achieve maximized performance, minimized tooling wear, and remain productive in your precision machining.
