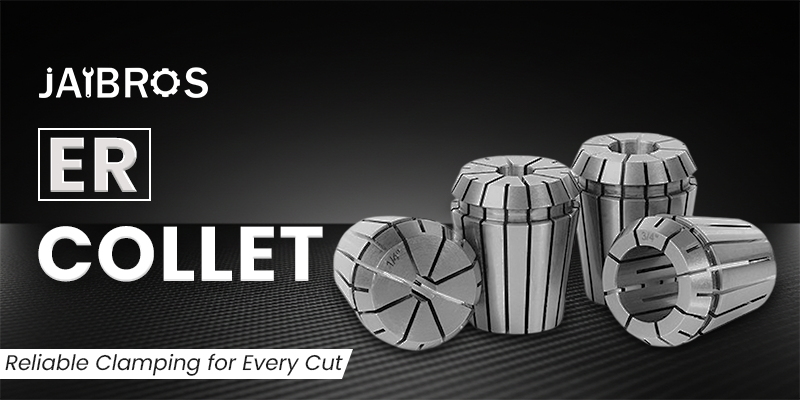

What Is an ER Collet and How It Works
An ER collet is a precision toolholder component designed to grip round-shank tools with a consistent, even clamping force. It fits inside a collet nut and collet chuck. When the nut is tightened, the collet compresses evenly around the tool shank. This design helps keep the tool centred and stable during machining operations.
The special slotted design allows the collet to collapse slightly, enabling a single collet to hold tools within a narrow size range. This flexibility reduces the need to purchase multiple holders, improving efficiency in day-to-day workflows.
Common ER Collet Types
There are several ER collet series available, each designed for different tool sizes and applications. The most common types include ER11, ER16, ER20, ER25, ER32, and ER40. Each series has a different outer diameter and clamping capacity.
Smaller series like ER11 and ER16 are mainly used for light cutting, engraving, and small diameter tools. Medium sizes such as ER20 and ER25 are common in CNC milling machines and drilling setups. Larger sizes like ER32 and ER40 are used for heavy-duty cutting and larger tool shanks where stronger holding force is needed.
The ER20 series is especially popular because it offers a good balance between size and gripping range, making it suitable for many standard machining tasks.
Why Machinists Prefer ER Collets
ER collets are popular because they offer a good balance of accuracy, strength, and flexibility. They are suitable for both manual machines and CNC machines. One major advantage is their wider clamping range than other collet systems. This makes tool changes easier and faster.
Another reason for their popularity is availability. ER collets follow international standards, so they can be used across different machines and brands. Their design also helps reduce runout, which improves surface finish and tool life.
Understanding ER Collet Sizes and Ranges
ER collet sizes are defined by their series and the tool shank diameter they can hold. Each collet usually covers a clamping range of about 1 mm. For example, a 10 mm ER20 collet can typically hold tools from 9 mm to 10 mm.
This range is possible due to the flexible slotted design. However, it is always recommended to use a collet size that closely matches the tool shank for best accuracy and grip. Overstretching a collet beyond its recommended range can reduce holding strength and shorten its life.
ER Collet Sizes Chart Explained Simply
An ER collet sizes chart helps users quickly identify which collet is suitable for a specific tool diameter. The chart lists the ER series on one side and the minimum and maximum clamping sizes for each collet.
For example, ER16 generally covers tool sizes up to 10 mm, ER20 up to 13 mm, ER25 up to 16 mm, ER32 up to 20 mm, and ER40 up to 26 mm. These values can vary slightly based on manufacturer standards, but the overall ranges remain similar.
Using the chart before selecting a collet helps prevent mismatch and ensures safe machining.
How to Choose the Right ER Collet Size
Selecting the right er collet depends on three main factors: tool shank diameter, machine spindle capacity, and type of operation. Always match the collet series with the chuck installed on your machine. Then choose a collet that fits the tool shank as closely as possible.
For high-speed or precision work, correct sizing is even more important. A properly matched collet reduces vibration and improves surface finish. For heavy cutting, using the correct series with sufficient gripping strength is essential for safety and tool life.
Proper Installation and Usage Tips
Correct installation plays a big role in performance. Always insert the collet into the nut first until it clicks into place, then insert the tool, and finally tighten the nut onto the chuck. This method ensures even compression.
Keep collets clean and free from dust, oil, and chips. Dirt inside the slots can affect clamping force. Regular inspection for wear or cracks is also important. A damaged er collet should be replaced immediately to avoid machining errors.
Maintenance and Lifespan
With proper care, ER collets can last a long time. Avoid overtightening, as it can deform the collet. Use correct tightening torque as recommended for the collet size. Store collets in a dry and clean place to prevent rust.
Replacing worn collets on time helps maintain accuracy and protects both the machine and cutting tools. Regular maintenance improves consistency and overall workshop productivity.
Conclusion
ER collets play a vital role in modern machining by providing strong, accurate, and flexible tool holding. Understanding different types, sizes, and selection methods helps operators achieve better results and avoid common problems. By using the correct er collet size, following proper installation methods, and maintaining them well, workshops can improve machining accuracy, tool life, and overall efficiency.
This knowledge is useful for CNC operators, tool room staff, and anyone involved in precision machining work.
Where Can You Get Quality Workshop Tools?
Jaibros is a reliable place for workshop and industrial tool needs because it focuses on quality, accuracy, and practical use. The platform offers a wide range of measuring and machining tools that are suitable for daily workshop work, inspection tasks, and training use. Products are clearly listed with proper details, making it easier for users to choose the right tool for their requirement. Jaibros is known for supporting machinists, technicians, and industries by providing tools that help improve measurement accuracy and work efficiency without confusion.
Frequently Asked Questions (FAQs)
1. What is the main use of an er collet?
An er collet is mainly used to grip cutting tools securely in CNC, milling, and drilling machines.It keeps the tool centered, reduces vibration, and prevents slipping during machining.This helps achieve better accuracy, smooth surface finish, and longer tool life.
2. Can one ER collet hold different tool sizes?
Yes, one ER collet can hold a small range of tool sizes.Its flexible slotted design allows it to clamp tools within about a 1 mm range.For best accuracy, the tool size should be close to the collet’s rated size.
3. Which ER collet size is most commonly used?
ER20 is one of the most commonly used ER collet sizes.It offers a good balance between holding range and strength.This makes it suitable for general milling, drilling, and CNC machining work.
4. Why is correct collet size important?
The correct collet size ensures a tight and even grip on the tool.It reduces vibration, tool runout, and the risk of slipping during cutting.Proper sizing improves machining accuracy, safety, and tool life.
5. How often should ER collets be replaced?
ER collets should be replaced when they show signs of wear, cracks, or loss of grip.Frequent tool changes and heavy use can shorten their lifespan.Regular inspection helps maintain accuracy and safe machining.
