Machine tool accessories are critical components that enhance the overall functionality of CNC machines. While the primary machine executes basic operations, it is these accessories that ensure high precision and maintain accurate measurements throughout the process. These essential tools include tool holders, collets, fixtures, measuring instruments, and cutting tools.
The accessories of machine tools are very important in CNC machining processes. These accessories ensure that there is less vibration during the operation of the machine tool. They also extend the life of the tool used during manufacturing processes. Accessories also ensure that the CNC machines function accurately by providing the right settings according to the material being worked on.
What Are Machine Tool Accessories?
Machine tool accessories in the process of CNC machining can be considered auxiliary, removable tools that assist and expand the functions of the primary machine itself. One should imagine a CNC machine as an advanced phone, whereas machine tool accessories would be its applications and additional items that make it capable of performing professional operations. No matter how modern a 5-axis CNC machine is, it won’t be able to do anything without such accessories.
The Core Purpose
The main role of these attachments is to serve as a connection point between the immovable body of the machinery and the movement caused by the cutting operation. This is achieved through fulfilling three necessities:
- Material Security: Keeping the raw material, metal or plastic, stable and still against high forces.
- Tool Guidance: Keeping the cutting tools absolutely still without any wobble whatsoever.
- Environmental Management: Dealing with the extreme heat and friction created during the cutting process.
The Practical Impact
Typical CNC equipment is fitted only with simple skeletal options. Accessories modify the machine in accordance with industry requirements, such as aerospace, automotive, or medical products. With the help of the appropriate accessories, the machine becomes highly precise with micron tolerance capabilities.
Key Types of Machine Tool Accessories in CNC Machining
There are several accessories utilized in CNC machining operations. Some of the most important ones are discussed below.

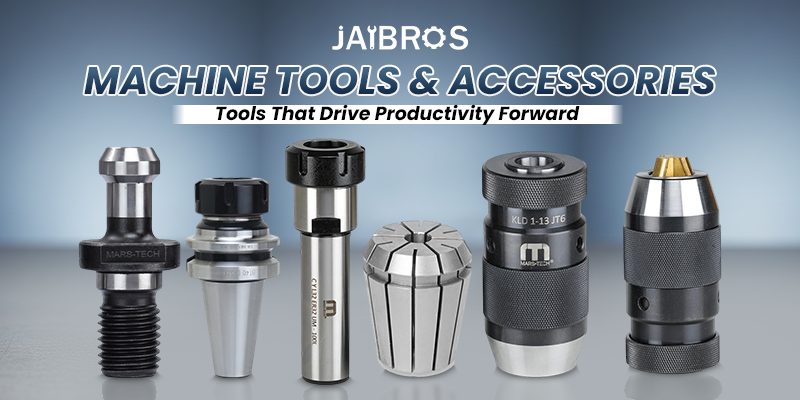

Tool Holders
A tool holder is used to secure cutting tools during machining operations. It helps in stabilizing the tools and preventing vibrations. An effective tool holder contributes to the performance of carbide inserts.
Collets and Chucks
These devices are utilized to clamp tools and work pieces with utmost accuracy. They provide high repeatability in terms of gripping.
Fixtures & Clamps
Workholding fixtures ensure that workpieces stay rigidly attached and do not move during machining operations.
Cutting Tools
A cutting tool is used to carry out machining operations. Drills, end mills, and CNC inserts come under the category of cutting tools. Highly recommended carbide inserts can be used during difficult cutting operations.
Measuring Devices
In order to ensure quality control of machined parts, measuring instruments are used. These measuring instruments include micrometers, calipers, gauges, etc. Inserts Chart and Inserts Grade Chart are some useful tools that help to choose appropriate cutting tools.
Coolant Systems
Coolant systems help to dissipate the heat produced in machining operations. This improves the surface finish of machined surfaces. It becomes even more important in cases of stainless steel machining.
Why Accessories Are Critical for CNC Performance and Accuracy
Machine tool accessories are more than just additions; they play a key role in optimizing CNC operations. CNC operations without the appropriate accessories will not yield good outcomes, despite having the best machine.
Accessories make the process more precise as they offer appropriate tool holding and clamping, thus eliminating the chances of any errors.
Accessories increase efficiency in the sense that CNC machine inserts and other accessories can minimize machining times as well as limit wear of the industrial tools.
Lastly, accessories add consistency. Where mass production takes place, consistency is highly important. This means that using reliable accessories increases the chances of producing consistent results.
Finally, accessories reduce machine downtime. By making sure that tools do not break down while operating, there is a guarantee that machine downtime will be significantly reduced.
Key Benefits: Productivity, Tool Life, and Operator Safety
Increased Speeds
The application of proper accessories leads to increased machine speeds while maintaining product quality. The production process will therefore be faster.
Tool Life Extension
The application of proper accessories leads to the extended life of the tools used. This is because cutting carbide insert tooling will last longer when combined with proper accessories.
Improved Surface Finishing
There will be an improved surface finish when the tools are aligned, and vibrations are controlled in the process of machining.
Economic Benefits
Even though there is a certain cost associated with purchasing high-quality accessories, these accessories will eventually save money by reducing tool wear, among others.
Improved Worker Safety
When proper accessories are applied, there will be safety in terms of the workers’ safety. This is because there will be secure clamping mechanisms of the tools.
Selection Criteria: How to Choose the Right CNC Accessories
Proper selection of accessories is critical in ensuring the best outcomes during the machining processes. Here are some essential considerations:
Compatibility With the Material
Various materials need different types of accessories and tools. For instance, machining on stainless steel needs tools that will tolerate high temperatures and pressure. Checking on an insert's grade chart would help in choosing the right tooling.
Compatibility With the Machine
It is important to ensure that the accessories are compatible with your CNC machine. Improper fittings may reduce efficiency and cause machine malfunction.
Nature of the Process
Take into consideration the nature of the process being undertaken—turning, milling, drilling, or finishing. Different operations have different requirements in terms of tooling.
High-Quality Accessories
Purchase quality industrial tools and equipment that provide maximum durability and efficiency. Poor accessories will only lead to increased costs and inefficiency.
Ease of Installation
Make sure the accessories are not complicated to fit and use. This would save installation time and improve efficiency.
Supplier of Brand
Always purchase from reliable suppliers for your CNC machinery accessories needs.
Conclusion
Machine tool accessories play a critical role in CNC machining. This includes improving accuracy, increasing productivity, and ensuring quality throughout all machining activities. All accessories, including CNC inserts and tool holders, help in achieving the best outcome from any machining activity.
The utilization of good carbide inserts coupled with appropriate machine tool accessories will go a long way towards improving the efficiency of machining. One just needs to select the right tools with the assistance of an insert chart.
Optimize Your CNC Machining with Jaibros
If you are in search of dependable and top-notch machining solutions, then there’s one company you can always trust: Jaibros specializes in providing different types of industrial tools, CNC tools, and precise accessories that will satisfy all your machining needs. From cutting tools to measuring tools and everything else that constitutes industrial machinery, has got you covered with their high-quality, performance-oriented products. If you’re seeking hand tools online in India, look no further.
FAQs
1. What are machine tool accessories?
These are accessories used in CNC machines that enhance the performance, accuracy, and efficiency of these machines.
2. What is the importance of carbide inserts in the CNC machining process?
The carbide inserts provide high hardness, wear resistance, and dimensional stability. They are thus important in high-speed machining processes.
3. How do you select the right CNC insert?
An insert chart/grade chart will help in selecting the appropriate insert according to the materials being machined and the machining process required.
4. What are some of the accessories that are critical when machining stainless steel using CNC?
Accessories such as efficient cooling fluid, appropriate cutting tool tips, and stable holders are some of the accessories critical when machining stainless steel.
5. Where do you get good CNC tools in India?
provides quality CNC tools that meet all industrial machining requirements.
