As someone who uses CNC machines, lathes, and milling centers, it is possible that at some point you have encountered a situation where a fracture occurs to the tip of a cutting tool while working. It can be annoying and expensive, but it may not always be caused by the same thing. There are two kinds of failures in machining, namely thermal and mechanical cracks on inserts. Learning about them helps you figure out how to solve the right issue.
In this article, we are going to provide the information about thermal and mechanical cracks in plain language, their reasons, differences, and ways to prevent them.
What Is Thermal Cracking?
Thermal cracking results from high temperatures. When a cutting tool is utilized, the part of the tool that comes into contact with the metal gets heated at an extremely high rate. This process causes the metal to expand and contract continuously if there is an alternating increase in temperatures. The result is the formation of cracks on the metal.
Such cracks normally develop in a pattern resembling that of teeth on a comb. For this reason, thermal cracking is commonly referred to as comb cracking in the field of machining. This process is not instantaneous; it takes place gradually with repeated heat stresses.
What Is Mechanical Cracking?
However, mechanical cracking has no relation to temperature changes. Mechanical cracking is caused by the force of physical action. If a cutting tool gets a shock, additional pressure, or an unbalanced load, it will not be able to withstand such stress and will crack or chip.
This type of failure is instantaneous and noticeable immediately. You may hear an abnormal noise while you perform your operation or see a chipped corner or cracked edge after the removal of the tool.

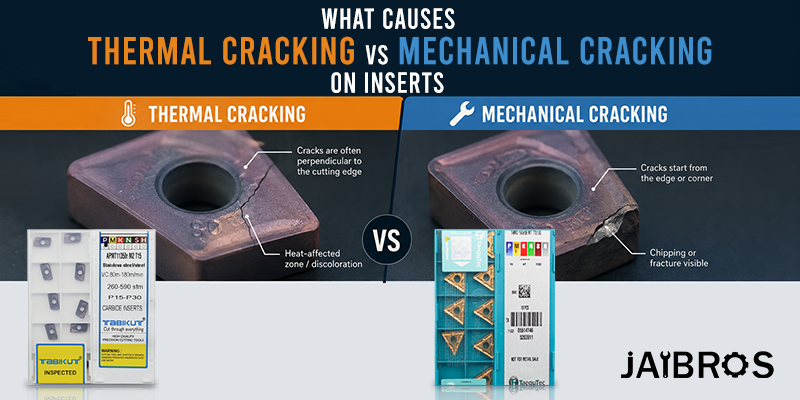

Key Differences Between Thermal and Mechanical Cracking
Here are the main points that separate the two:
- Cause: Thermal cracking comes from repeated heating and cooling, while mechanical cracking comes from physical shock or overload.
- Speed of damage: Thermal cracking builds slowly over time; mechanical cracking often happens instantly.
- Appearance: Thermal cracks look like fine comb-like lines across the edge; mechanical cracks look like chips, fractures, or broken corners.
- Common operations: Thermal cracking is common in interrupted cutting or when coolant is applied unevenly; mechanical cracking is common in heavy roughing, vibration-prone setups, or poor clamping.
- Fix approach: Thermal issues need better temperature control; mechanical issues need better rigidity and correct cutting parameters.
Common Causes of Thermal Cracking
Thermal stress on cutting tools does not come from one single reason it is usually a mix of small factors that add up during a machining operation. The following points cover the most common causes seen on the shop floor:
- Sudden or uneven coolant flow, where the tool gets cooled on one side and stays hot on the other side.
- Interrupted cuts, such as machining a workpiece with holes, slots, or uneven surfaces, which causes the edge to heat and cool repeatedly.
- Running at very high cutting speeds without matching coolant support.
- Poor coolant concentration or using the wrong coolant type for the material being cut.
- Machining hard or heat-resistant materials like stainless steel or superalloys, which naturally generate more heat.
- Dry cutting on materials that actually require coolant for heat control.
Common Causes of Mechanical Cracking
Mechanical failure is more about physical stress than heat, and it usually points to a setup or process issue. Some of the most frequent causes include:
- Excess vibration due to loose tool holders, worn spindles, or unstable machine setups.
- Incorrect feed rate or depth of cut that puts more load on the edge than it can handle.
- Poor workpiece clamping, causing movement during the cut.
- Long tool overhang, which reduces rigidity and increases the chance of chatter.
- Sudden impact when entering or exiting a cut, especially in interrupted surfaces.
- Using a tool grade that is too brittle for the toughness of the material being machined.
How to Identify Which Type of Cracking You Have
Sometimes one can easily find out what kind of failure took place with just a glance at the tool. Fine, comb-like lines on its edge indicate that thermal fatigue took place due to temperature cycling. In case there is any breakage, chip or fracture, usually in the area close to the corner or nose radius, mechanical fatigue is indicated. Sometimes both failures take place at once – in high-speed machining with no coolant and at the same time vibratory problems are encountered.
How to Prevent Cracking in Cutting Tools
Prevention depends on matching the fix to the correct cause. For thermal issues, focus on consistent and sufficient coolant supply, choosing the right coolant concentration, and avoiding sudden speed changes during interrupted cuts. For mechanical issues, focus on secure clamping, correct tool overhang, matching feed and speed to the material hardness, and checking spindle and holder condition regularly. Choosing the right tool grade and coating for the specific job also plays a big role in reducing both types of failure, since some coatings resist heat better while some substrates resist shock better.
If you want to go deeper into managing heat-related wear specifically, our detailed guide on how to extend cutting tool life in CNC machining covers practical ways to beat thermal wear and get more consistent performance from your tooling.
Conclusion
Despite their apparent similarity, thermal and mechanical cracking have entirely different causes. The former is a gradual process due to heat cycling while the latter is usually caused abruptly due to physical stresses. With an understanding of the patterns of your inserts' cracking, you will be able to pinpoint the source of the trouble, whether it is your coolant delivery system, the parameters of your cutting operations, or even the setup of your machine.
If you want to explore quality carbide tooling options for your CNC or lathe work, you can check out Jaibros for a wide range of machining tools and accessories.
Frequently Asked Questions
1. What is the main difference between thermal cracking and mechanical cracking?
Thermal cracking is due to heat and cold action through cycles while cutting, resulting in fine comb-like marks along the edge. Mechanical cracking is due to mechanical stress or shock, which leads to chipping and cracking of the surface. The former occurs gradually, whereas the latter takes place instantly during the process.
2. Can coolant issues really cause cracking in cutting tools?
Yes, inadequate or improper cooling system is the major cause of overheating. If one area of the cutting tool becomes cooler compared to other areas, it leads to stress inside the tool. As a result, after numerous operations, cracks become noticeable. Proper choice of the coolant reduces this risk.
3. Why do interrupted cuts increase the chance of thermal cracking?
Interrupted cuts such as machining holes or slots require the tool to continuously come in and out of contact with the workpiece. Every time it comes into contact with the workpiece, it gets heated rapidly, while every time it leaves the workpiece, it gets cooled rapidly.
4. How does vibration lead to mechanical cracking?
The vibration causes an unsteady and repetitive stress at the cutting edge than a constant one. The additional stress makes the metal susceptible to failure in the form of chip or crack. The possible causes of vibration in a machine system include loose tool holders, worn spindles, and improper clamping.
5. Is it possible to have both thermal and mechanical cracking at the same time?
Yes, in tough machining conditions such as high-speed cutting with poor coolant support and vibration issues, both types of stress can occur together. In such cases, the tool may show comb-like heat lines along with chipped edges, meaning the setup needs correction on both the cooling side and the mechanical stability side.
