HV 4" (100 mm) Regular Horizontal & Vertical Milling Rotary Table with Round Vise Combo
Upgrade your workshop's precision with the HV 4" (100 mm) Regular Rotary Table and Round Vise Combo. Engineered for machinists, toolmakers, and hobbyists, this versatile metalworking setup delivers high-accuracy indexing, smooth rotation, and rock-solid workpiece clamping for complex milling, drilling, and grinding applications.
Key Highlights & Features

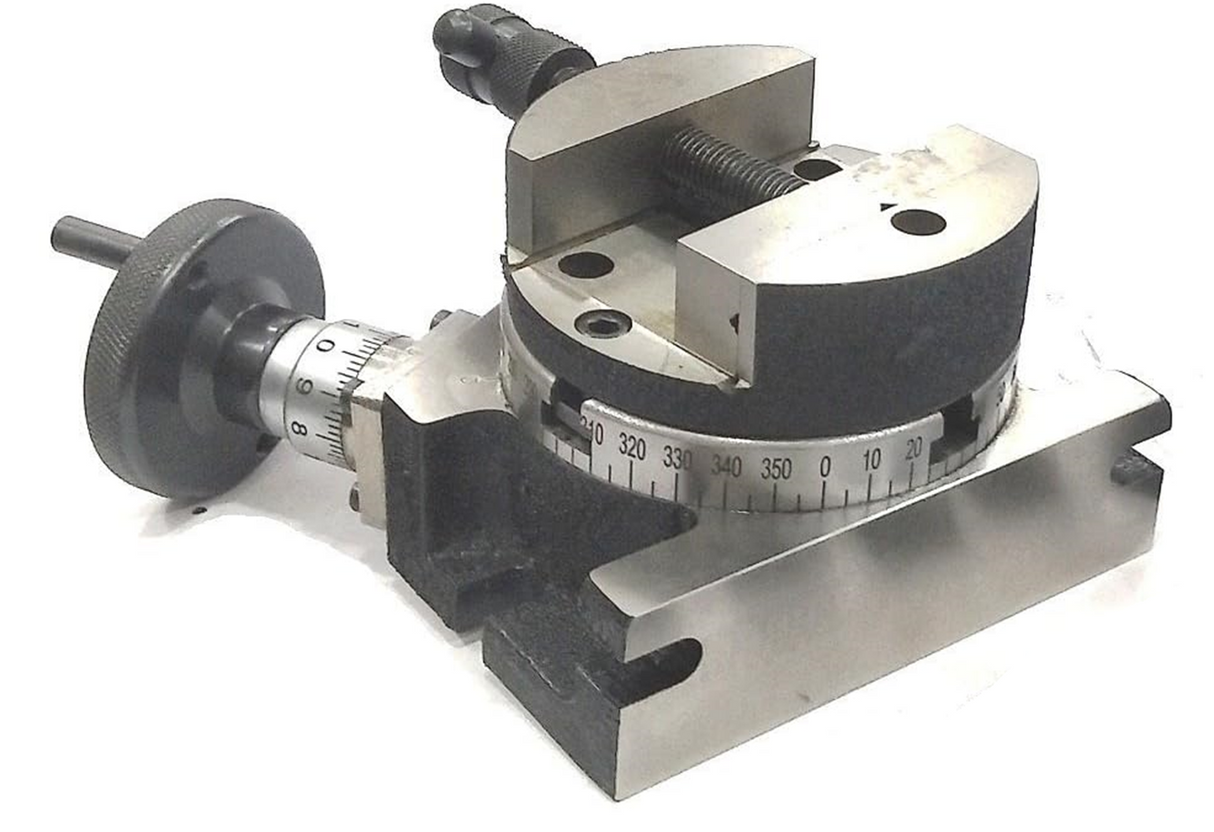

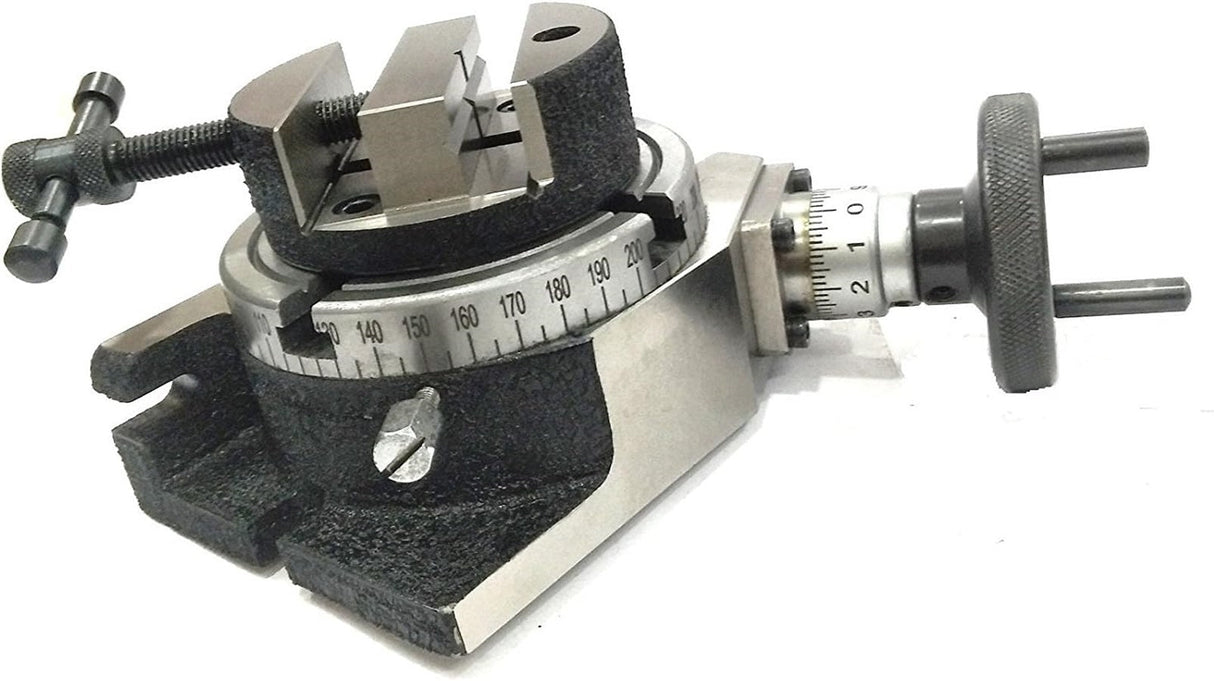

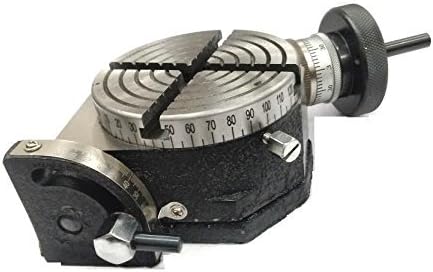

4" (100 mm) Precision Rotary Table
- Dual-Position Versatility: Mountable in both horizontal and vertical positions to handle flat, angled, or circumferential milling operations with ease.
- 360° Laser-Engraved Graduation: Full 360-degree scale ensures accurate indexing and easy angle adjustments.
- 1:36 Worm Gear Ratio: One complete handle rotation turns the table by 10°, giving you ultra-fine control over intricate cuts.
- Micro-Adjustable Handwheel: Graduated in 10-minute divisions with a zero-settable scale for quick, repeatable setups.

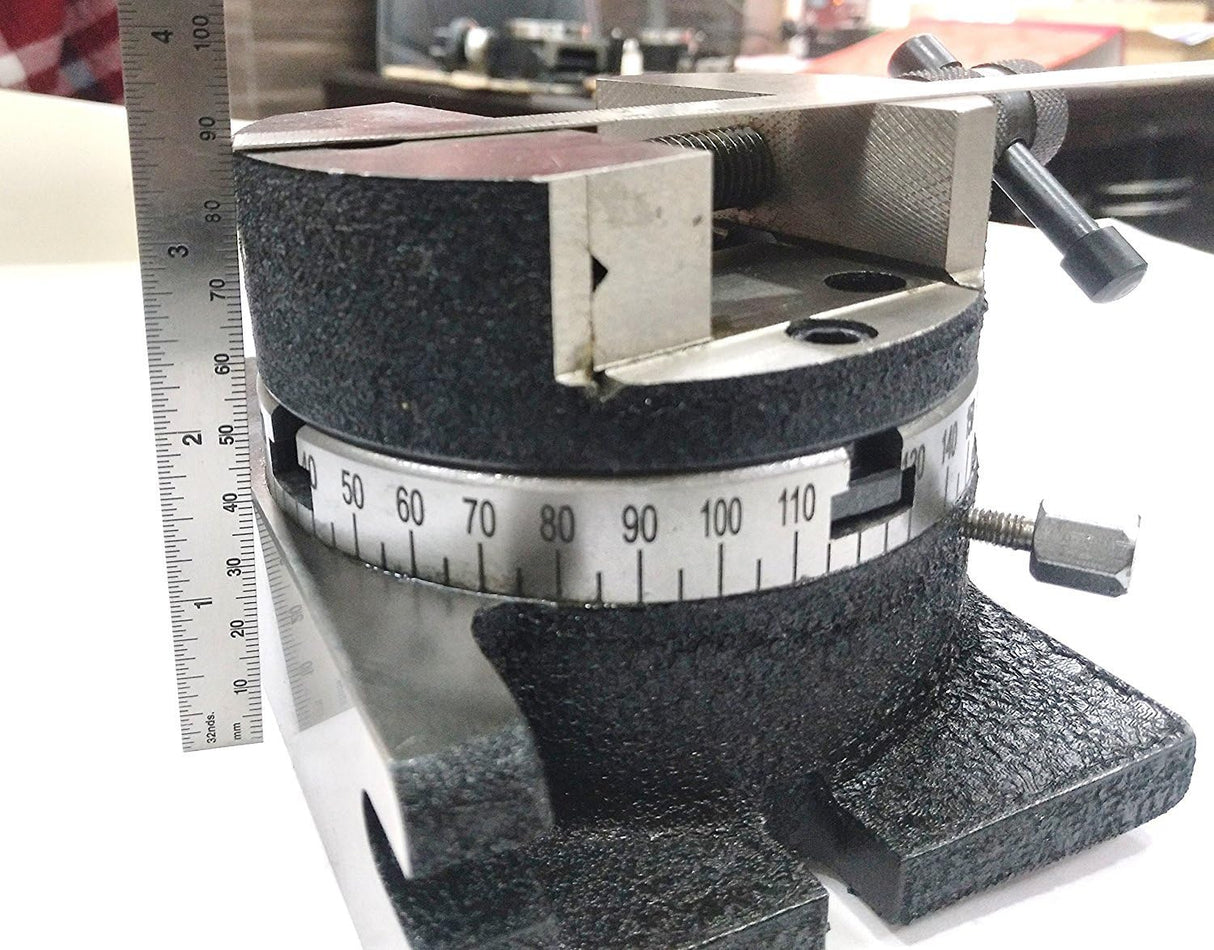

- Compact Center Height: Vertical center height of 2-1/16" (50 mm) aligns seamlessly with benchtop and smaller milling machines.

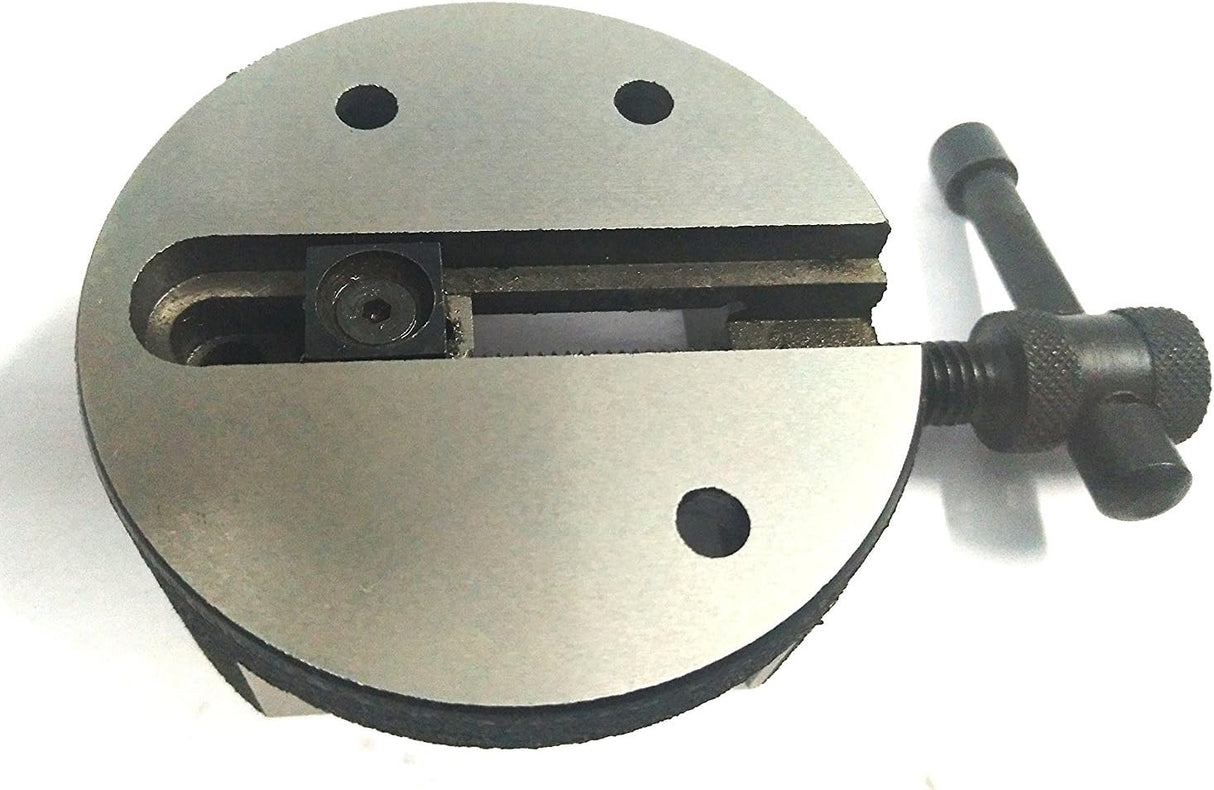

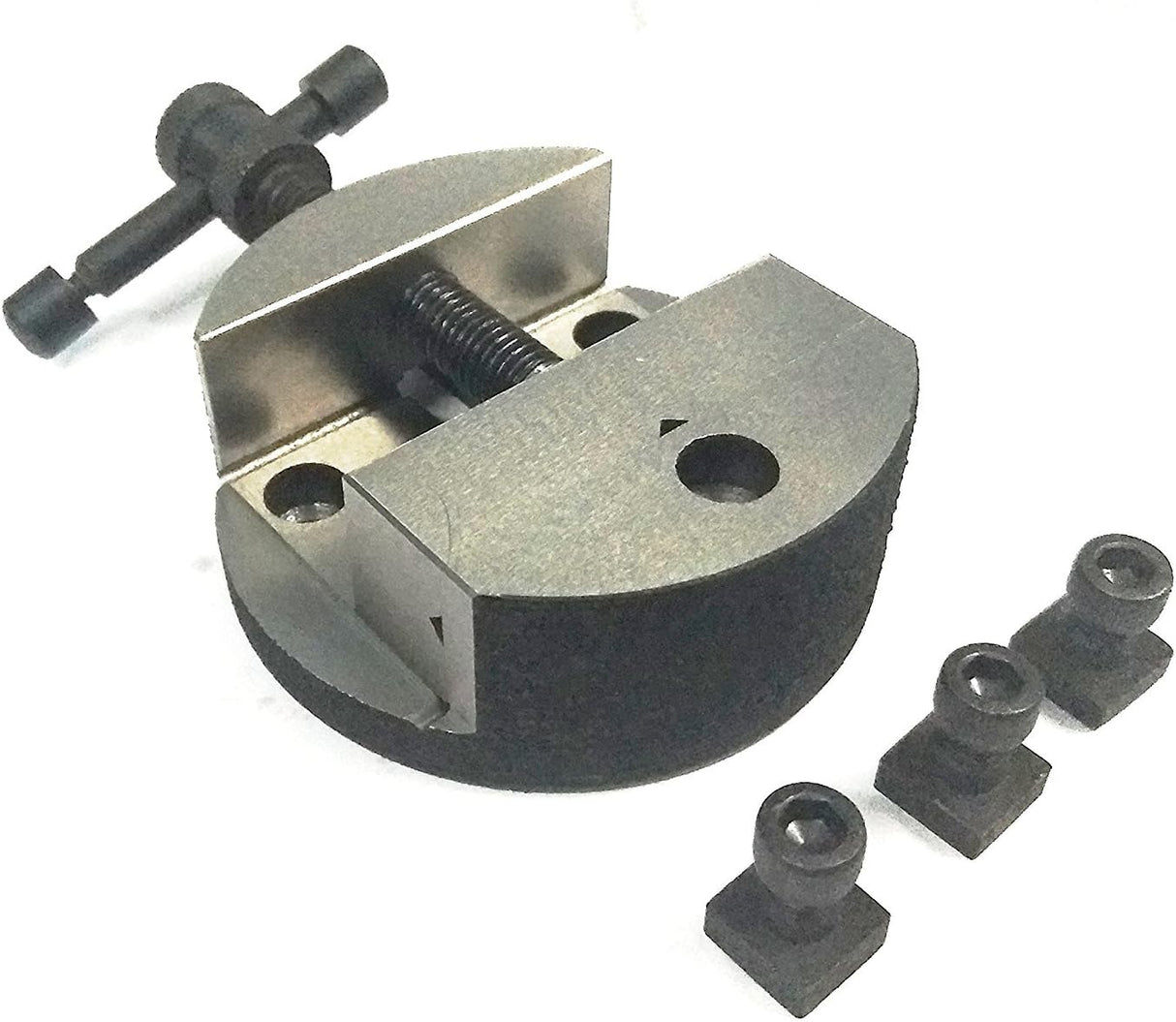

Matched Cast Iron Round Vise
- Heavy-Duty Build: Crafted from high-grade close-grain cast iron with a precision-ground base, top, and jaw faces.
- V-Grooved Moving Jaw: Built-in vertical and horizontal V-grooves ensure a firm grip on round or cylindrical workpieces.
- Multi-Slot Compatibility: Counter-drilled mounting holes allow easy fitting to both 3-slot and 4-slot rotary tables.
- Corrosion Protection: Durable painted body resists rust and wear in demanding workshop environments.
Technical Specifications
| Feature | 4" Rotary Table | 3" (80 mm) Round Vise | 4" (100 mm) Round Vise |
| Table / Base Dia. | 100 mm (4") | 80 mm | 105 mm |
| Gear Ratio | 1:36 | — | — |
| Jaw Width | — | 54 mm | 75 mm |
| Jaw Depth | — | 20 mm | 21 mm |
| Jaw Opening | — | 32 mm | 40 mm |
| Height | 50 mm (Center Height) | 29 mm | 32 mm |
