Description
Description
Use of product- A rotary table is used to rotate a workpiece precisely during machining, allowing for accurate creation of circular features, angles, and indexing tasks.
A chuck is used to securely hold and grip a workpiece on a machine tool, ensuring it remains stable and aligned during operations like turning, drilling, or milling.

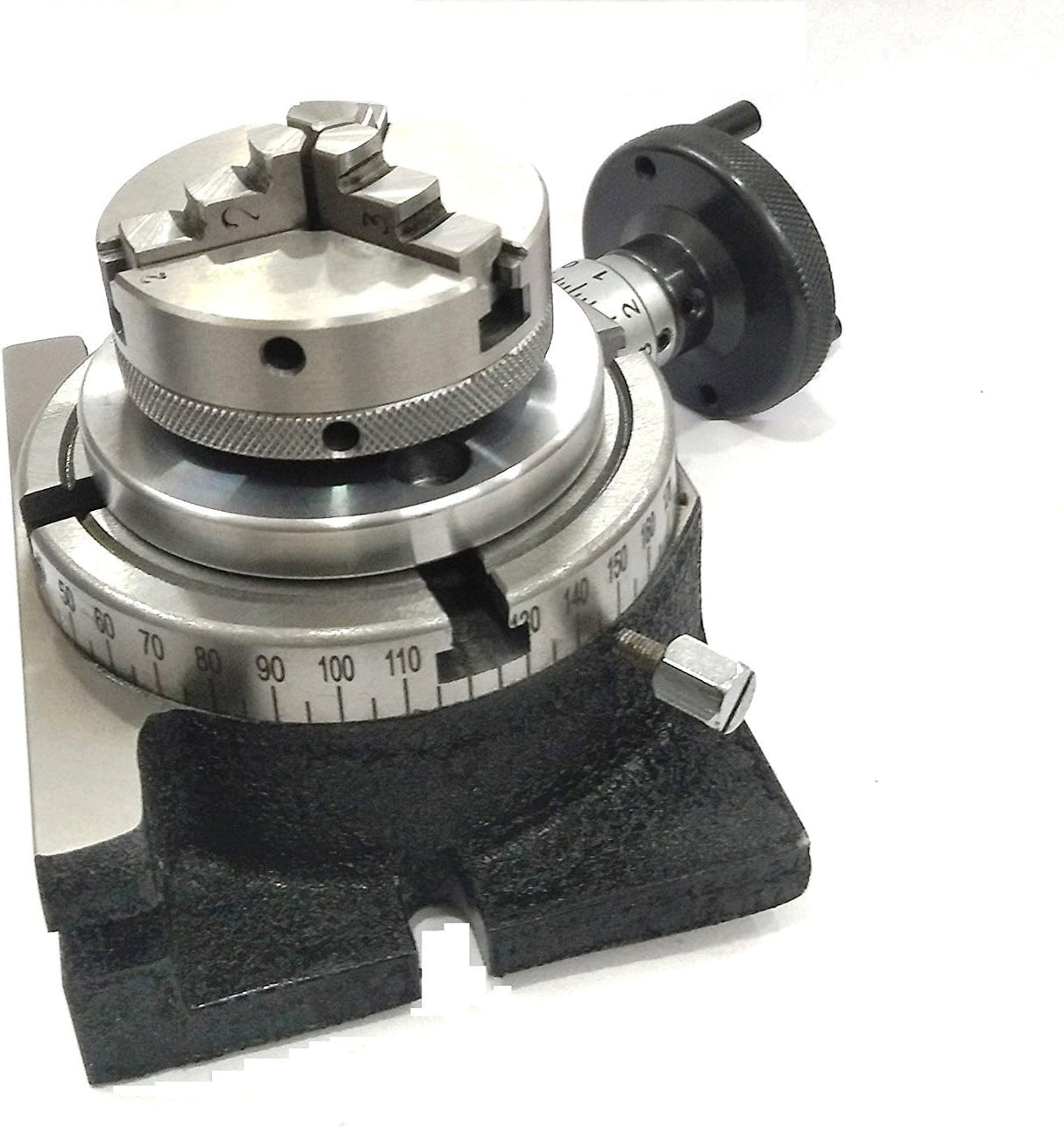

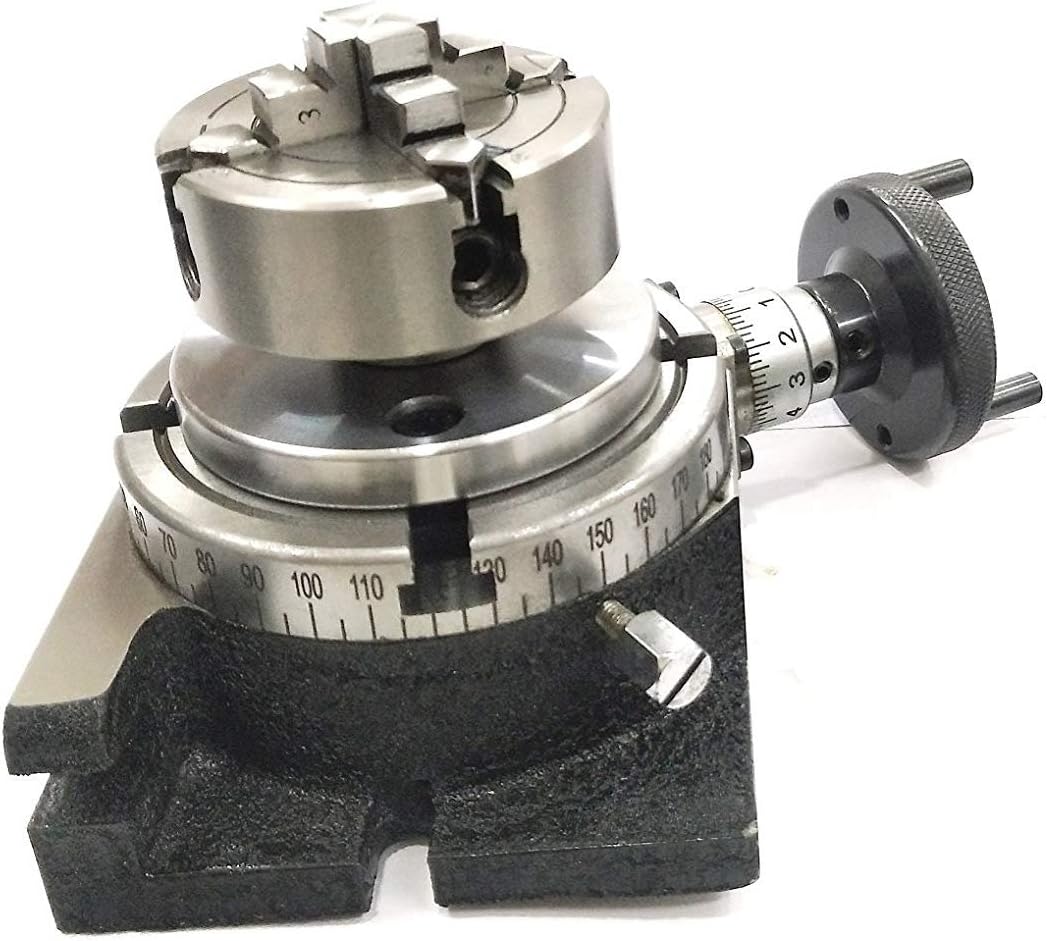

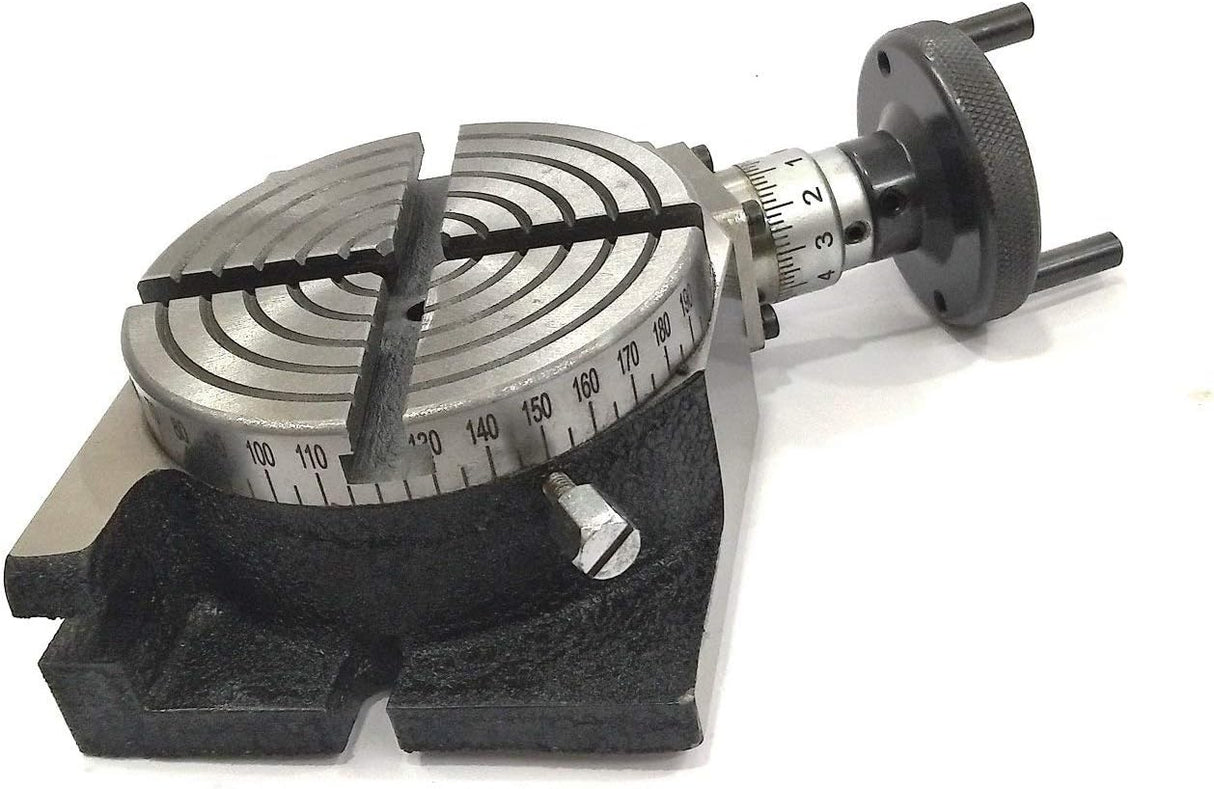

4"/ 100 mm Rotary Table
- Very High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines
- Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees.
- Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero.
-
Can be mounted both in Horizontal & vertical position.

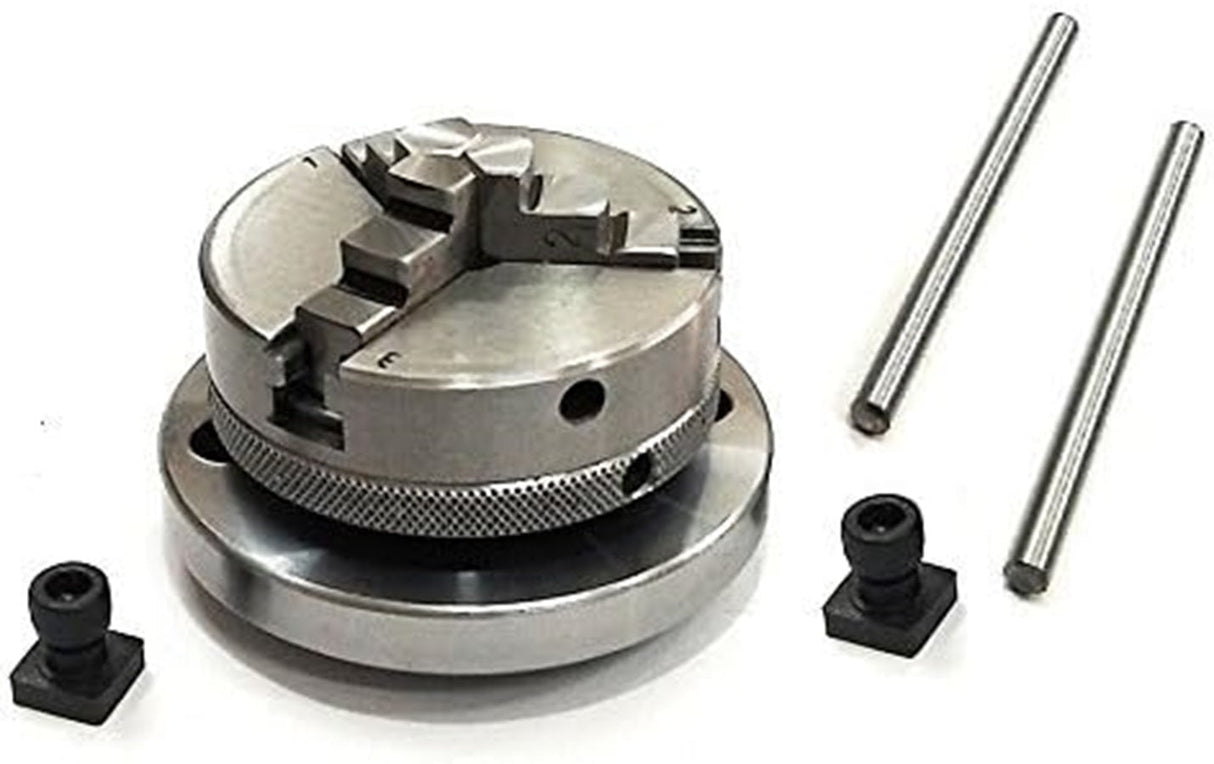

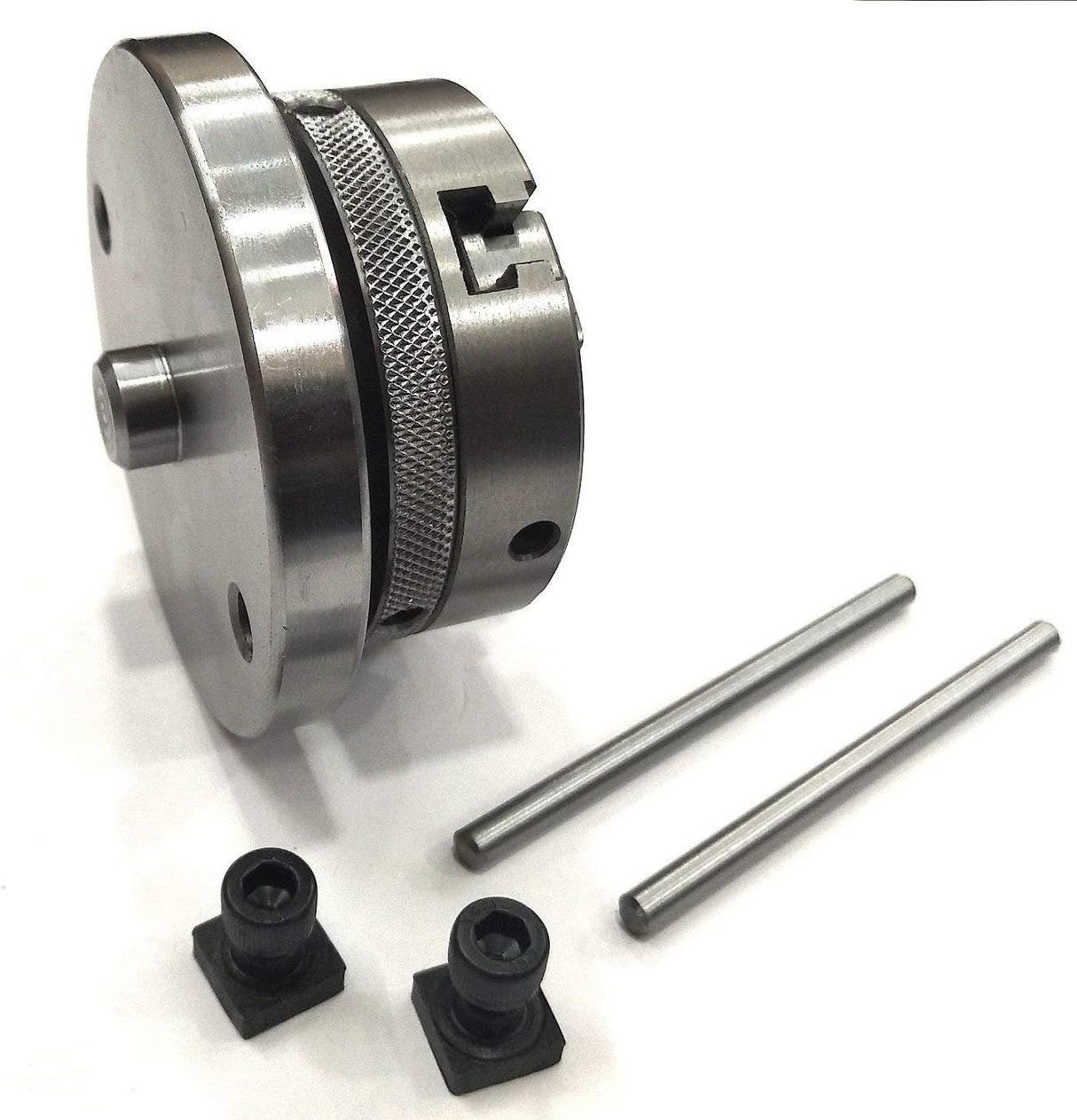

Chuck 65 mm 3 Jaw Self Centering
- Precision 65mm 3-Jaw Self-Centering Lathe Chuck
- Compatible with M14 x 1 mm threading
Chuck 65 mm 4 Jaw Self Centering
- Precision 65mm 4-Jaw Self-Centering Lathe Chuck
- Compatible with M14 x 1 mm threading

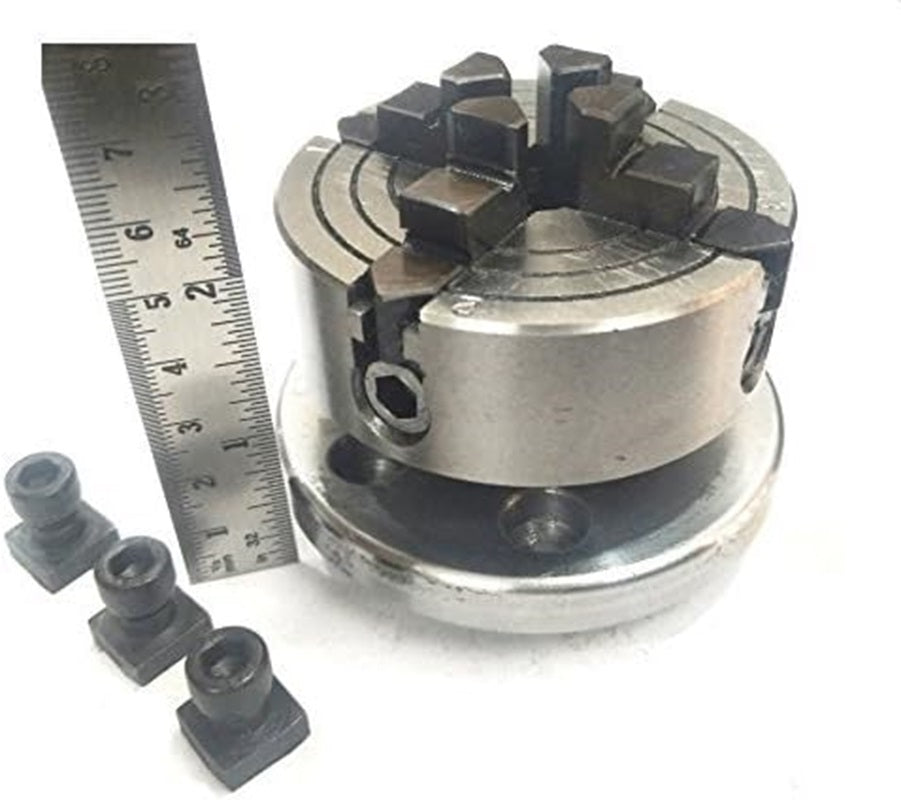

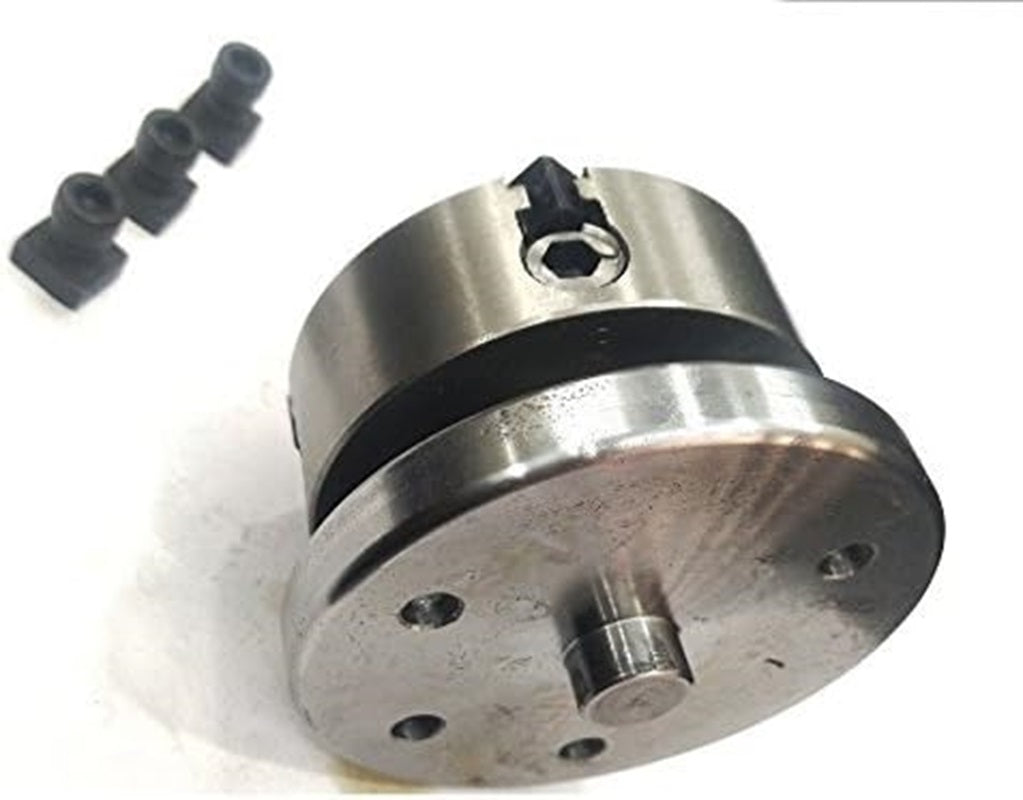

Chuck 70 mm 4 Jaw Independent
- Precision 70 mm 4-Jaw Independent Lathe Chuck
- Compatible with M14 x 1 mm threading
M6 Clamp Kit
- Versatile M6 clamp kit designed specifically for use with 3" and 4" Rotary Tables.
- Compatible with both Horizontal and Tilting models of the specified Rotary Tables.
- Comprehensive set includes 2 step blocks, 2 tee bolts with flanged nuts, and 2 clamps.
- Each bolt features a length of 55 mm overall and is threaded with M6 for easy installation.
- Ensures secure and stable positioning for precise machining operations.
- Crafted with quality materials for durability and long-lasting performance.
- Streamlines workflow by facilitating effortless adjustment and fastening.
- Ideal for professional machinists and hobbyists seeking reliable tooling solutions.
