Description
Description
(Round Base-Double Bit)

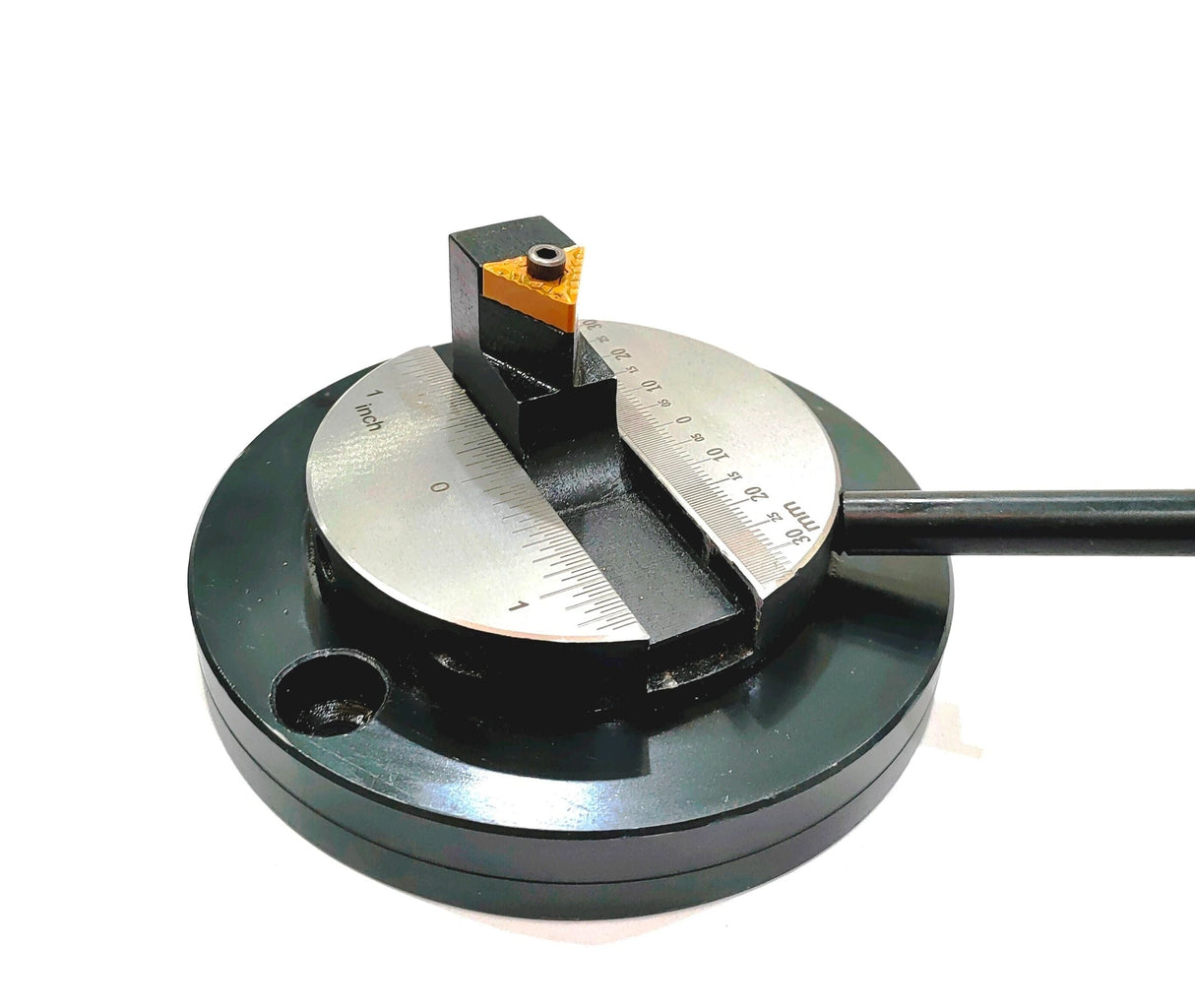

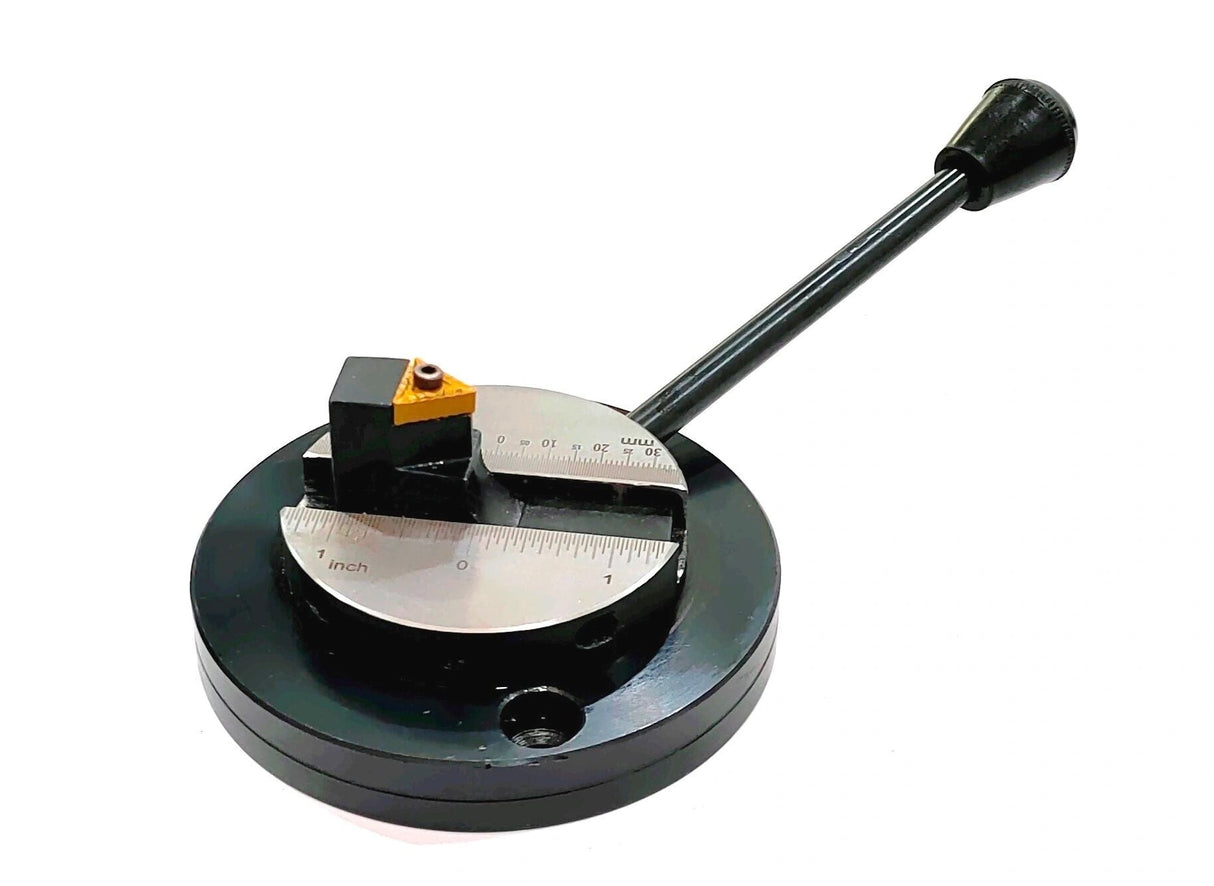

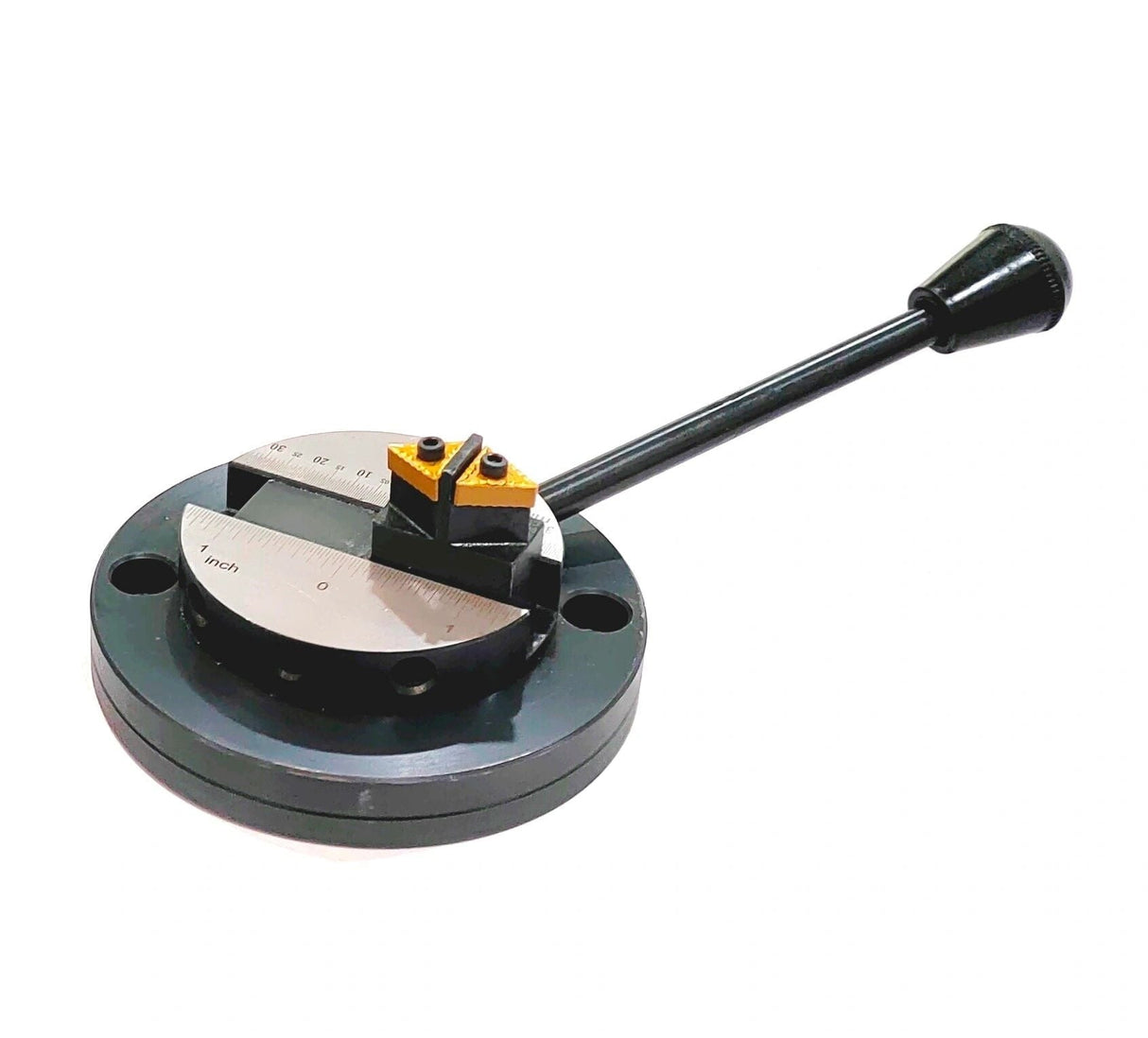

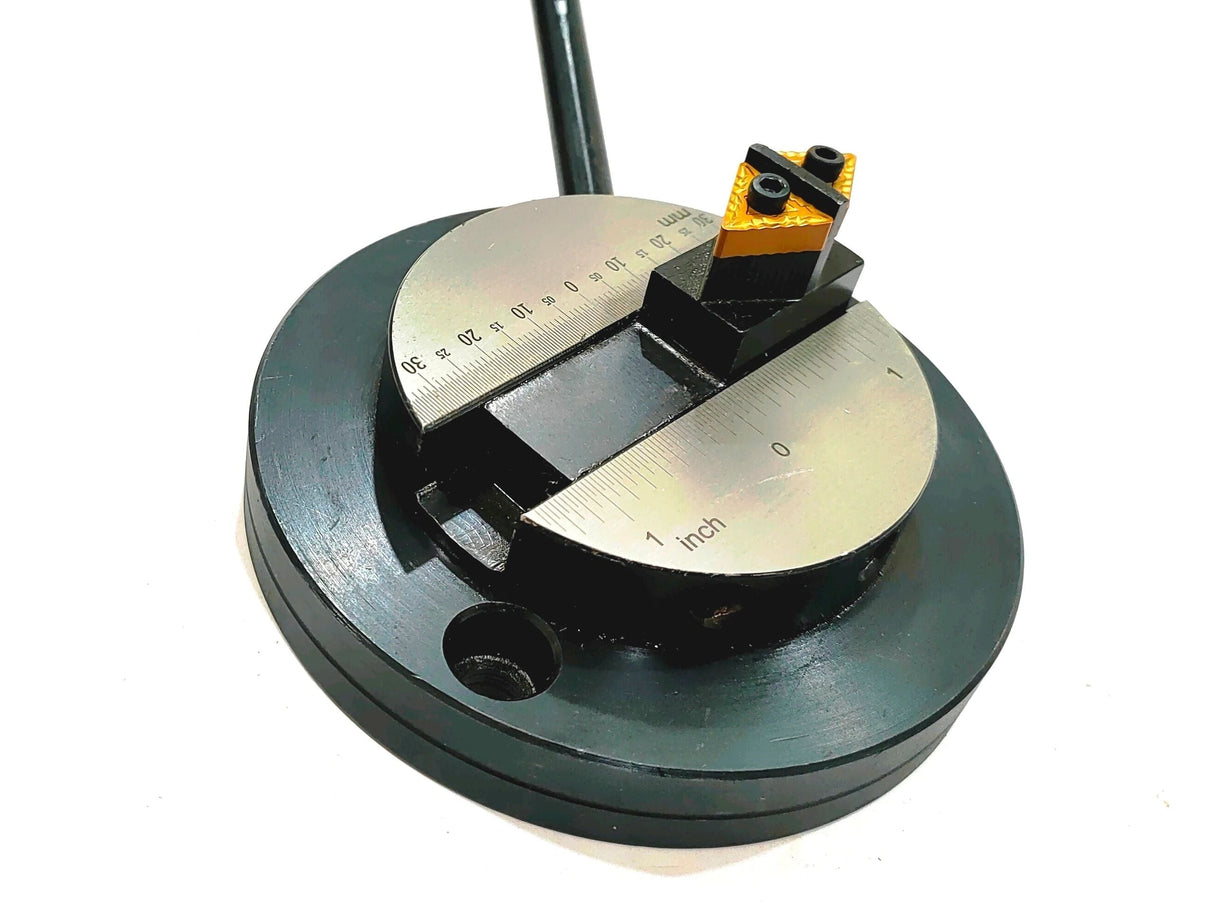

- This fits straight onto the cross slide of your lathe machine for Quick Turning of the Concave Balls and Convex Curvature, not really a ball (*refer to the image provided).
- The Head can be adjusted for different Ball Sizes. The maximum concave ball diameter possible is 42 mm. Even a larger diameter than claimed could be more, depending on the skills and expertise of the user.
- The much demanded graduations in imperial and metric measurements are now being provided as a reference scale for turning approximate ball diameter calculations. Its is important to note that the scale provided is for a close idea of the diameter of the desired ball size. It should not be referred for an exact measurement by the users.
- The insert tip should be adjusted to the given reading to achieve the desired size of the ball. Pls note the scale is a radius reading, which means that for any set parameter on this scale, you will get double of it as the ball diameter.
- Example- If you set the scale at a measurement of 15 mm, you will get a ball size of 30 mm. The attachment has both Imperial as well as Metric graduations on either size of the attachment.
(Round Base-Single Bit)
- This fits straight onto the cross slide of your lathe machine for Quick Turning of the Concave Balls
- The Head can be adjusted for different Ball Sizes. The maximum concave ball diameter possible is 42 mm. Even a larger diameter than claimed could be more, depending on the skills and expertise of the user.
- The much-demanded graduations in imperial and metric measurements are now being provided as a reference scale for turning approximate ball diameter calculations. Its is important to note that the scale provided is for a close idea of the diameter of the desired ball size. It should not be referred for an exact measurement by the users.
- The insert tip should be adjusted to the given reading to achieve the desired size of the ball. Pls note the scale is a radius reading, which means that for any set parameter on this scale, you will get double of it as the ball diameter.
- Example- If you set the scale at a measurement of 15 mm, you will get a ball size of diameter 30 mm. The attachment has both Imperial as well as Metric graduations on either size of the attachment.
