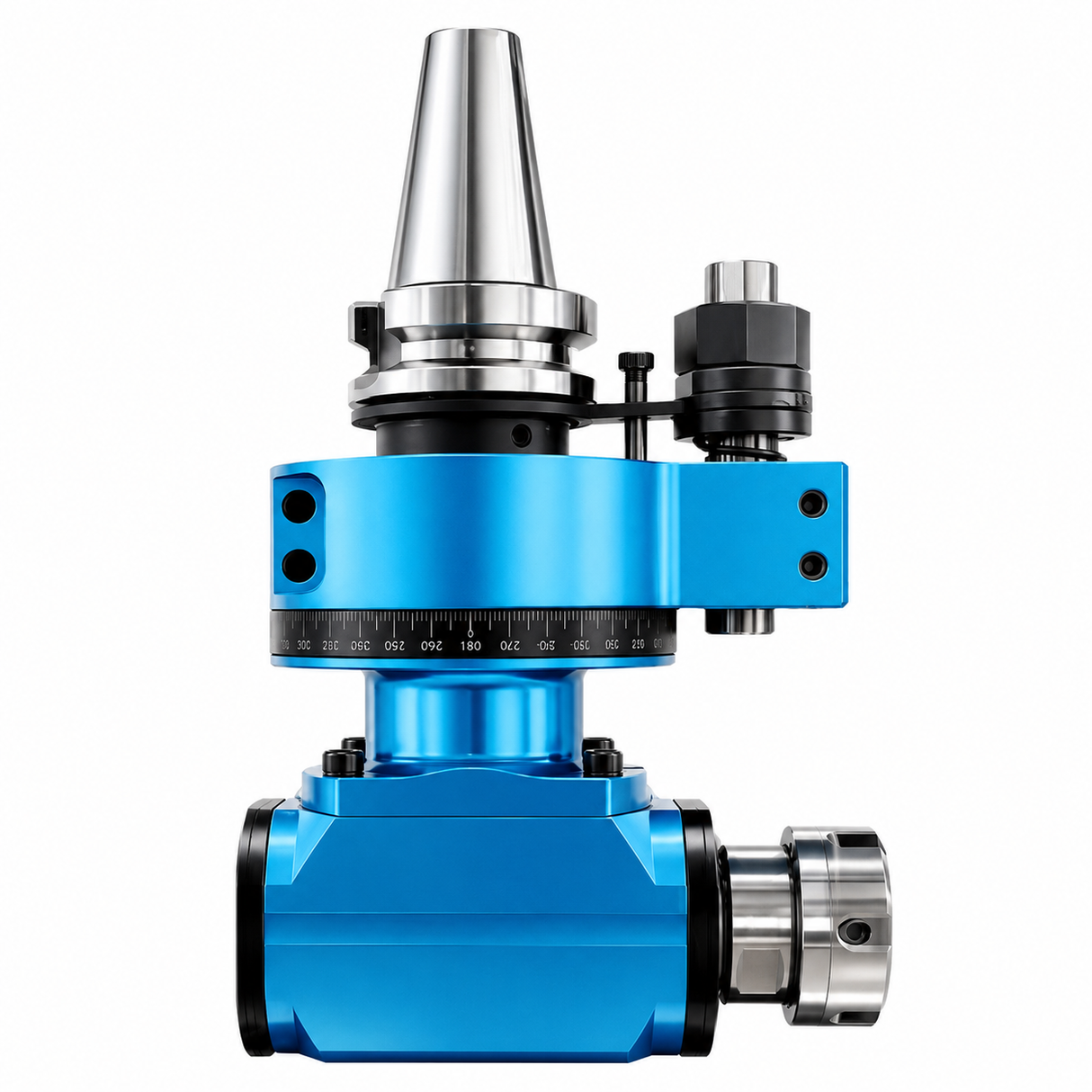

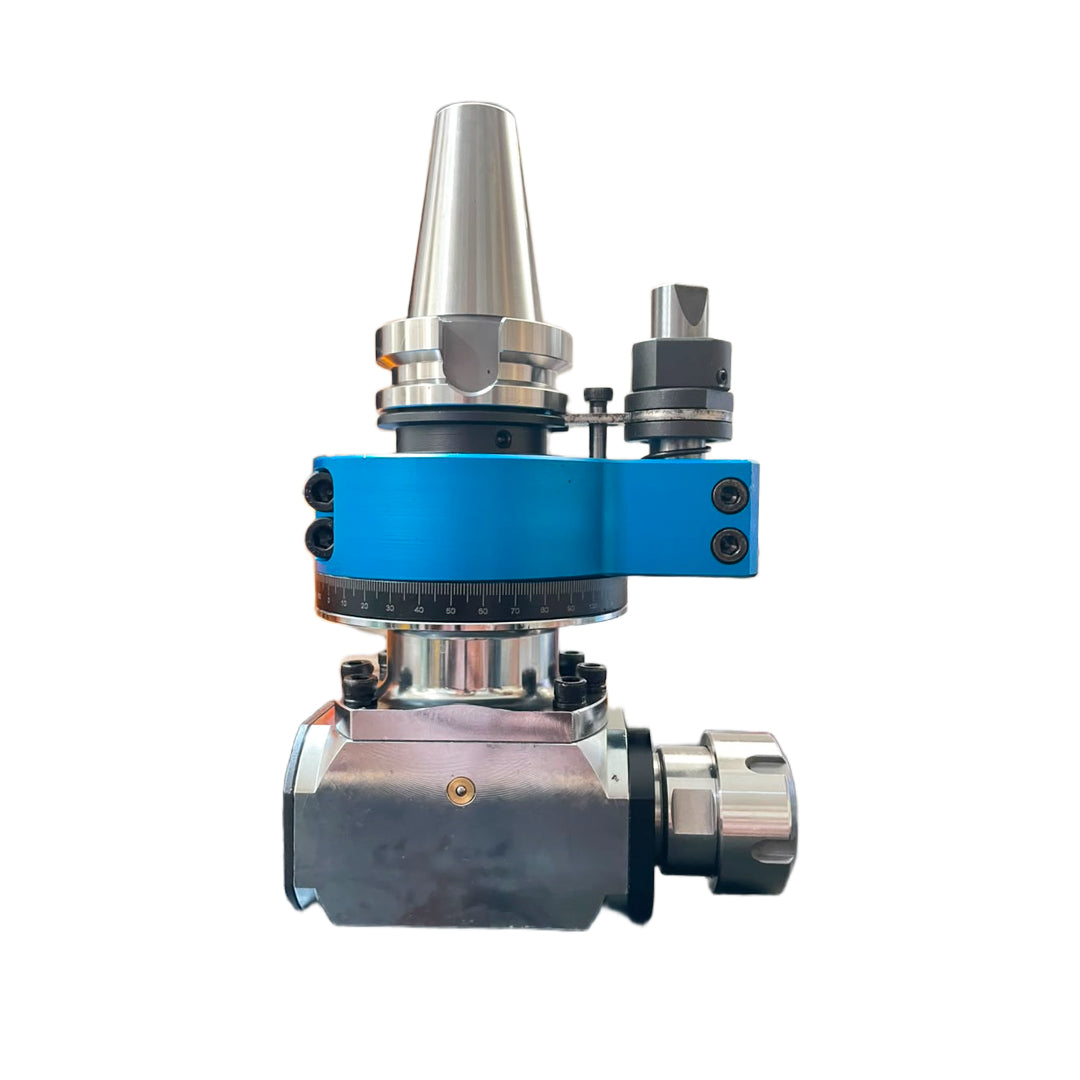

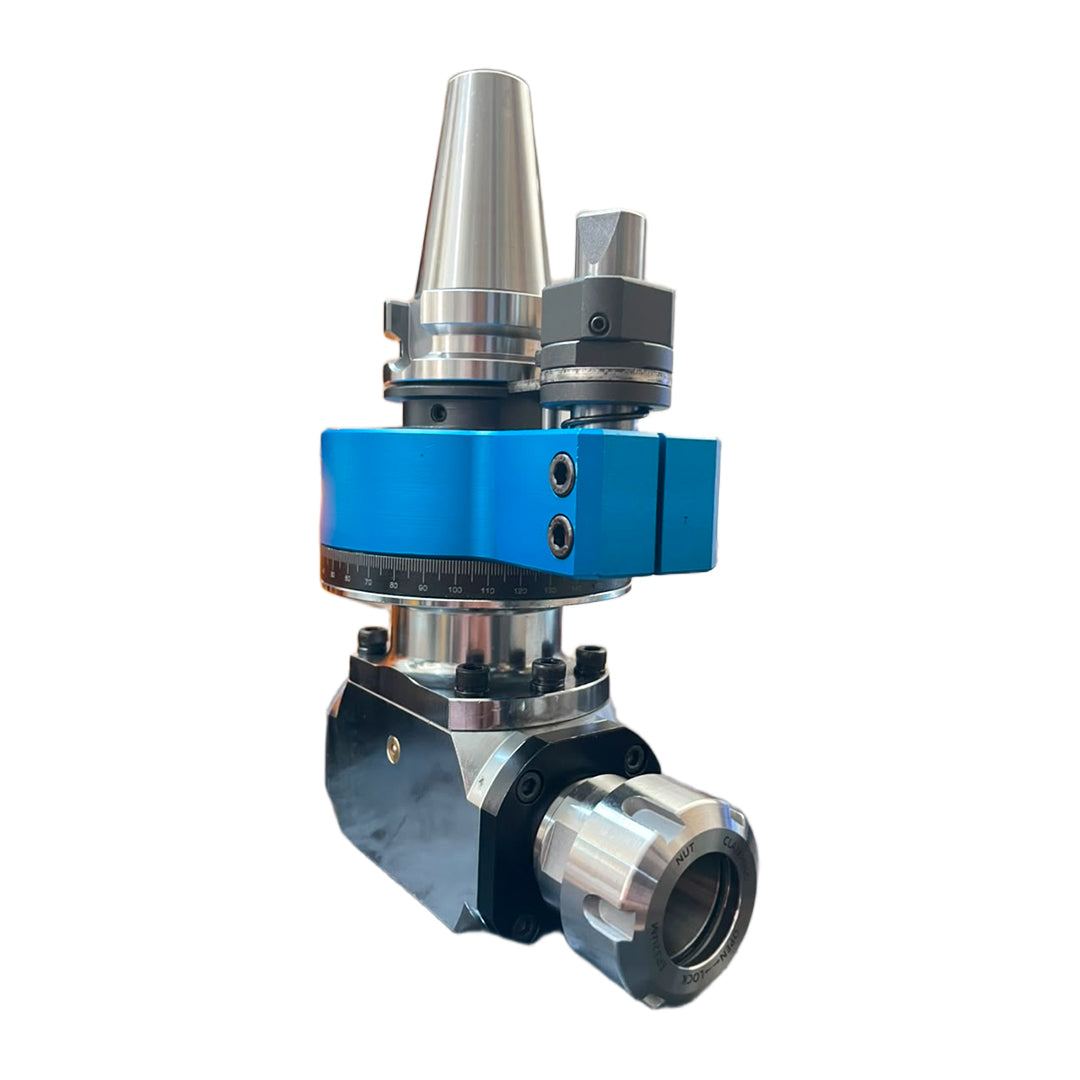

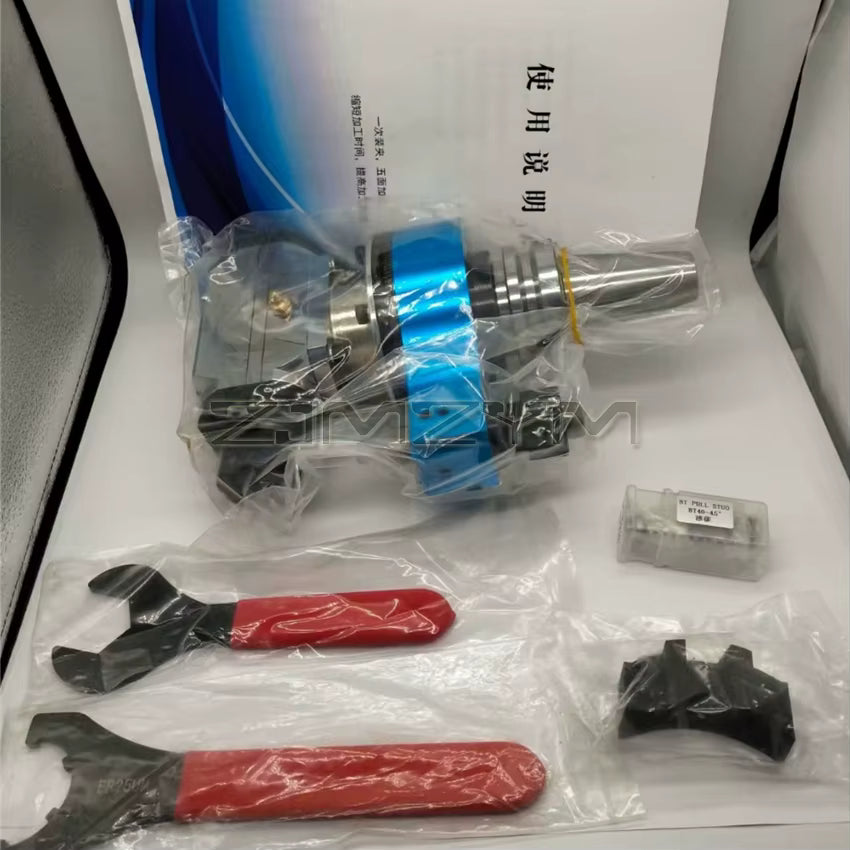

BT40 Angle Head 90 degree Machine Accessory

ACCEPT ONLY PREPAID ORDERS and check TECHNICAL DETAILS CAREFULLY BEFORE ORDERING.

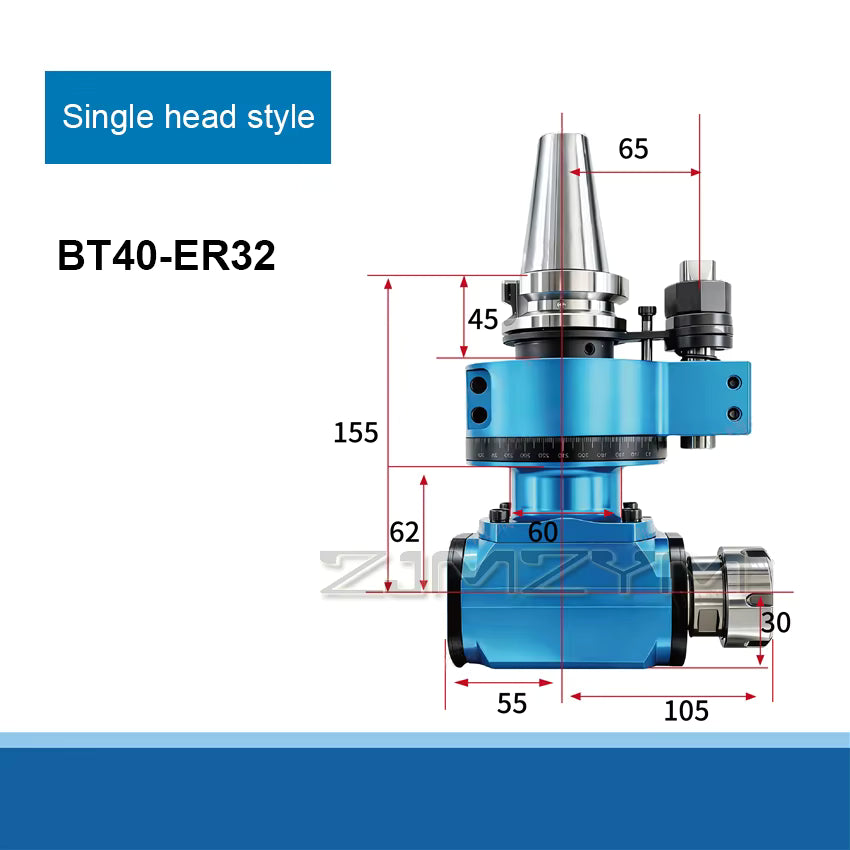

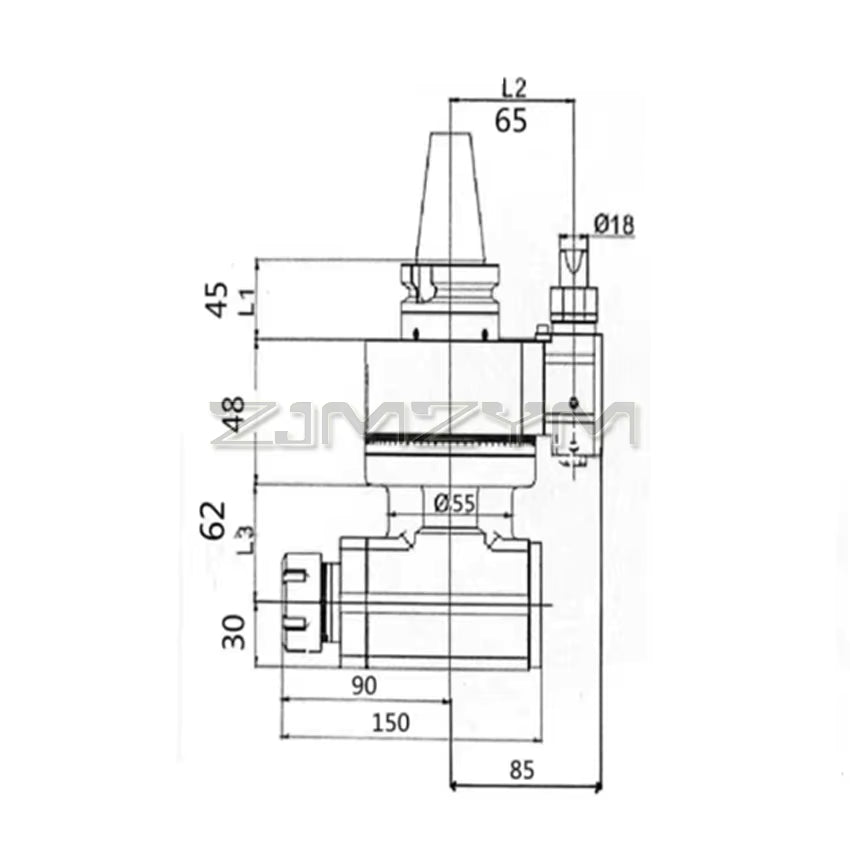

Check the table in the 2nd image for dimensions

BT40 ANGEL HEAD
Product Type: CNC Right Angle Milling Head (90° Angle Head)
Shank: BT40
Application: Used on CNC Vertical Machining Centers (VMCs) to machine surfaces that cannot be reached with a standard vertical spindle without repositioning the workpiece.

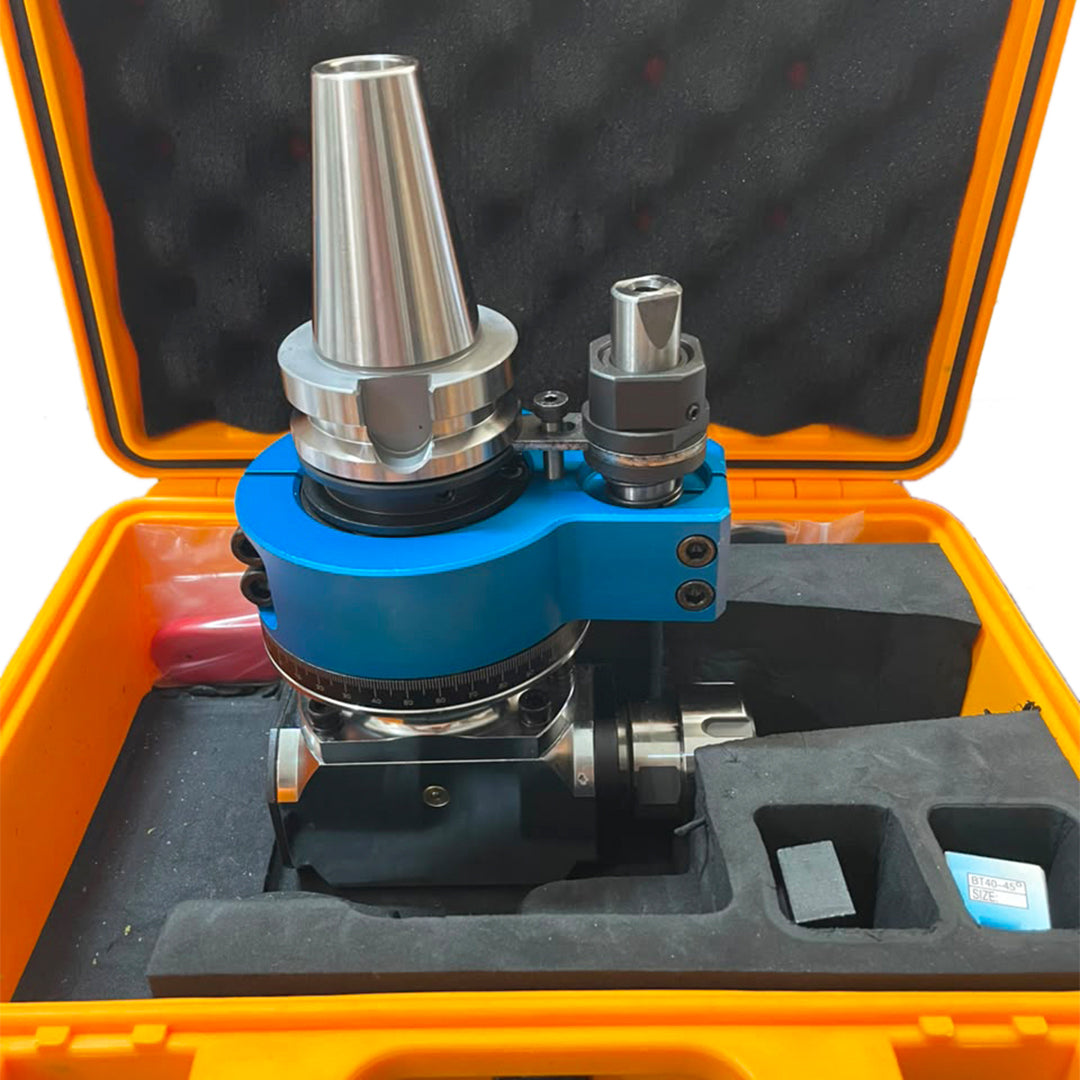

1. BT40 Taper Shank
   • Fits directly into a BT40 CNC spindle.
   • Precision ground taper.
   • Balanced for high-speed machining.
2. Anti-Rotation Arm
   • The black arm on the right side.
   • Prevents the angle head body from rotating.
   • Normally fixed to the machine spindle stop block.
3. 90° Gearbox
   • Transfers spindle rotation by 90°.
   • Usually contains hardened spiral bevel gears.
   • High precision bearings inside.
4. Output Spindle
   • Located horizontally.
   • Holds ER collet chuck or milling cutter.
   • Precision runout typically:
     • ≤0.005 mm (good quality)
     • Premium models ≤0.003 mm
5. Indexing Ring
   • The black graduated ring.
   • Allows rotation of the head.
   • Usually adjustable every 1°.
   • Locked after positioning.
6. Body Housing
   • Aluminum alloy or hardened steel.
   • Lightweight but rigid.



     Typical Technical Specifications

     Specification	Typical Value
     Machine Taper	BT40
     Output Angle	90°
     Tool Holding	ER32
     Maximum Collet Capacity	20 mm
     Maximum Speed	4,500 RPM
     Gear Ratio	1:1 (common)
     Rotation	Clockwise
     Coolant	External or optional internal
     Runout	≤0.010 mm
     Max Torque	64 NM
