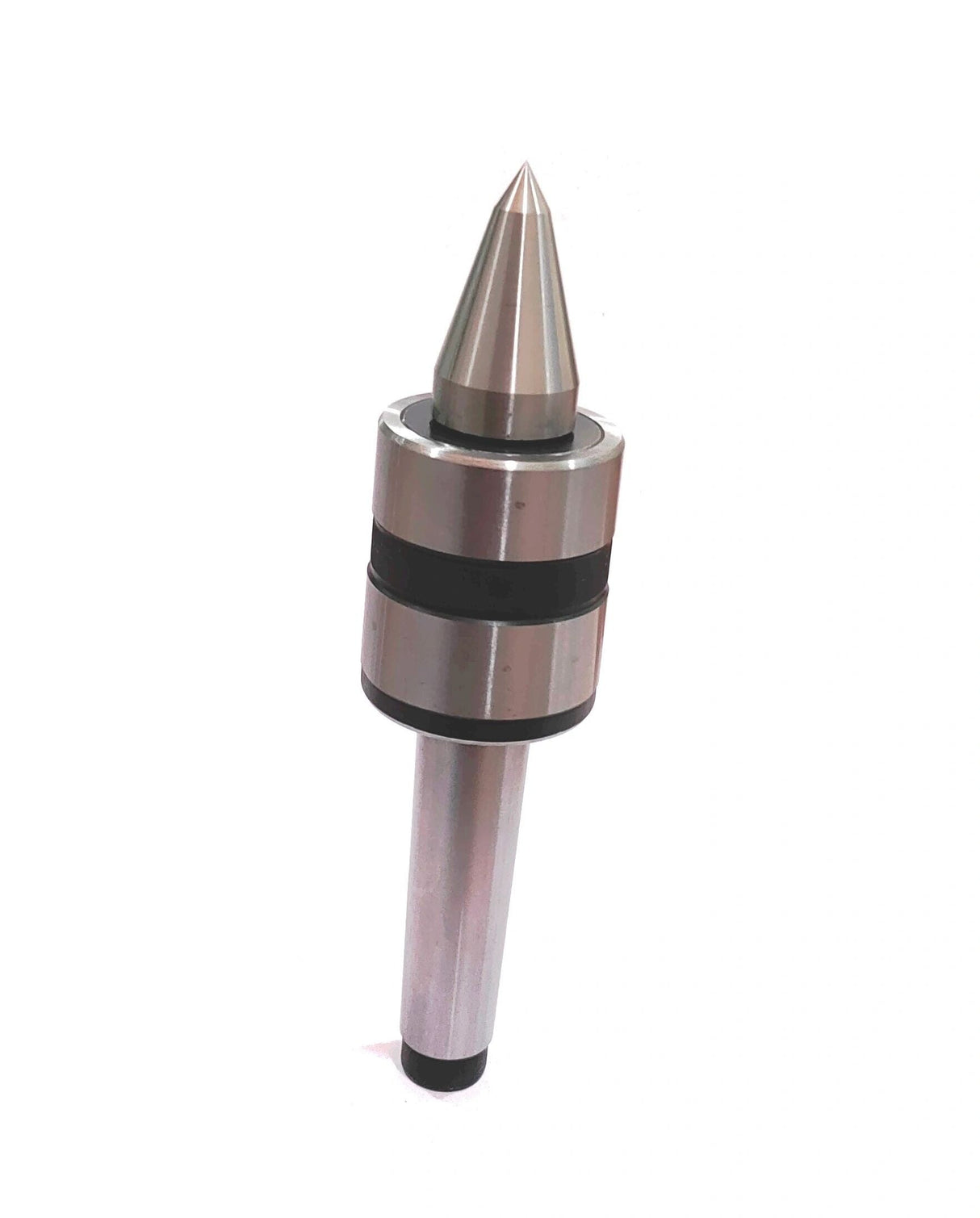

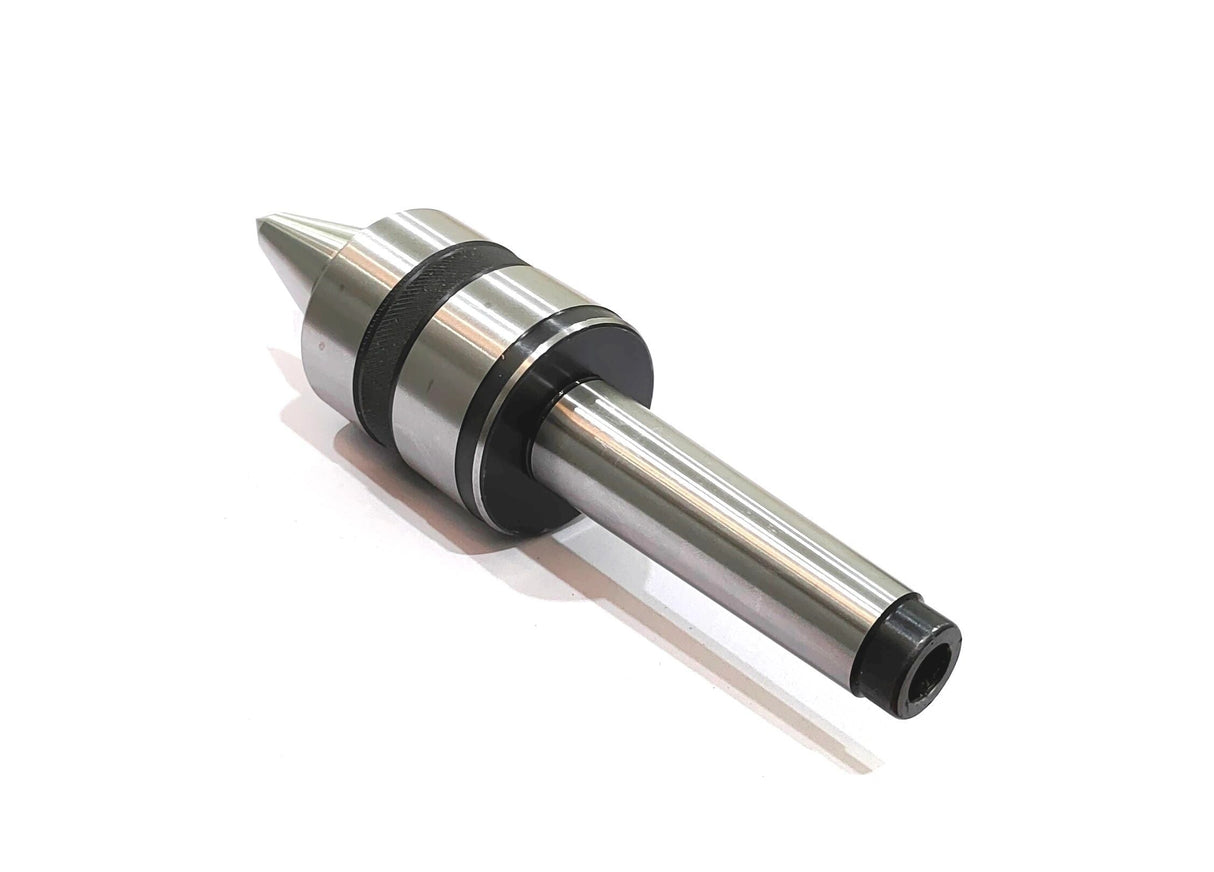

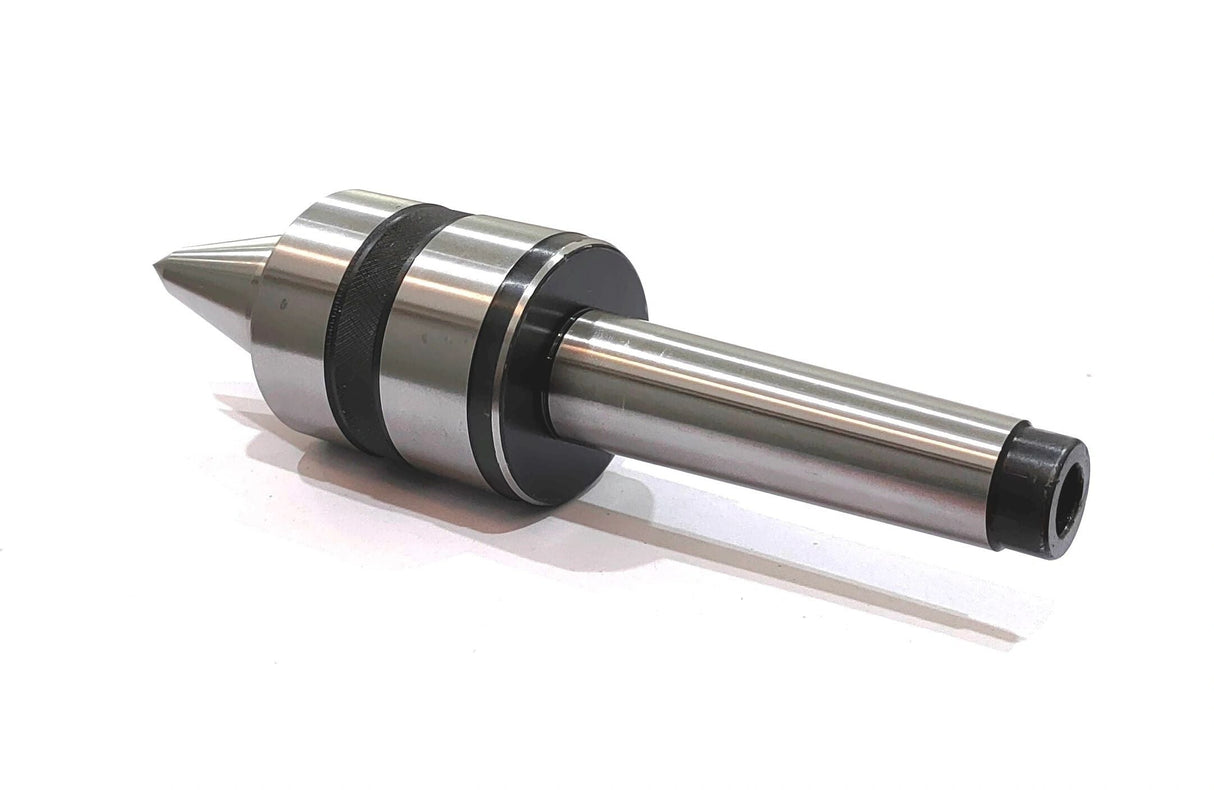

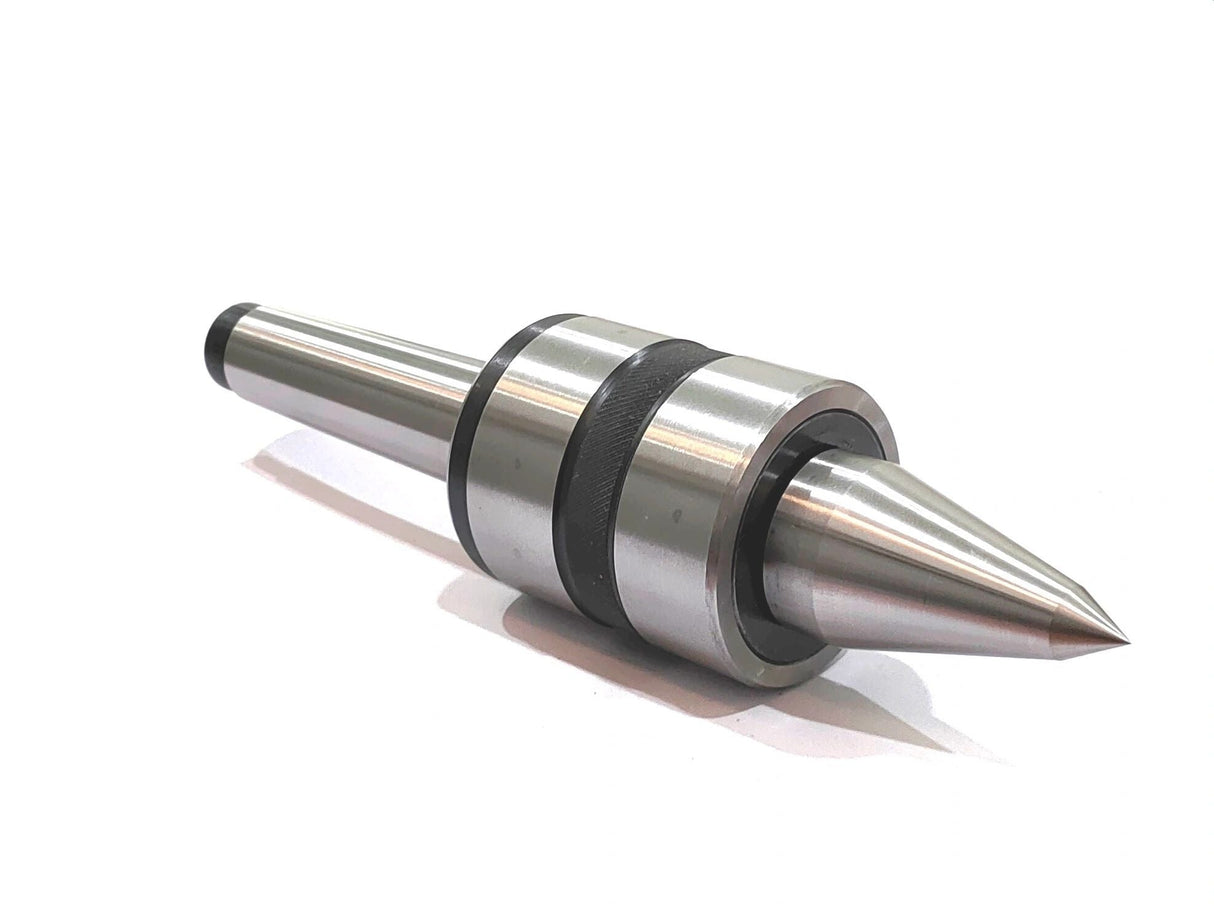

Double Bearing Lathe Machine Center Pipe Cum Revolving Center (Long Tip) for Metalworking
Double Bearing Lathe Machine Center Pipe Cum Revolving Center (Long Tip) for Metalworking - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description
Use of product- A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.
- Type: Double Bearing Lathe Pipe Cum Revolving Center (Long Tip)
-
Bearings:
- 1 Ball Bearing
- 1 Taper Bearing
- Body Diameter: 50 mm
- Bearing Body Case Length: 58 mm
- Overall Length (OAL): 200 mm
- Shank: Available in MT2 and MT3
- Runout: Under 5 microns (recommended for conventional lathes only)
- Body Material: Alloy steel grade EN8D
- Quill/Point Center Material: EN31 steel
- Nose Design: Allows use as both a revolving/live center and a pipe center
- Pipe Capacity for Turning: 12 to 28 mm
Features:
-
Precision and High Quality:
- Equipped with precision double bearings for enhanced accuracy and performance.
- Maintains a runout of under 5 microns, making it ideal for conventional lathes.
-
Material and Construction:
- Constructed from high-strength alloy steel grade EN8D for the body.
- The quill/point center is made from EN31 steel, ensuring high wear resistance and durability.
-
Versatile Usage:
- Unique nose design allows it to function as both a revolving/live center and a pipe center.
- Suitable for turning pipes with a diameter range of 12 to 28 mm.
-
Bearing Quality:
- Utilizes Z type (covered) bearings.
- Designed to lock and seal grease inside, even when melted at high temperatures during operation, ensuring consistent performance and extended life span.
