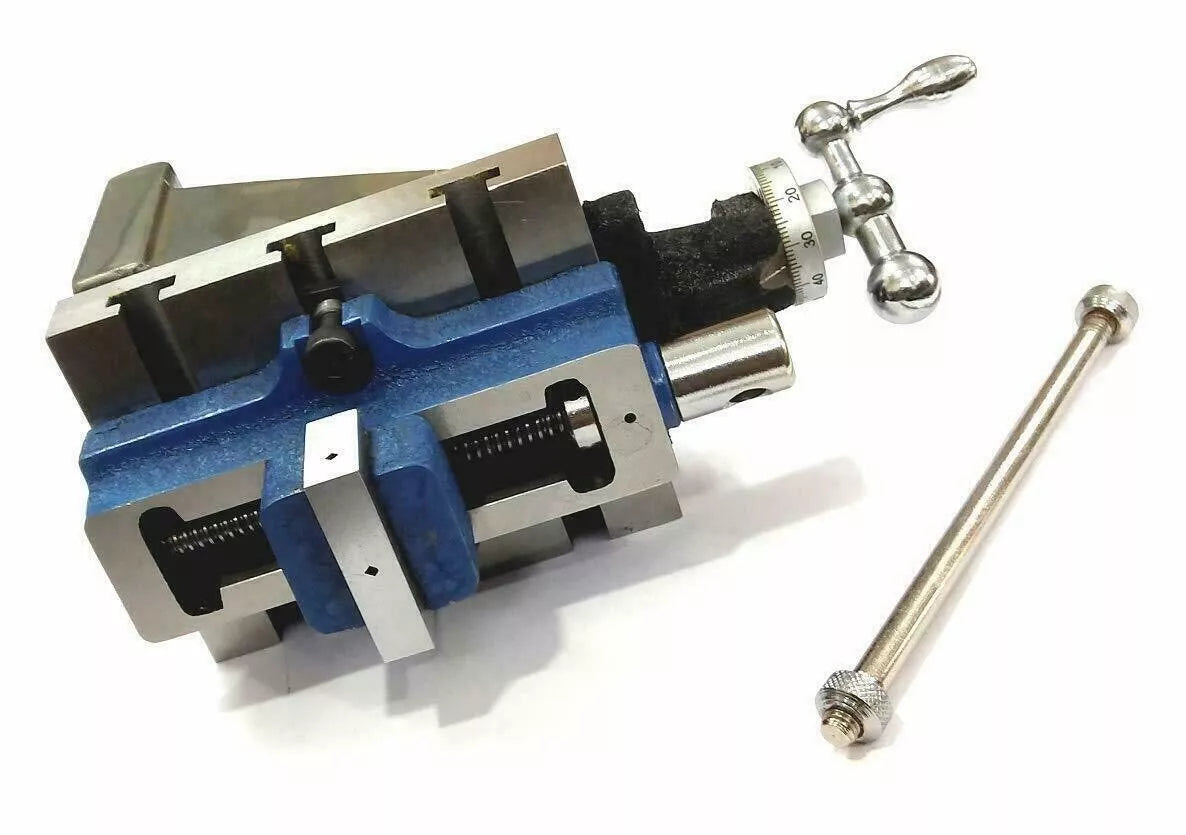

Milling Fixed Base Vertical Slide 125 mm x 100 mm with 50 mm Self Centering Vise Vice
Milling Fixed Base Vertical Slide 125 mm x 100 mm with 50 mm Self Centering Vise Vice is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description
Use of the Product

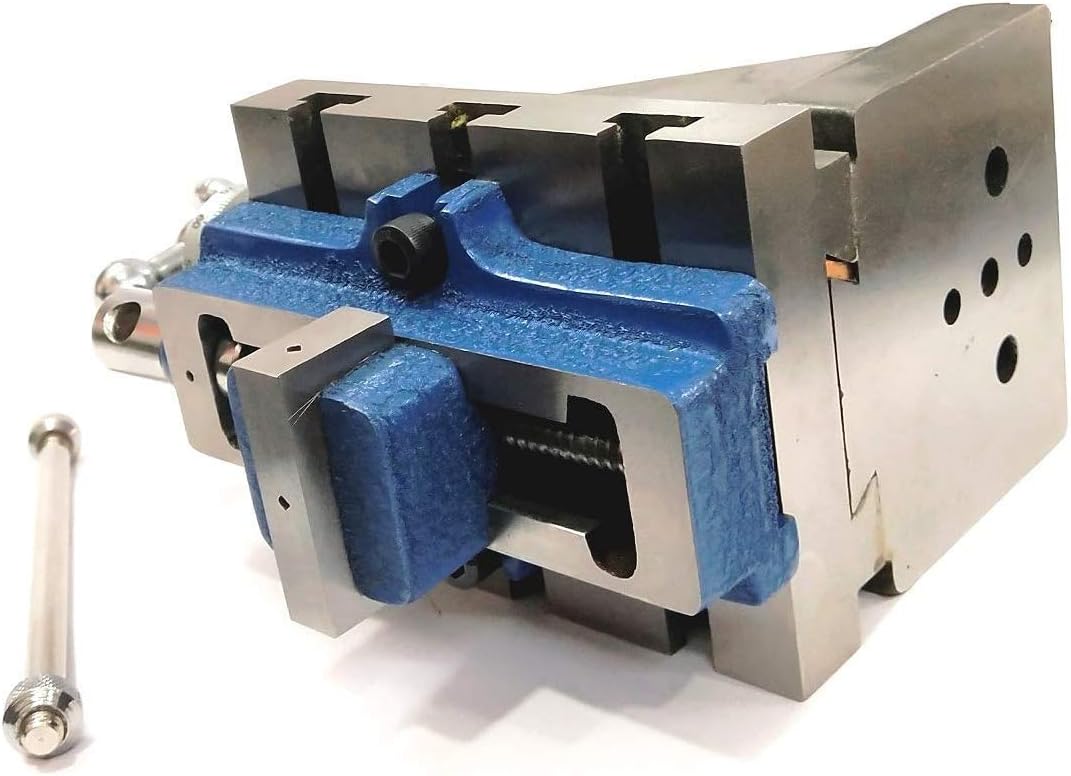

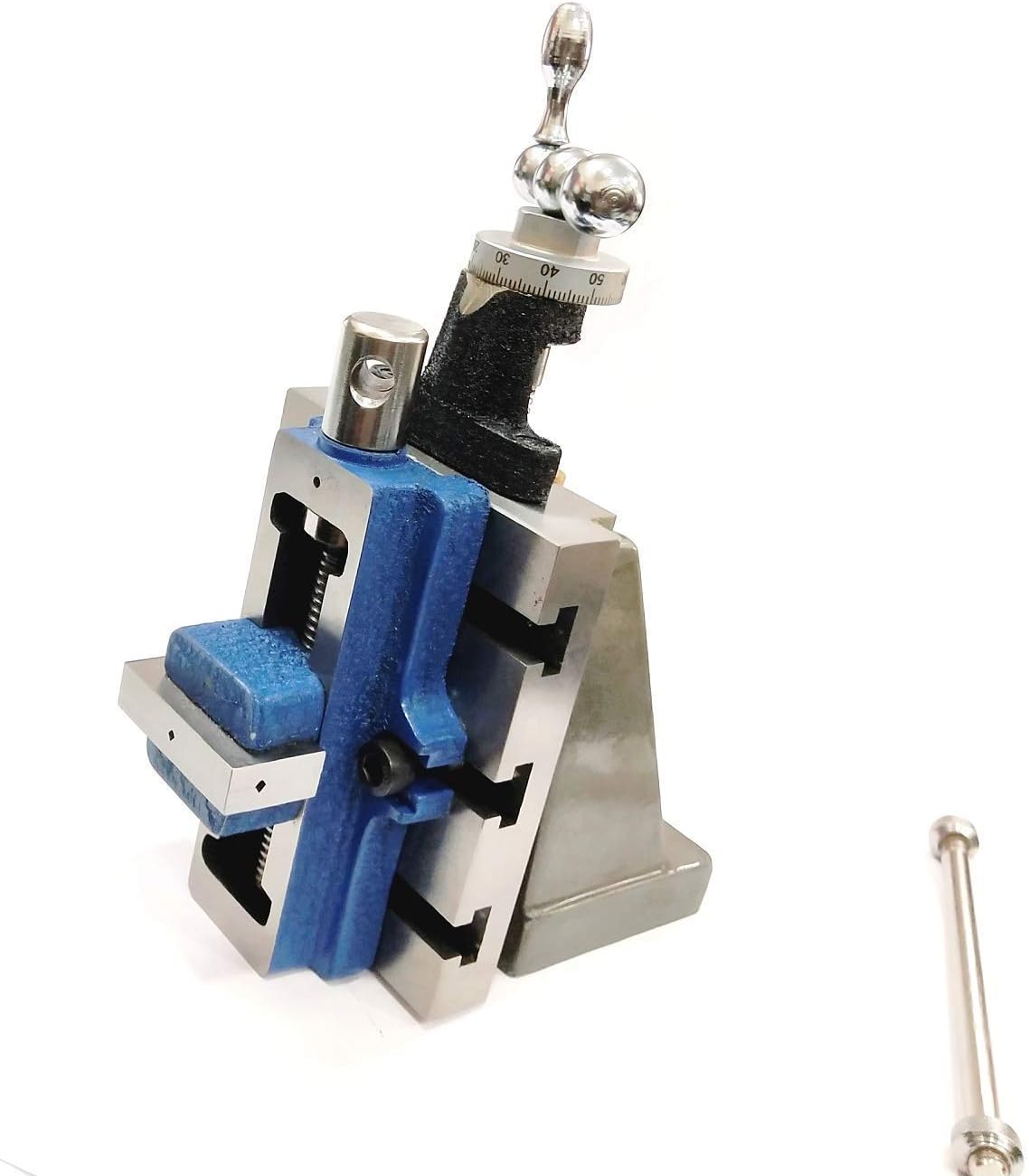

A vertical slide on the cross-slide enables the material to be raised or lowered as necessary. Widening the slot in a piece of material by machining along one edge with an end mill is an example. The same is true when all that is required is an initial height setting for work relative to the mill or cutter. The vertical slide admits of quick adjustment.
A self-centring vice automatically centres and clamps the workpiece, saving time and effort compared to traditional vices that require manual adjustment. This feature is handy when working with cylindrical or symmetrical workpieces that require precise positioning for machining.

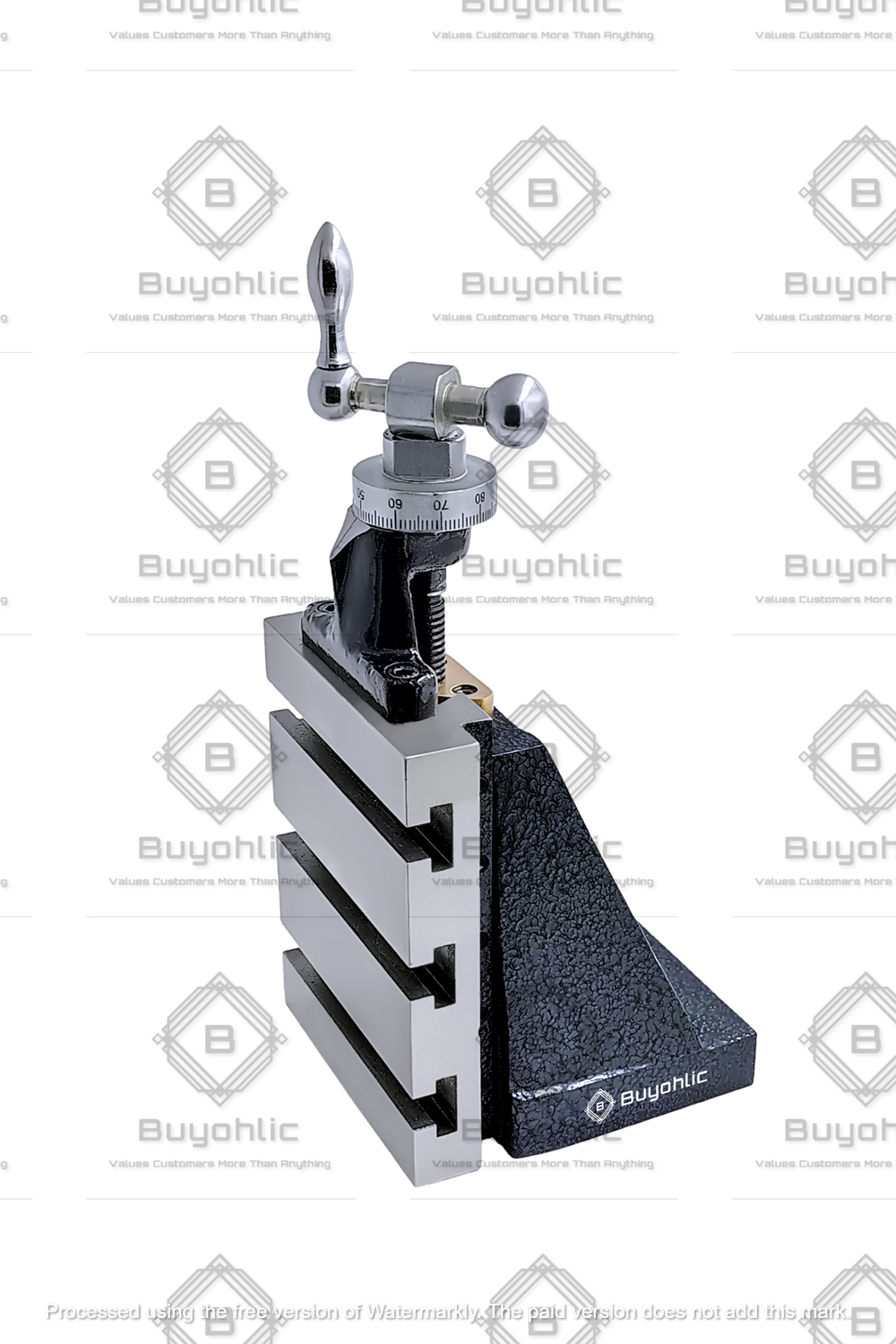

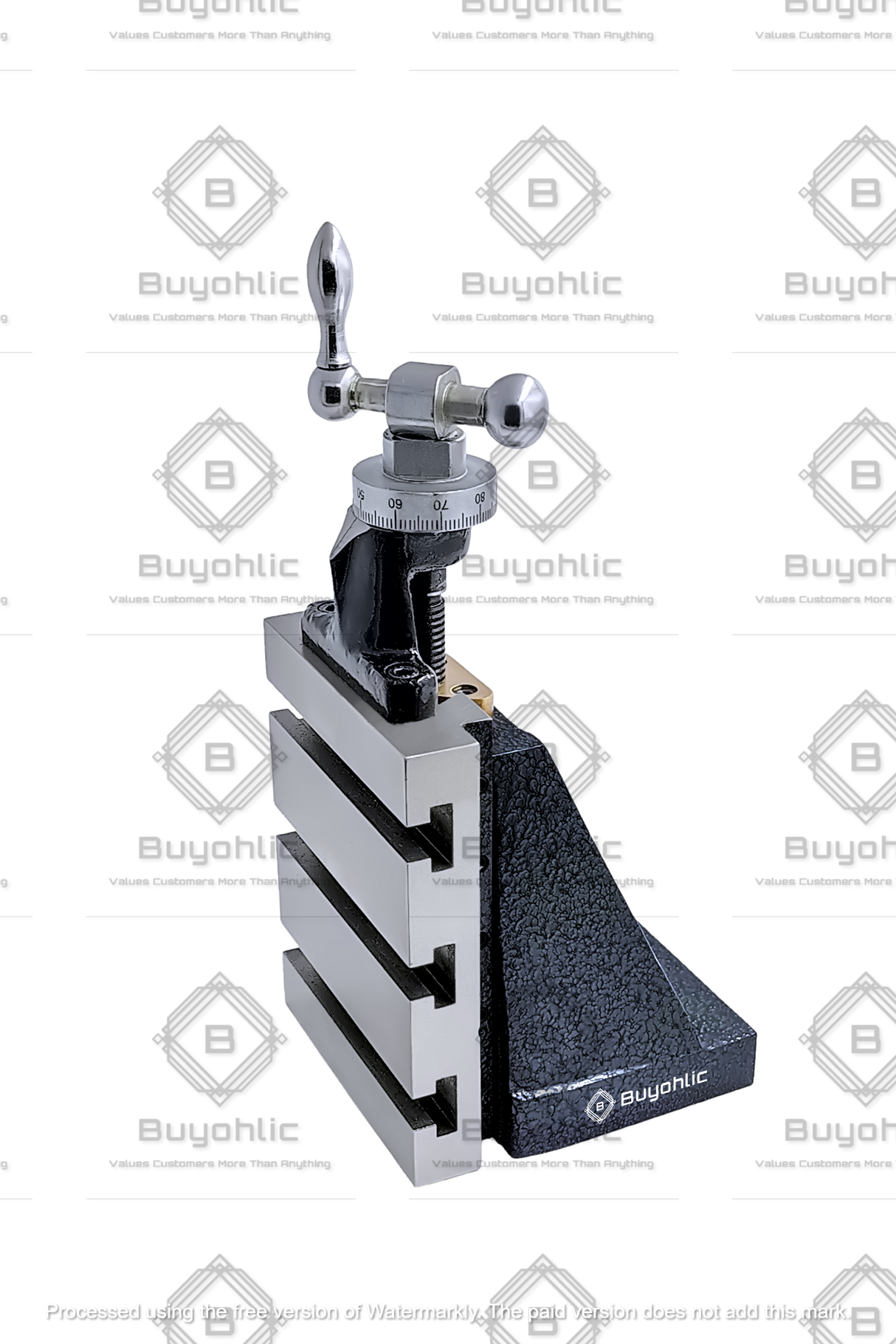

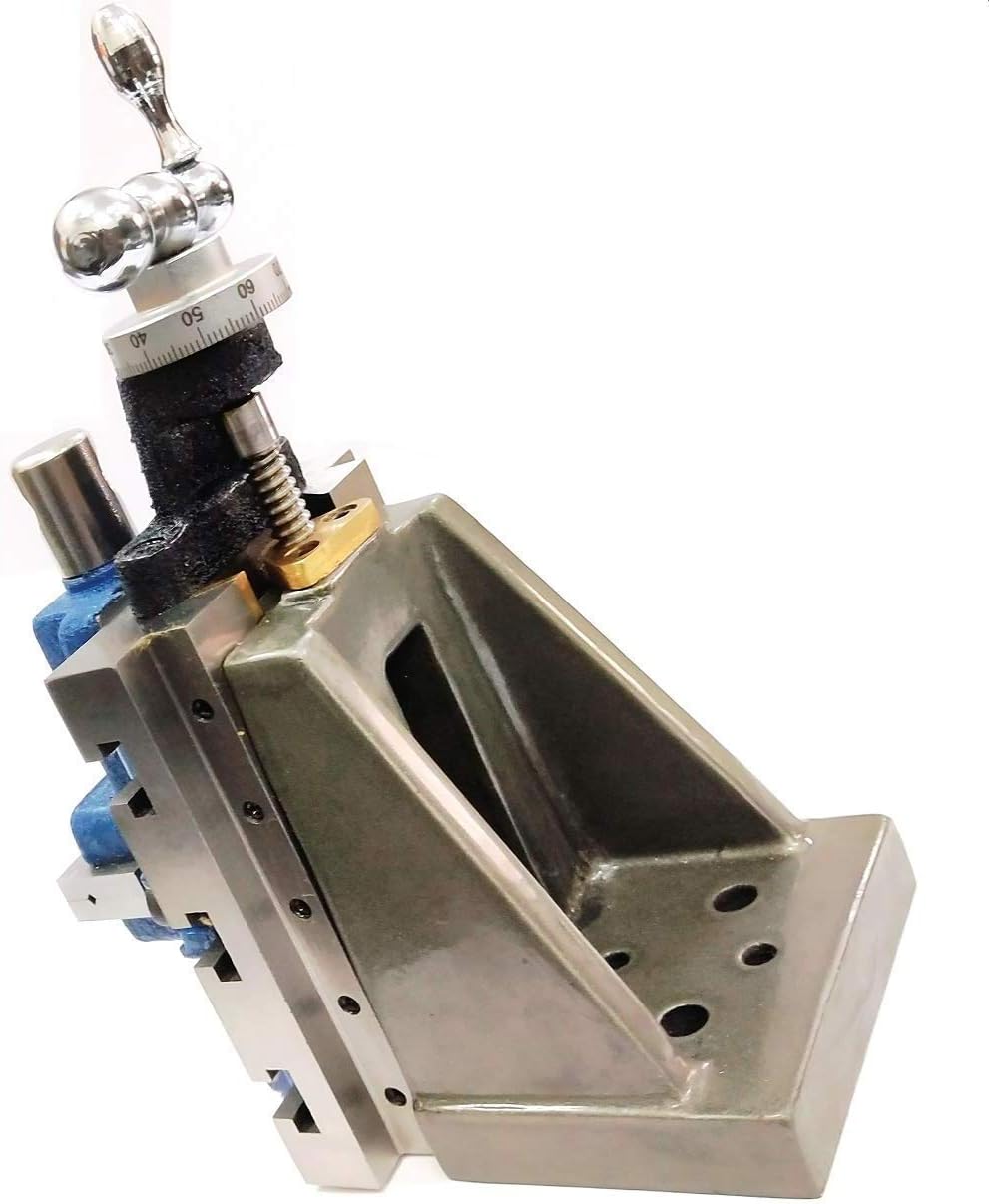

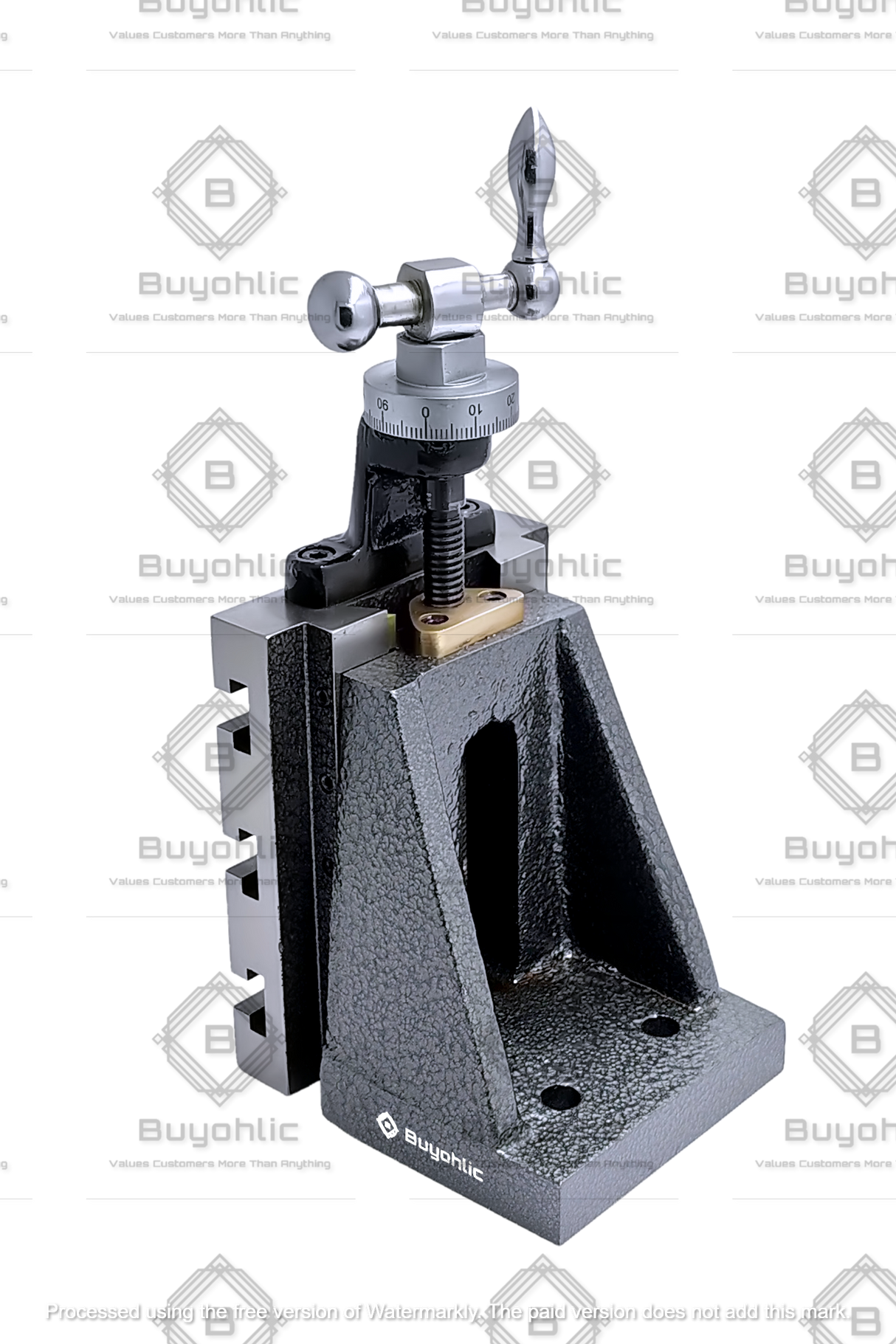

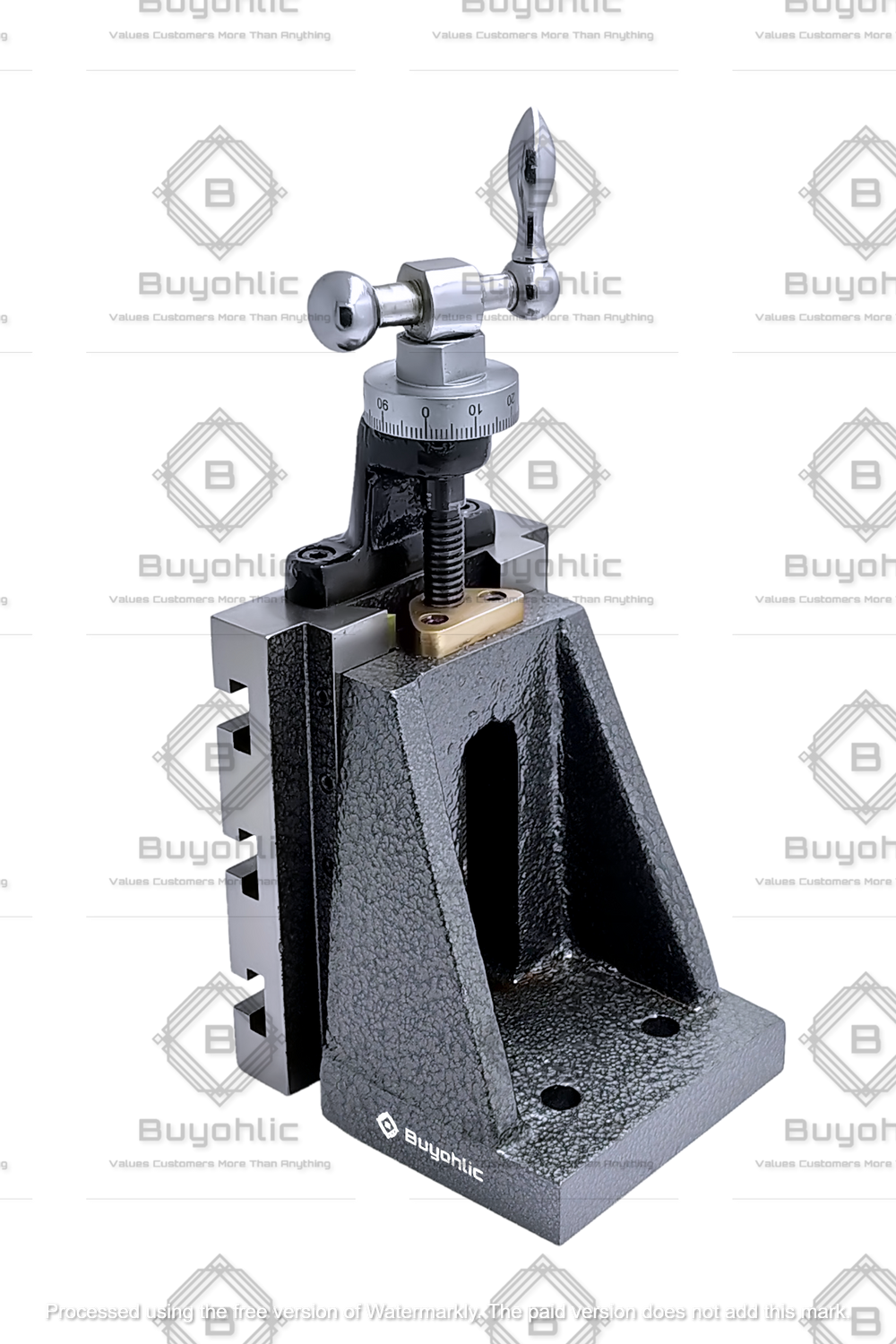

Lathe Milling Vertical Slide
Table Bed Size: 125 mm x 100 mm
Provides ample working area for various milling operations.
Base Type: Fixed Base
Ensures a stable and rigid setup for precise milling.
Tee Slots: Number of Tee Slots: 3
Width at the Top of the Tee: 10 mm
Width at the Bottom of the Tee: 15 mm
Facilitates secure mounting of workpieces and accessories.
Compatibility:
Specifically designed to allow milling on Myford lathes.
Table Movement: Approximately 80 mm of table movement
Provides flexibility and range for milling tasks.
Construction:
Made from high-quality materials for durability and longevity.
Precision-engineered to withstand the demands of milling operations.

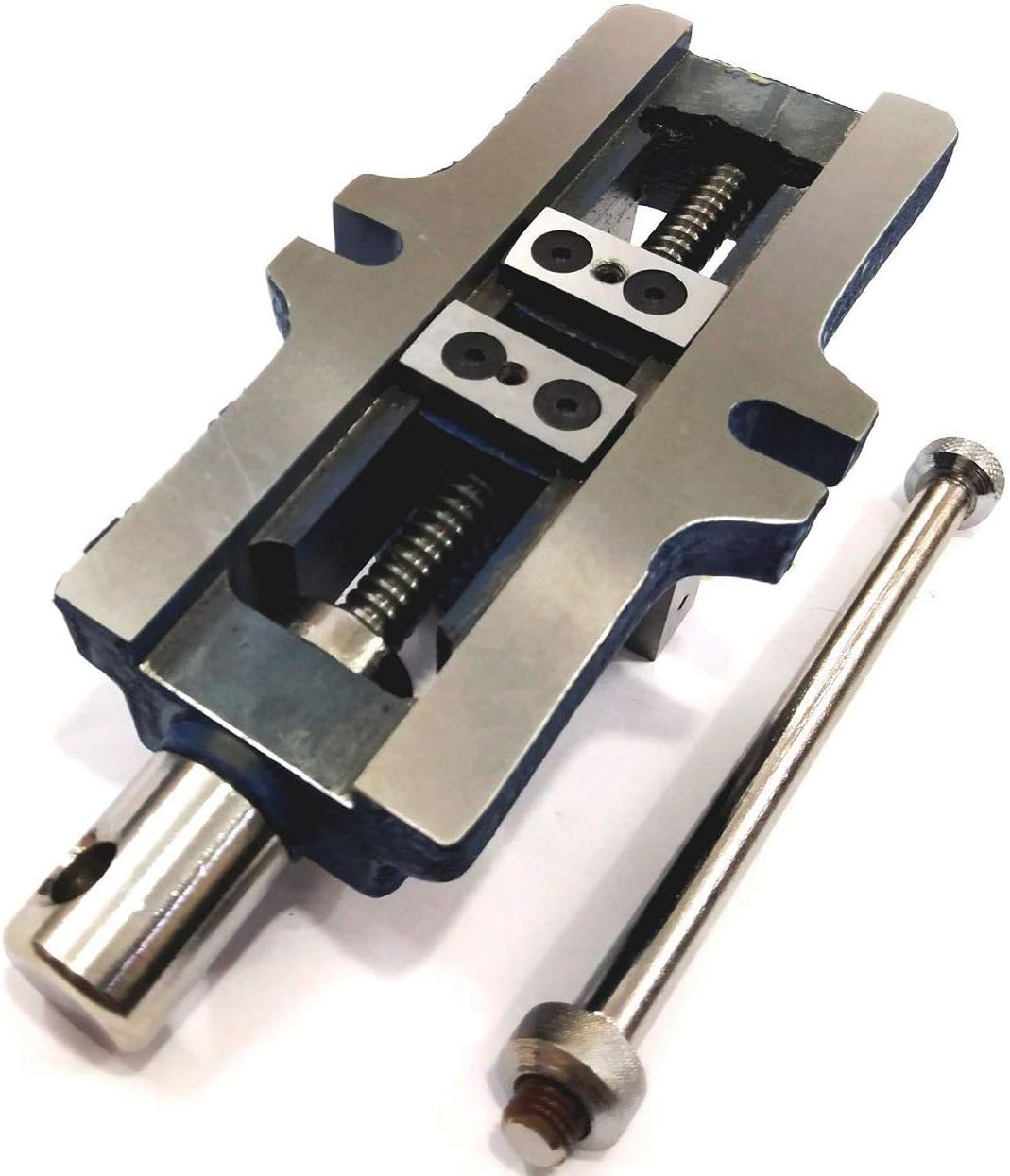

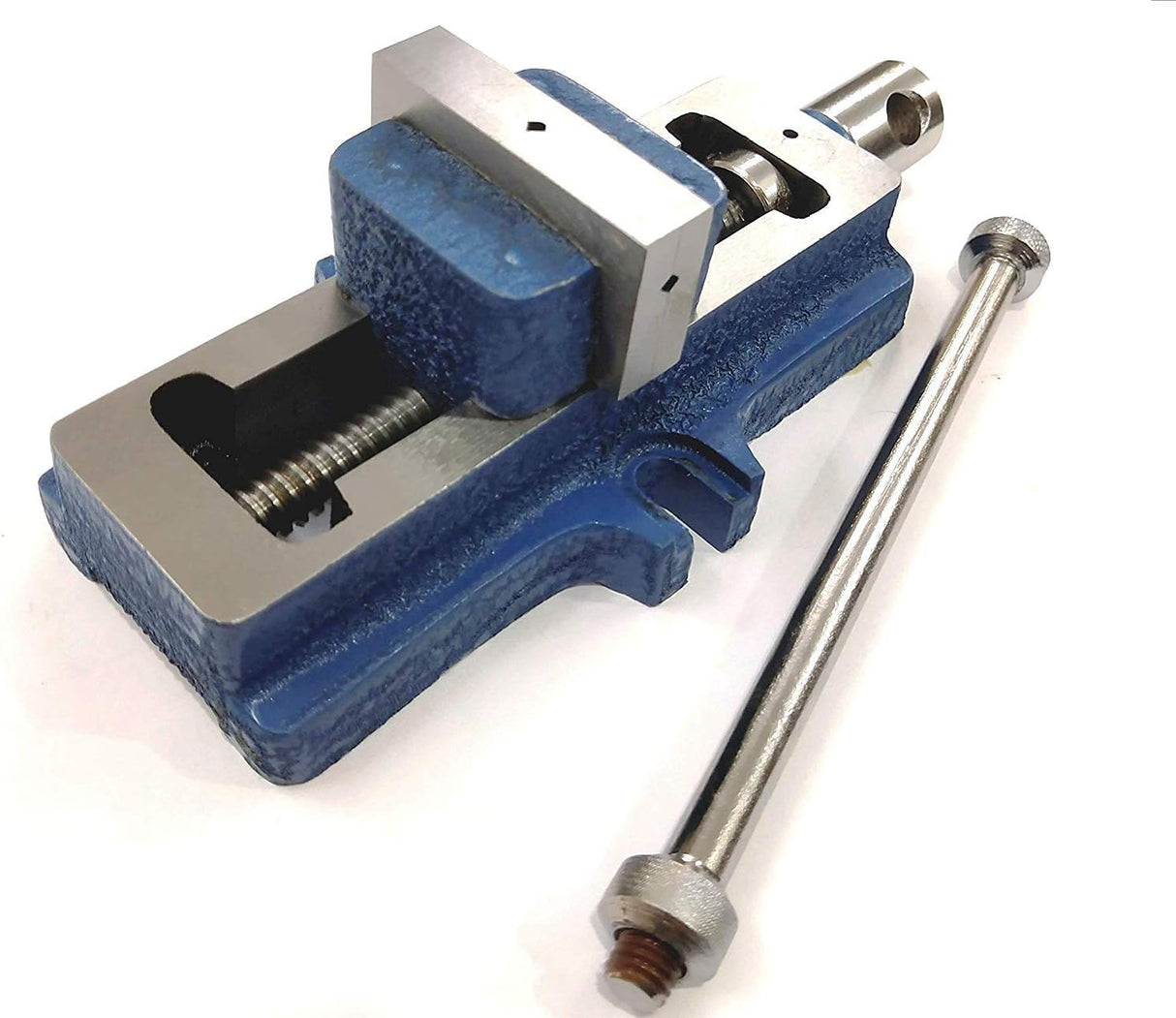

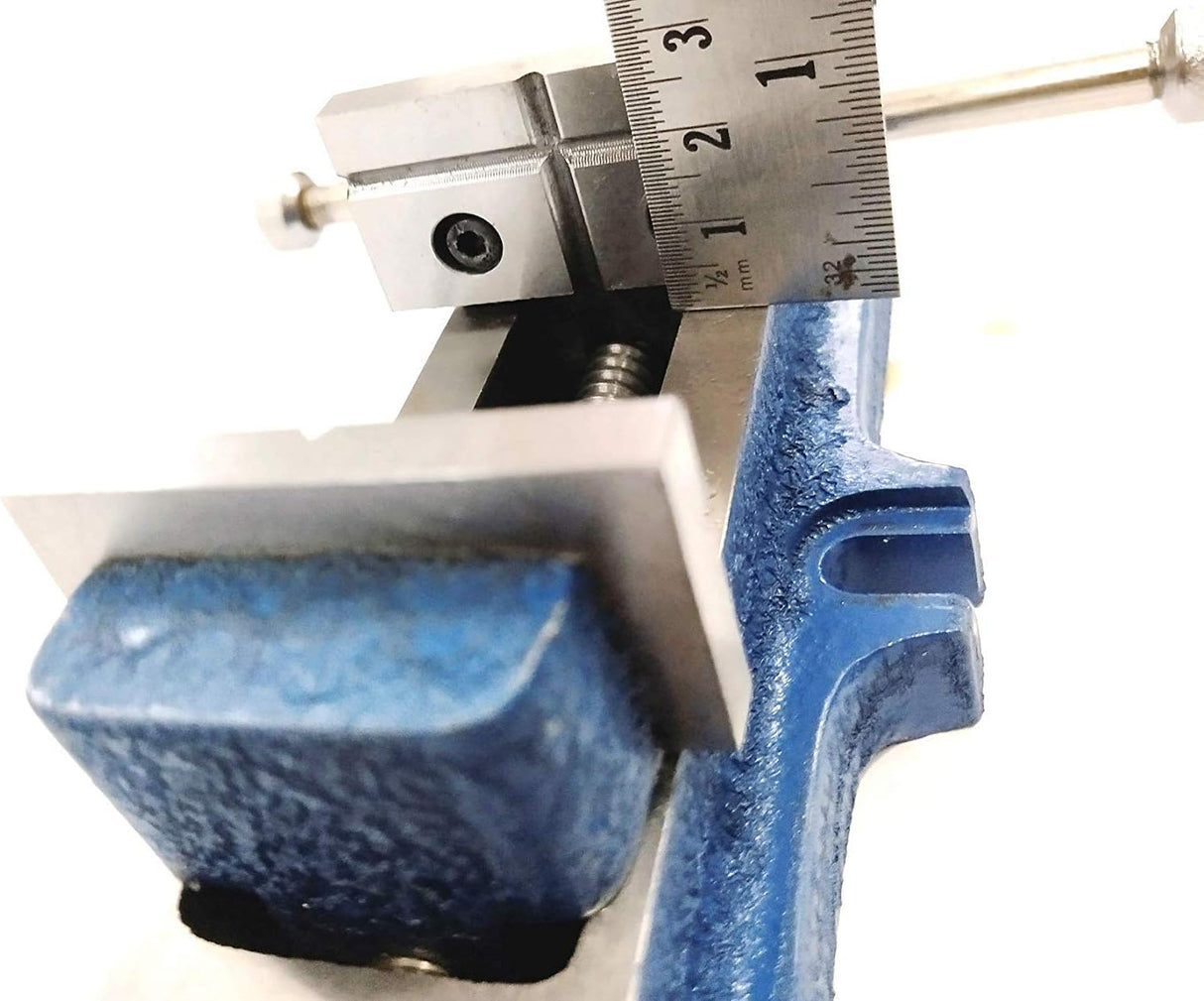

Self-Centring Machine Vice- 2" Inch (Jaw Width 50 mm)

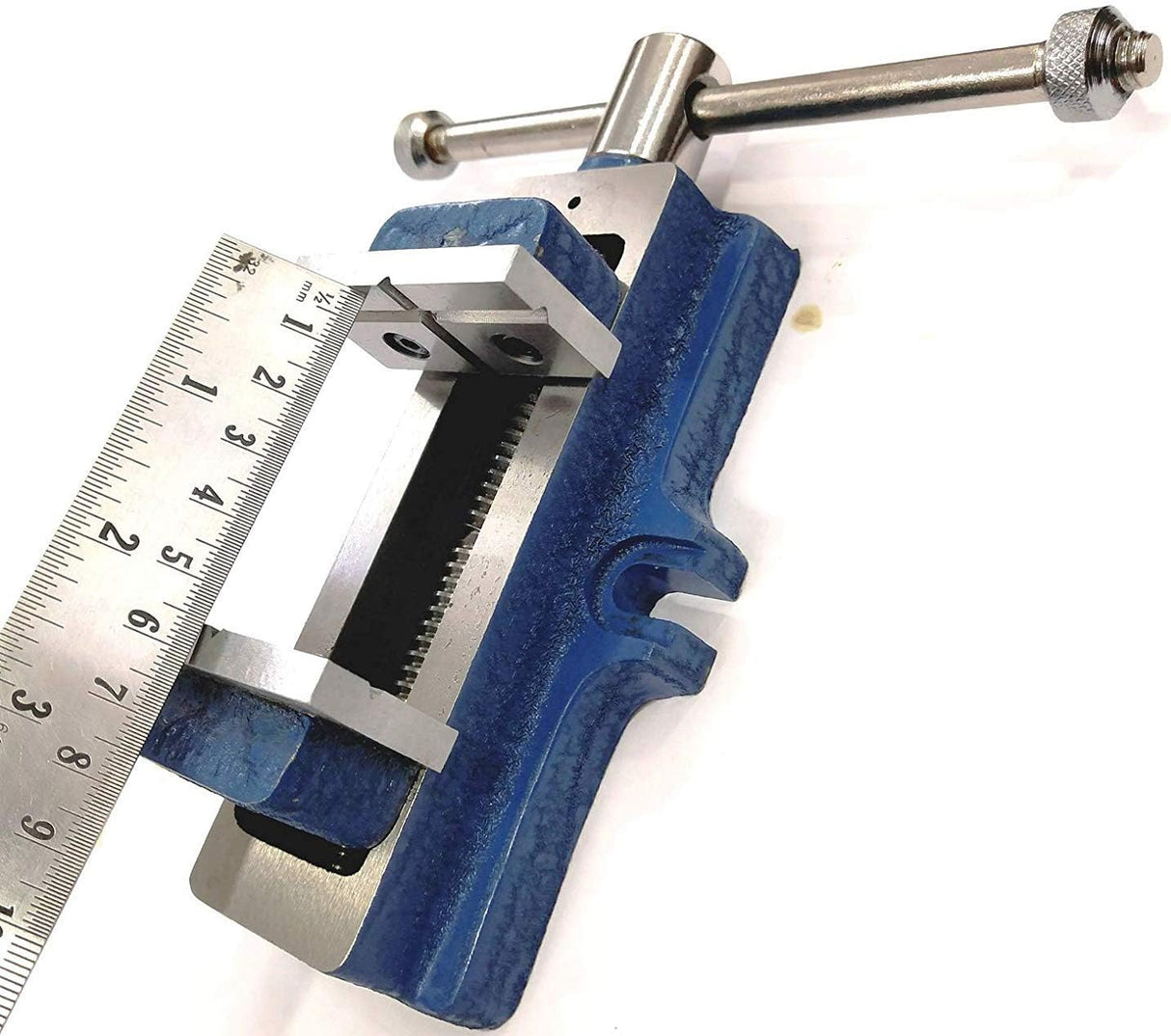

Maximum Jaw Opening 55 mm, Jaw Depth 28 mm
Seasoned High Grain Casting Body, Jaw Width 2" Inches/ 50 mm
