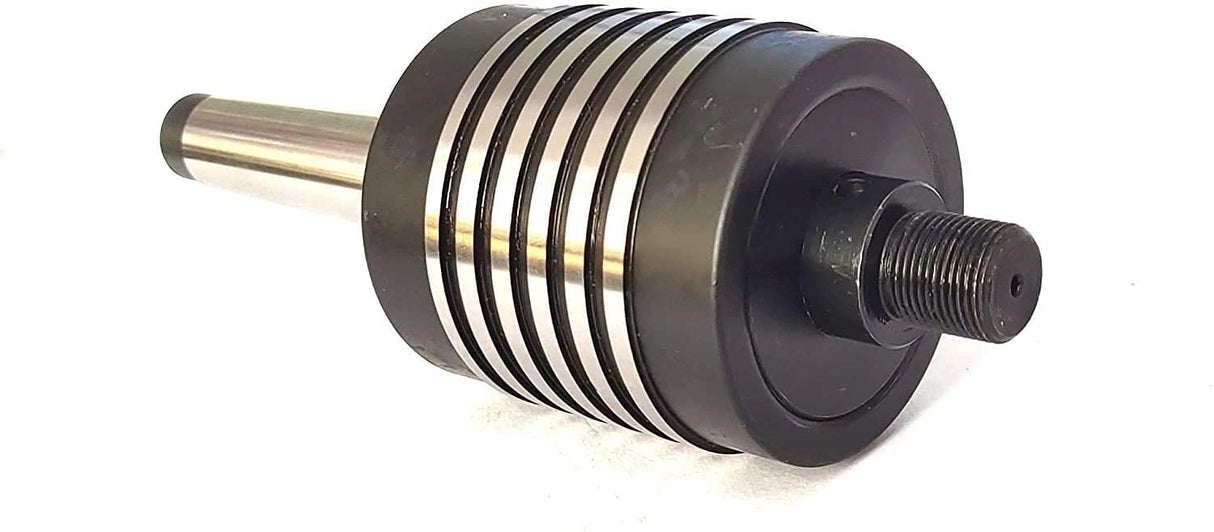

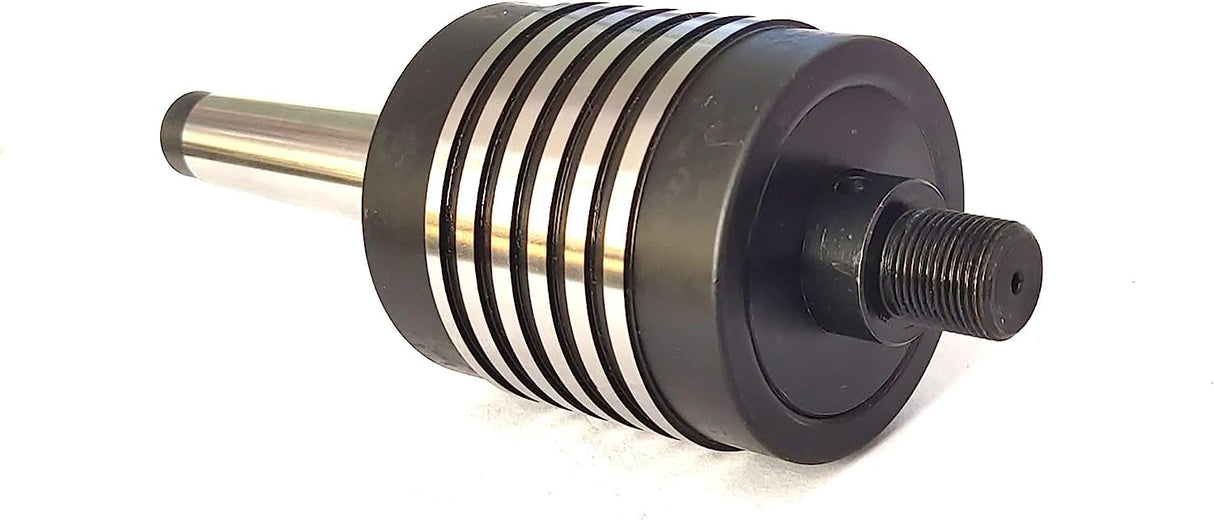

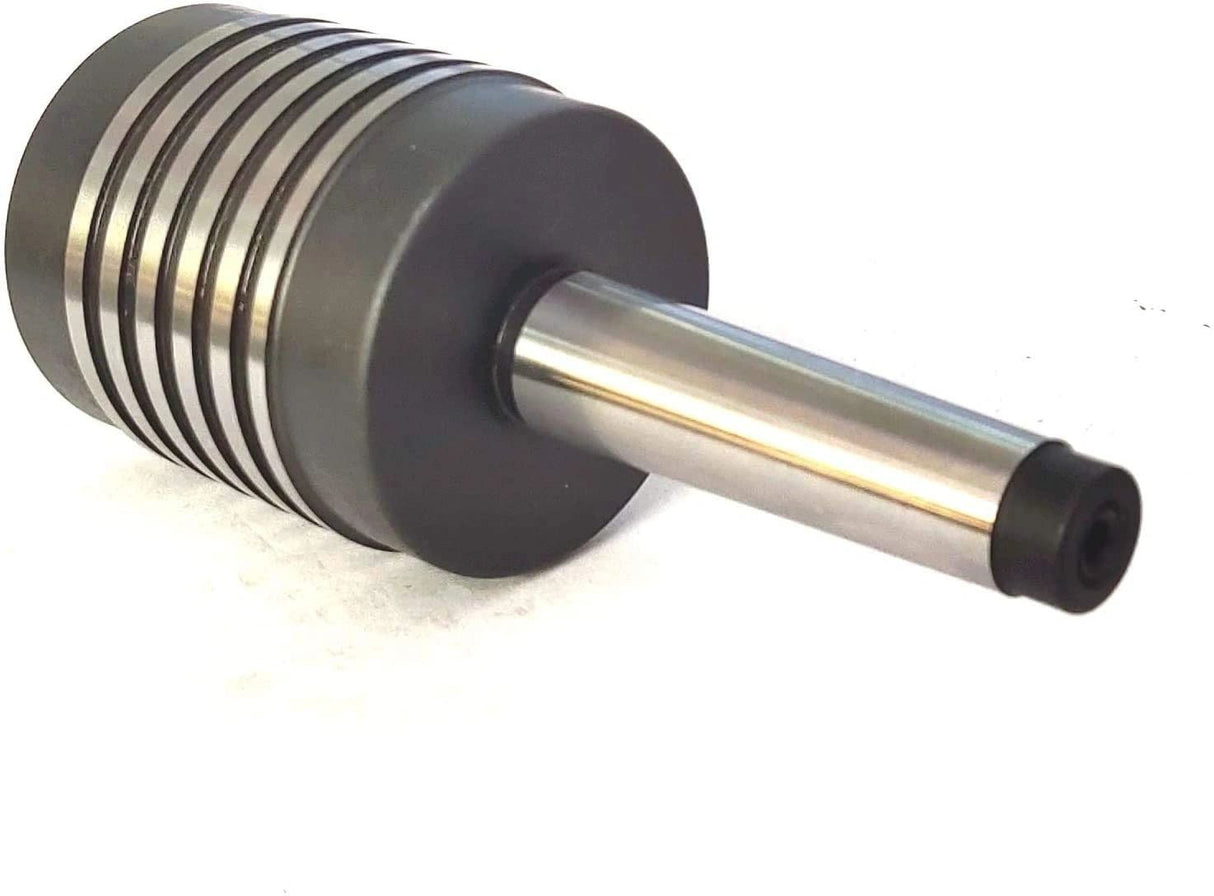

Double Bearing Live Revolving Center Centre bore Ground Run Out Within 5 MICRONS
Double Bearing Live Revolving Center Centre bore Ground Run Out Within 5 MICRONS - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sign up for restock notifications
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description
A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.
Features:
-
Shank Options:
- MT2 (Morse Taper 2)
- MT3 (Morse Taper 3)
-
Thread Sizes:
- M12 x 1
- M14 x 1
-
Precision Construction:
- BORE Ground Run Out: Within 5 microns, ensuring high accuracy and minimal deviation.
-
Double Bearing System:
-
Bearings:
- 1 x Taper Radial Bearing
- 1 x Ball Bearing
- Enhanced Stability: The double bearing design provides superior stability and load-bearing capacity, reducing vibrations and ensuring smoother operation.
-
Bearings:
-
Dimensions:
- Body Diameter: 52 mm
- Bearing Case Diameter: 58.70 mm
- Overall Length (OAL): 180 mm
-
Durable Materials:
- Constructed from high-quality materials for long-lasting performance and reliability.
Benefits:
- High Precision: With a ground run out within 5 microns, this live center offers exceptional accuracy for high-precision machining tasks.
- Versatile Compatibility: Available in both MT2 and MT3 shank sizes with M12 x 1 and M14 x 1 thread options to fit a wide range of lathes.
- Stability and Smooth Operation: The combination of a taper radial bearing and a ball bearing ensures maximum stability and smooth rotation, reducing wear and extending the tool's lifespan.
- Robust Design: The durable construction and precise engineering make this live center suitable for demanding machining environments.
Applications:
- Lathe Operations: Ideal for various turning applications, providing reliable support and precision.
- Metalworking: Suitable for professional machinists and hobbyists working with metal lathes.
- High-Precision Machining: Perfect for tasks requiring high accuracy and stability, such as CNC turning and complex part manufacturing.
Enhance your lathe operations with the Double Bearing Live Revolving Center, designed for precision, stability, and durability, meeting the needs of both professional machinists and hobbyists.
