INSIZE DISK MICROMETERS -3282
INSIZE DISK MICROMETERS -3282 - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description

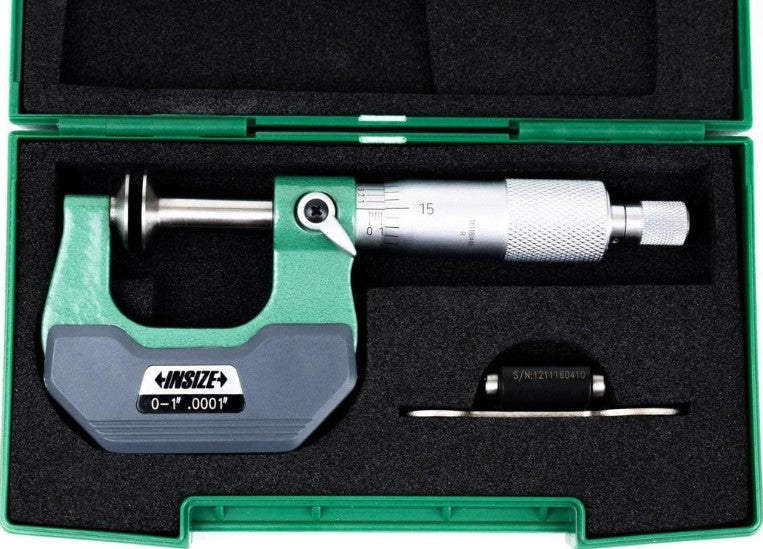

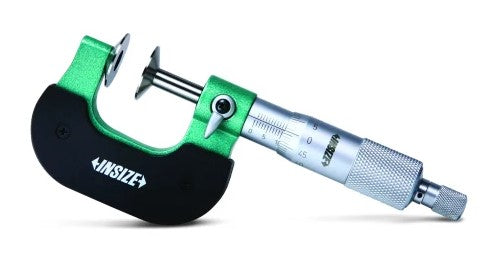

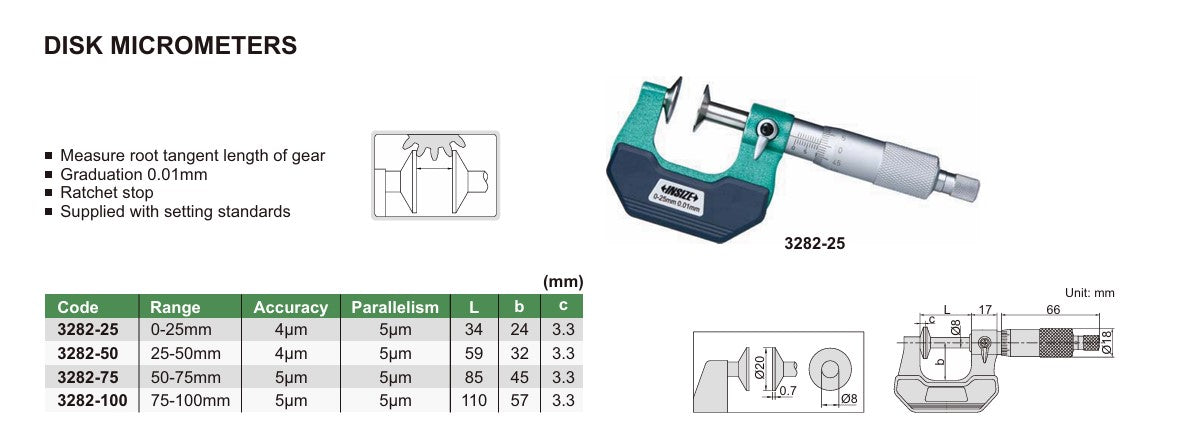

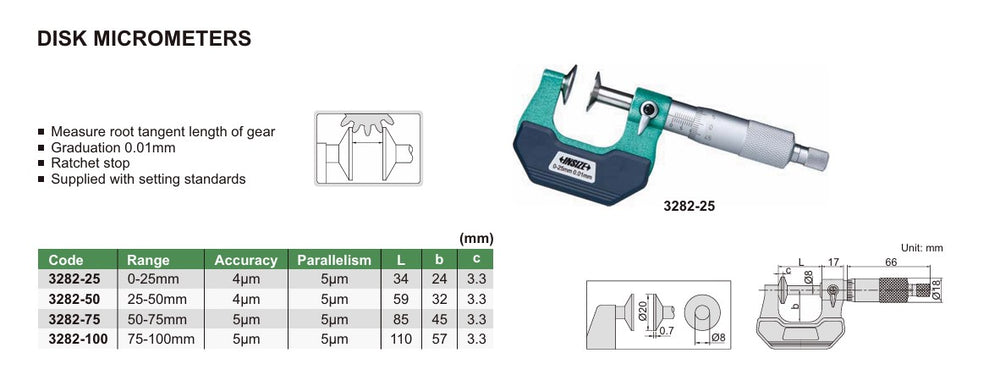

The INSIZE 3282 Disk Micrometer is a precision measuring instrument designed for measuring the root tangent length of gears, narrow grooves, recessed dimensions, and other components where standard outside micrometers cannot be used. Its thin disk-shaped measuring faces provide accurate contact on difficult-to-reach surfaces
Features
- Precision ground disk-shaped measuring faces for accurate measurements.
- Ideal for measuring gear root tangent lengths and narrow shoulders.
- Fine spindle with ratchet stop ensures constant measuring force.
- Satin chrome-finished sleeve and thimble for clear, glare-free reading.
- Hardened measuring faces for long service life.
- Supplied with setting standards (for applicable models).

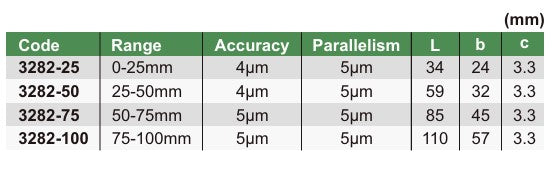

Specifications
| Model | Measuring Range | Graduation | Accuracy | Parallelism |
|---|---|---|---|---|
| 3282-25 | 0–25 mm | 0.01 mm | 4 μm | 5 μm |
| 3282-50 | 25–50 mm | 0.01 mm | 4 μm | 5 μm |
| 3282-75 | 50–75 mm | 0.01 mm | 5 μm | 5 μm |
| 3282-100 | 75–100 mm | 0.01 mm | 5 μm | 5 μm |
