Description
Description

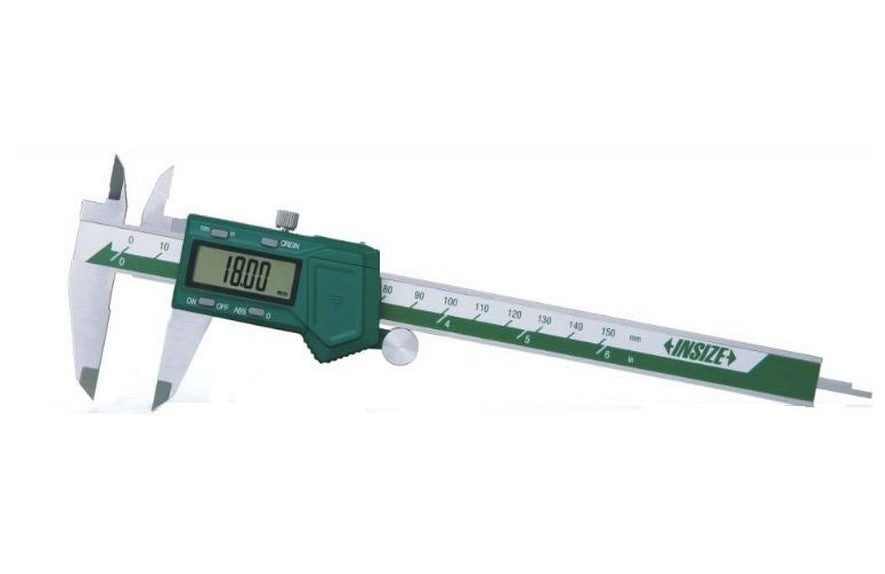

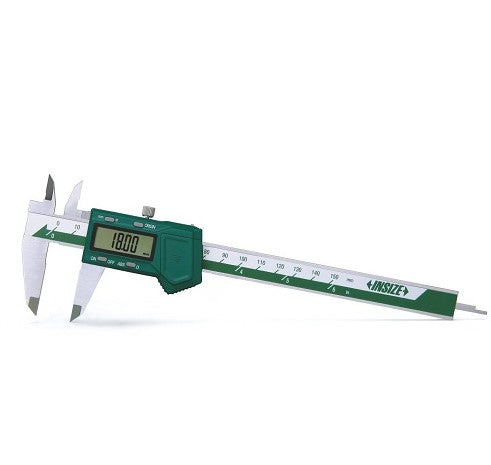

The INSIZE 1103 Digital Caliper (Absolute System) is a precision measuring instrument designed for fast and accurate measurement of outside, inside, depth, and step dimensions. Featuring an absolute measuring system, it retains the origin position even after the caliper is switched off, eliminating the need to reset zero each time. It is ideal for machine shops, quality control, production lines, and precision engineering applications.
Features
- Absolute measuring system maintains the zero reference after power-off.
- High-resolution 0.01 mm / 0.0005" LCD display.
- Functions include ON/OFF, mm/inch conversion, ORIGIN, and ABS/INC (relative measurement).
- Measures outside, inside, depth, and step dimensions.
- Data output interface for SPC and data collection.
- Automatic power-off with motion wake-up to extend battery life.
- Powered by a CR2032 lithium battery.
- Manufactured from hardened stainless steel for durability and corrosion resistance.
- Meets DIN 862 standard.
- Optional accessories include SPC data cable (7302-1103) and wireless transmitter (7315-1103).

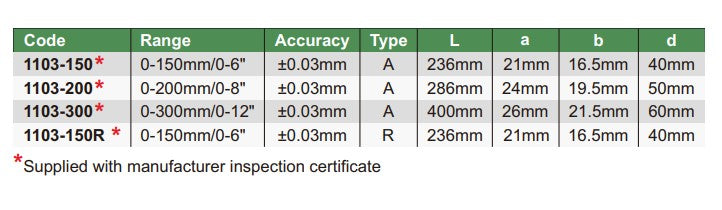

Specifications
| Model | Measuring Range | Resolution | Accuracy |
|---|---|---|---|
| 1103-150 | 0–150 mm (0–6") | 0.01 mm / 0.0005" | ±0.03 mm |
| 1103-200 | 0–200 mm (0–8") | 0.01 mm / 0.0005" | ±0.03 mm |
| 1103-300 | 0–300 mm (0–12") | 0.01 mm / 0.0005" | ±0.03 mm |
