Description
Description
ACCEPT ONLY PREPAID ORDERS
Dispatch Time: 3 to 4 Days

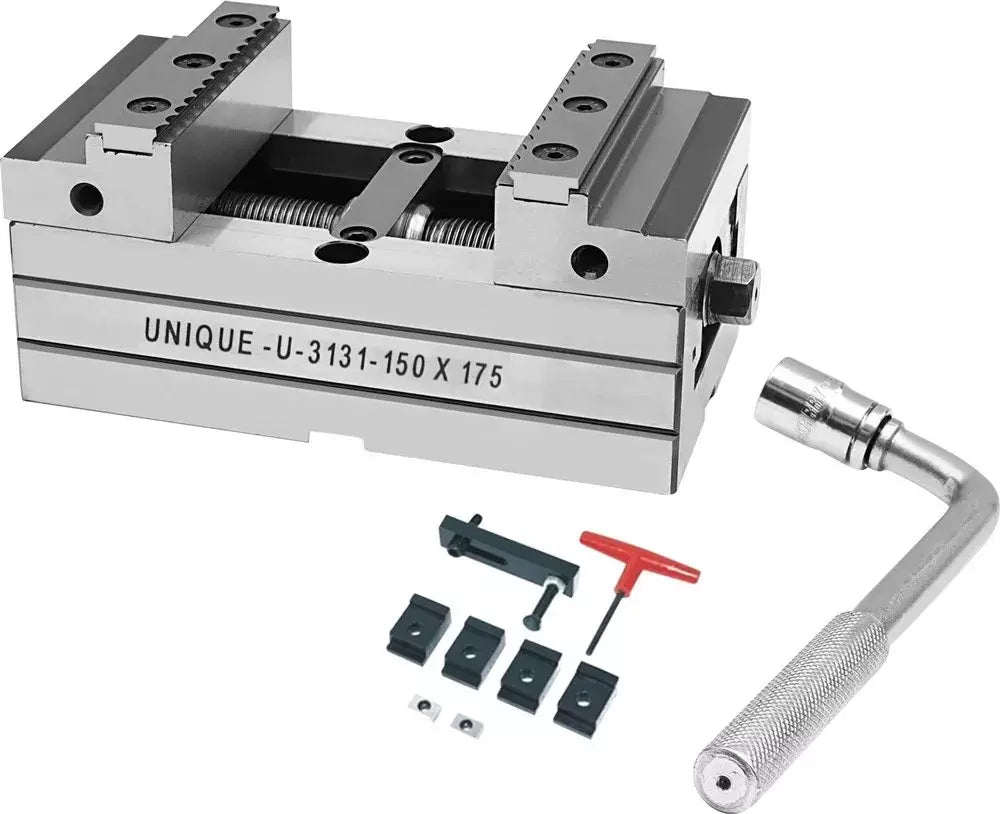

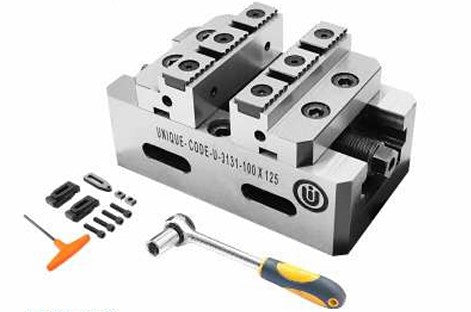

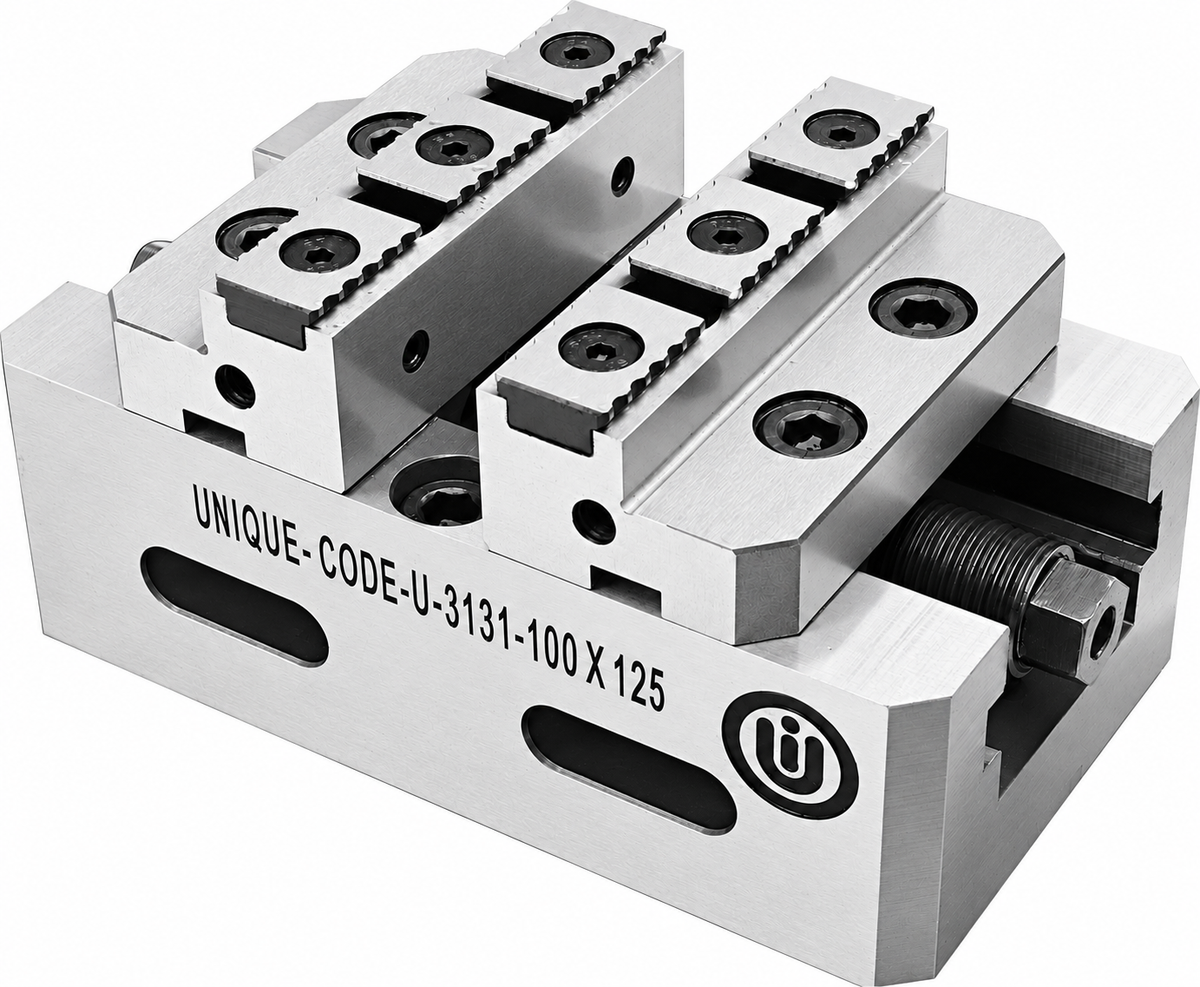

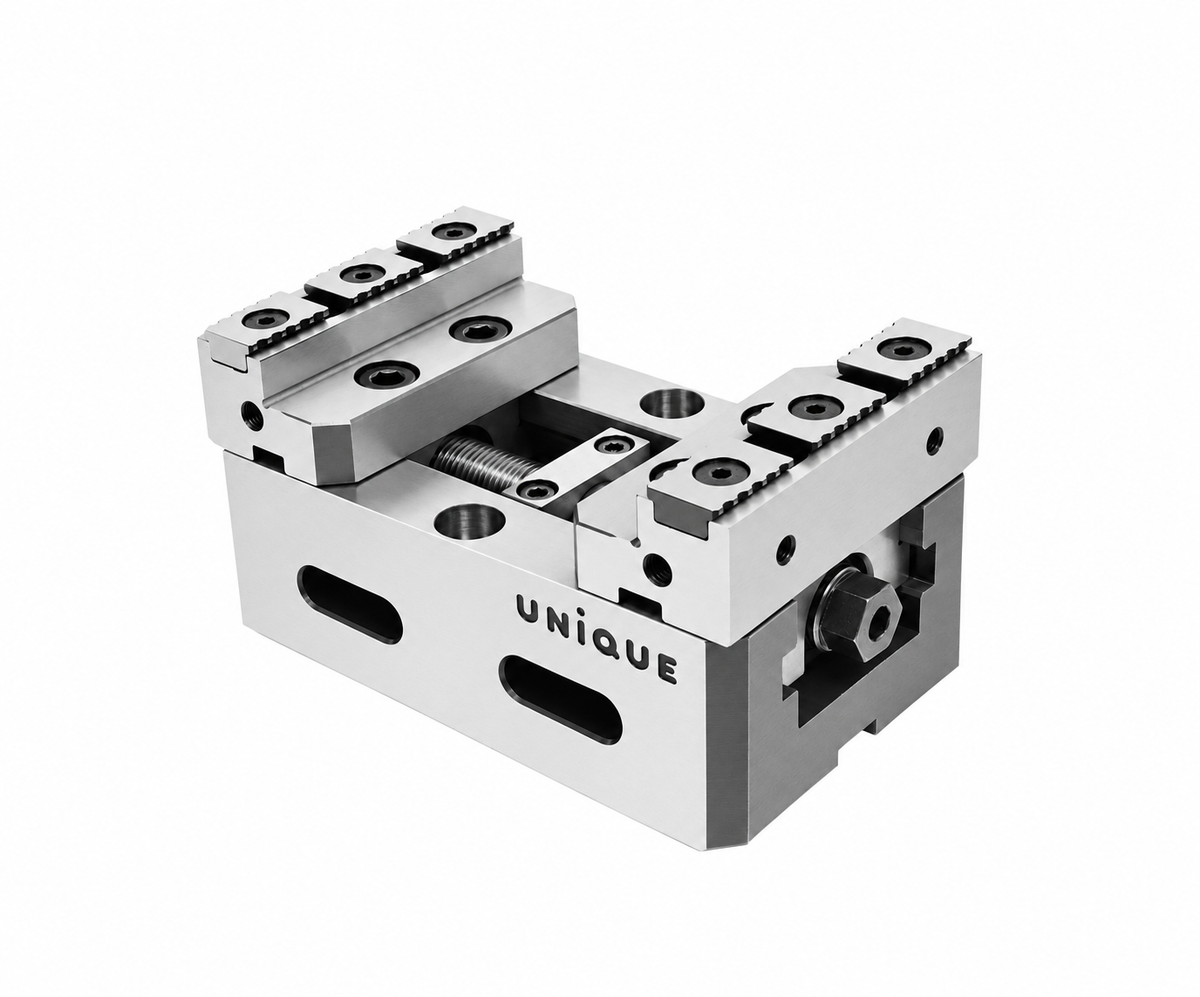

The Precision Self Centering Vice (U-3131) is a high-accuracy workholding solution specially designed for 4th & 5th axis CNC machining centers. Its advanced self-centering mechanism ensures automatic alignment of the workpiece, reducing setup time and improving machining precision.
Manufactured from high-quality alloy steel and case hardened up to HRC 60 ±2, the vise delivers excellent rigidity, wear resistance, and long operational life.
Key Features :
- Self-Centering Mechanism: Both jaws move equally to automatically center the workpiece
- 5-Axis Compatibility: Ideal for complex multi-face machining operations
- High Accuracy: Squareness accuracy up to 0.01 mm / 100 mm
- Hardened Construction: Fully hardened body and components for durability (HRC 60 ±2)
- Anti-Lift Clamping: Pull-down jaw design prevents lifting of the job during machining
- Modular Design: Two-piece system suitable for flexible setups and varied workpieces
- Unlimited Clamping Range: Adjustable according to job size
- Ground Surfaces: Top and base are precision ground for better alignment

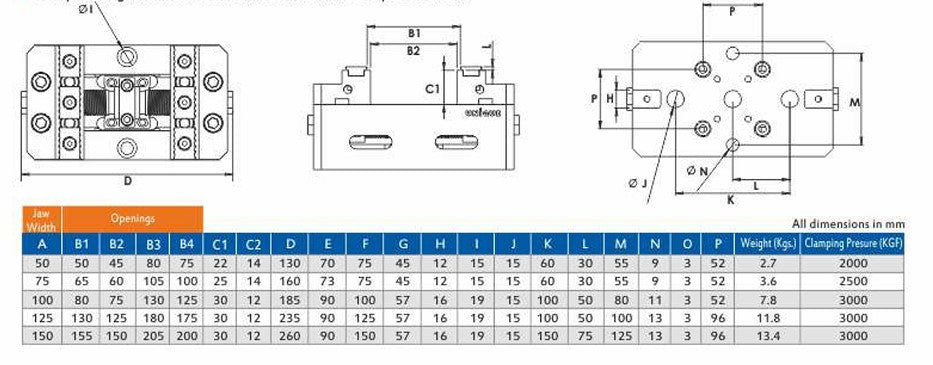

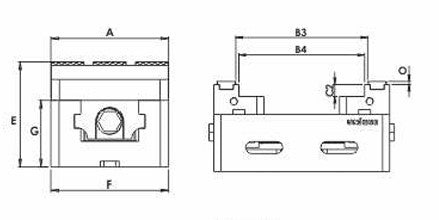

Technical Specifications (Typical) :
- Jaw Width Options: 50 mm, 75 mm, 100 mm, 150 mm
- Jaw Opening: Up to 175 mm (depending on size)
- Material: Alloy Steel
- Hardness: HRC 60 ±2
- Application: CNC Milling, 5-Axis Machining
