Description
Description
3 inches (80 mm) Regular
- Quality Low Profile Rotary Table diameter 80 mm (3"Inches ) . Table is graduated 360 Degrees.
- Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees.
- Center Height in vertical position without chuck: 2-5/8" (66 mm approx)
- Hand wheel is graduated in divisions of 10 min & can be set to zero.
- Can be mounted both in Horizontal & vertical position.
4" Inches (100 mm) Regular
- Brand New Very High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines
- Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Sliding Table :90 x 50 mm Dial Graduated to 0-50 High Grade casting and Smooth Finish
- Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero.
- Can be mounted both in Horizontal & vertical position.
3 Inches (75 mm)
- Low Profile Precision Mini Rotary Table 3" 75mm is manufactured from Seasoned casting.
- Worm- Gear Ratio - 36:1, which basically means that the 1 rotation of the handle shall rotate the table by 10 degrees.
- Can be used both in horizontal & vertical position.
4 Inches (100 mm)

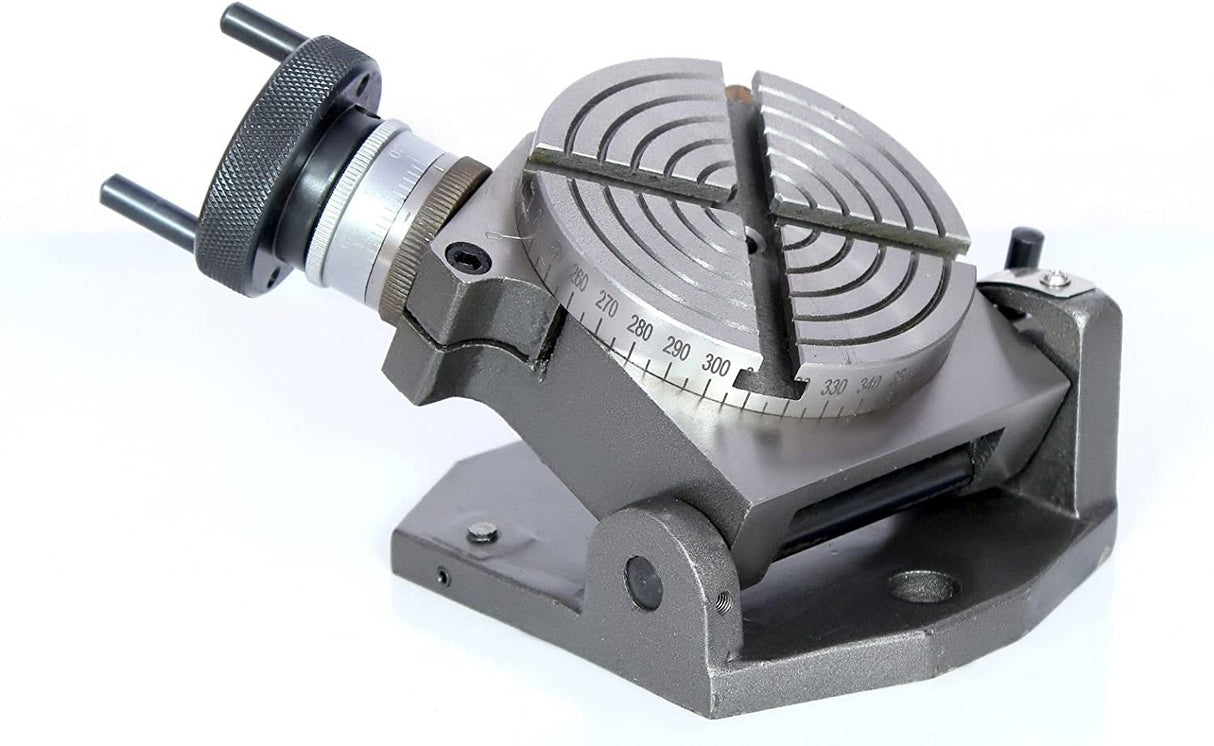

- 4" Inches (100 mm) 4 slots Tilting Rotary Table for Milling Machines
