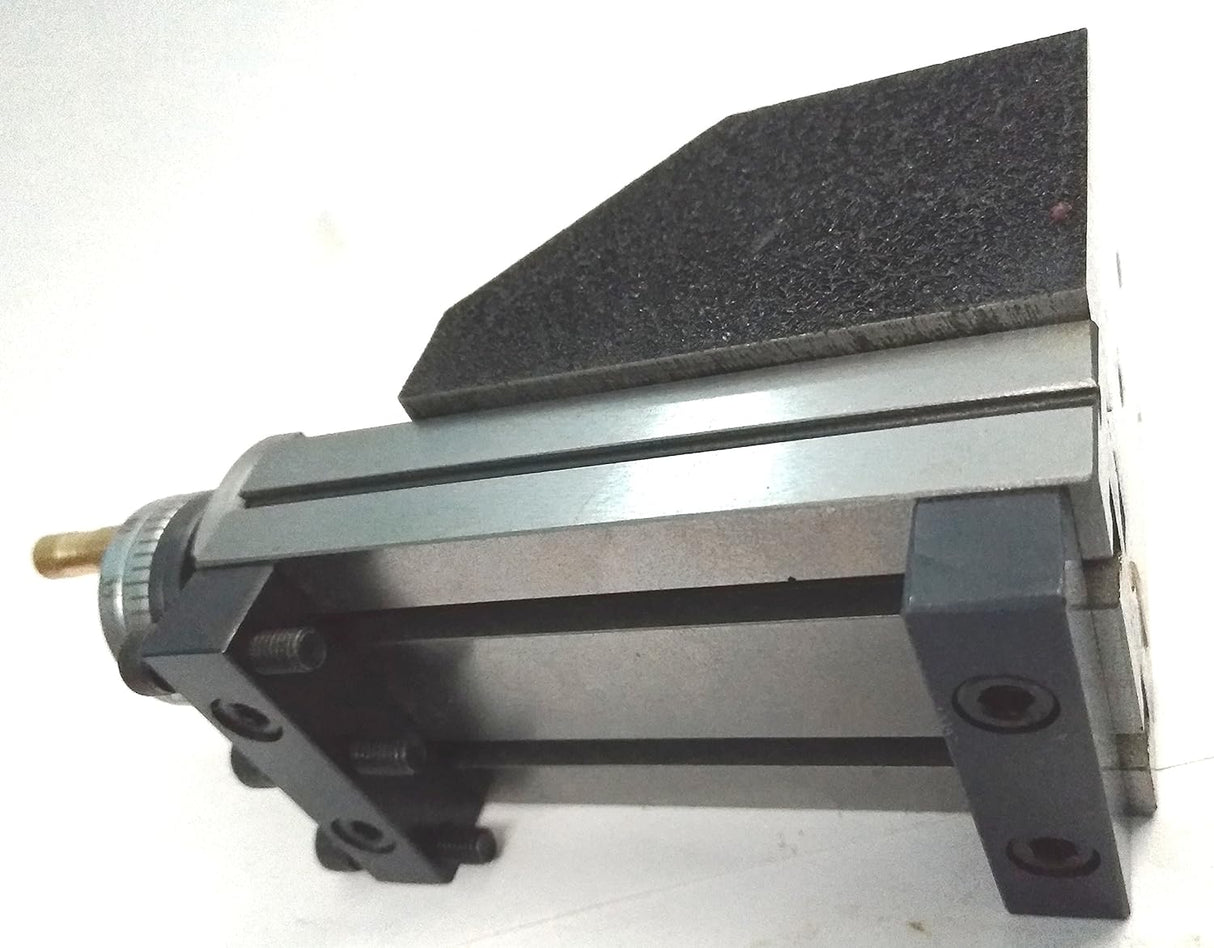

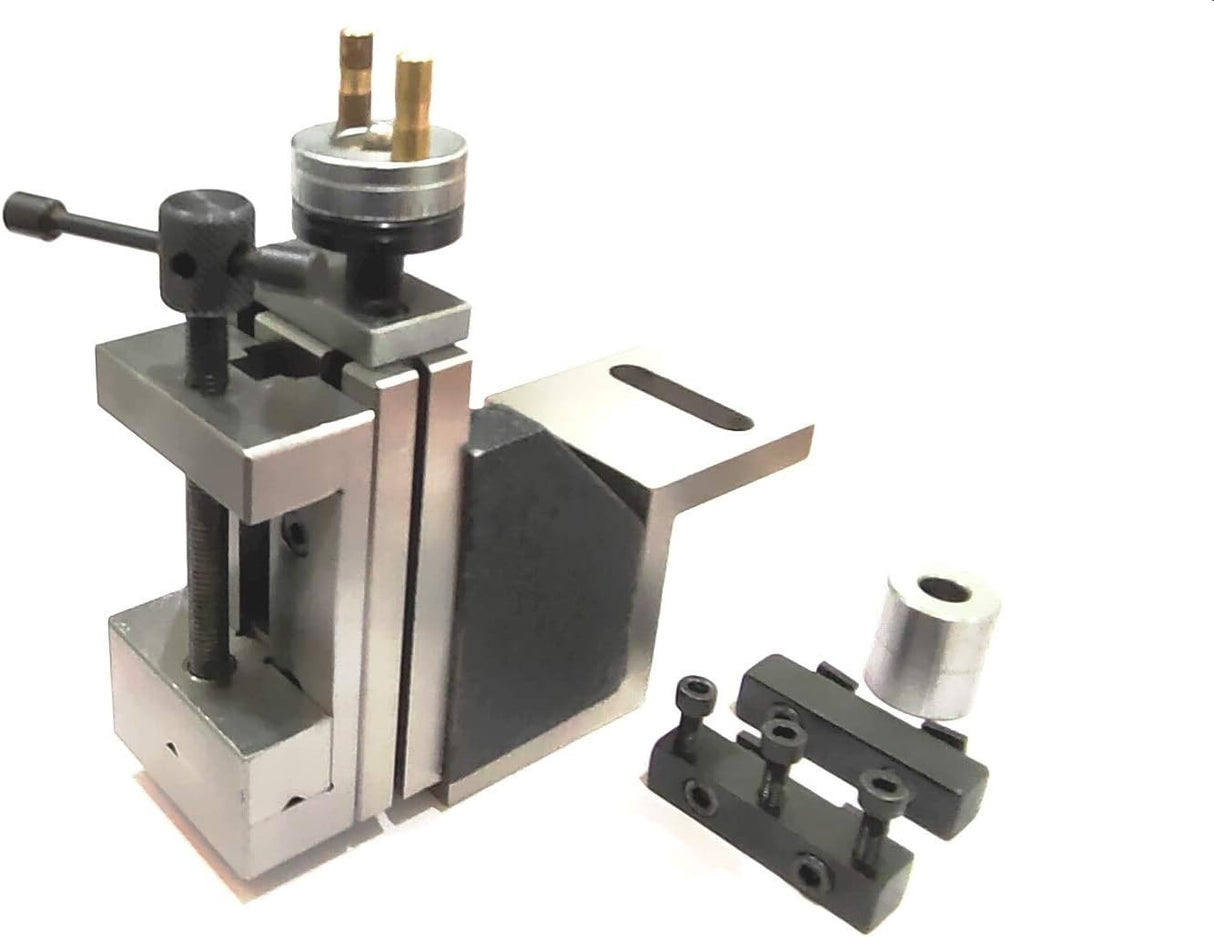

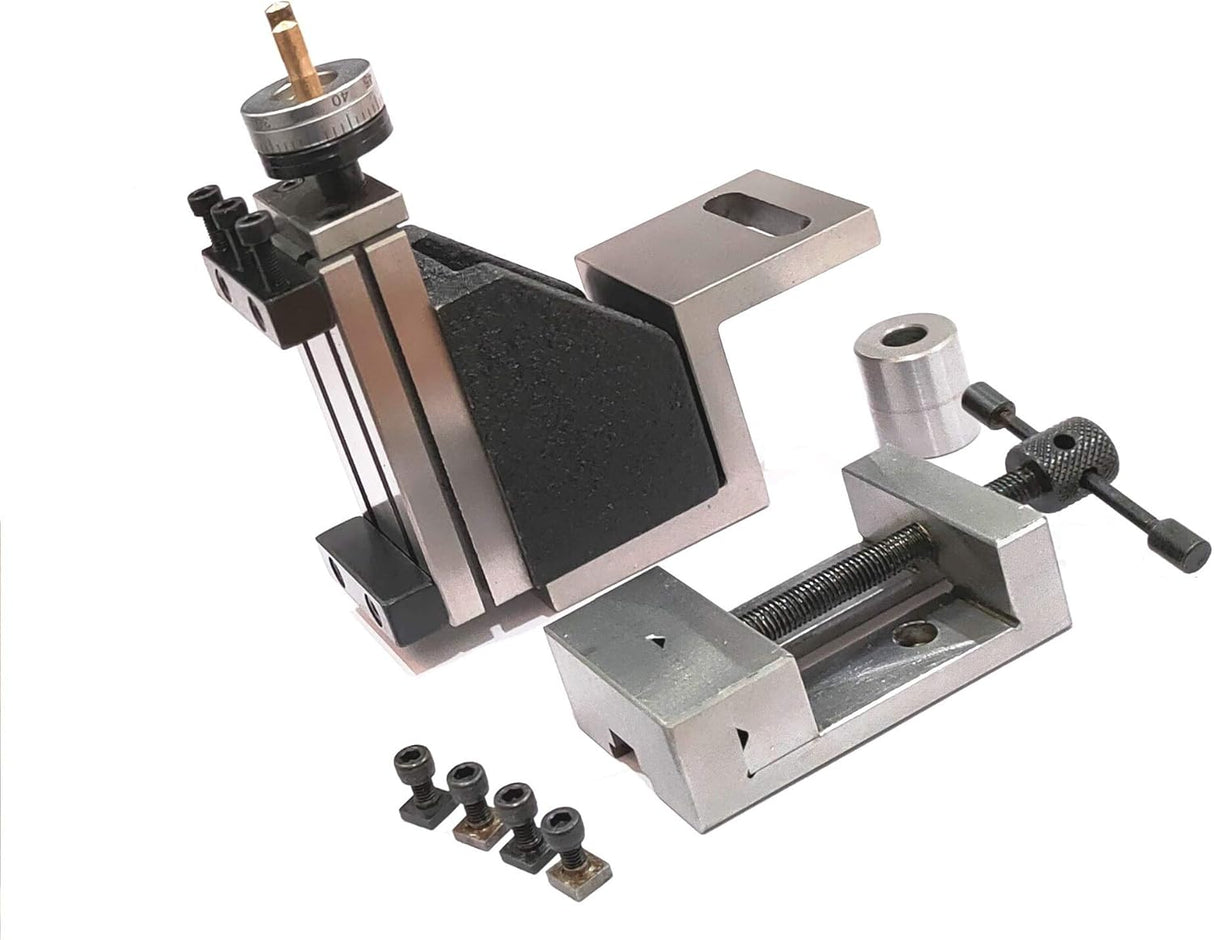

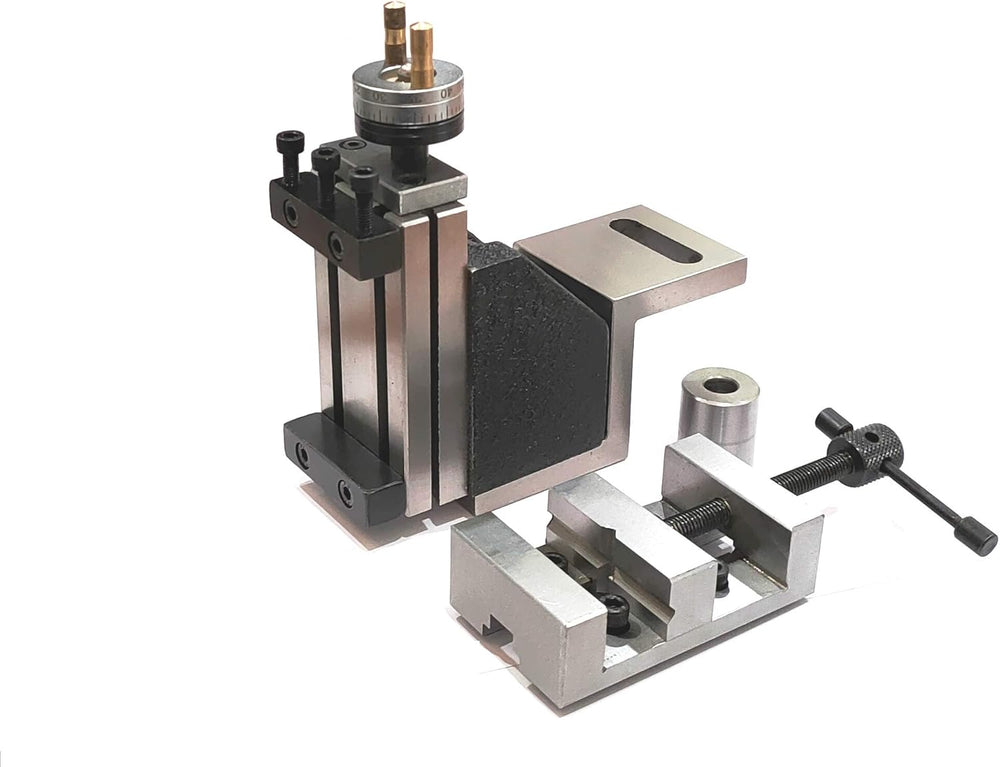

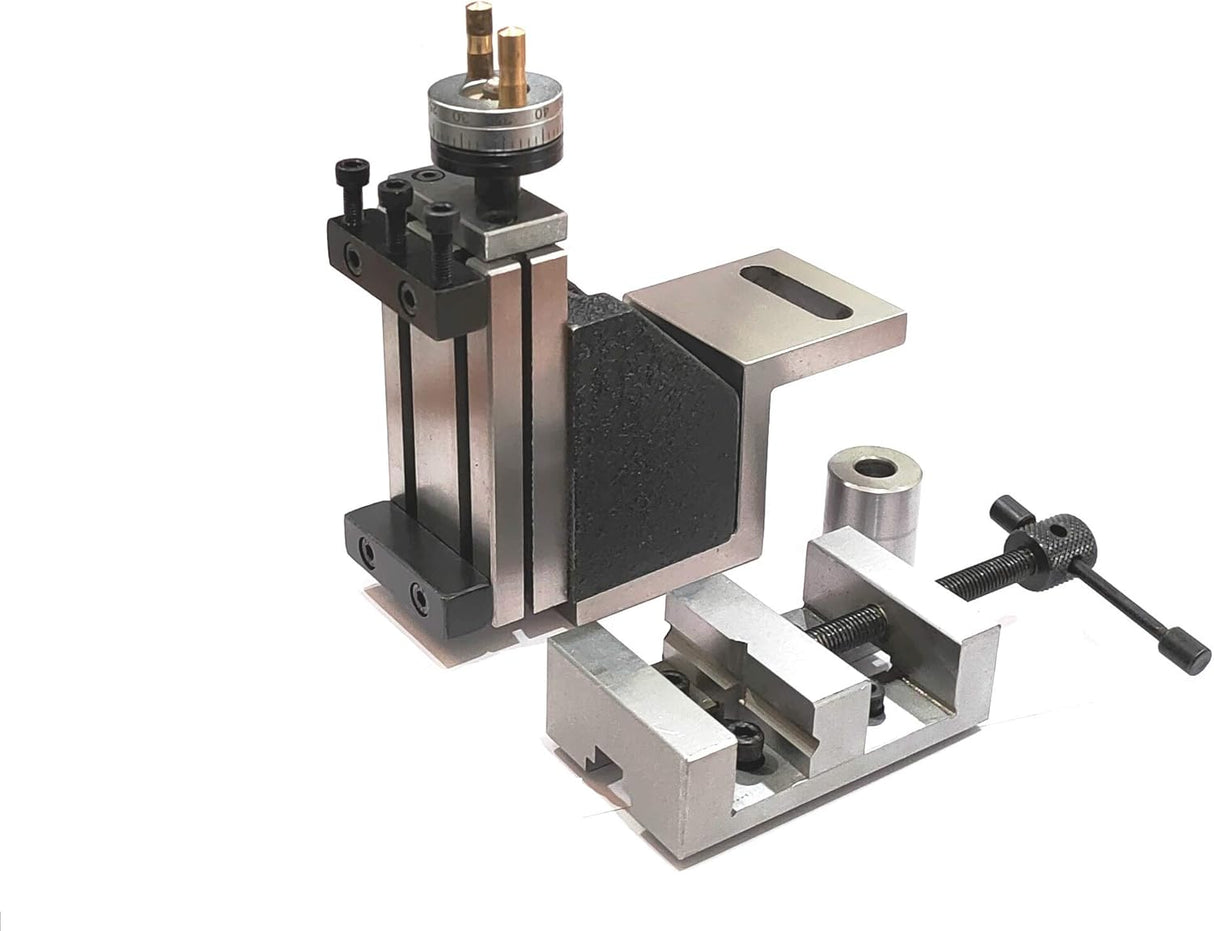

Mini Lathe Vertical Slide (90 x 50 mm) with 2" / 50 mm Steel Vice Instant Milling Attachment for Small Bench Lathes

Use of the Product

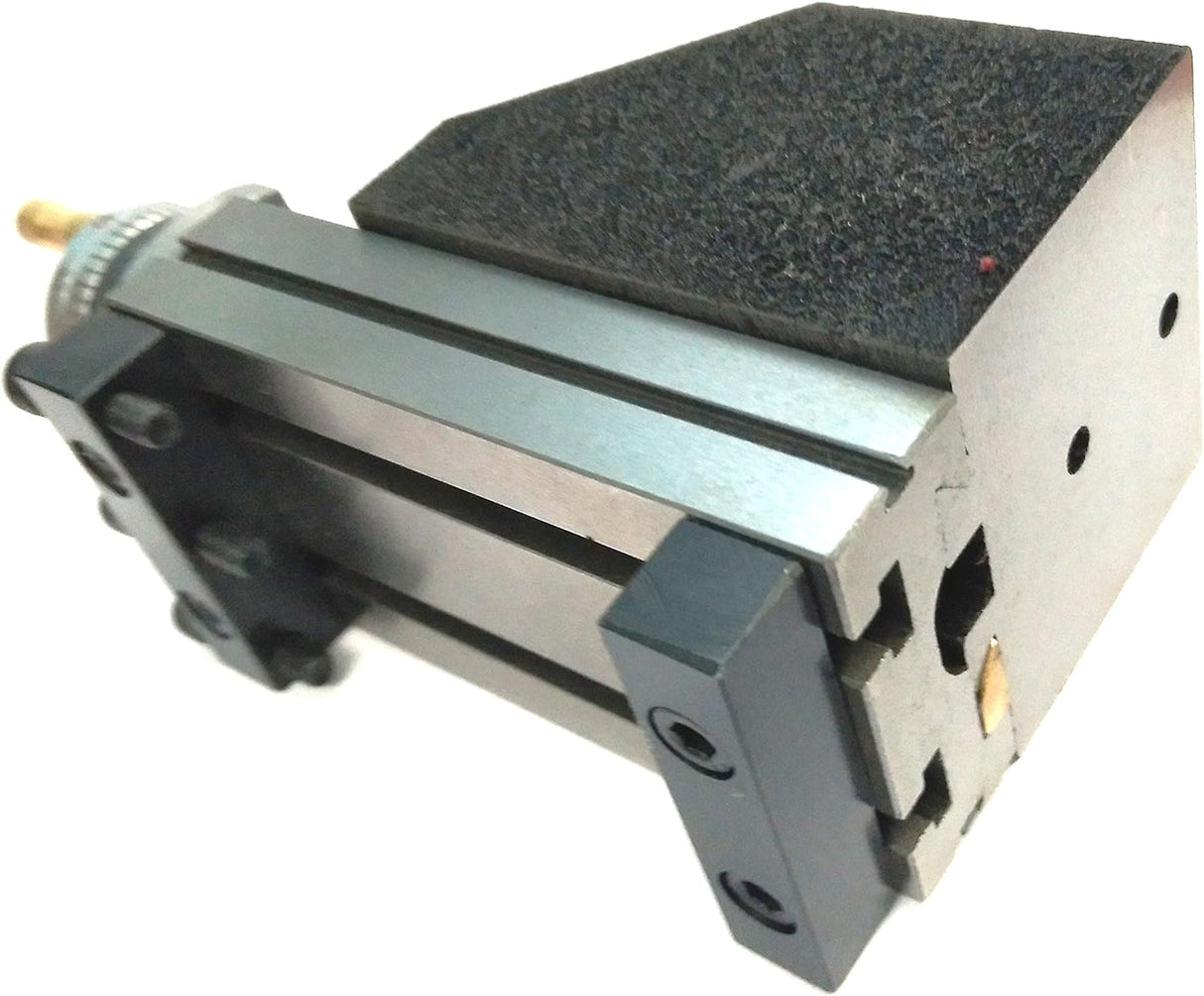

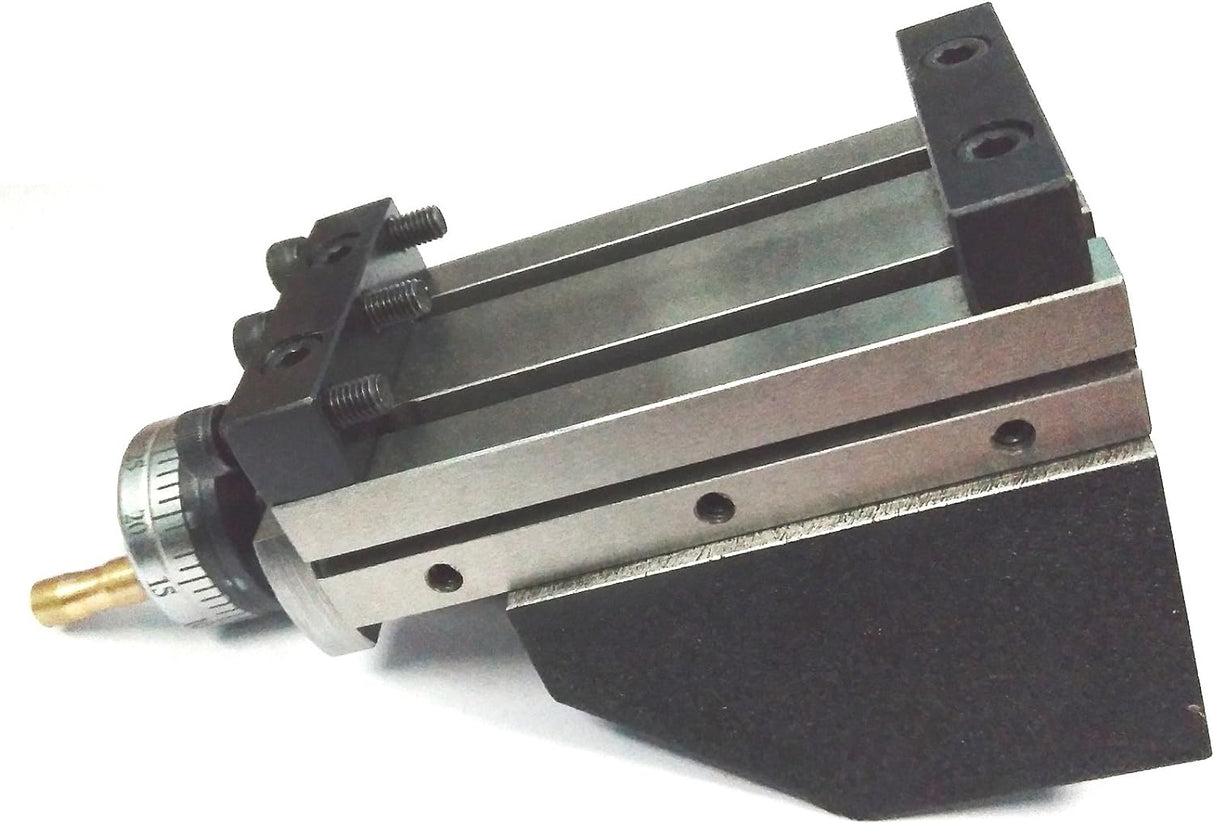

A vertical slide on the cross-slide enables the material to be raised or lowered as necessary. Widening the slot in a piece of material by machining along one edge with an end mill is an example. The same is true when all that is required is an initial height setting of work in relation to the mill or cutter. The vertical slide admits of quick adjustment.

A grinding vice, also known as a grinding clamp or grinding tool vice, is a device used to securely hold workpieces during grinding operations. It is specifically designed to grip and stabilise materials being ground on a surface grinder or a bench grinder.

An angle plate is a work-holding device used as a fixture in metalworking. A Z-type Angle plate is used to hold vertical slides square to the table during marking out operations.

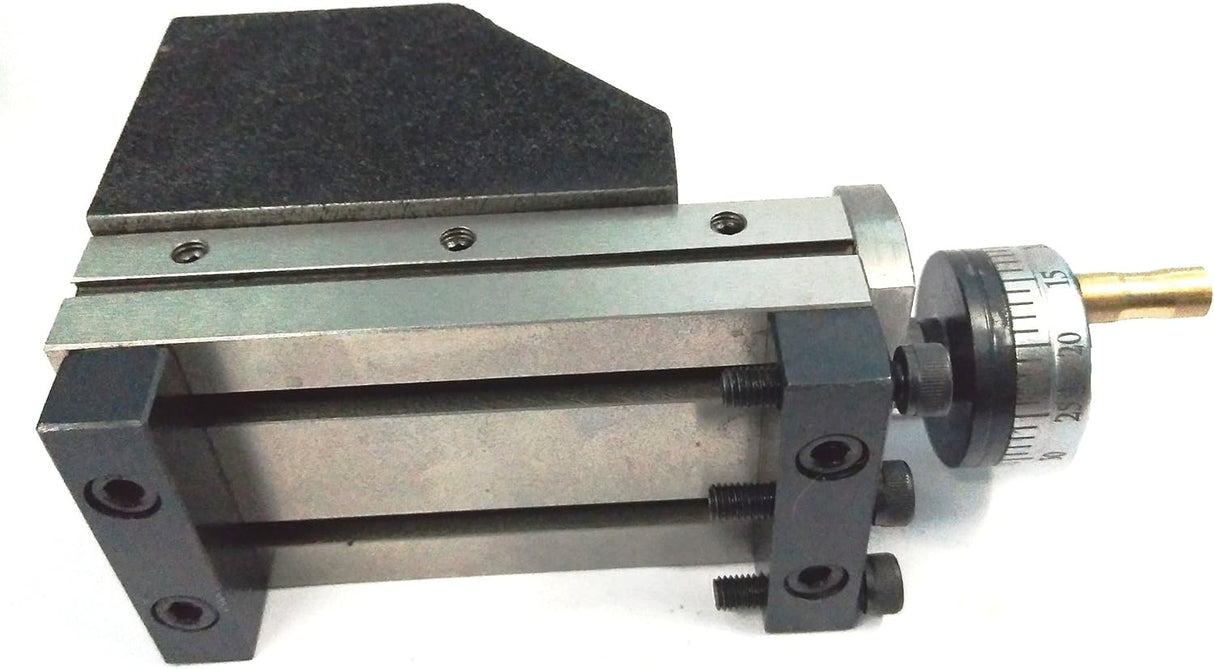

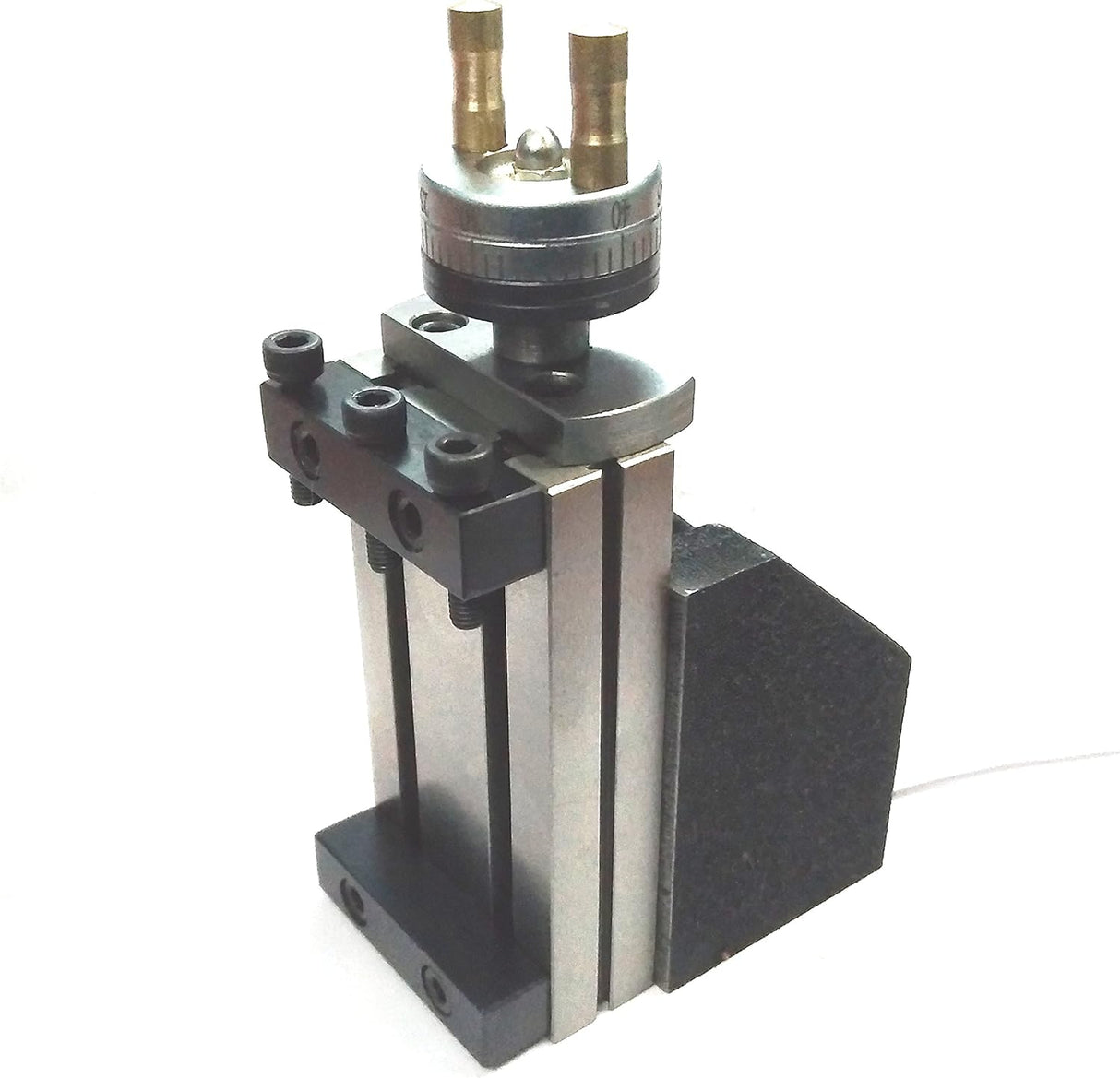

Specifications:

• Vertical Travel: 40 mm – Allows for precise vertical adjustments, enhancing the flexibility of your milling operations.
• Base Dimensions: 50 x 55 mm – Provides a stable foundation for the vertical slide, ensuring secure attachment and reduced vibration.
• Sliding Table Dimensions: 90 x 50 mm – Offers ample work surface for small to medium-sized milling tasks.
• Dial Graduated to: 0-50 – Enables precise incremental adjustments for accurate milling operations.

Features:

• High-Grade Casting: Constructed from premium-grade casting material, the vertical slide ensures durability and long-lasting performance under rigorous use.
• Smooth Finish: Engineered with a smooth surface finish, facilitating smooth and precise movement of the sliding table.
• Compact Design: Ideal for bench lathes with a swing of up to 150 mm, making it a perfect fit for compact workshop setups.
• Easy Installation: Designed for quick and straightforward installation on compatible lathes, allowing you to start milling operations with minimal setup time.

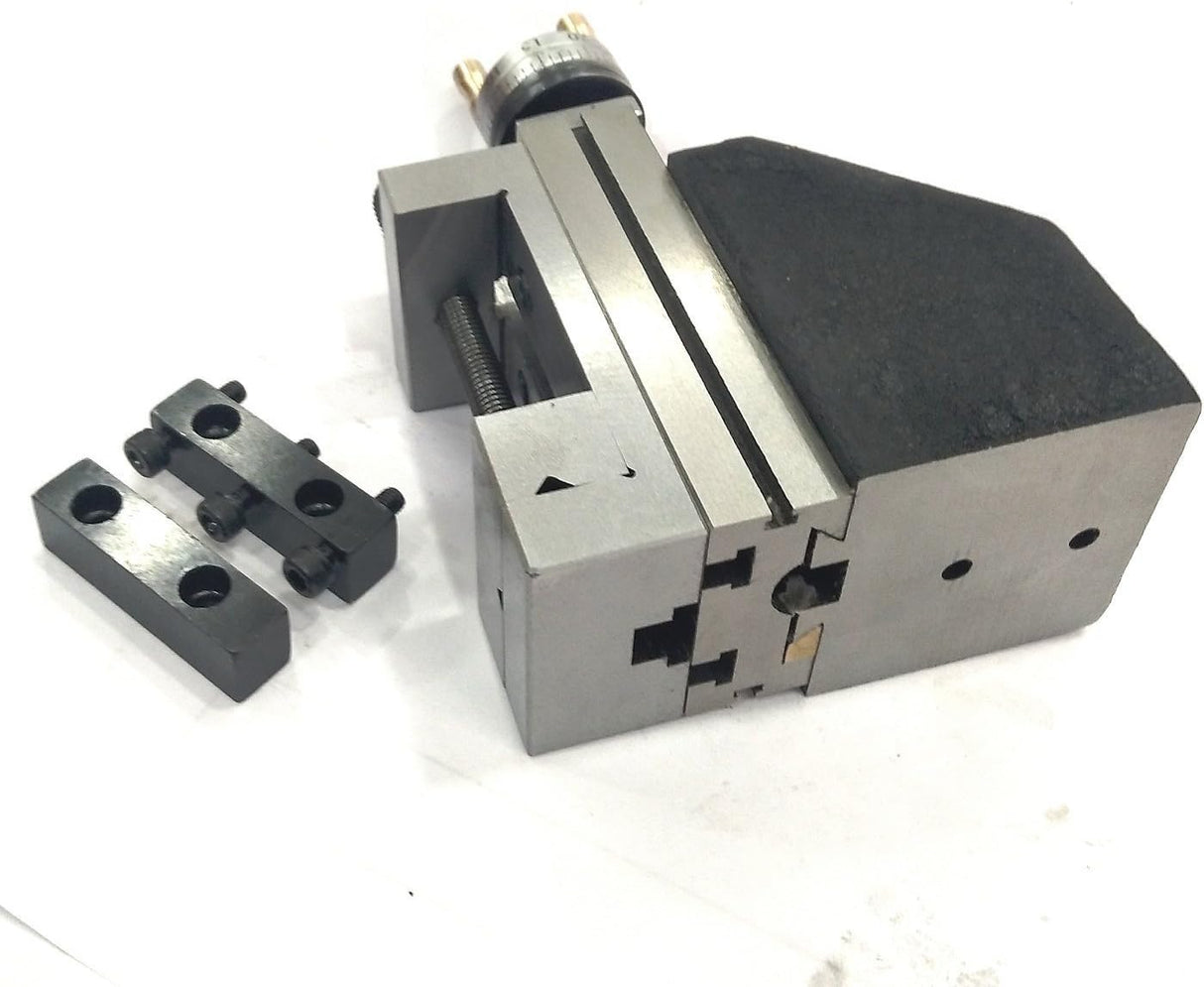

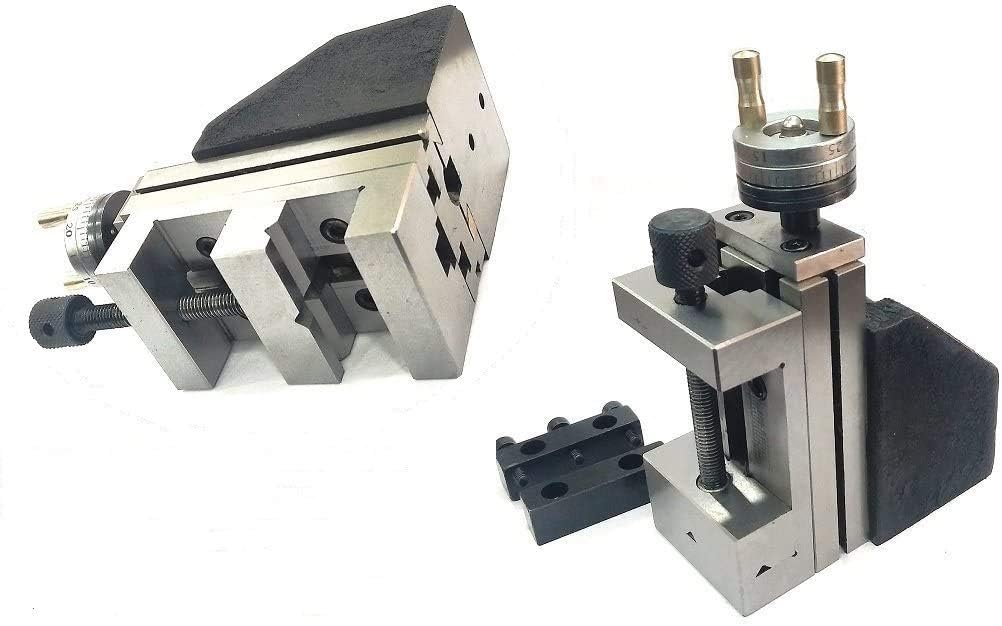

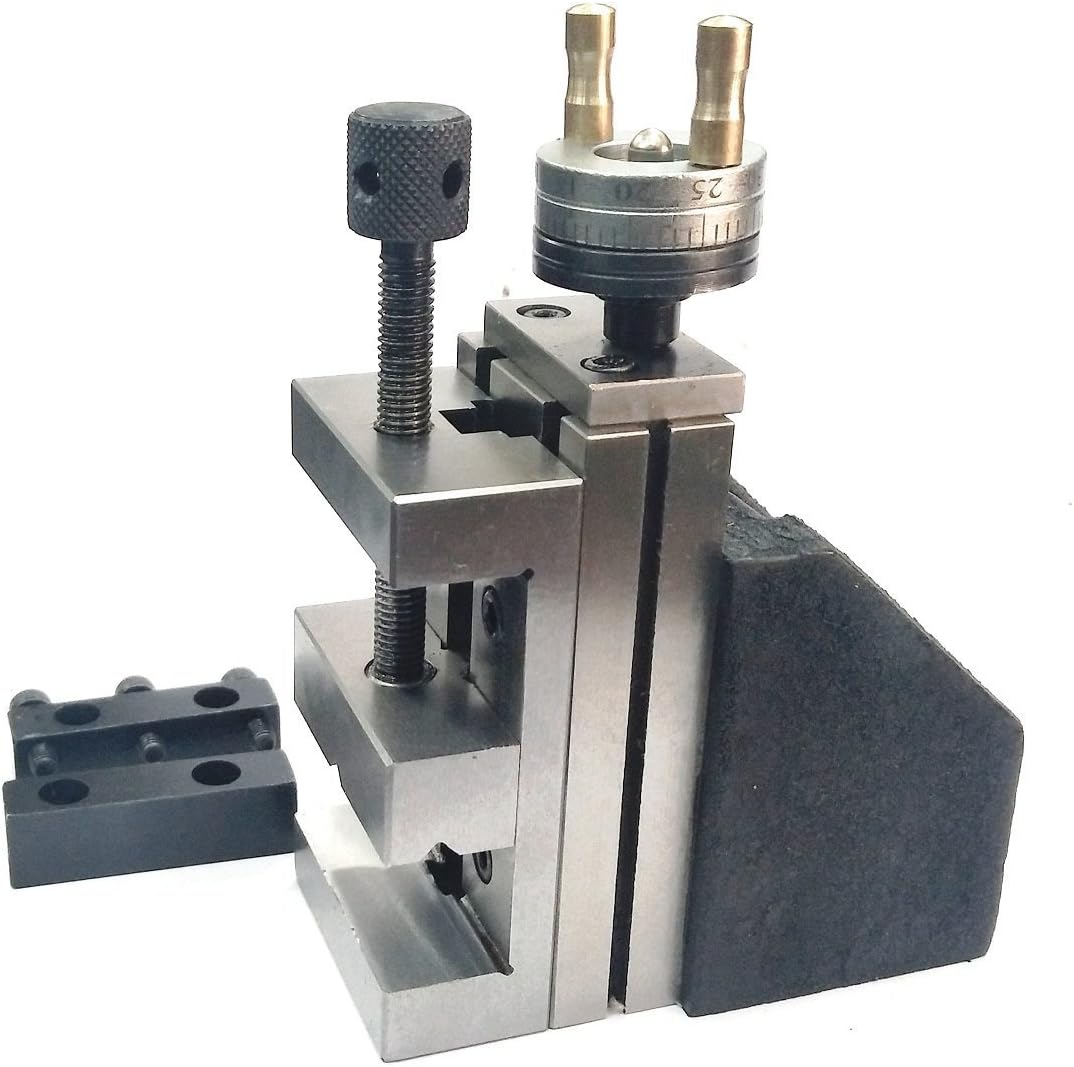

Steel Grinding Vice 2" (50 mm) For Mini Lathe Vertical Milling Slide

• 50 mm (2" Inches) Jaw Width -Tool Steel -Precise Ground Vice
• Hole- Distance and bored to fit exactly on the Tee slots of our below shown mini lathe vertical slide.
• Horizontal and Vertical Vee in the moving jaws for holding Round jobs in this vice.

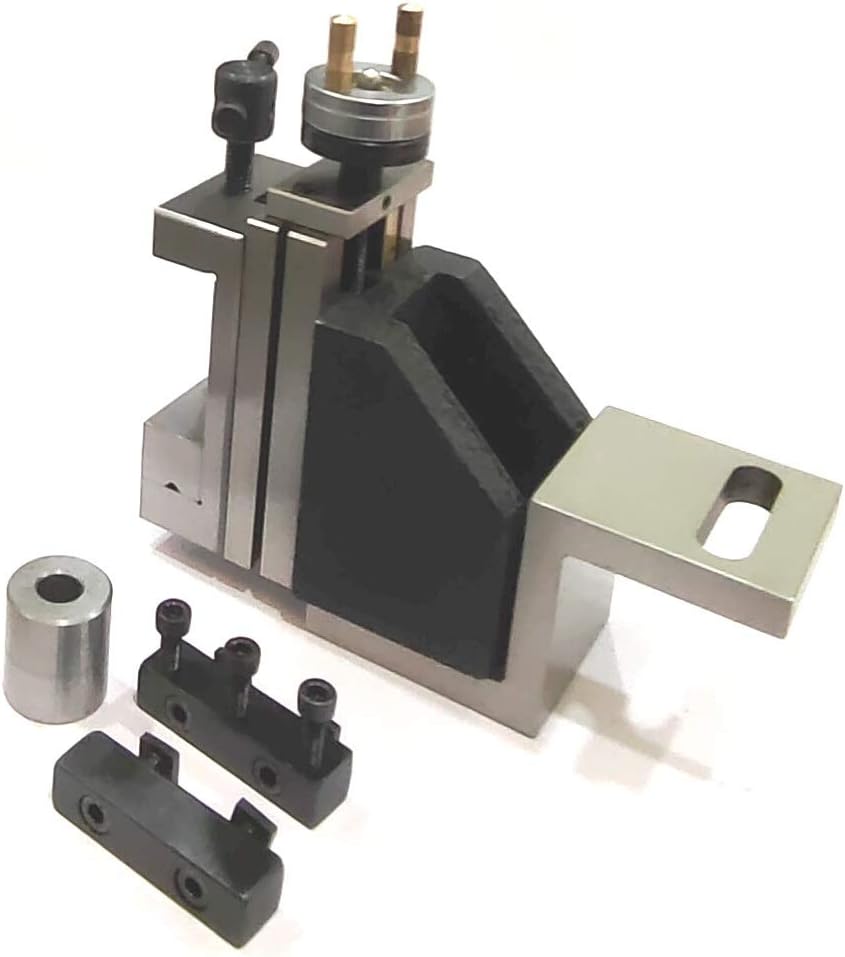

Z Angle Plate

• Versatile Mounting Solution: Specifically designed for mounting vertical slides onto machine tools such as milling machines and lathes, this Z-type angle plate provides a versatile and sturdy platform for various machining operations.

• Precision Machining: Crafted from high-quality materials with precision machining, ensuring exceptional accuracy and stability during vertical slide mounting, allowing for precise machining of workpieces with minimal deflection.

• Optimal Design: The Z-type configuration offers optimal stability and rigidity, minimising vibration and ensuring consistent machining performance, even during heavy-duty operations.
