Description
Description
ACCEPT ONLY PREPAID ORDERS
Dispatch Time: 3 to 4 Days

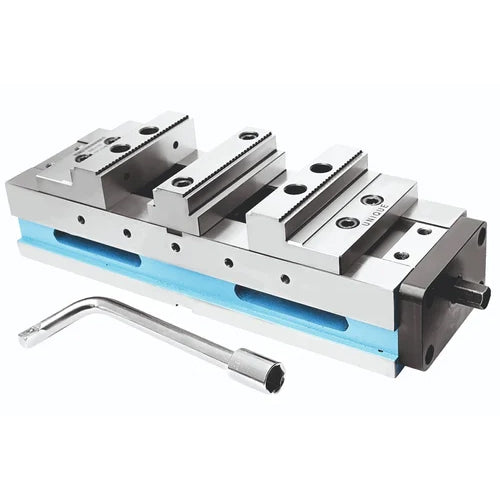

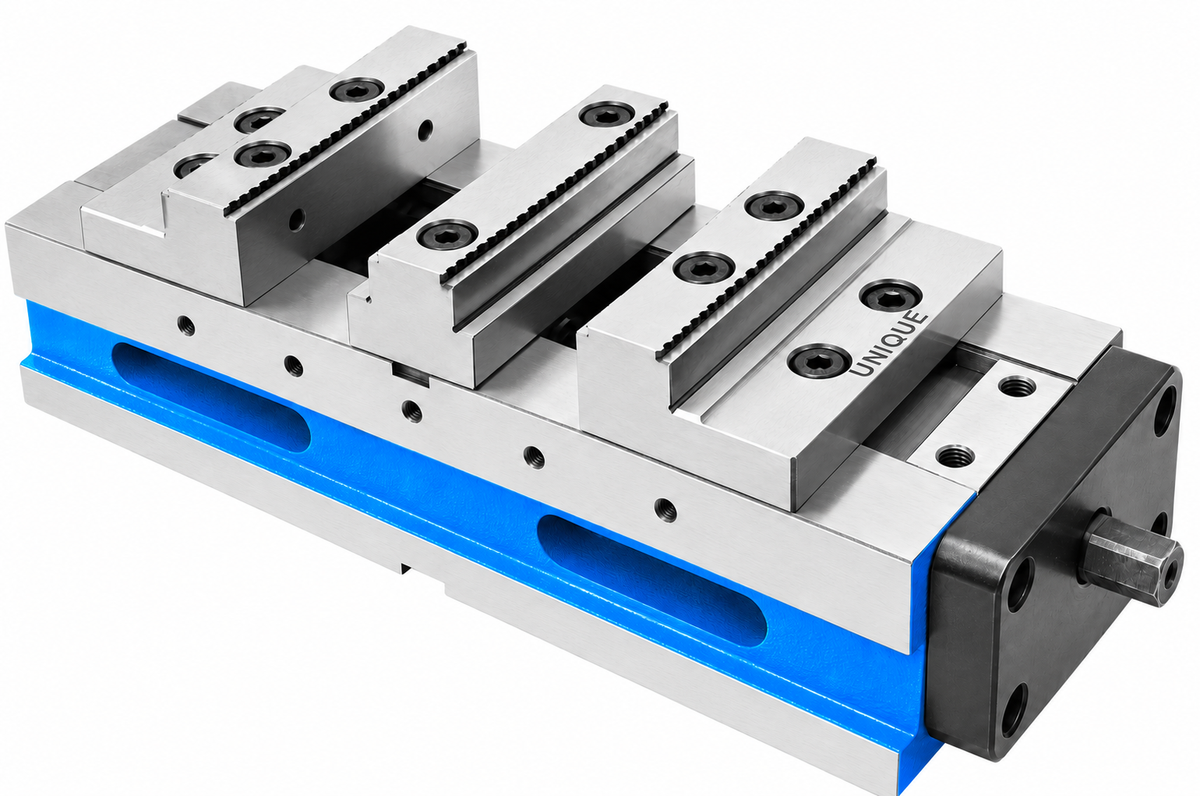

The Unique Precision Self Centering High Grip Machine Vise (U-2222) is a high-performance workholding solution designed for precision milling, grinding, and CNC machining operations. It combines a self-centering mechanism with a high-grip clamping system, ensuring accurate positioning and strong holding of workpieces during machining.
Manufactured from high-strength ductile iron with hardened and ground guide ways, this vise offers excellent rigidity, wear resistance, and long service life, even under heavy-duty industrial use.
Key Features :
- Self-Centering Mechanism: Both jaws move simultaneously to automatically center the workpiece
- High Grip Clamping: Provides strong and stable holding for precision machining
- Hardened Guide Ways: Sliding bed ways are hardened and ground for accuracy and durability
- Robust Construction: Made from unbreakable ductile iron body for rigidity and vibration resistance
- High Clamping Force: Approx. 3000–4500 KGF depending on application
- Hydraulic Booster System: Ensures maximum clamping pressure with minimum effort
- Lock-Proof Design: Prevents incorrect clamping and protects the vise
- Concealed Spindle: Protects internal mechanism from chips, coolant, and dust
- Precision Accuracy: Squareness & parallelism within 0.02 mm / 100 mm
- Interchangeable Jaws: Flexible for different workpiece shapes and sizes
- Tenon & Slot Arrangement: Allows easy alignment on machine tables

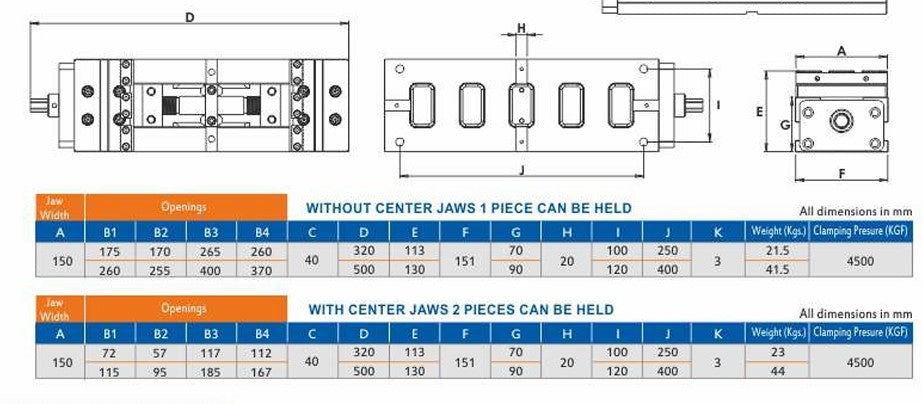

Typical Specifications
- Jaw Width: 150 mm (6”)
- Jaw Opening: 250 mm to 380 mm
- Overall Length: 320 mm / 500 mm
- Height: 113 mm / 130 mm
- Tenon Slot Size: 20 mm
- Material: Ductile Iron Body + Alloy Steel Jaws (HRC 60 ±2)
Applications
CNC machining centers (VMC & HMC)
Precision milling and grinding
4th axis & rotary table setups
Tool rooms and production workshops
Batch production and high-accuracy jobs
