Description
Description
ACCEPT ONLY PREPAID ORDERS

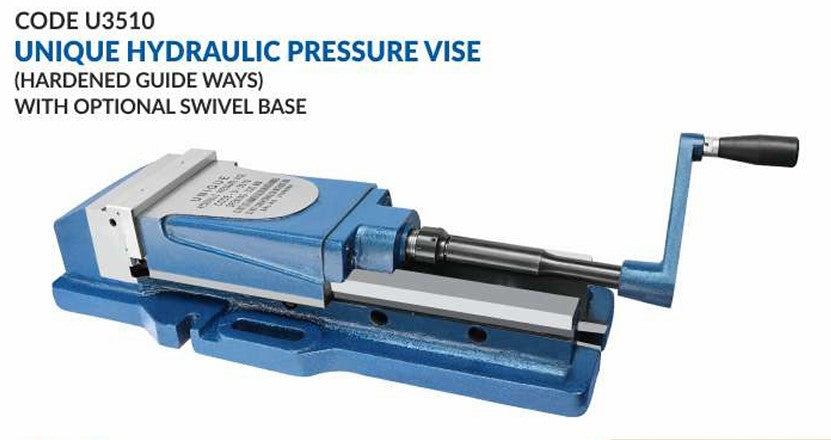

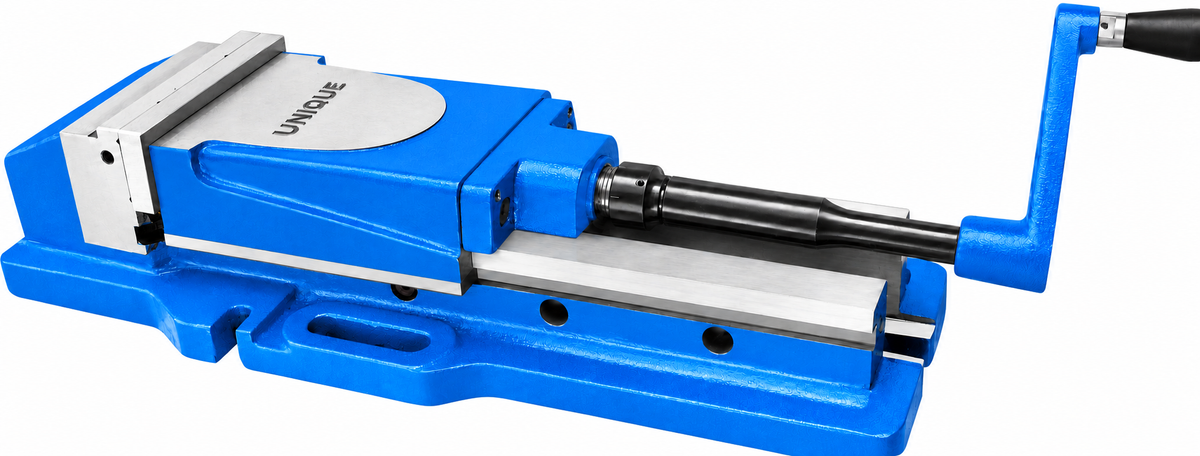

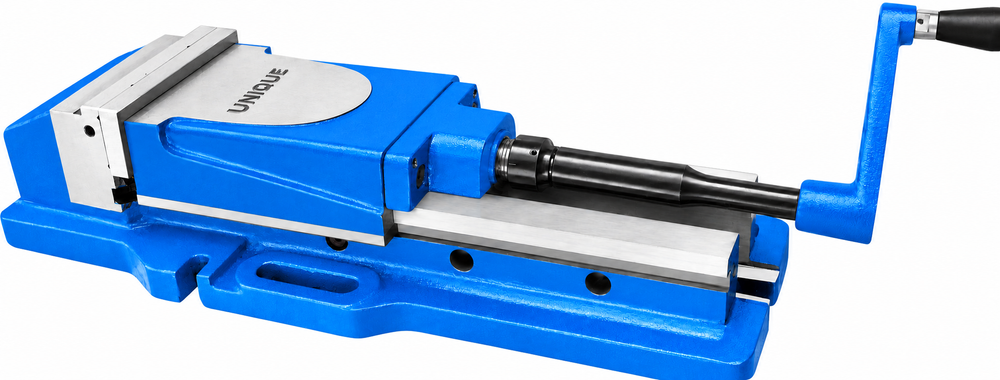

The Unique Hydraulic Pressure Vise (U-3510) is a heavy-duty, high-precision workholding solution designed for milling, drilling, grinding, and CNC machining applications. It features a hydraulic booster mechanism that delivers maximum clamping force with minimal manual effort, ensuring stable and accurate machining.
Constructed from high-grade ductile iron with hardened and ground guide ways, this vise provides excellent rigidity, wear resistance, and long operational life even in demanding industrial environments.
Key Features :

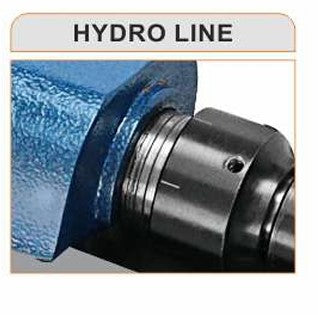

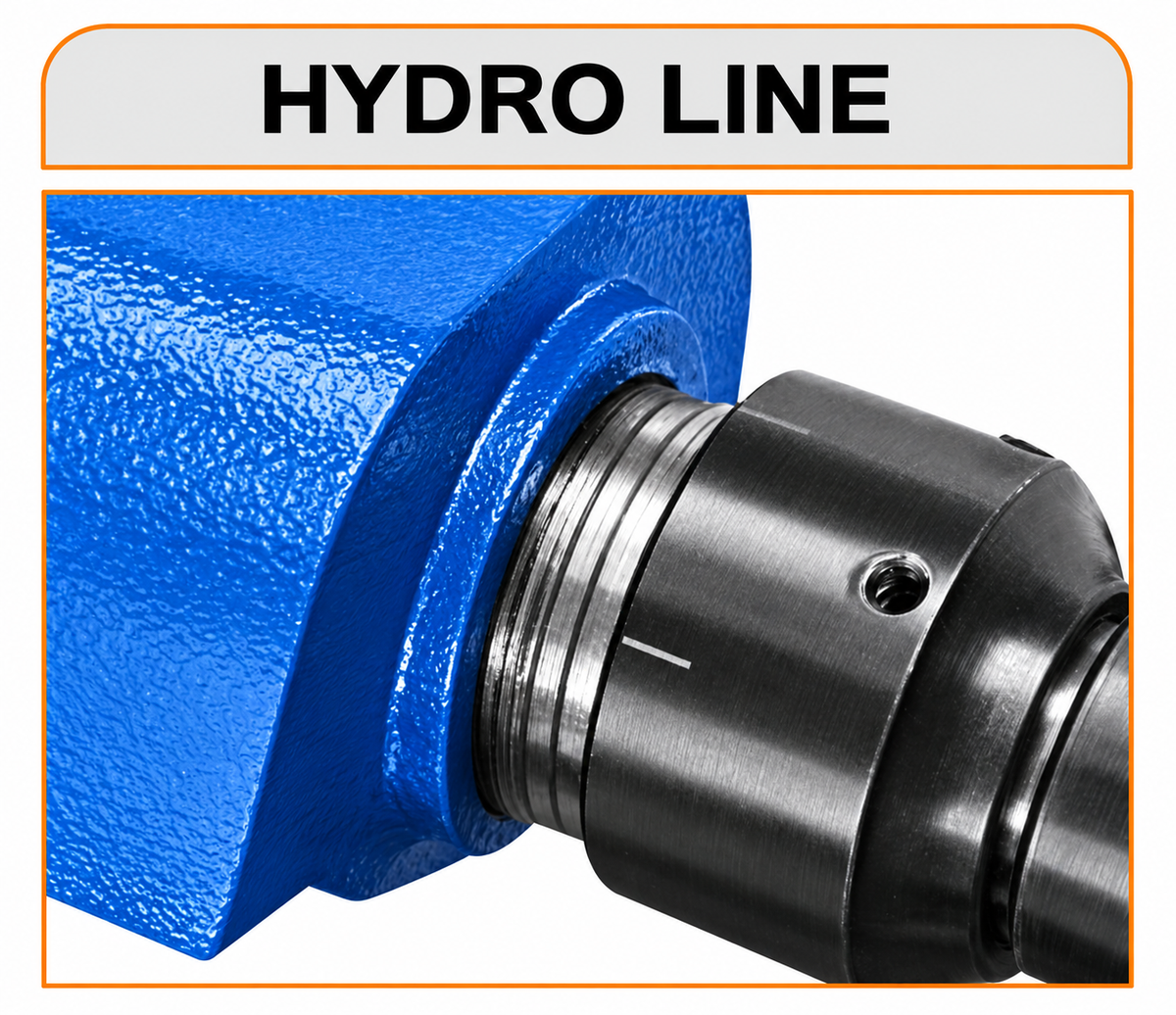

- Hydraulic Booster System: Generates high clamping pressure with less effort
- High Clamping Force: Approx. 4000–4500 KGF for secure work holding
- Hardened Guide Ways: Precision ground sliding bed ensures smooth operation and durability
- Rigid Ductile Iron Body: Minimizes vibration and enhances machining stability
- Lock-Proof System: Prevents over-tightening and protects internal mechanism
- Concealed Spindle: Protects against chips, coolant, and dust
- Quick Clamping Mechanism: Fast locking and easy operation for higher productivity
- High Accuracy: Squareness within 0.02 mm / 100 mm
- Optional Swivel Base: Available for angular machining setups

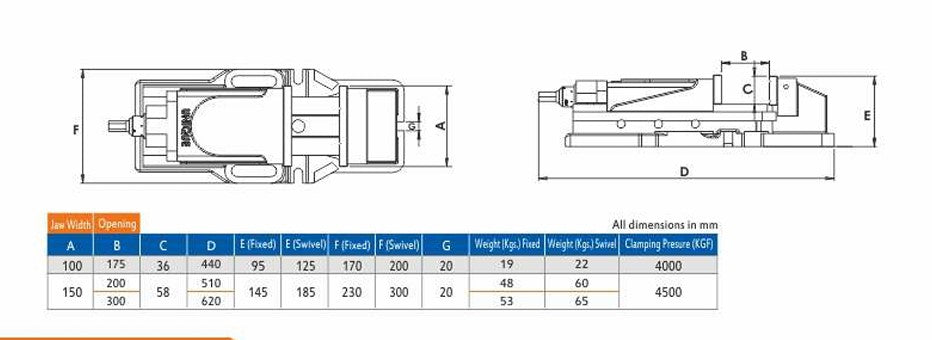

Technical Specifications (Typical) :
- Model: U-3510
- Jaw Width: 105 mm / 150 mm
- Jaw Opening: 175 mm / 200 mm / 300 mm variants
- Jaw Depth: 36 mm / 58 mm
- Clamping Force: 4000–4500 KGF
- Material: Ductile Iron
- Accuracy: 0.02 mm / 100 mm
- Tenon Slot Size: 20 mm
- Weight: Approx. 19–65 kg depending on size
Applications :
CNC machining centers (VMC & HMC)
Milling, drilling, shaping, and grinding operations
Tool rooms and production workshops
Heavy-duty industrial machining
