Description
Description

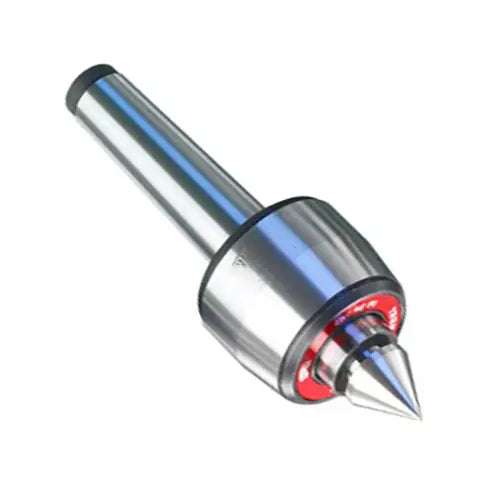

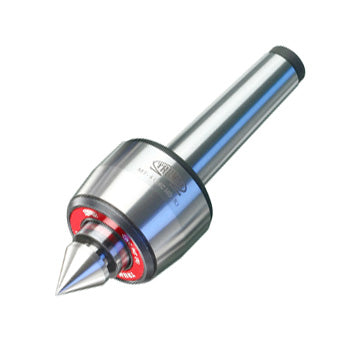

The Turnmax CNC Heavy Duty R-Model with Interchangeable Stub Point is a high-performance revolving center specially designed for precision machining operations on CNC lathes. It combines robust construction with interchangeable point flexibility, making it ideal for heavy-duty and high-speed applications.
The interchangeable stub point revolving center is engineered to deliver excellent rigidity, accuracy, and durability under demanding machining conditions. Its modular design allows quick replacement of points, improving productivity and reducing downtime.
Key Features
- Heavy Duty Construction
- Designed to withstand high axial and radial loads, ensuring stable machining even in tough operations.
- Interchangeable Stub Point System

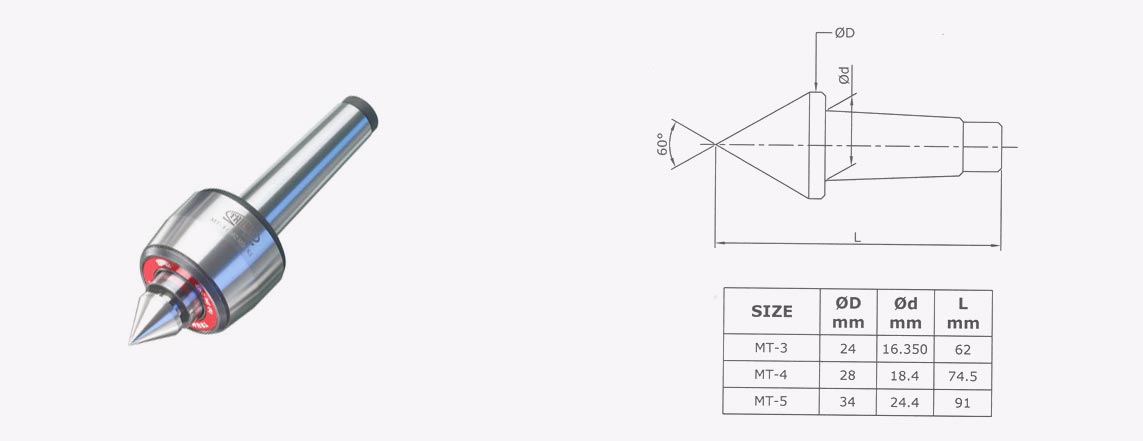

- Allows easy replacement of worn or damaged points without removing the entire center, saving time and cost.
- High-Speed Capability
- Suitable for CNC and high-speed turning centers, capable of operating at high RPM with consistent performance.
- Precision Bearings
- Equipped with high-quality German/Japanese bearings for smooth rotation and long service life.
- Lifetime Lubrication
- Pre-lubricated with premium grease (e.g., Klüber Isoflex) to ensure maintenance-free operation.
- High Accuracy
- Low run-out (concentricity accuracy approx. 0.01 mm), ensuring precise machining results.
- Wide Range Compatibility
- Available in multiple Morse taper sizes (MT2 to MT6), suitable for various CNC machines.
Technical Highlights
- Point Type: Stub Point (Interchangeable)
- Internal Female Taper: Typically 1:10 for secure point fitting
- Max RPM Range: Approx. 3000 – 7000 RPM (depending on model size)

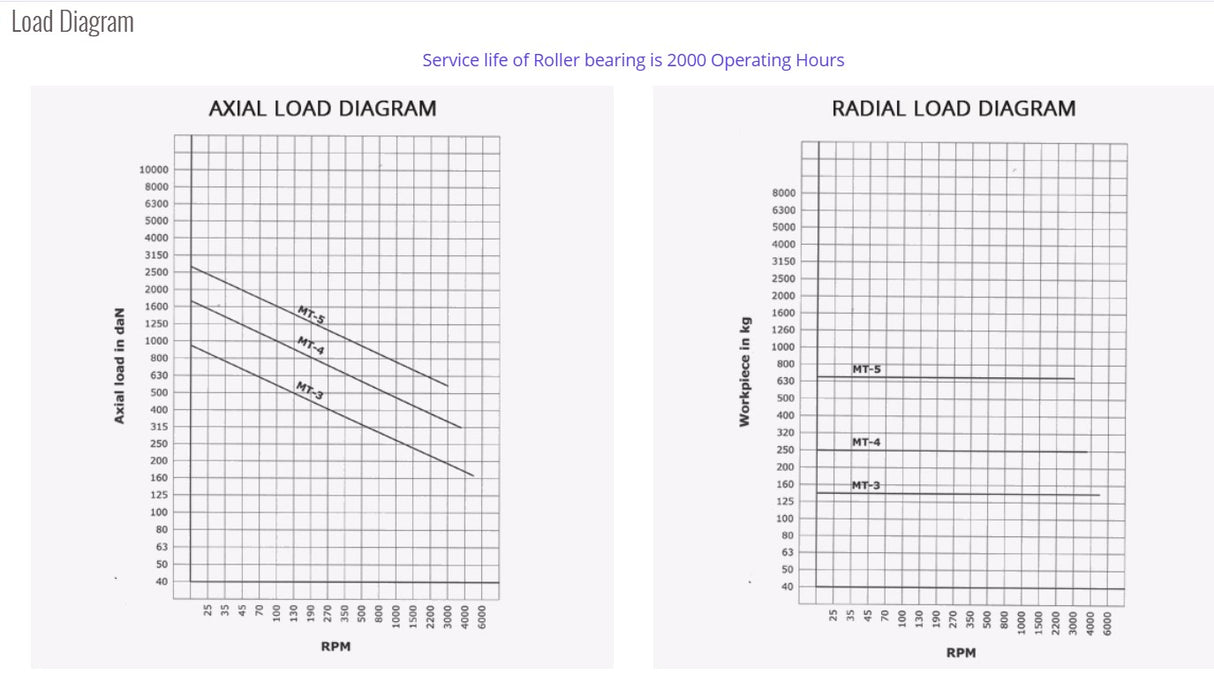

- Load Capacity: Up to 800 kg (varies by taper size)
- Bearing Life: Around 2000 operating hours under standard conditions
