Description
Description

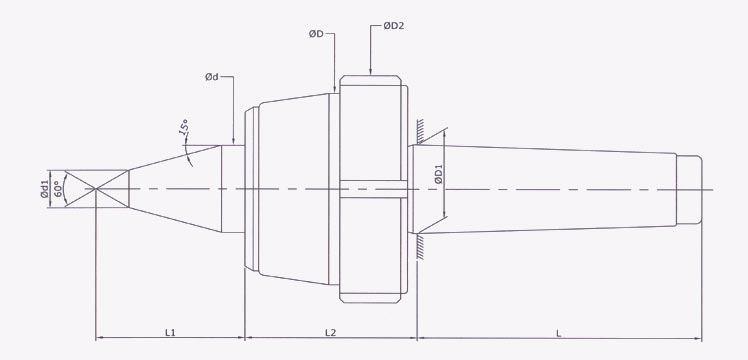

Turnmax CNC Heavy Duty Revolving Centers with Draw-off Nut (Carbide Tipped) are advanced live centers designed for high-speed CNC machining, combining easy removal, high rigidity, and superior wear resistance.
Available in Stub and Extended point configurations, these centers are ideal for handling high RPM, heavy loads, and continuous production environments.
Key Features:
- Draw-off Nut System: Enables easy and safe removal from tailstock without hammering
- Carbide Tipped Point: Tungsten carbide tip ensures high wear resistance and longer service life
- High Speed Capability: Designed to withstand very high RPM under heavy loads
- Heavy Duty Construction: Suitable for continuous CNC operations
- Precision Bearings: Fitted with high-quality German/Japanese bearings for smooth rotation
- Lifetime Lubrication: Pre-lubricated with Klüber grease for maintenance-free performance
- Low Run-Out Accuracy: Ensures high concentricity (~0.008 mm) for precision machining
Point Style Variants:
- Stub Carbide Point (Draw-off Nut)
- Short and rigid design for maximum strength and stability
- Ideal for heavy-duty and short-length jobs
- Handles higher load capacity (up to ~2600 kg in MT-6 models)
- Reduces vibration and improves surface finish

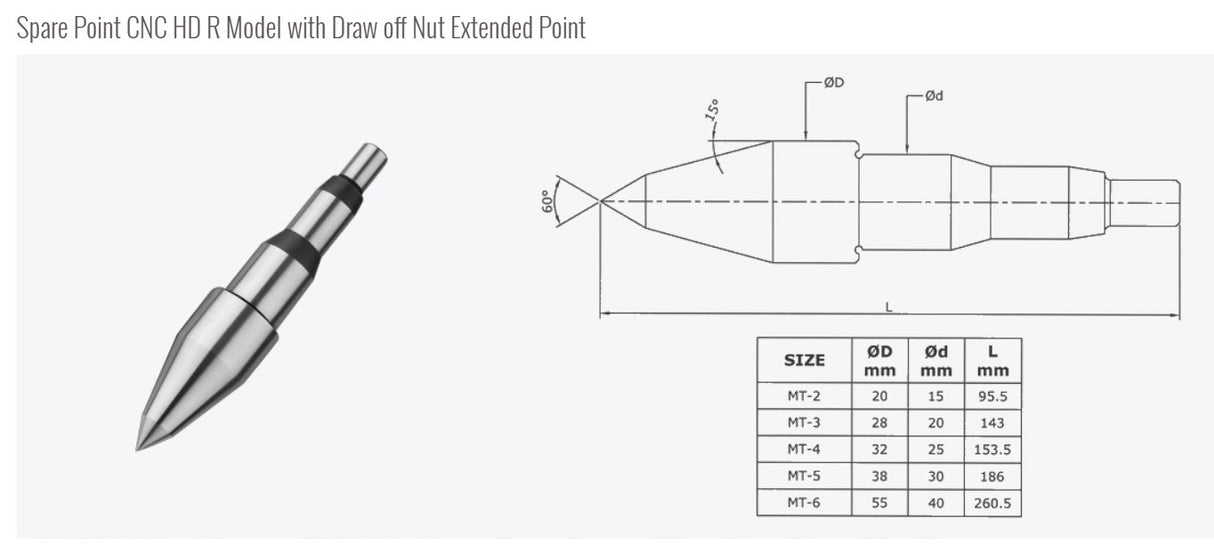

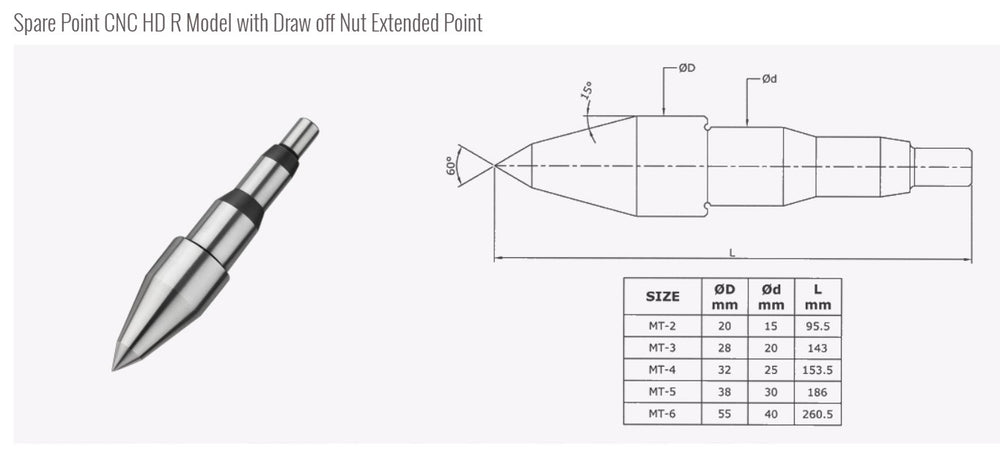

- Extended Carbide Point (Draw-off Nut)
- Provides long reach for deep or recessed machining
- Suitable for long shafts and complex components
- Maintains precision at high speeds (up to ~4500 RPM depending on size)
- Ideal for applications where accessibility is critical

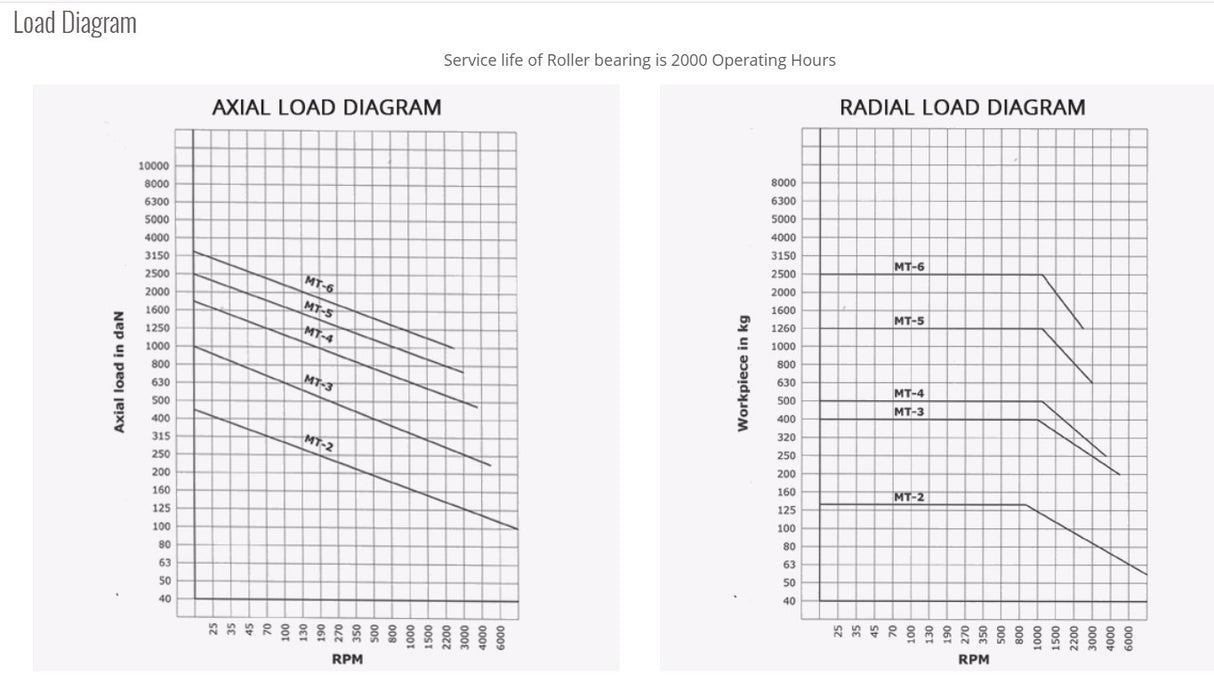

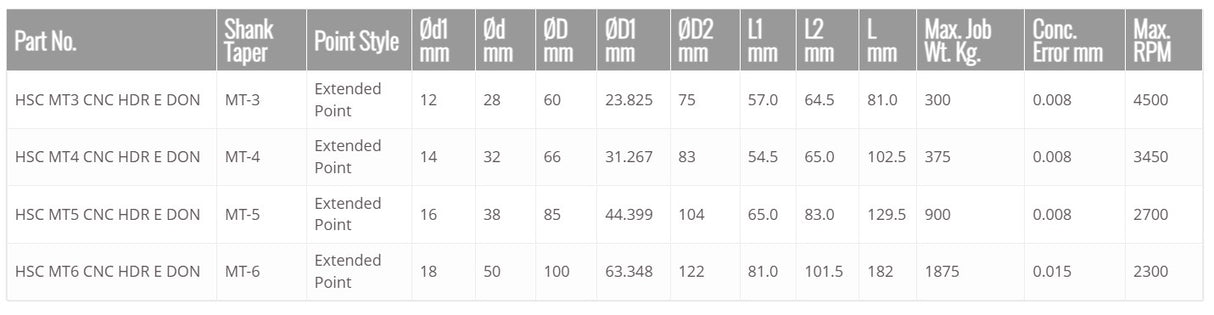

Technical Highlights (Typical):
- Morse Taper: MT-2 to MT-6
- Max RPM: Up to approx. 4500 RPM (MT-3)
- Load Capacity: Up to 2600 kg (Stub MT-6 models)
- Bearing Life: Approx. 2000 operating hours
Applications:
- High-speed CNC turning centers
- Heavy shaft and cylindrical component machining
- Deep hole and long component operations
- Automotive and heavy engineering industries
- Continuous production environments
