Turnmax CNC Heavy Duty Revolving Model with Interchangeable (Profiled Point)
Turnmax CNC Heavy Duty Revolving Model with Interchangeable (Profiled Point) - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description

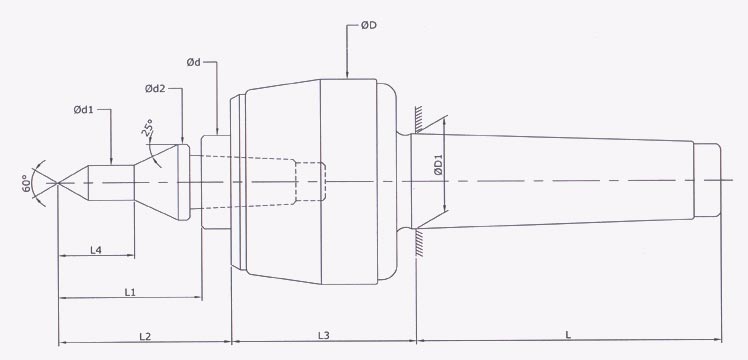

The Turnmax CNC Heavy Duty R-Model with Interchangeable Profiled Point is a high-precision revolving center designed for advanced CNC turning applications, where specialized workpiece holding and contour support are required. It combines heavy-duty construction with a profiled point geometry, making it ideal for complex machining operations.

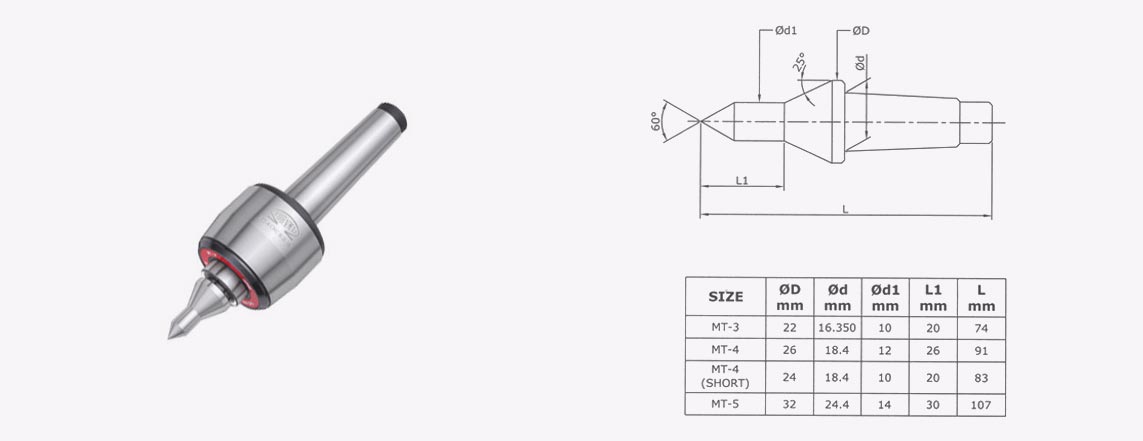

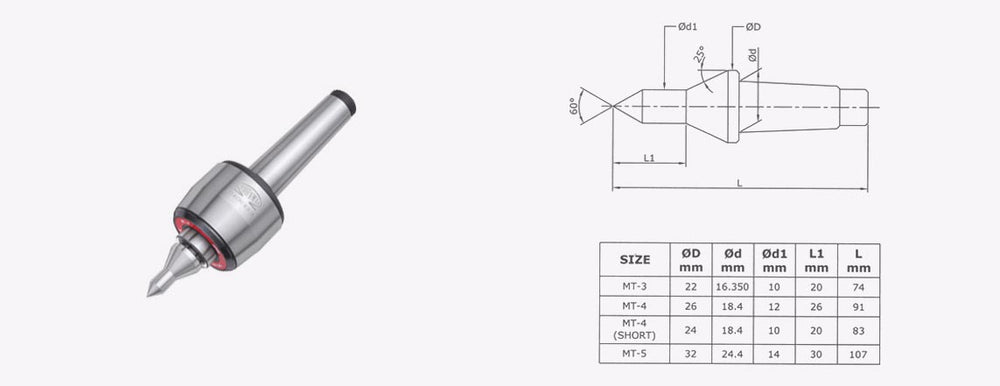

This model features a profiled point design (custom contour tip) that provides improved contact with the workpiece, especially in irregular shapes, stepped components, or special profiles. The interchangeable point system allows quick replacement, enhancing productivity and reducing downtime.
Engineered with high-quality bearings and precision components, it delivers smooth rotation, high accuracy, and reliable performance at high speeds and loads.
Key Features
- Interchangeable Profiled Point System
- Enables quick change of points for different job profiles, improving versatility and reducing setup time.
- Profiled Point Geometry
- Designed for better grip and support on non-standard or contoured workpieces, unlike plain or stub points.
- Heavy Duty Construction
- Robust design ensures stability under high axial and radial loads during CNC operations.
- High-Speed Performance
- Capable of operating at high RPM with excellent balance and minimal vibration.
- Precision Bearing System
- Fitted with premium German/Japanese bearings for smooth and long-lasting performance.
- Lifetime Lubrication
- Pre-lubricated with high-quality grease (e.g., Klüber Isoflex NBU-15) for maintenance-free use.
- High Accuracy
- Concentricity accuracy up to 0.008 – 0.010 mm, ensuring precise machining results.

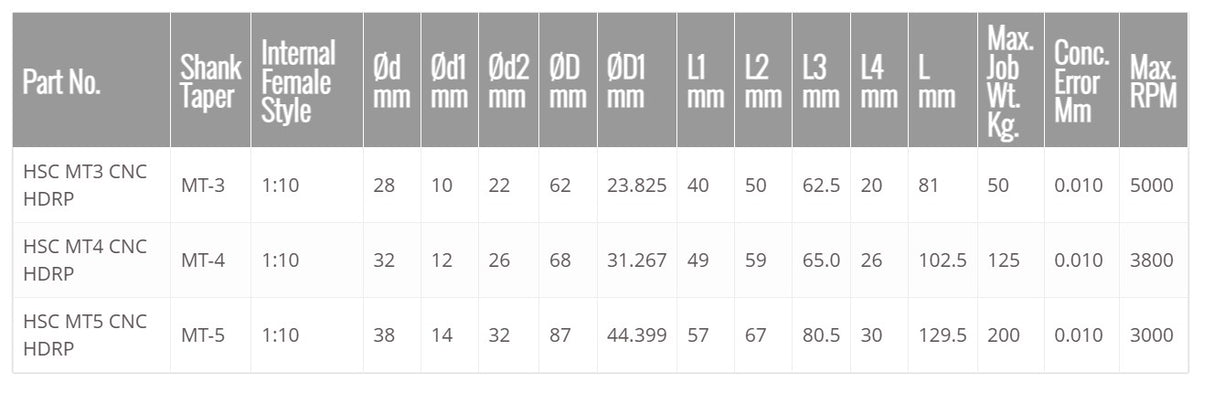

Technical Highlights
- Point Type: Profiled Point (Interchangeable)
- Internal Taper: 1:10 for secure and precise fitting
- Max RPM Range:
- MT2 → up to ~6300 RPM
- MT3 → up to ~4500–5000 RPM
- MT4 → up to ~3450–3800 RPM
- MT5 → up to ~2700–3000 RPM
- Load Capacity: Approx. 50 kg to 200 kg (depending on taper size)
- Bearing Life: Approx. 2000 operating hours
