Turnmax High Speed CNC Revolving Centers – Stub Carbide Point
Turnmax High Speed CNC Revolving Centers (Stub Carbide Point Type) are heavy-duty live centers designed for high-speed CNC turning applications requiring maximum rigidity and wear resistance. The combination of a stub (short) point design and a carbide tip ensures superior strength, reduced deflection, and extended tool life even under extreme machining conditions.
These centers are part of Turnmax CNC HD-R series, built for high RPM, heavy loads, and continuous industrial production.
Key Features:
- Stub Point Design: Short projection minimizes vibration and increases rigidity
- Carbide Tipped Point: Provides excellent wear resistance and longer service life
- High Speed Capability: Suitable for high RPM CNC turning operations under heavy loads
- Precision Bearings: Equipped with high-quality German/Japanese angular contact bearings for smooth rotation
- Lifetime Lubrication: Pre-lubricated with Klüber grease for maintenance-free operation
- Low Run-Out Accuracy: Ensures high concentricity (approx. 0.008 mm)
- Hardened & Ground Body: Provides durability and long operational life

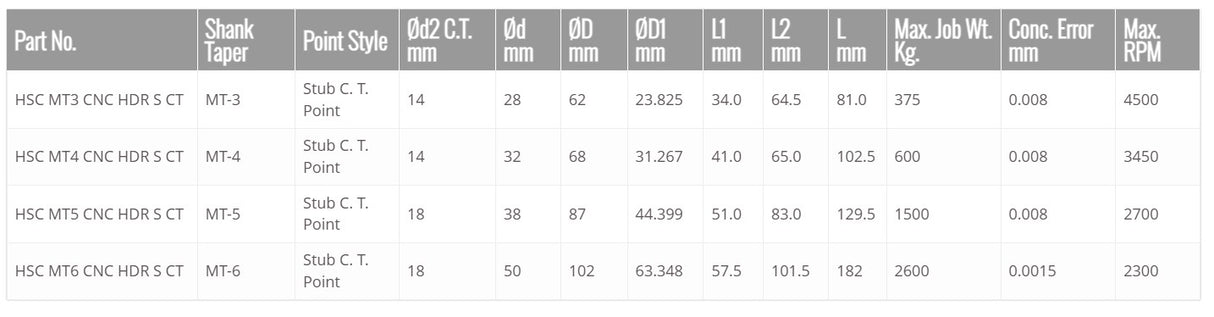

Available Variants:
- Heavy Duty Stub Carbide Point (HD-R Models)
- Medium Duty Stub Carbide Models (Small Casing Dia)

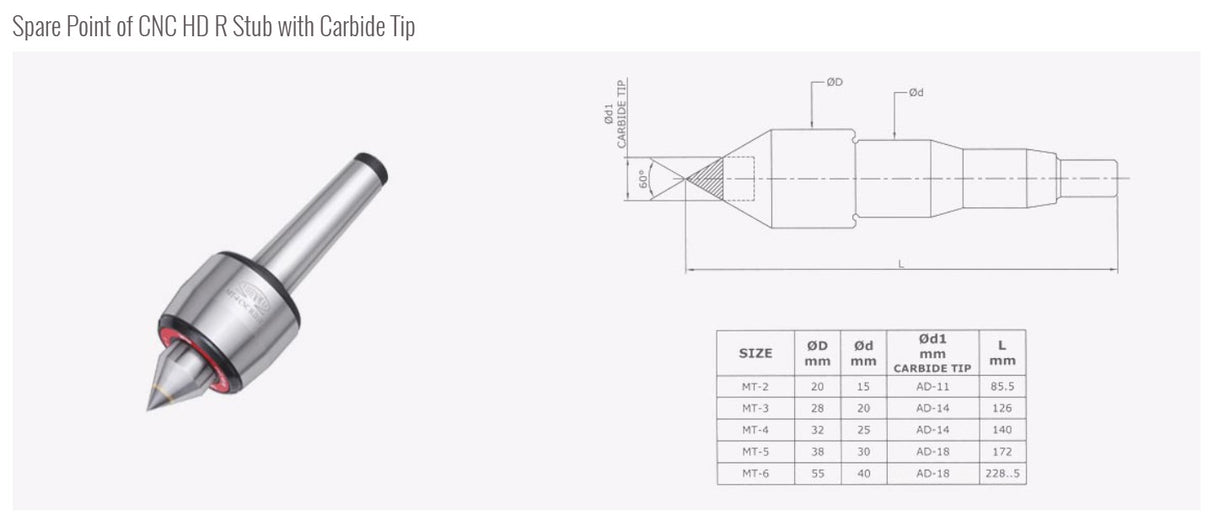

- Interchangeable Stub Carbide Point
- Stub Carbide with Draw-off Nut (easy removal)
- Different MT Sizes: MT-2 to MT-6
Applications:
- High-speed CNC turning centers
- Heavy-duty shaft and component machining
- Short-length jobs requiring maximum rigidity
- Automotive and precision engineering industries
- Mass production with continuous machining
