Description
Description
The Turnmax Pipe Center Pointed (Slow Speed) is a specially designed revolving center used for holding and supporting pipes, tubes, and hollow components during turning operations on conventional lathes. It is ideal for applications where standard centers cannot provide proper support due to small or hollow internal diameters.
This pointed type pipe center features a sharp tapered profile (pointed cone) that allows accurate centering inside pipes and hollow jobs. Designed for slow-speed applications, it ensures smooth rotation and stable support while machining lightweight to medium-duty tubular components.
Unlike blunt pipe centers, the pointed design is suitable for smaller internal diameters and precision alignment requirements.
Key Features
- Pointed Cone Design
- Special pointed geometry enables firm support inside pipes and hollow shafts of smaller diameters.
- Designed for Pipe & Tube Machining
- Ideal for jobs that cannot be held by standard revolving centers due to internal bore limitations.
- Slow Speed Application
- Specifically designed for conventional lathe machines operating at low RPM.
- Revolving Type (Live Center)
- Equipped with internal bearings for smooth rotation and reduced friction during machining.
- Protected Bearing System
- Bearings are sealed to prevent entry of coolant, dust, and chips, ensuring long service life.
- Multiple Size Range
- Available in various internal diameter ranges such as 0–2", 0–3", 0–5", etc., to suit different pipe sizes.
- Wide Taper Compatibility
- Offered in MT2 to MT6 / MT7, suitable for different lathe machines.

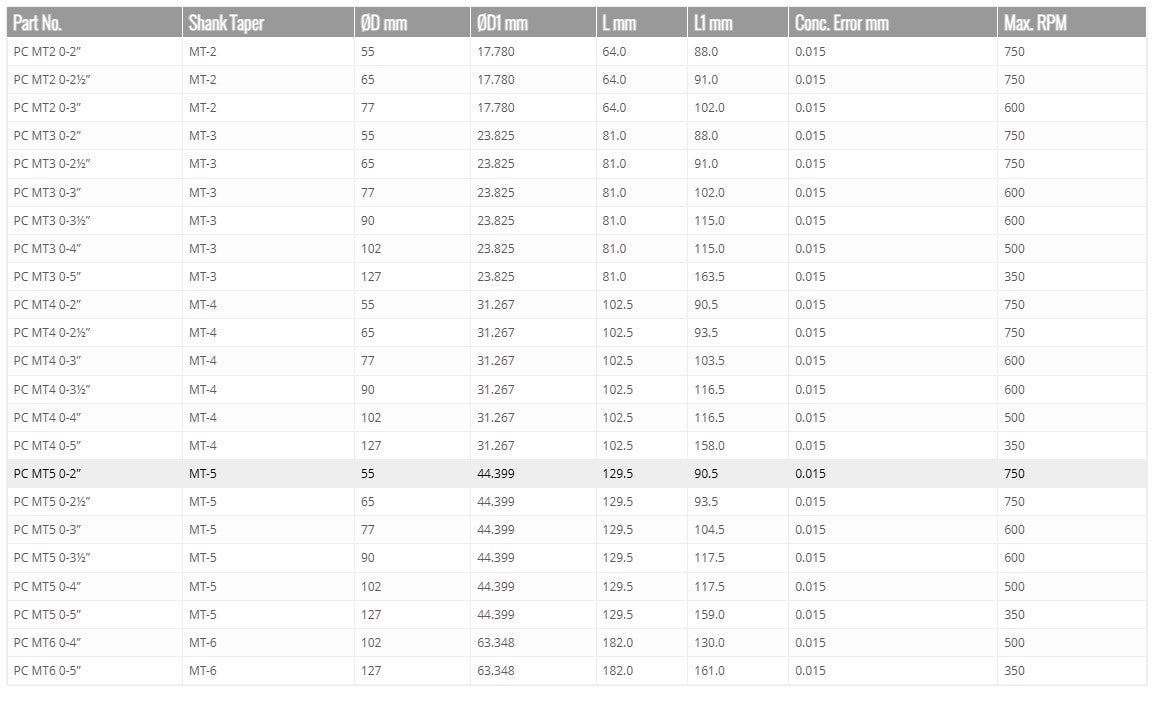

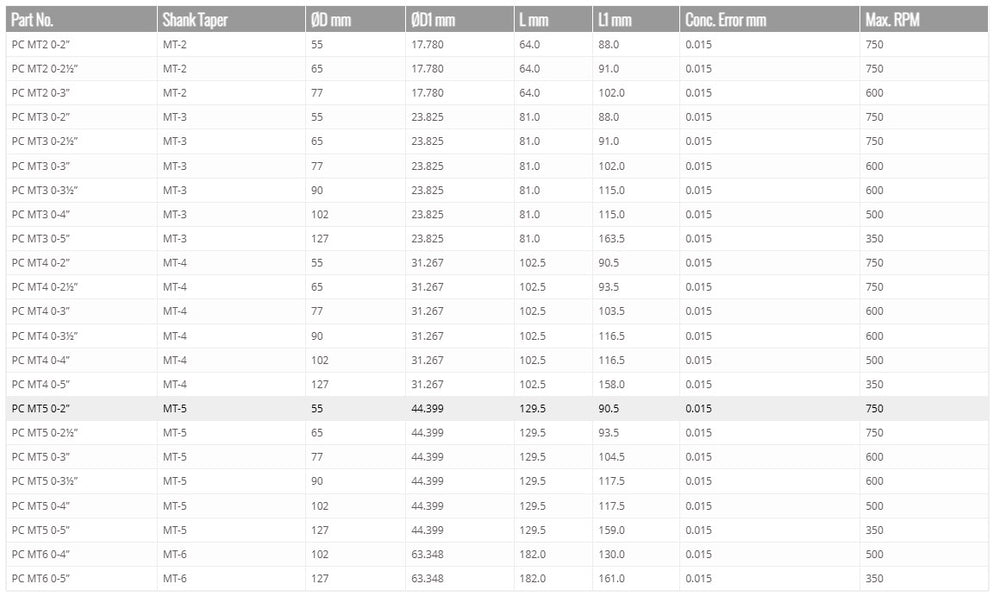

Technical Highlights
- Type: Pointed Pipe Center (Revolving)
- Application: Slow Speed / Conventional Lathe
- Cone Angle: Typically 60° pointed cone
- Runout Accuracy: Approx. 0.015 mm
- Max RPM: Around 150 – 750 RPM (depending on size)
- Material: Hardened alloy steel
Applications
- Pipe and tube turning operations
- Hollow shaft machining
- Fabrication and maintenance workshops
- Light to medium-duty conventional lathe work
