Description
Description
ACCEPT ONLY PREPAID ORDERS
Dispatch Time: 3 to 4 Days

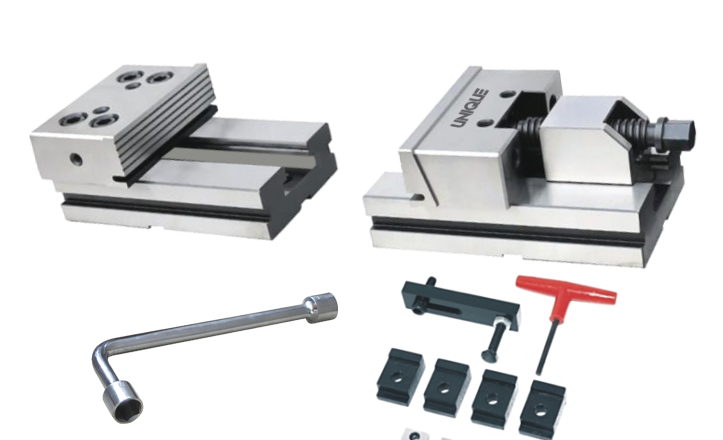

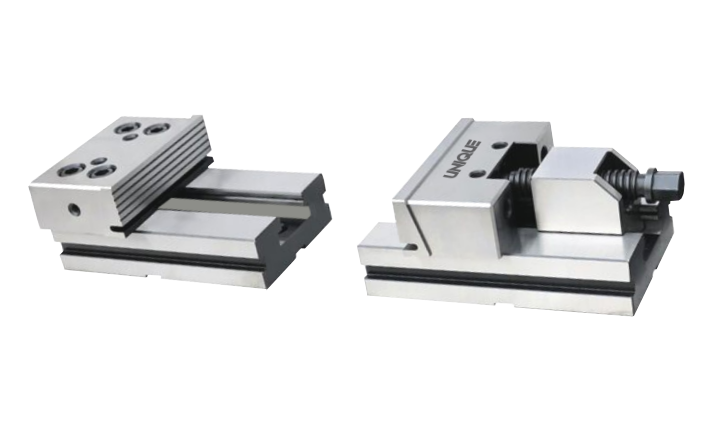

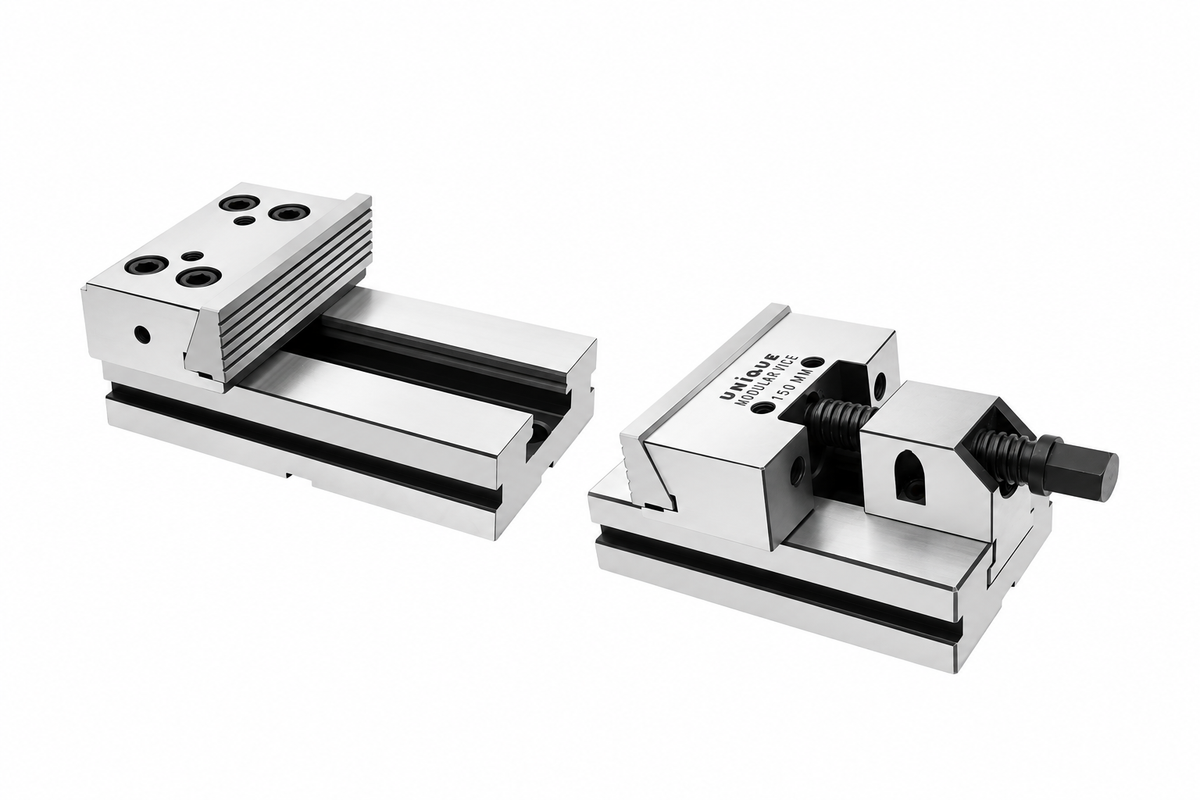

The Unique Industries machine tools manufacturer India Two Piece Modular Precision Machine Vice (U-3434) is a high-precision workholding solution specially designed for CNC machining centers and milling applications. Its modular two-piece design makes it ideal for holding long and irregular workpieces with superior stability and flexibility.
Key Features:
- Two-Piece Modular Design
- Enables flexible positioning and accommodates long workpieces efficiently.
- High Accuracy
- Maintains squareness accuracy of 0.01/100 mm, ensuring precision machining.
- Unlimited Clamping Range
- Adjustable clamping based on job length—no limitation of fixed jaw opening.
- Anti-Lift Clamping System
- Pull-down jaw mechanism prevents lifting of the job during machining.
- Heavy-Duty Construction
- Made from high-quality alloy steel, hardened up to HRC 60 ±2 for durability and wear resistance.
- Low Profile Design
- Allows better tool access and improves machining efficiency.
- Production-Friendly
- Supplied with stopper for quick setting and repetitive jobs.

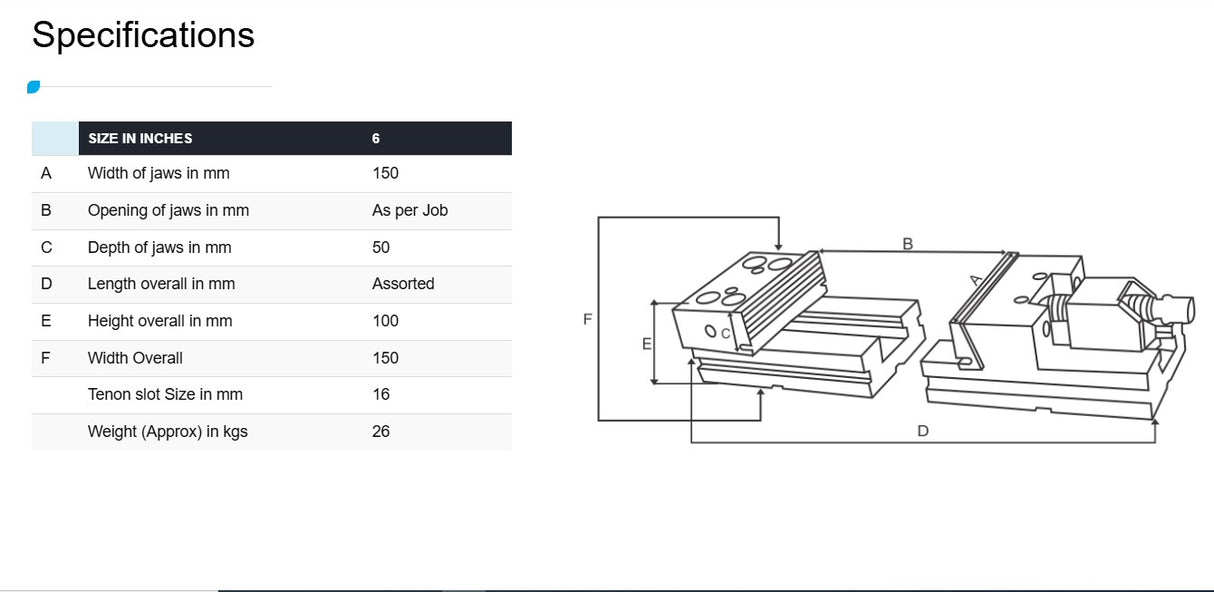

Technical Specifications (Typical – 6 Inch Model)
- Jaw Width: 150 mm
- Jaw Opening: As per job (modular/unlimited)
- Jaw Depth: ~50 mm
- Material: Alloy Steel
- Hardness: HRC 60 ±2
- Accuracy: 0.01/100 mm
- Tenon Slot: 16 mm
- Application: CNC / VMC / Milling Machines
