Description
Description
ACCEPT ONLY PREPAID ORDERS
Dispatch Time: 3 to 4 Days

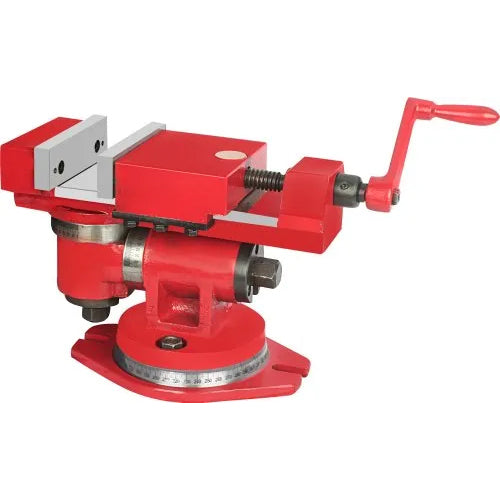

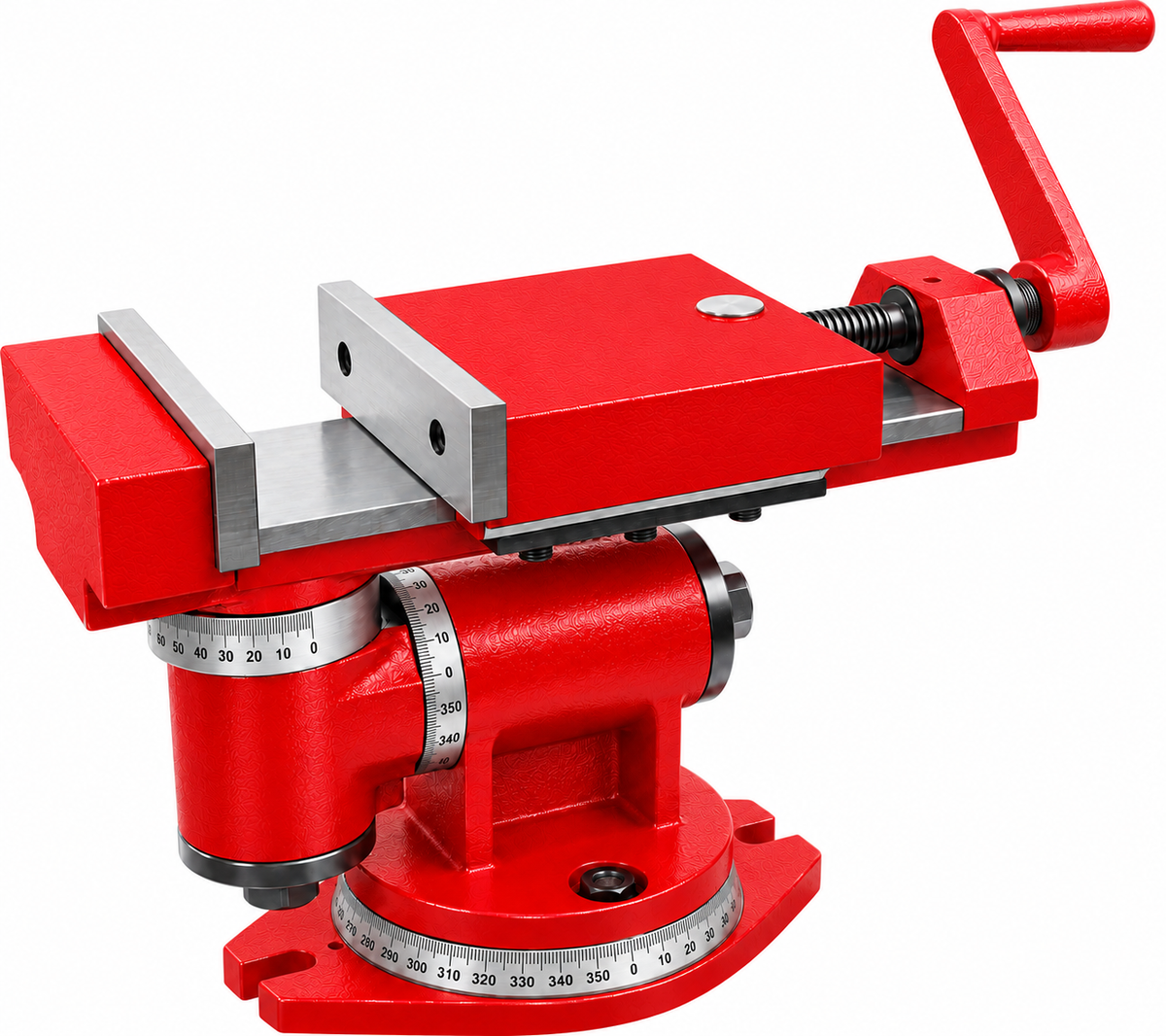

The UNIQUE Universal Machine Vise U1313 is a precision-engineered clamping tool designed for milling, grinding, and tool-room applications. It allows multi-angle positioning, making it ideal for complex machining operations.

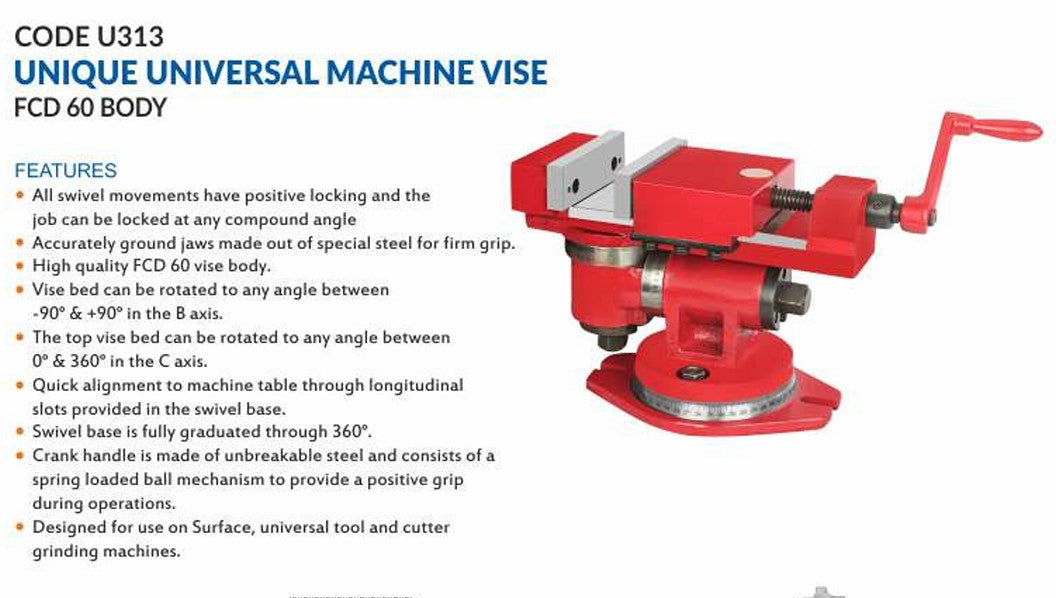

Key Features:

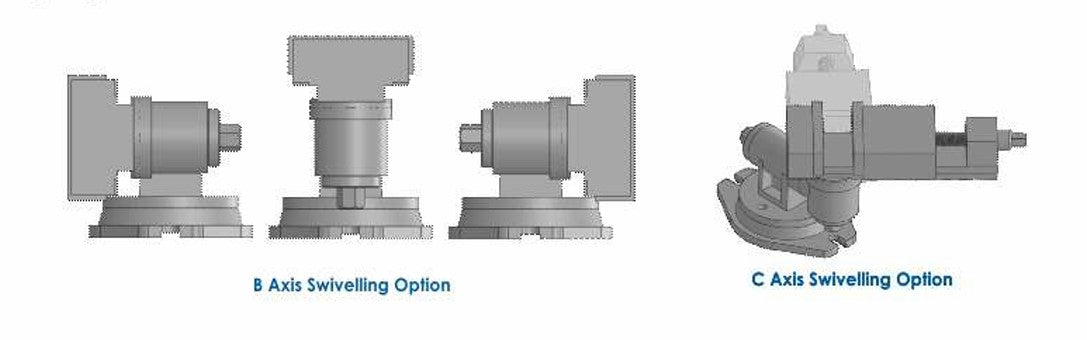

- Universal Angular Movement
- Can be adjusted and locked at multiple angles for compound machining jobs.
- Heavy-Duty Steel Body
- Made from high-quality steel/ductile iron for maximum rigidity and durability.
- Hardened & Ground Jaws
- Provides strong grip and high accuracy during machining operations.
- Positive Locking System
- All swivel and tilt movements are equipped with secure locking mechanisms.
- High Precision Performance
- Designed for surface grinding, tool & cutter grinding, and milling machines.
- Wear Resistance
- Hardened working surfaces ensure long service life and repeatability.

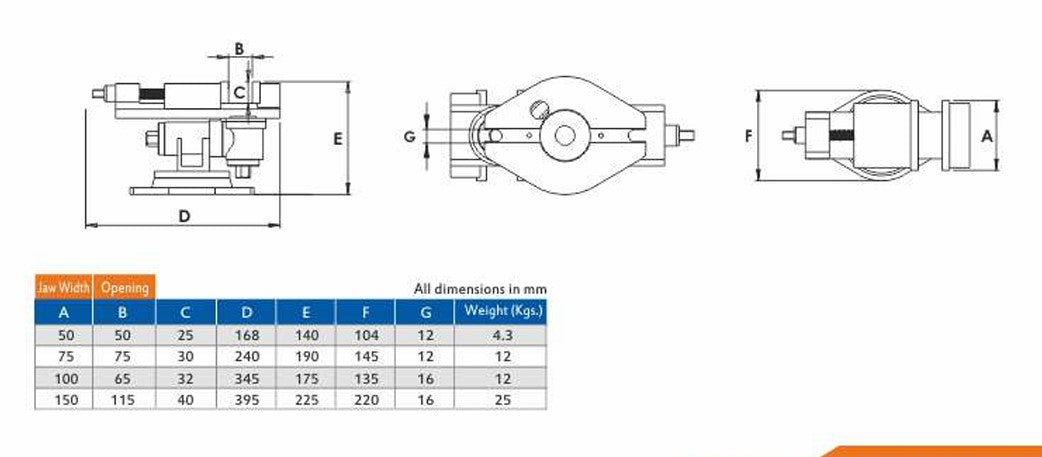

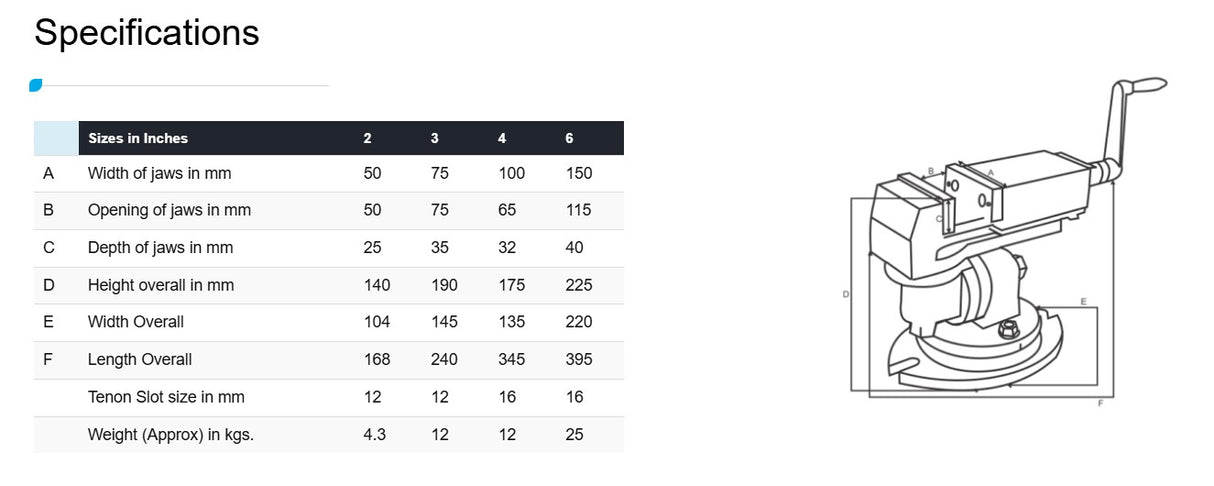

Typical Specifications (Approx.):
- Jaw Width: 100 mm / 150 mm
- Jaw Opening: Up to 115 mm
- Jaw Depth: 25 – 40 mm
- Weight: ~10 – 25 kg
- Operation: Manual
- Material: Alloy Steel / Ductile Iron
Applications:
- Milling Machines
- Surface Grinding Machines
- Tool & Cutter Grinding
- Precision Engineering Workshops
- Tool Rooms & CNC Setup Fixtures
