Description
Description
ACCEPT ONLY PREPAID ORDERS
Dispatch Time: 3 to 4 Days

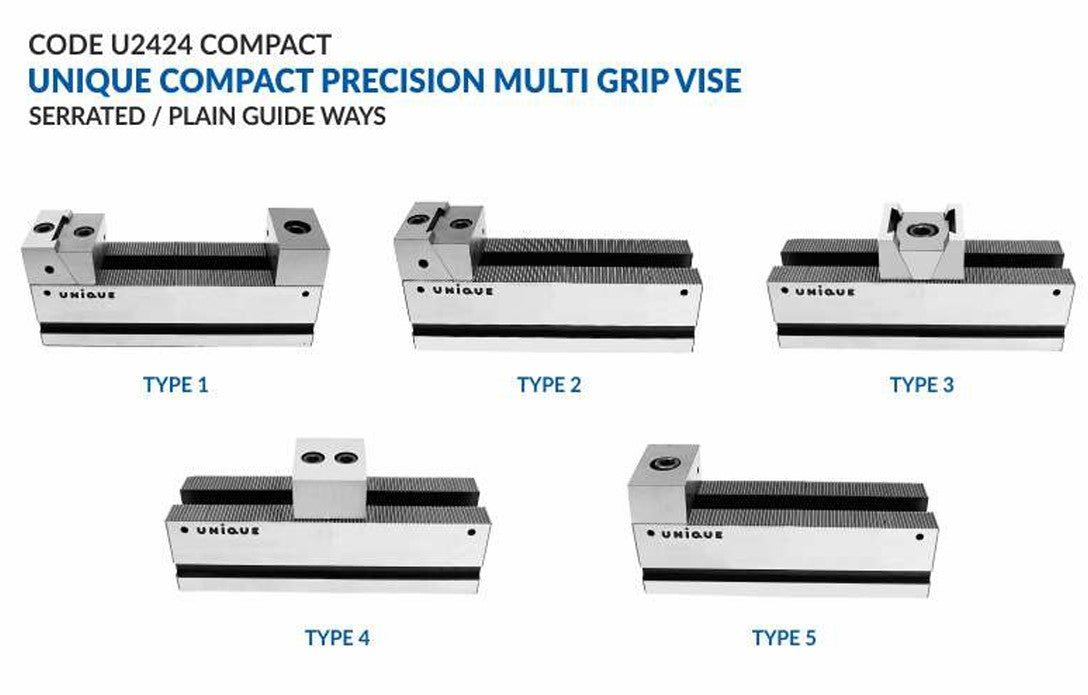

The UNIQUE Compact Precision Multi Grip Vise (U-2424 Compact) is a space-saving, high-precision workholding vise designed for CNC and milling applications where maximum productivity is required within limited machine table space. It is an optimized compact version of the standard multi-grip vise, maintaining high rigidity and accuracy while reducing footprint.
Key Features:
- Compact Multi-Station Clamping
- Designed to hold multiple small to medium workpieces simultaneously, ideal for batch production.
- Space-Saving Design
- Smaller footprint compared to standard U2424, allowing better machine table utilization and fixture flexibility.
- High Productivity Performance
- Enables machining of multiple parts in one setup, reducing idle time and increasing output.
- Precision Accuracy
- Maintains alignment and positioning accuracy of ±0.02 mm, ensuring consistent machining quality.
- Rigid & Durable Construction
- Manufactured from high-quality alloy steel, case hardened up to HRC 60 ±2 for long service life.

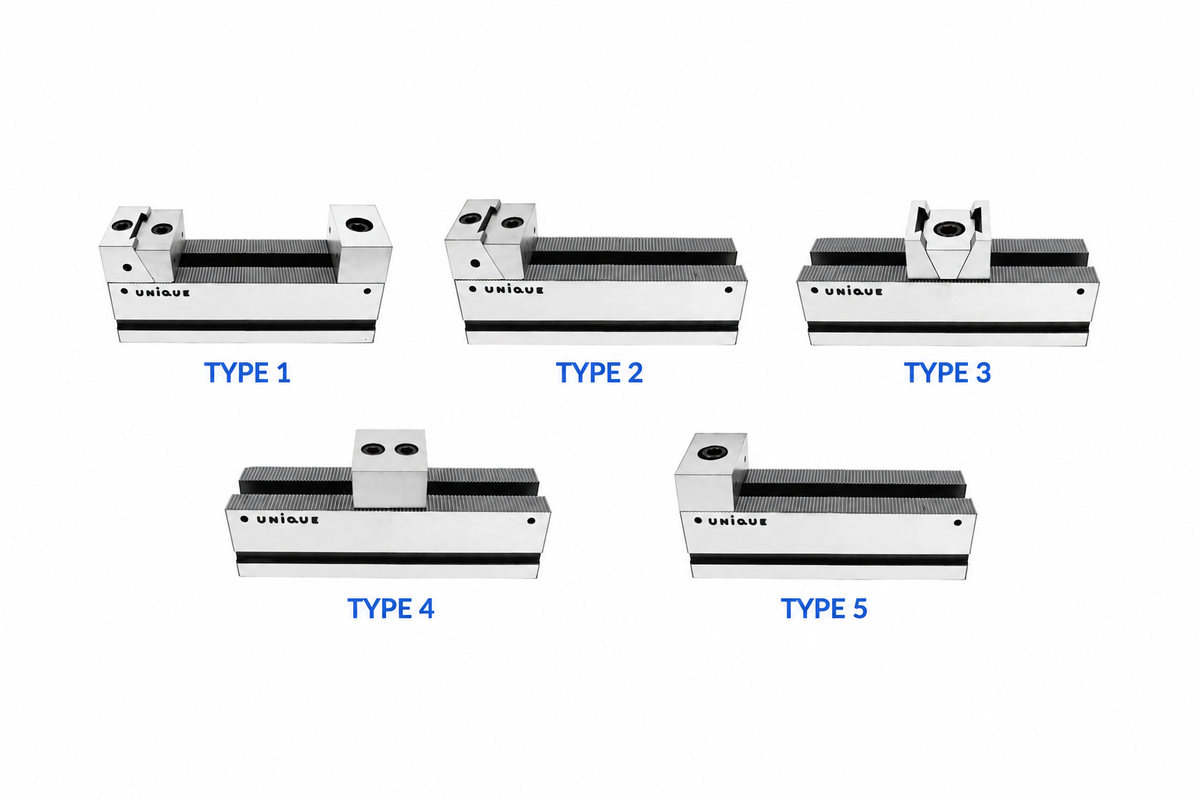

- Multiple Clamping Configuration

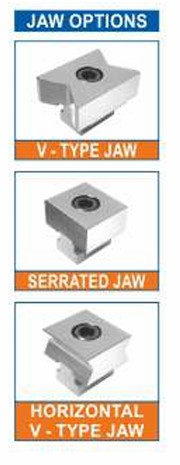

- Supplied with fixed jaws and wedge clamps, allowing flexible gripping arrangements.
- Serrated Slide Ways
- Ensures firm grip and prevents slipping during heavy machining operations.

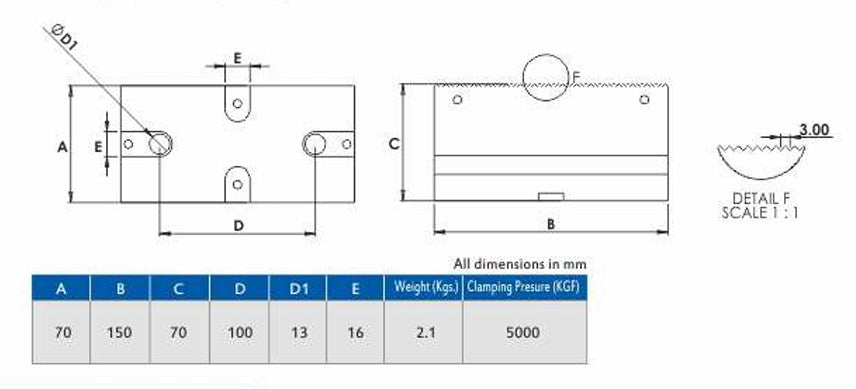

Technical Specifications (Typical Compact Model):
- Jaw Width: ~70 mm
- Overall Length: Compact (shorter than standard 540 mm)
- Height: Low profile for better tool clearance
- Tenon Slot: ~12 mm
- Material: Alloy Steel (Hardened)
- Hardness: HRC 60 ±2
- Accuracy: ±0.02 mm
- Clamping System: Multi-piece gripping with wedge mechanism
