UNIQUE Precision Multi Grip Vise (Code- U2424)
UNIQUE Precision Multi Grip Vise (Code- U2424) - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description
ACCEPT ONLY PREPAID ORDERS
Dispatch Time: 3 to 4 Days

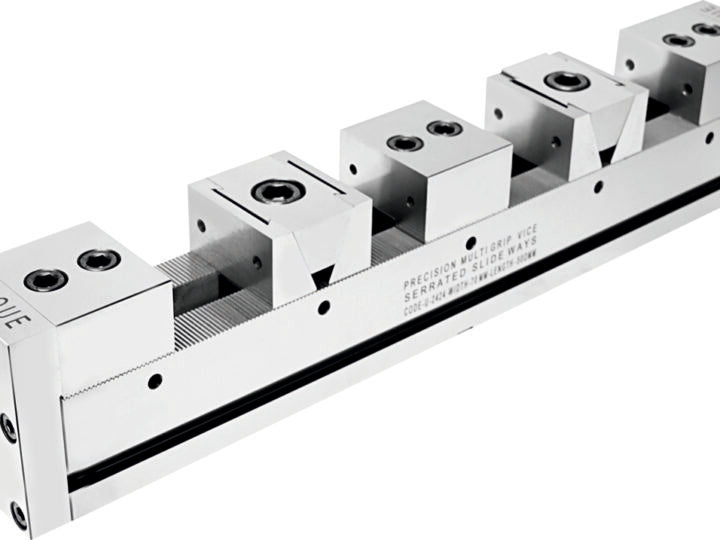

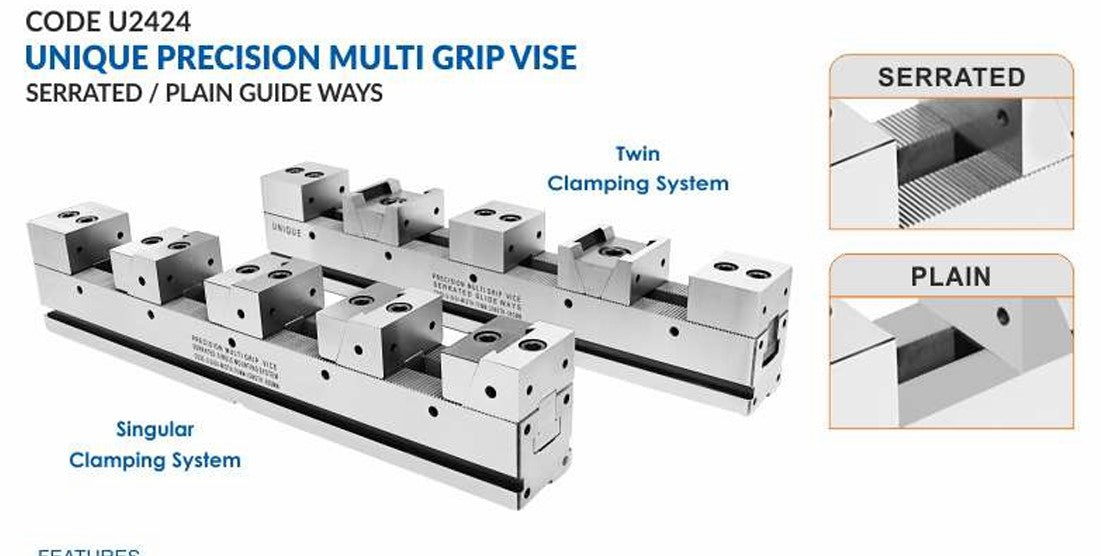

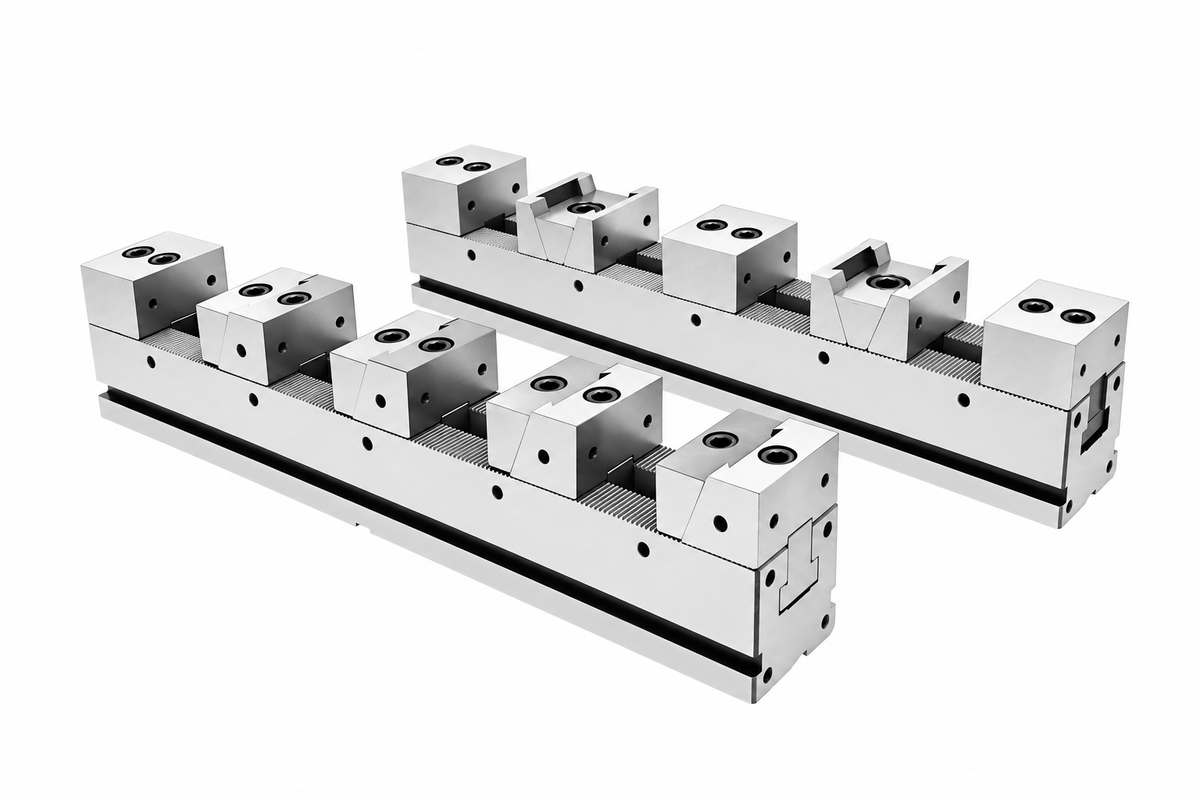

The UNIQUE Precision Multi Grip Vice (U-2424) is a compact and high-performance machine vice designed for simultaneous clamping of multiple workpieces. It is widely used in CNC machining and milling operations to maximize productivity and machine table utilisation.
Key Features:
- Multi-Workpiece Clamping System
- Specially designed to hold multiple components of different sizes at once, improving production efficiency.
- High Productivity Design
- Maximises machine table capacity and reduces idle time.
- Reduced Setup Time
- Allows machining of multiple parts in a single setup, minimising tool changeovers.
- Precision Accuracy
- Maintains positioning accuracy of ±0.02 mm, ensuring consistent machining results.
- Heavy-Duty Construction
- Made from high-quality alloy steel, case hardened up to HRC 60 ±2 for long life and wear resistance.
- Rigid & Compact Structure
- Provides excellent stability during high-load machining operations.
- Complete Clamping Set

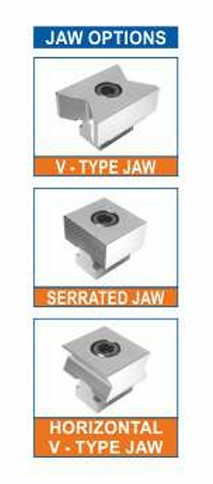

- Supplied with 3 fixed jaws and 2 wedge clamps for versatile gripping configurations.

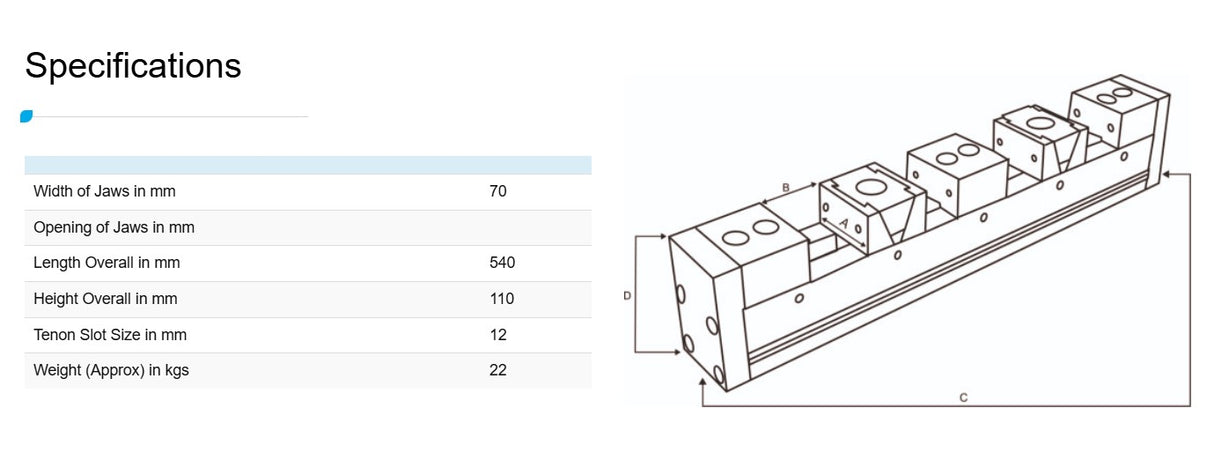

Technical Specifications (Typical – U2424) :
Jaw Width: 70 mm
Overall Length: 540 mm
Overall Height: 110 mm
Bed Height: 70 mm
Tenon Slot Size: 12 mm
Weight: Approx. 22 kg

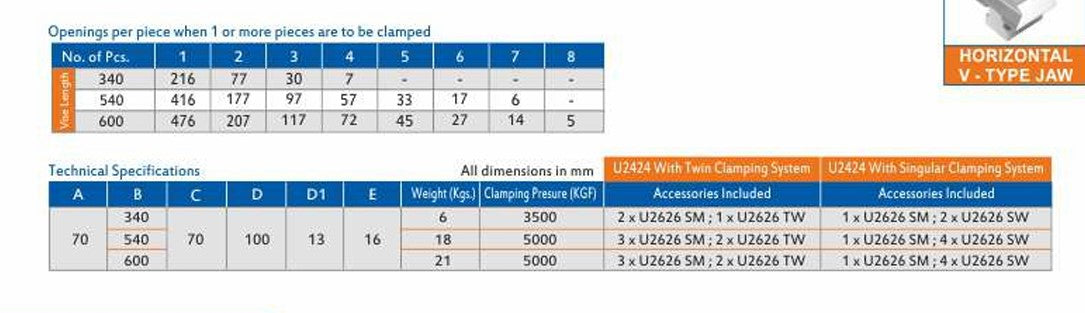

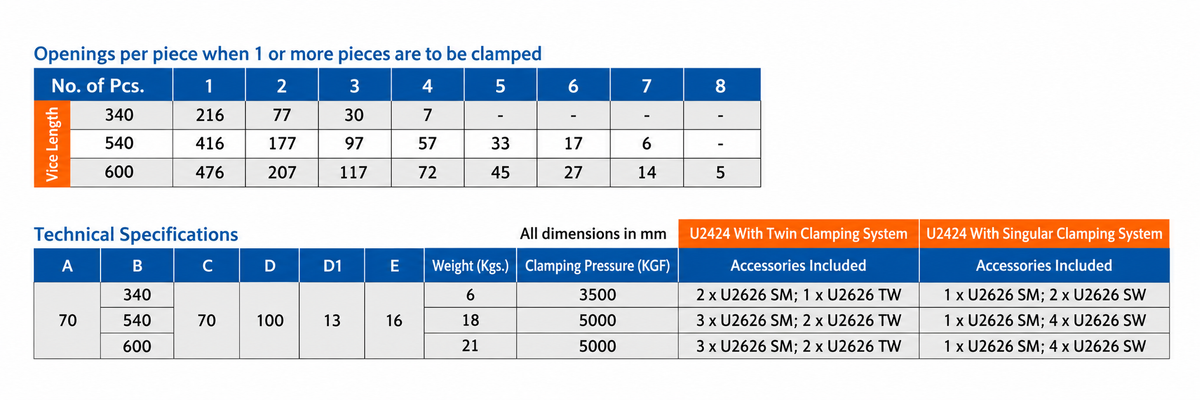

Holding Capacity:
50 mm – up to 4 pieces
160 mm – up to 2 pieces
215 mm – up to 2 pieces
