Description
Description
ACCEPT ONLY PREPAID ORDERS

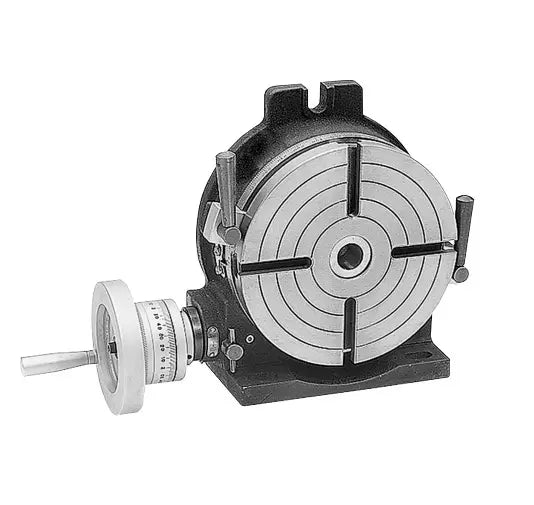

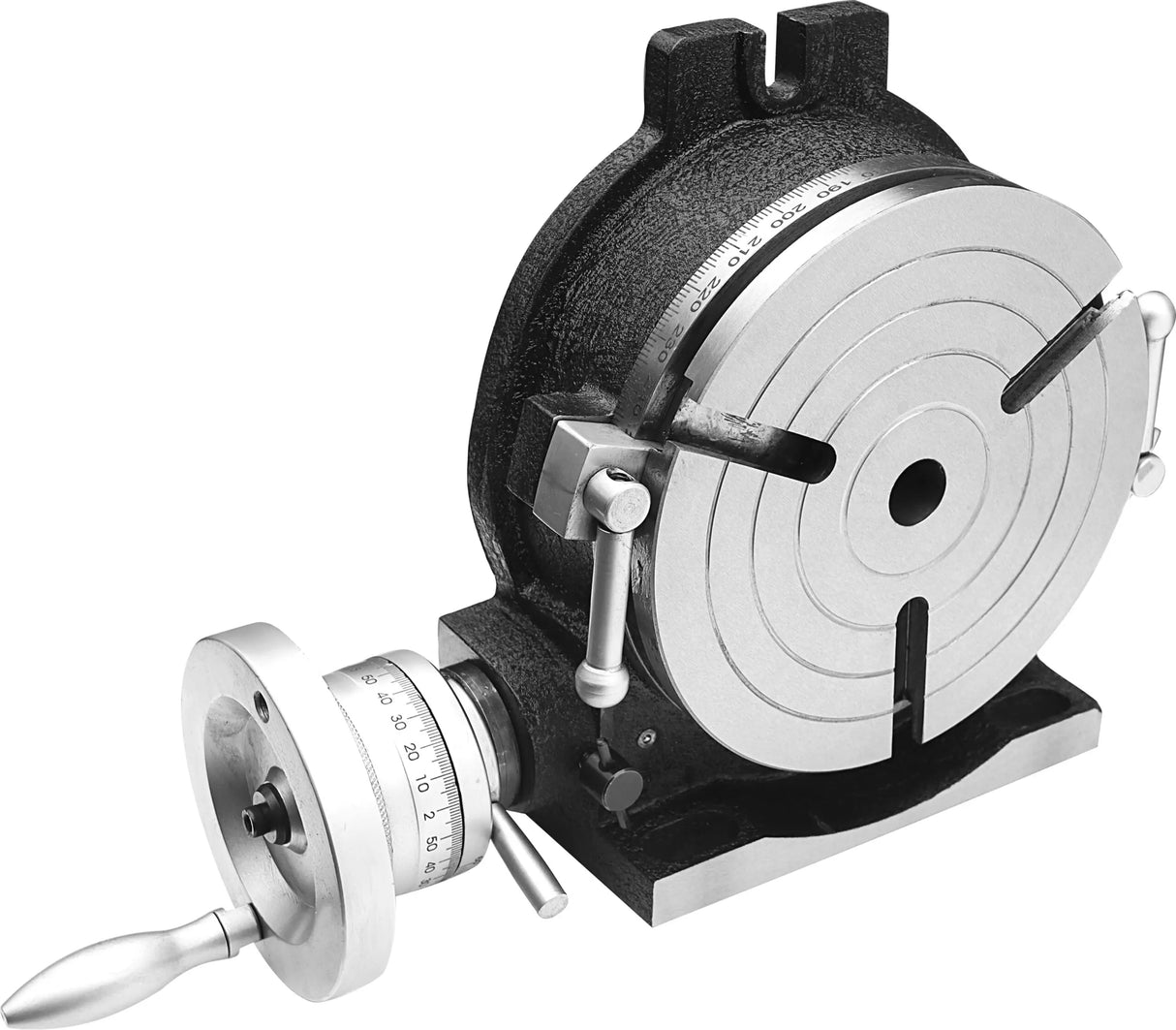

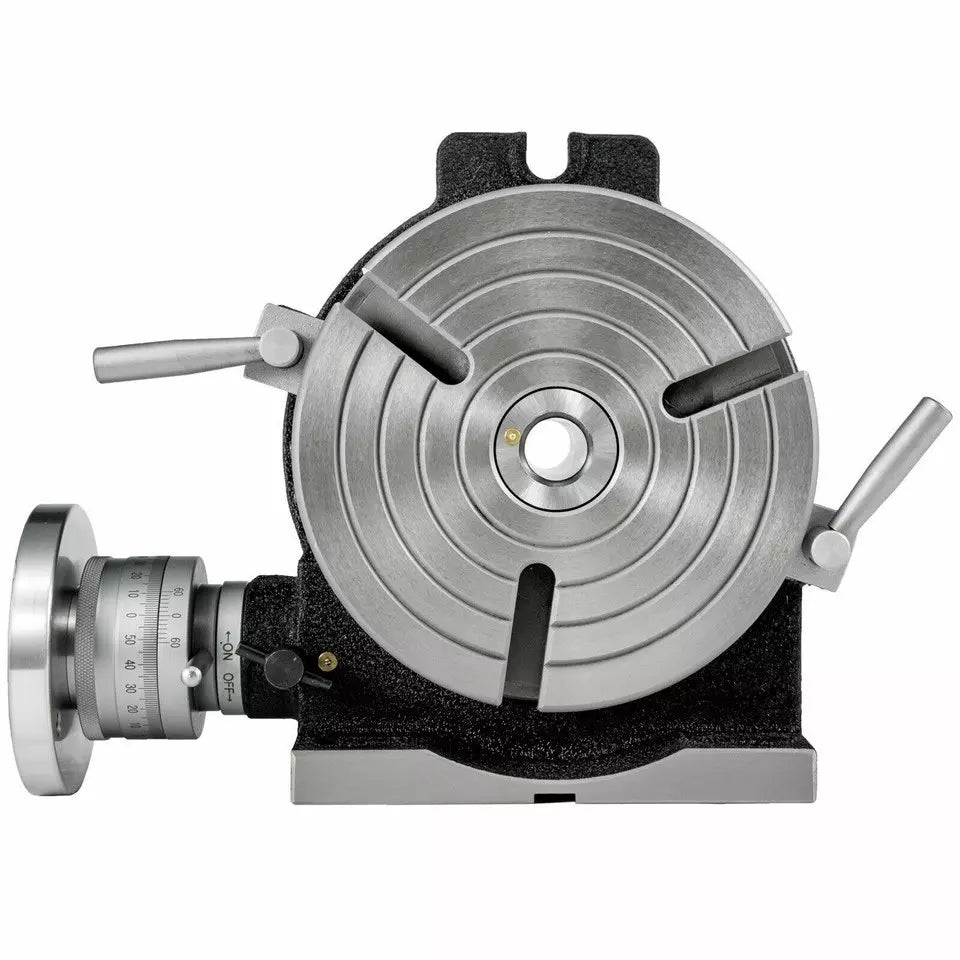

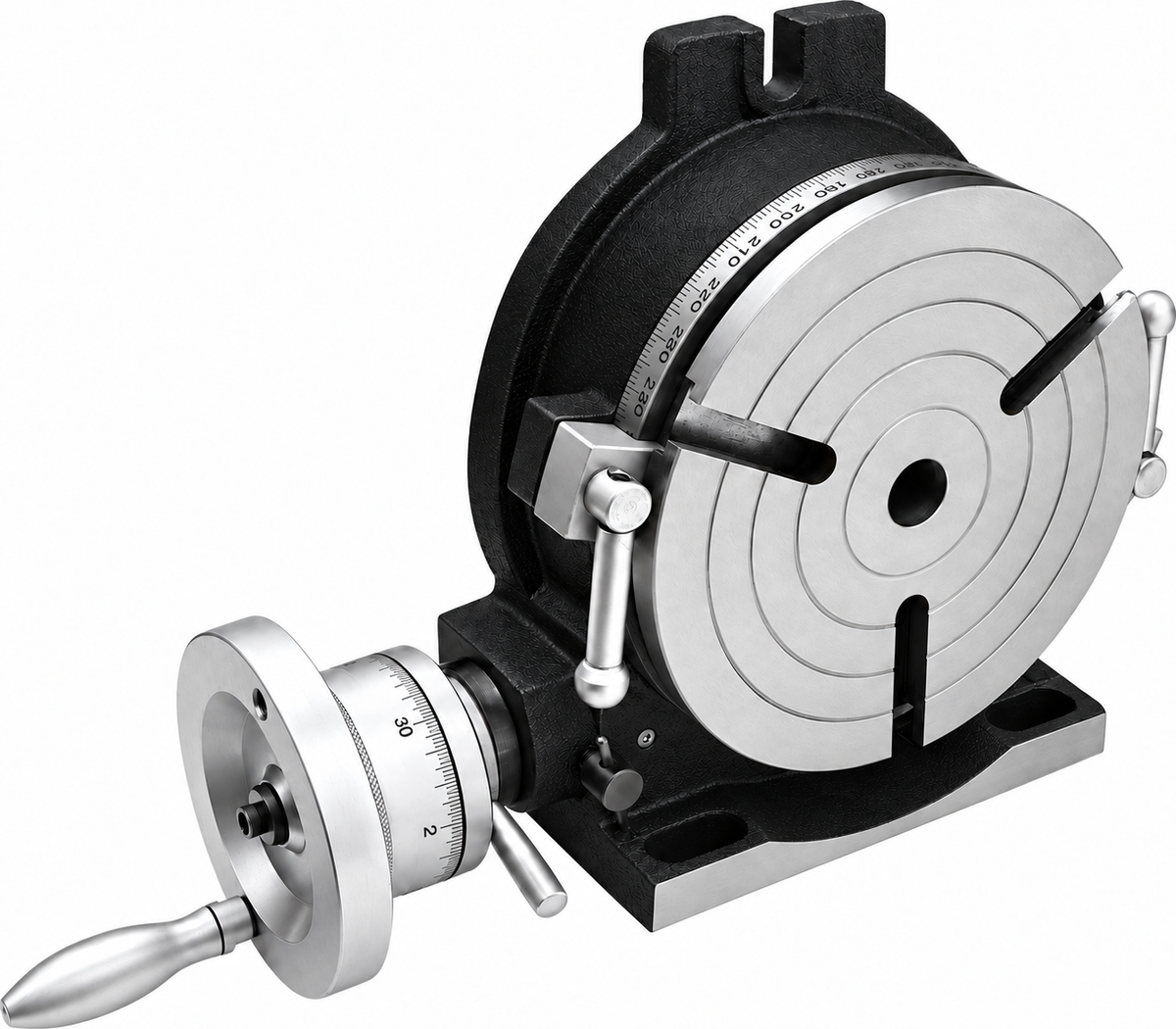

The UNIQUE U353 Precision Rotary Milling Table (Horizontal & Vertical) is a high-accuracy workholding and positioning device designed for milling, drilling, indexing, and circular machining operations. It can be mounted both horizontally and vertically, allowing versatile use in tool rooms and production environments.
A rotary table enables precise rotation of the workpiece around a fixed axis, making it ideal for angular machining and equally spaced operations.
Key Features:
- Horizontal & Vertical Mounting
- Can be used in both positions, increasing flexibility for different machining setups.
- Precision Ground Table Surface
- Ensures high flatness, accuracy, and repeatability during operations.
- 360° Graduated Rotation
- Full-circle graduation with fine vernier scale enables accurate angular positioning.
- Worm & Gear Drive System
- Typically features high reduction ratios (1:72 or 1:90) for smooth and precise rotation control.
- T-Slot Table Design
- Allows secure clamping of workpieces and fixtures.
- Rigid Cast Iron Construction
- Provides vibration-free performance and durability under machining loads.
- Indexing Capability (Optional)
- Can be used with dividing plates for gear cutting and precise indexing work.

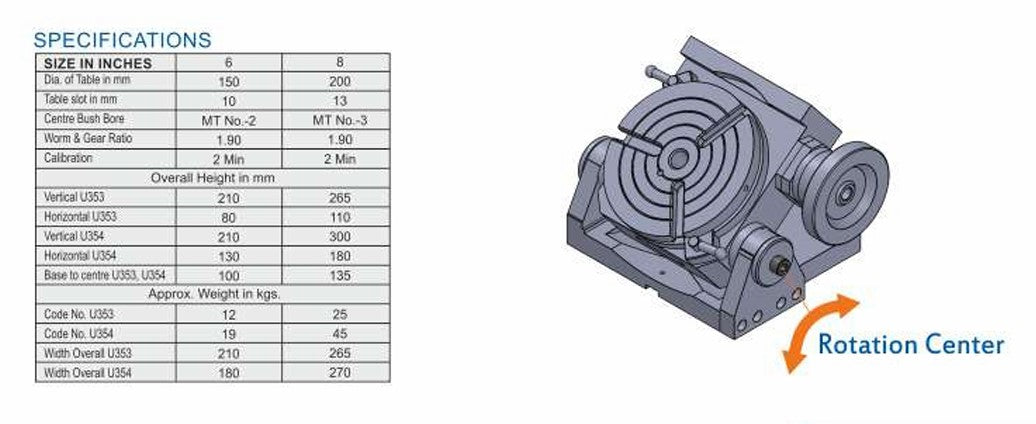

Typical Specifications (U353 – Approx.):
Table Size: 150 mm – 300 mm (6″ – 12″ range typical)
Gear Ratio: 1:72 / 1:90
Graduation: 360° with vernier (up to seconds reading)
Table Accuracy:
Flatness: ~0.01 mm / 100 mm
Division Error: ±4 minutes
Mounting: Horizontal & Vertical
Material: High-grade Cast Iron
