Description
Description
ACCEPT ONLY PREPAID ORDERS
Dispatch Time: 3 to 4 Days

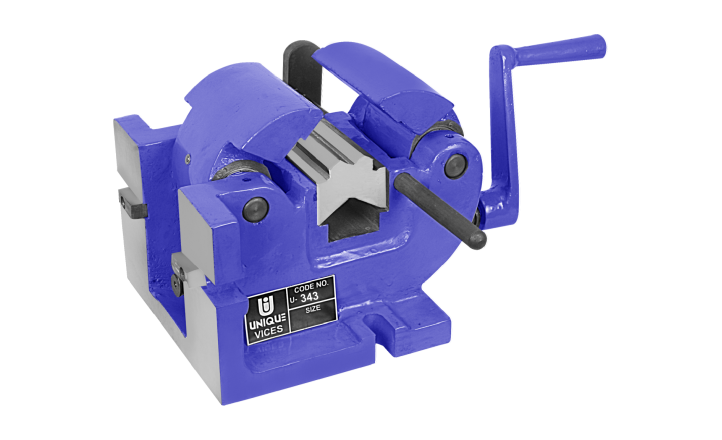

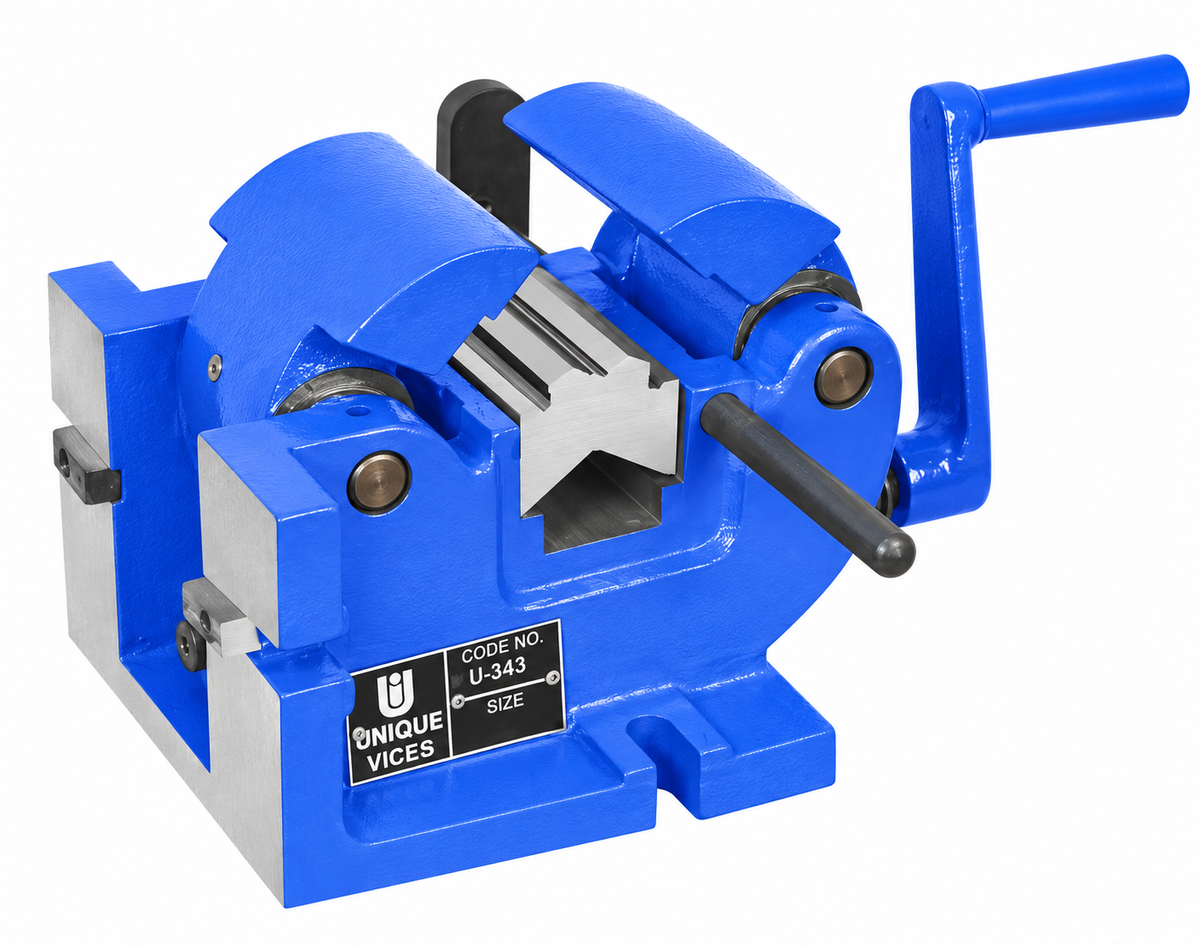

The UNIQUE U343 Self Centering Shaft Vise is a precision clamping device specially designed for holding round jobs such as shafts, pipes, and tubes with perfect centric alignment. It ensures equal clamping force from both sides, making it ideal for machining operations requiring high concentric accuracy.
Key Features :
- Self-Centering Mechanism
- Both jaws move simultaneously towards the center, ensuring automatic alignment of round workpieces.
- 4-Point Clamping Contact
- Provides firm grip without excessive force, preventing damage to delicate components.
- Ball Bearing System
- Fitted with precision ball bearings for smooth operation and reduced friction.
- Adjustable Sliding Rods
- Maintains the workpiece in a fixed position, improving repeatability in production.
- Hardened & Ground Jaws
- Made from high-quality carbon steel for long life, wear resistance, and accuracy.
- High Accuracy
- Parallelism accuracy up to 0.006” per foot, suitable for precision machining.
- Rigid Construction
- Steel body ensures maximum rigidity and vibration resistance during heavy machining.

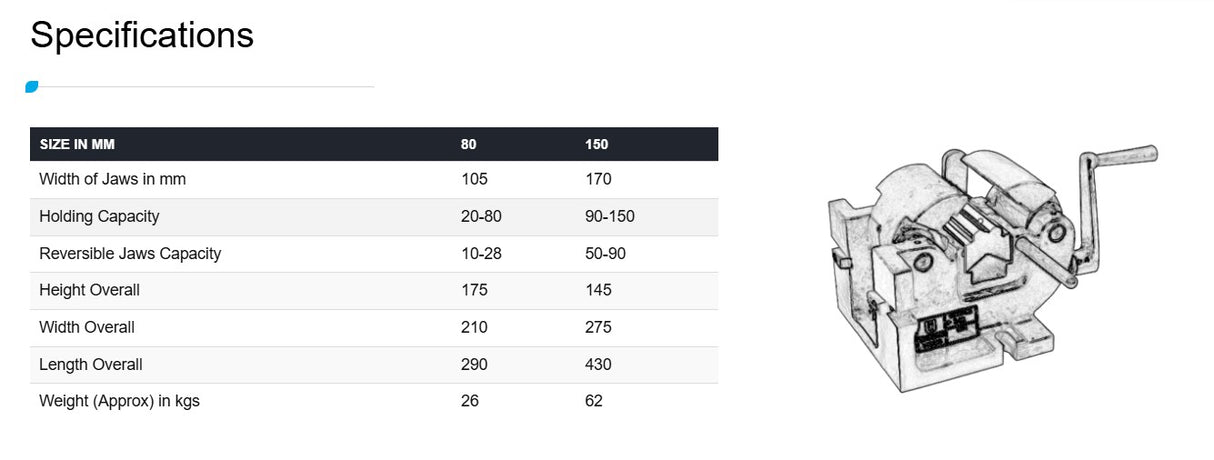

Typical Specifications :
Jaw Width: 80 mm / 105 mm / 170 mm
Holding Capacity:
20 – 80 mm
90 – 150 mm
Reversible Jaw Capacity: 10 – 90 mm
Weight: Approx. 25 – 62 kg
Material: Alloy Steel / Hardened Steel
Type: Shaft Holding Self-Centering Vise
