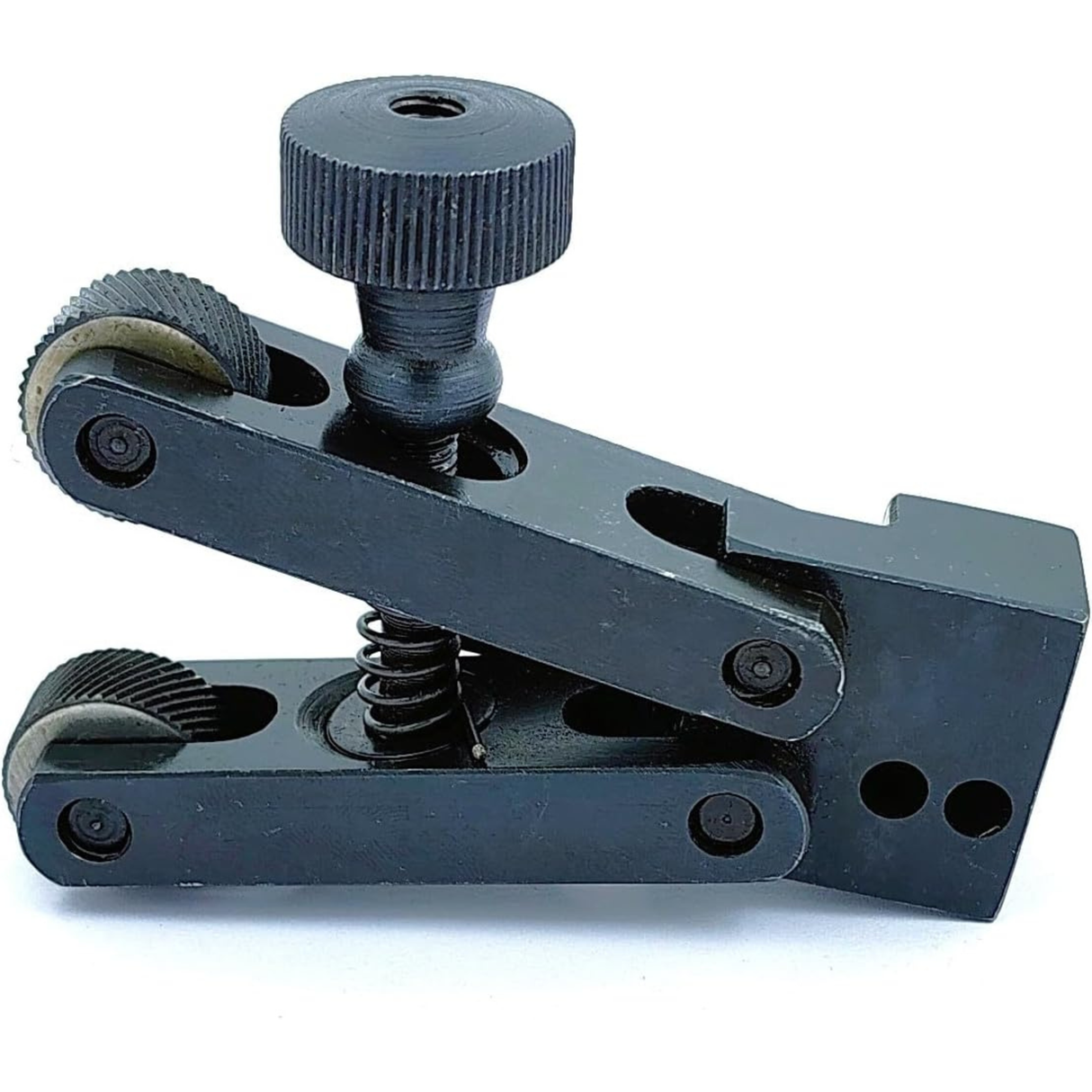

V-Clamp Type Knurling Tool for 5 to 20 mm Small Capacity Work

Holder Size of Knurling Tool

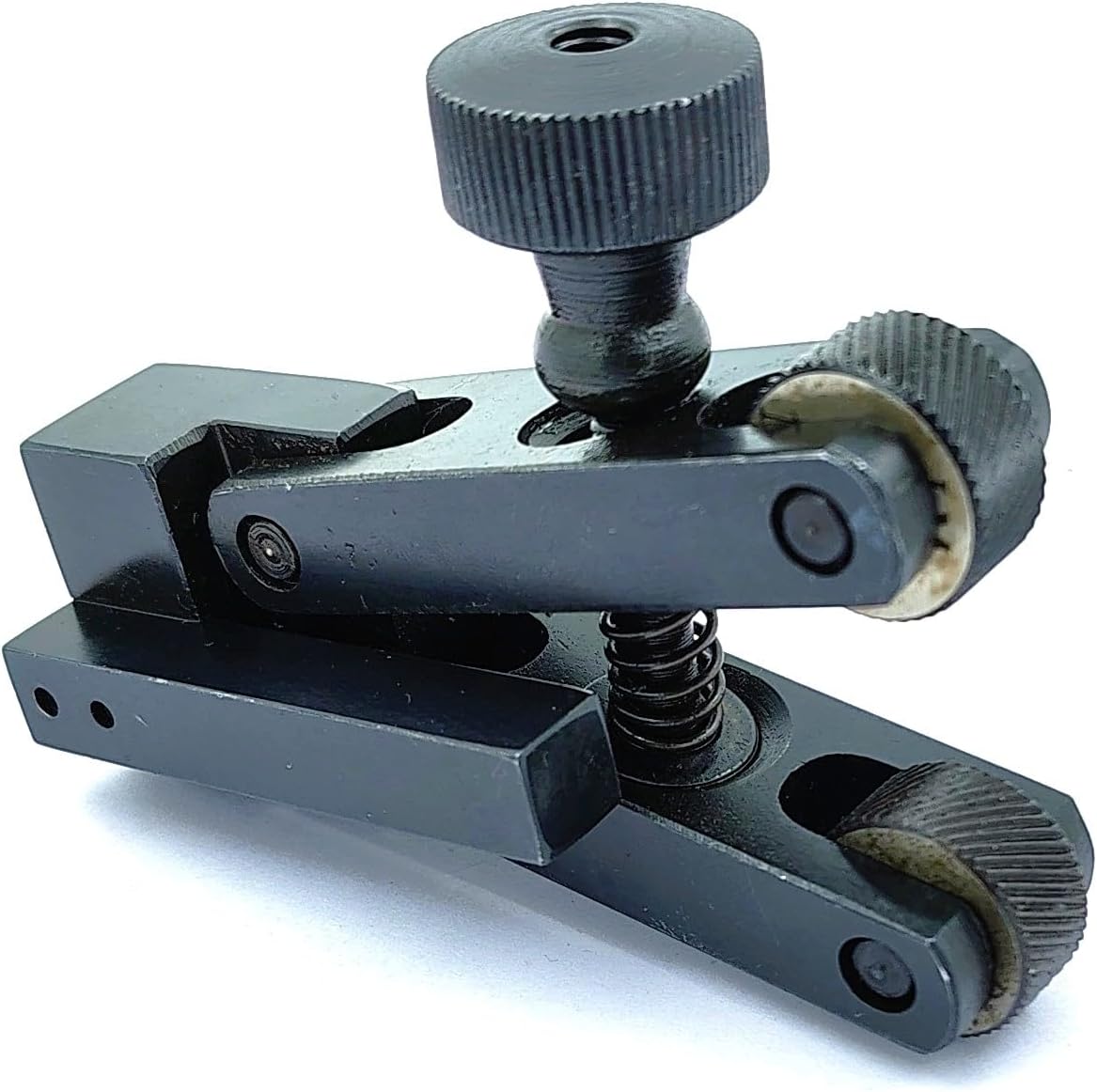

The holder size of a knurling tool used on lathe machines. The tool features two knurling wheels designed to emboss patterns onto a rotating metal surface. The dimensions are clearly marked: it has a 3/8-inch shank height and width, making it suitable for tool posts that accept this size. The total length of the holder is 2-1/4 inches. A knurled knob on top adjusts pressure for uniform knurling. The compact size makes it ideal for precision work on smaller lathes. The tool is not meant to clamp but to press against the workpiece to create grip-enhancing textures

Knurl Size Explained-Grip and Pattern

A knurling tool featuring 1mm pitch medium knurls, ideal for creating balanced grip patterns on cylindrical surfaces. The knurls are made from hardened EN31 grade tool steel, known for high wear resistance and durability. The knurl wheels have dimensions of 3/4" diameter, 3/8" width, and a 1/4" bore, making them compatible with various knurling holders. These medium knurls are perfect for general-purpose applications, offering a good blend of grip and surface finish. The tool is suitable for lathes and ensures consistent, clean pattern embossing on rotating metal parts.

Clamp Capacity

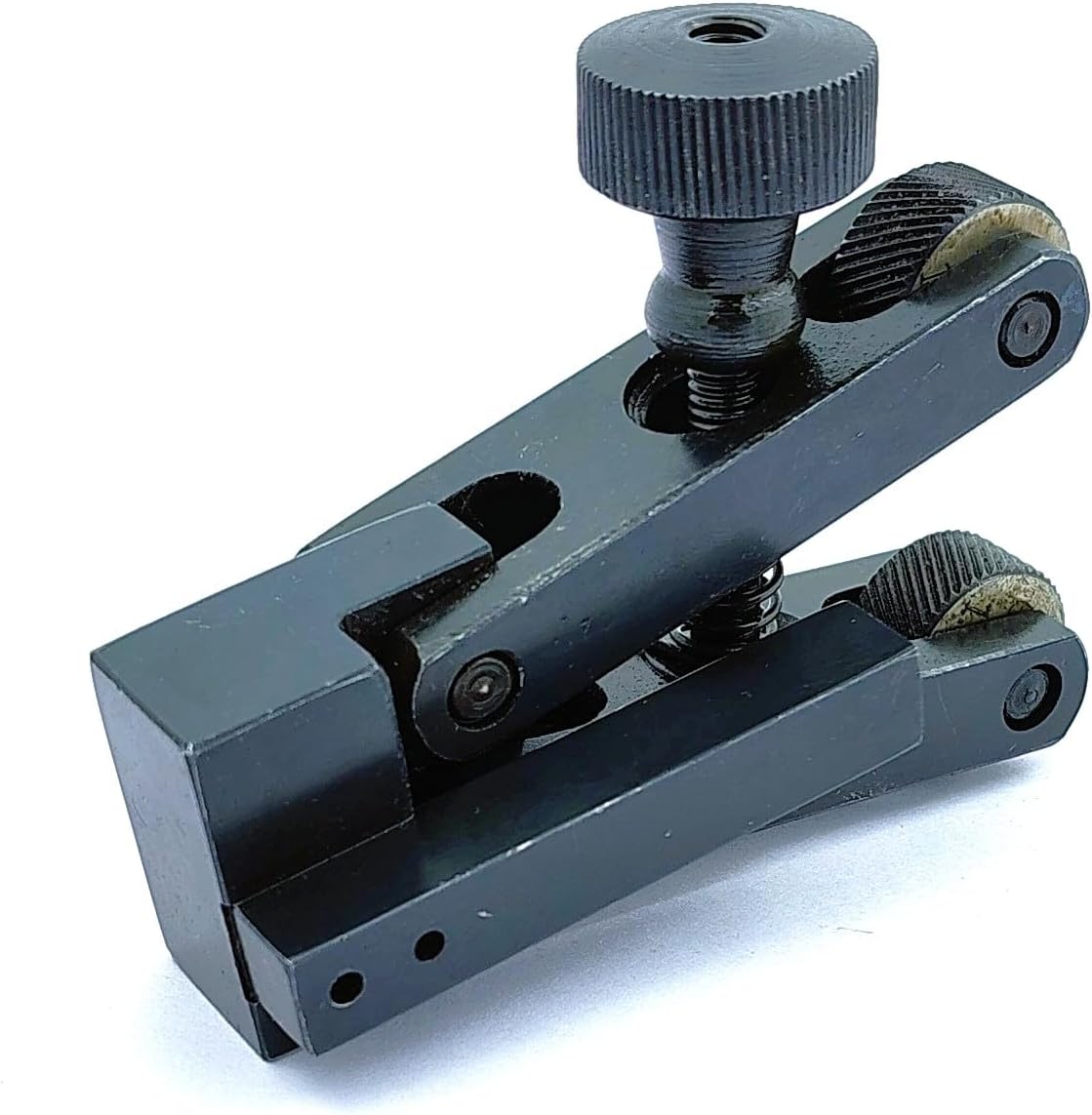

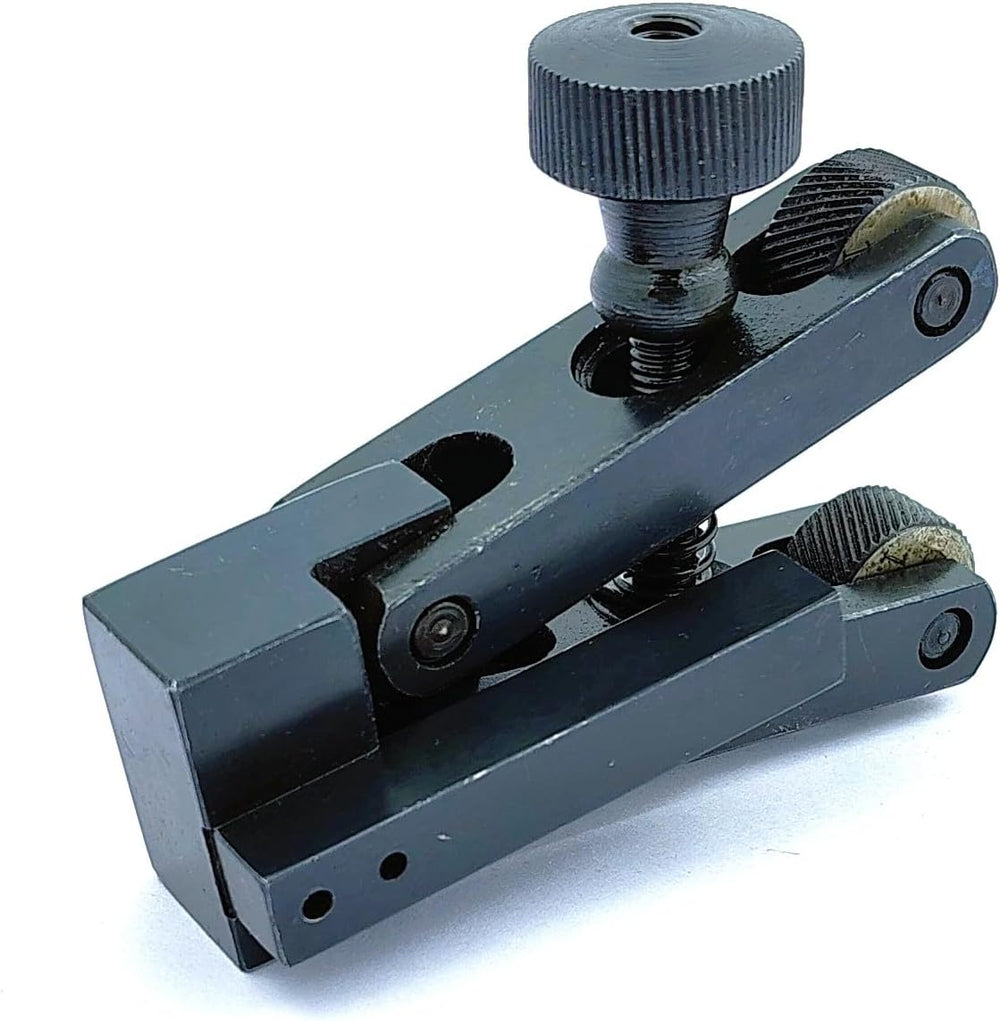

A spring-action clamp type knurling tool made of tool steel, designed for use on lathe machines. The highlighted feature is its clamp capacity of 5–20 mm, meaning it can effectively knurl cylindrical workpieces within that diameter range. The tool uses a spring-loaded mechanism to maintain consistent pressure on the rotating workpiece, ensuring even knurling without slippage. The two hardened knurl wheels emboss a textured pattern onto the metal surface to improve grip and appearance. Its compact size and adjustable design make it ideal for light to medium-duty knurling tasks on small components.

Crafted from high-Quality Tool Steel

This knurling tool is manufactured using premium high-quality tool steel, known for its exceptional strength, wear resistance, and durability. The tool steel composition ensures: Superior Hardness – Maintains sharp knurling edges for long-lasting performance. High Wear Resistance – Withstands repeated use without deformation or excessive wear. Excellent Toughness – Resists chipping and breakage, even under high-pressure applications. Corrosion Resistance – Designed to endure harsh working conditions, ensuring longevity.

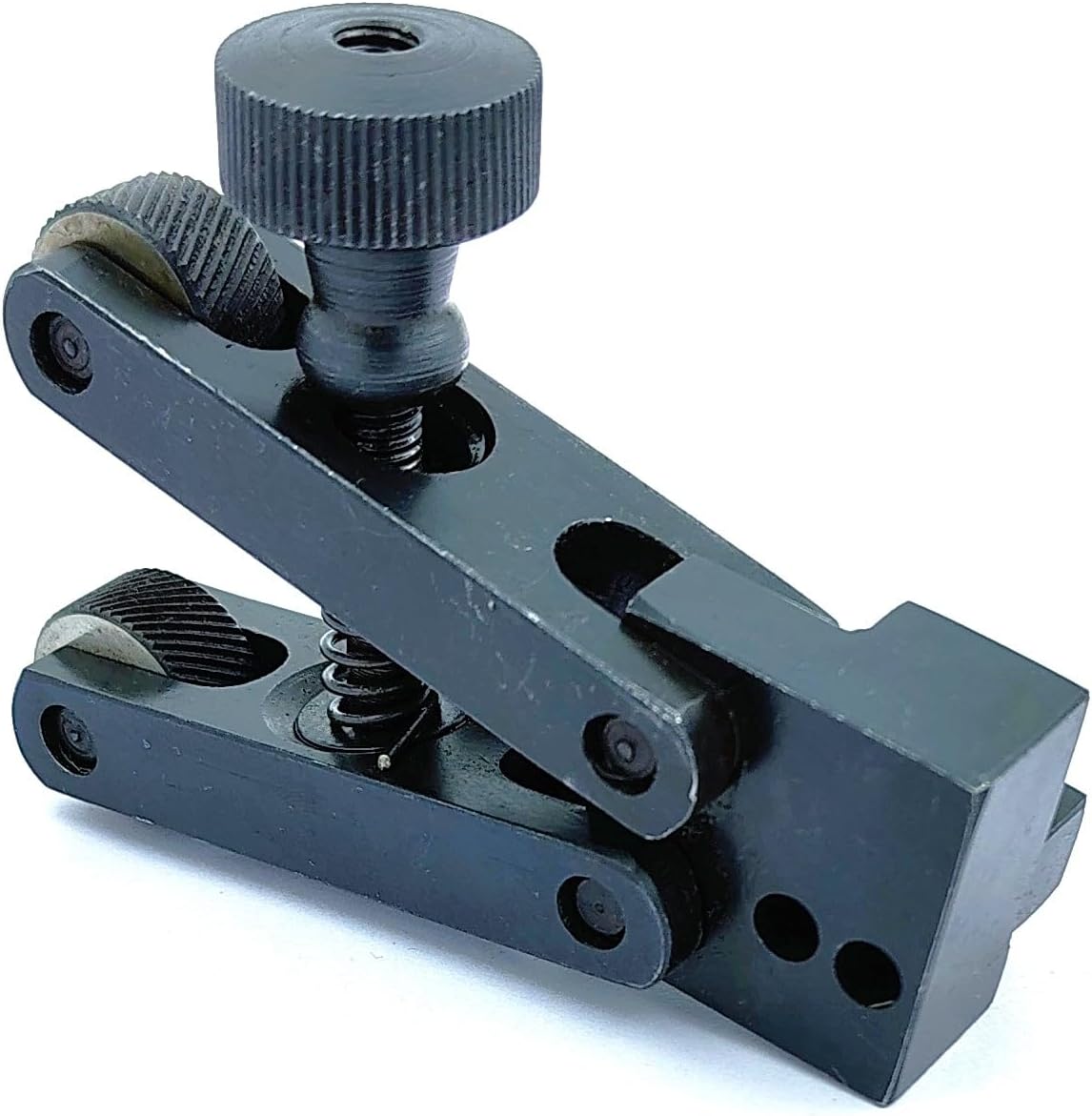

Compact & Durable Knurling Tool for Precision Lathe Work
This compact knurling tool, made from premium tool steel, features 1mm pitch medium EN31 knurls for balanced grip on cylindrical surfaces. It fits 3/8" shanks, with a 2-1/4" holder length, and supports 5–20 mm workpiece diameters. The spring-action design ensures uniform pressure and clean, slip-free patterns. With superior hardness, wear resistance, and durability, it's ideal for precision knurling on smaller lathes in demanding environments.
