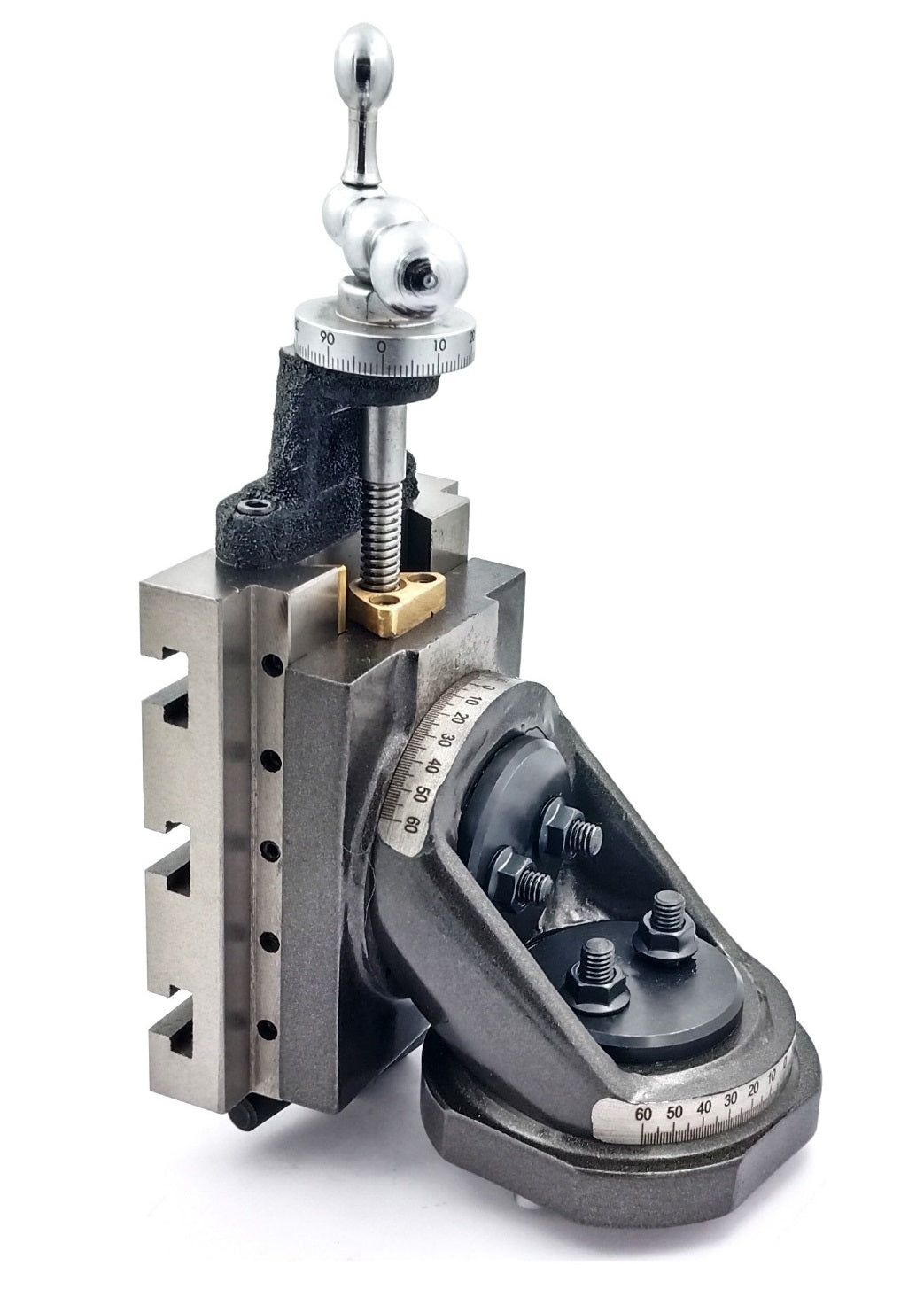

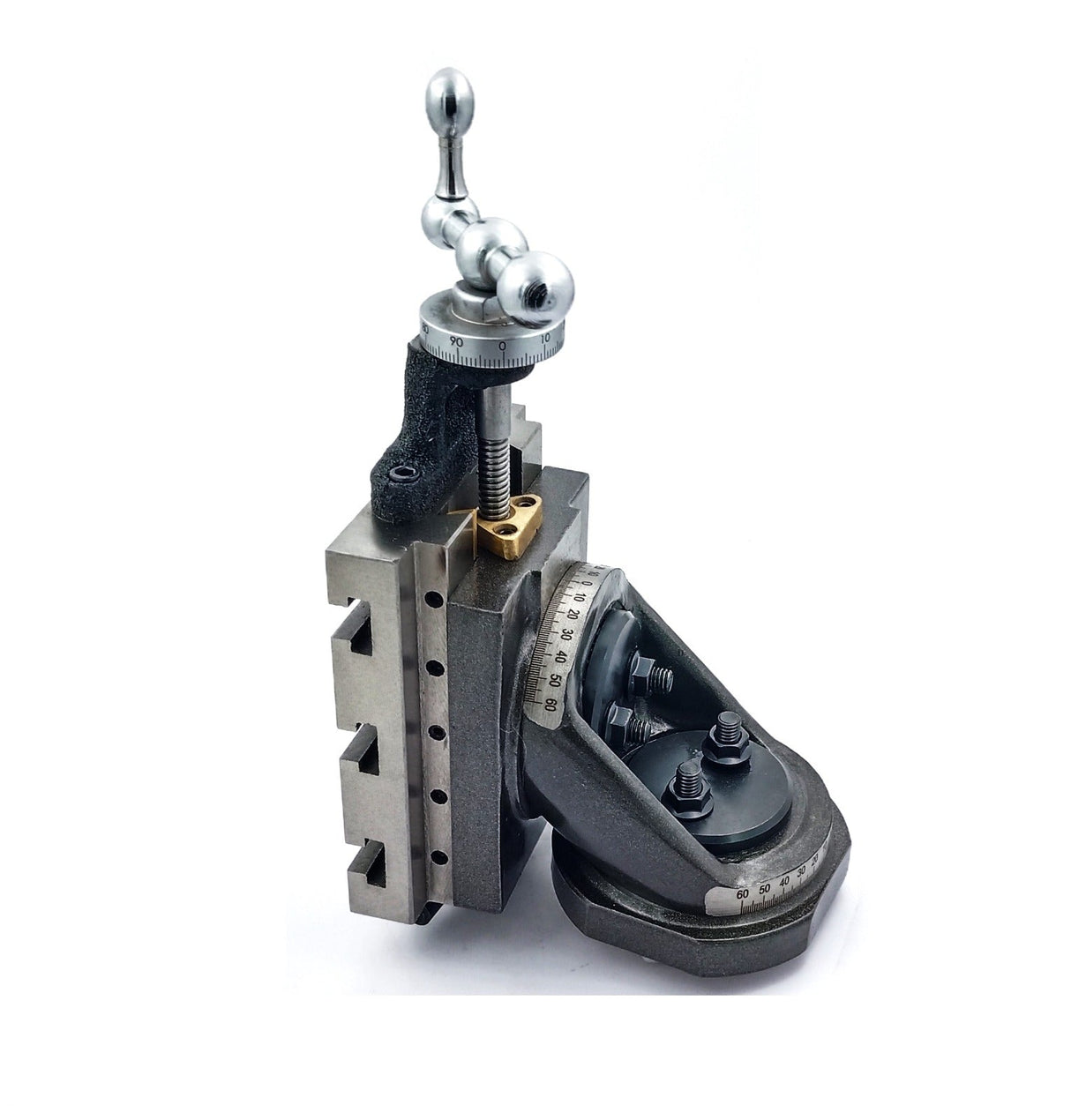

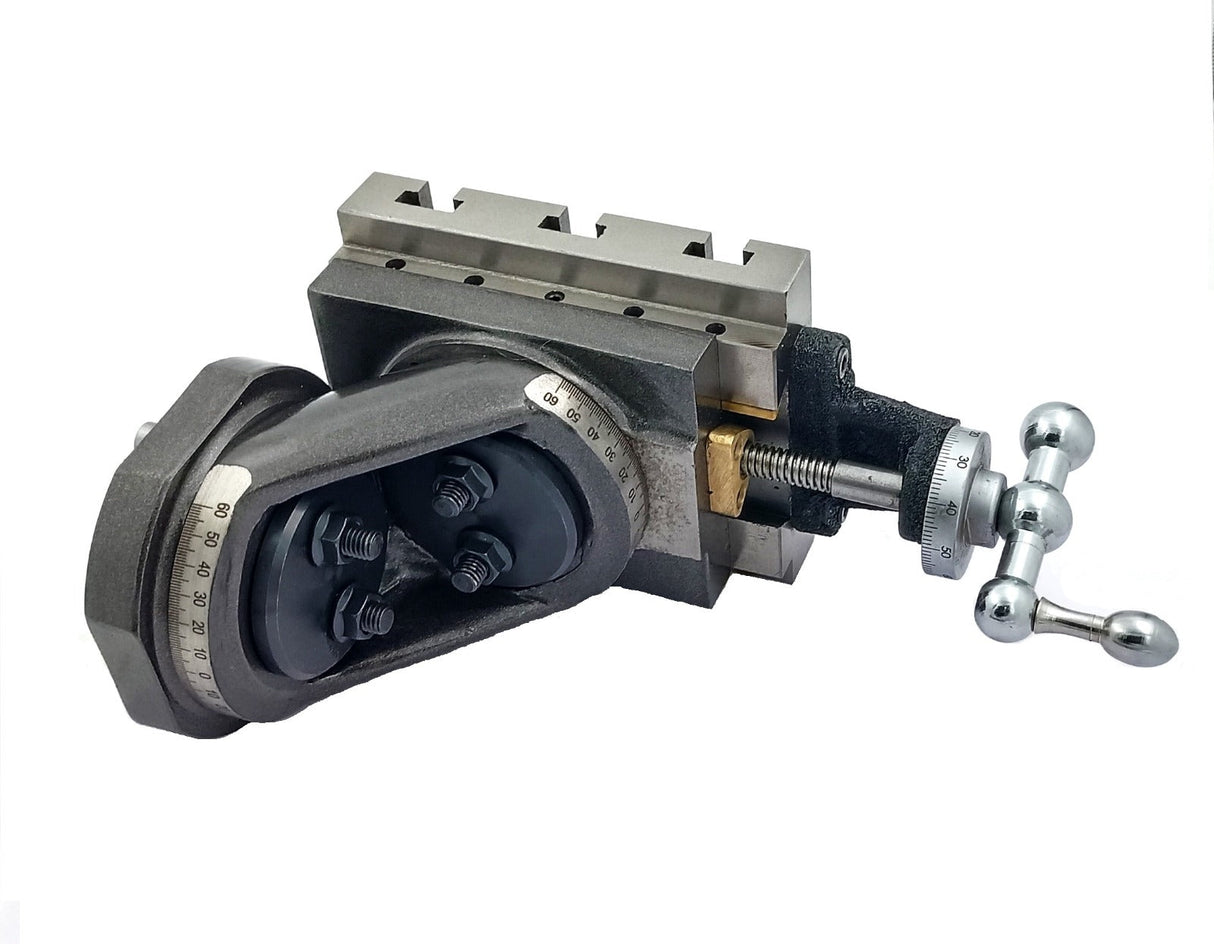

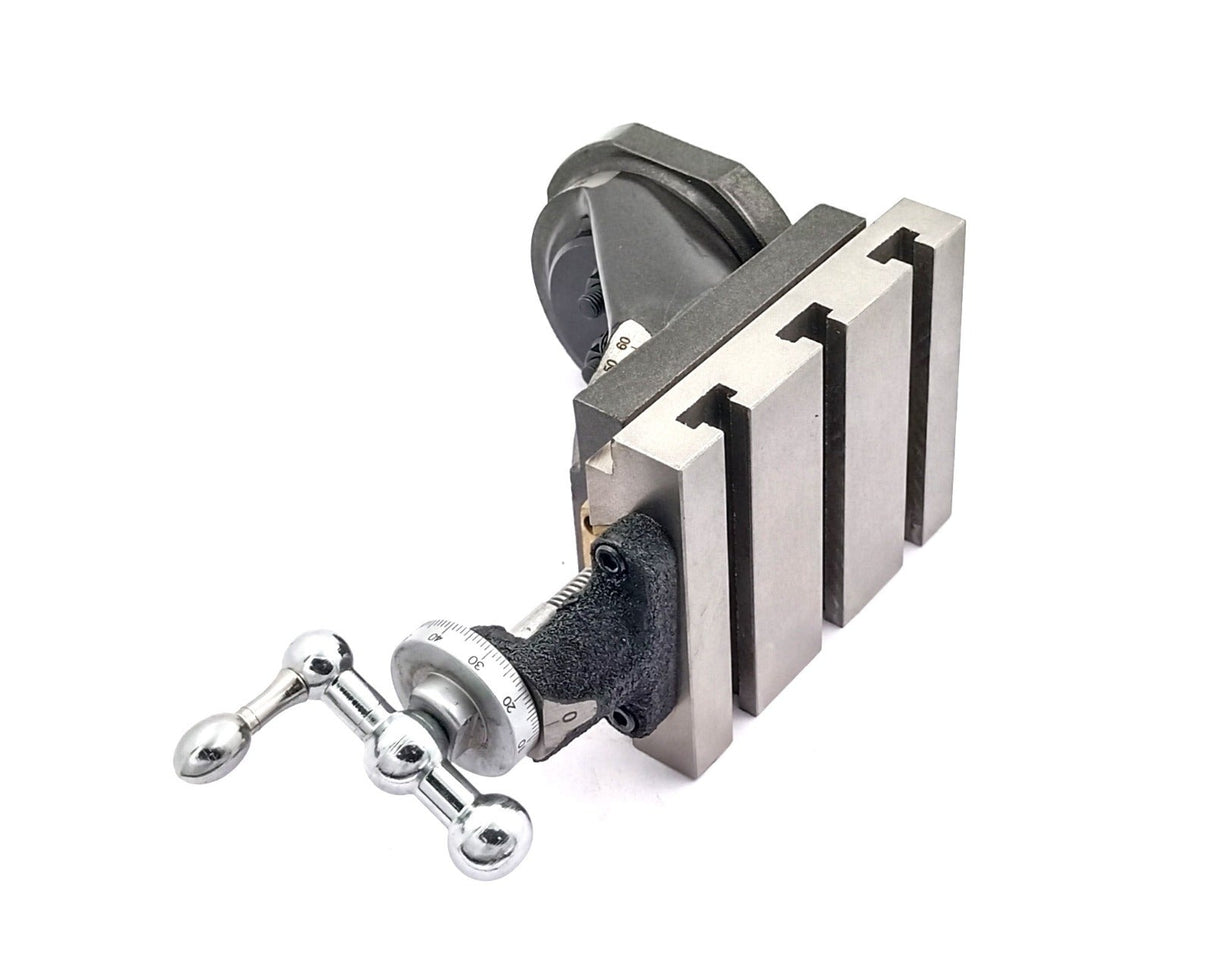

Vertical Milling Slide for Mini Lathe Swivel Type 4" x 5" (100 x 125 mm) with 2-3/8" (60 mm) Steel Grinding Vice
Vertical Milling Slide for Mini Lathe Swivel Type 4" x 5" (100 x 125 mm) with 2-3/8" (60 mm) Steel Grinding Vice is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Thank you for visiting and shopping at www.jaibros.com. Following are the terms and conditions that constitute our Shipping Policy.
Shipment processing time
All orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
Shipment to Pin Codes
www.jaibros.com ships to addresses within India.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
Kindly make an unboxing video and If you received your order damaged, please contact us so that we can investigate the issue. and provide you with a replacement. Please save all packaging materials and damaged goods before filing a claim.
Description
Description
Use of the Product

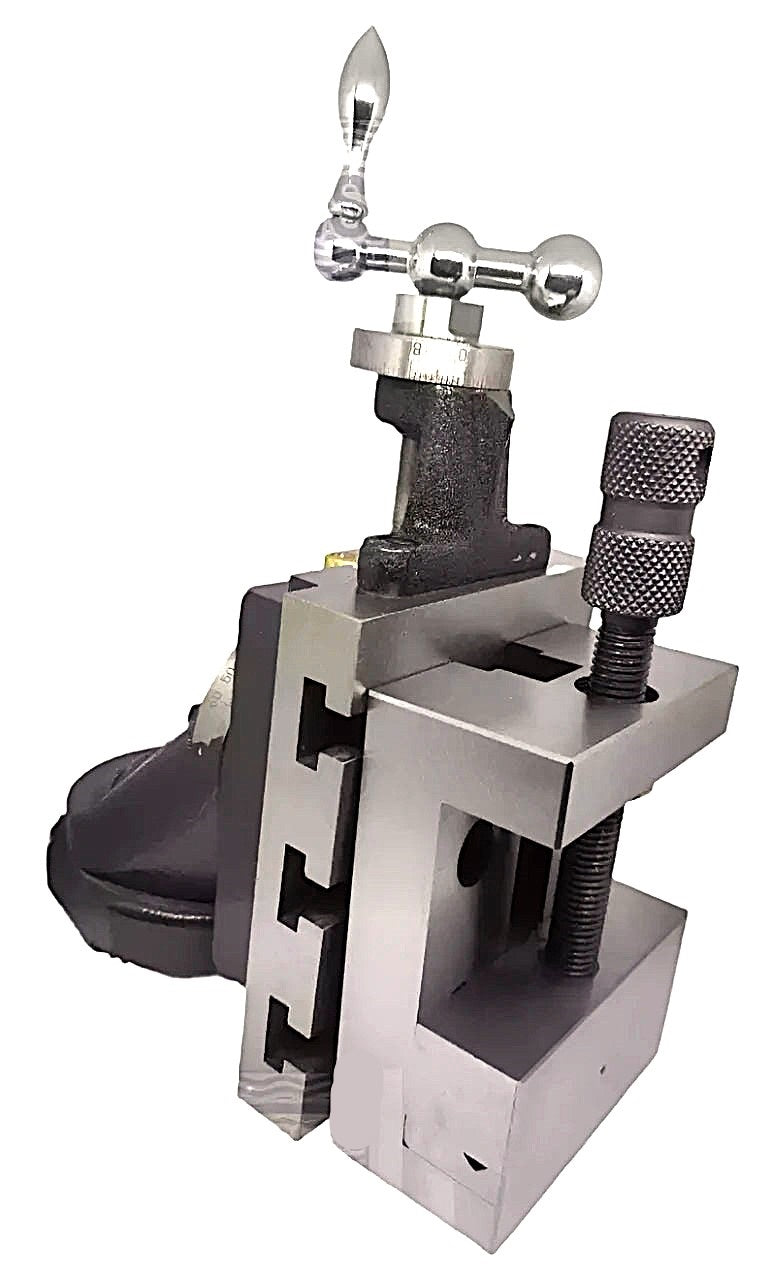

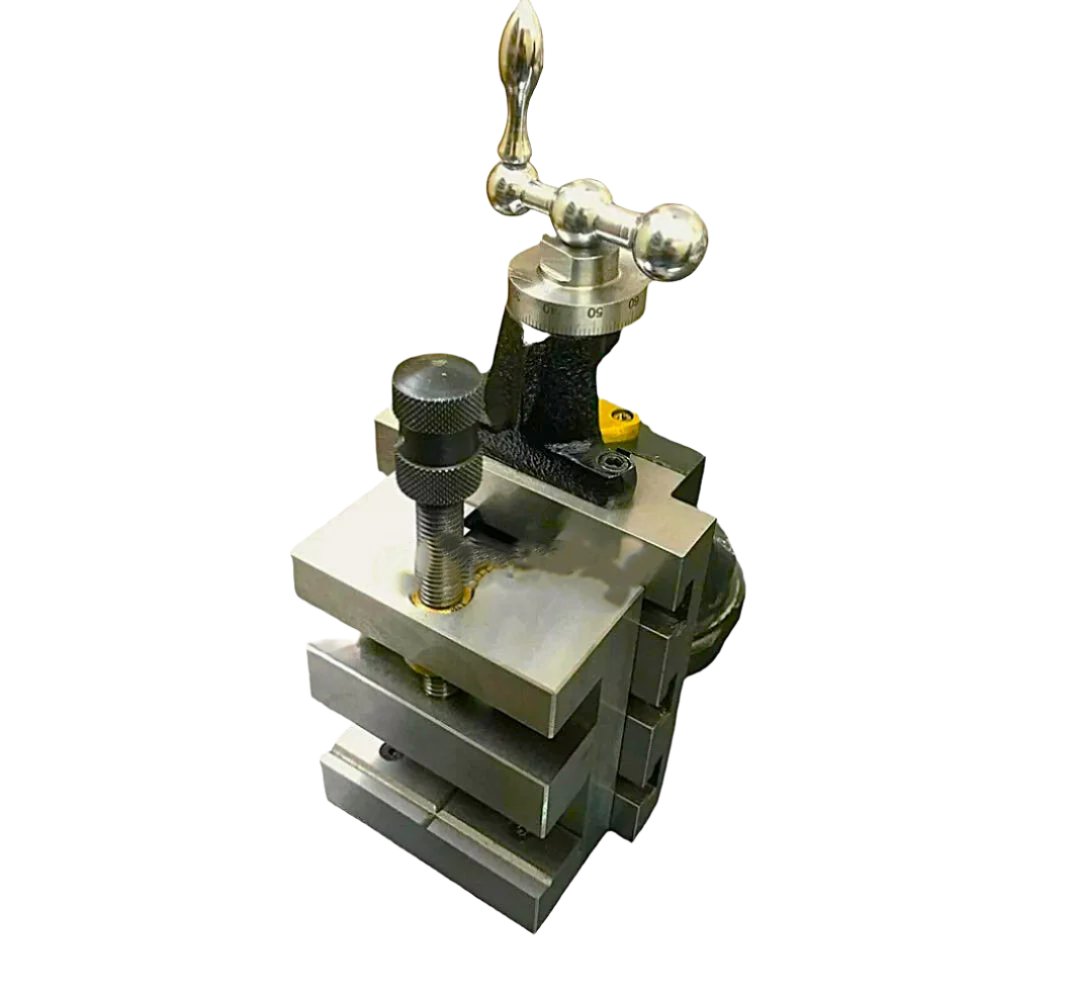

A combination of a vertical slide and a grinding vice is typically used in machining and grinding applications to enhance precision and flexibility. Together, they enable complex machining operations, such as the precise grinding of specific features on a workpiece, by providing both vertical and horizontal positioning and movement.

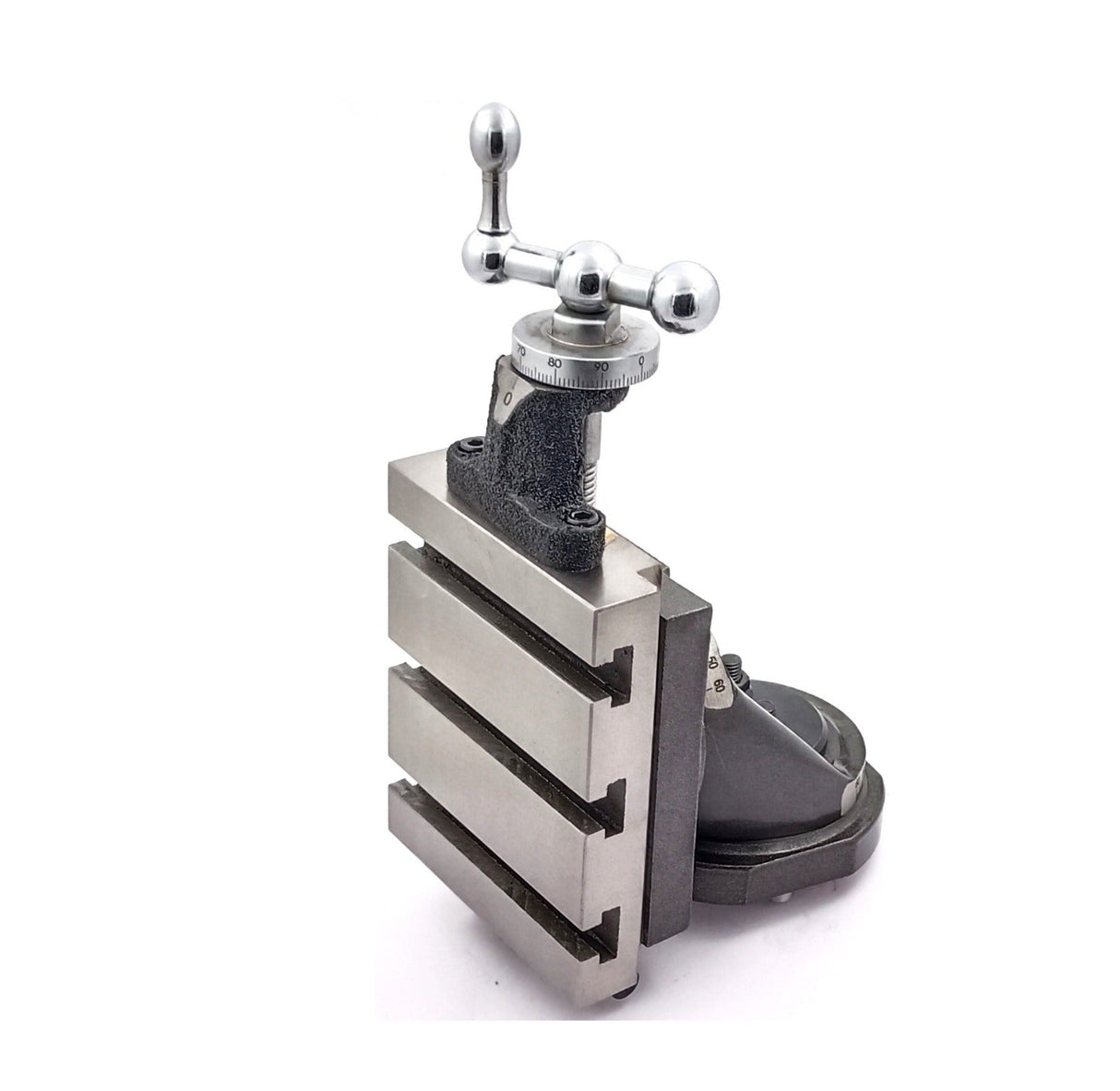

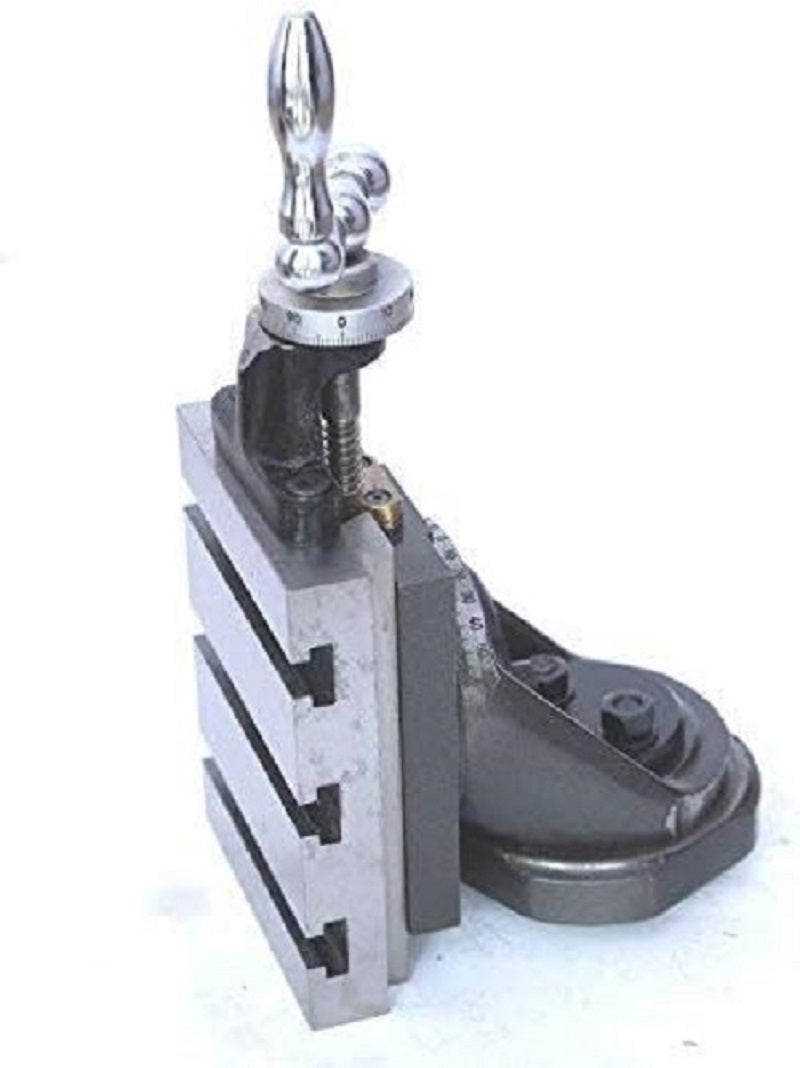

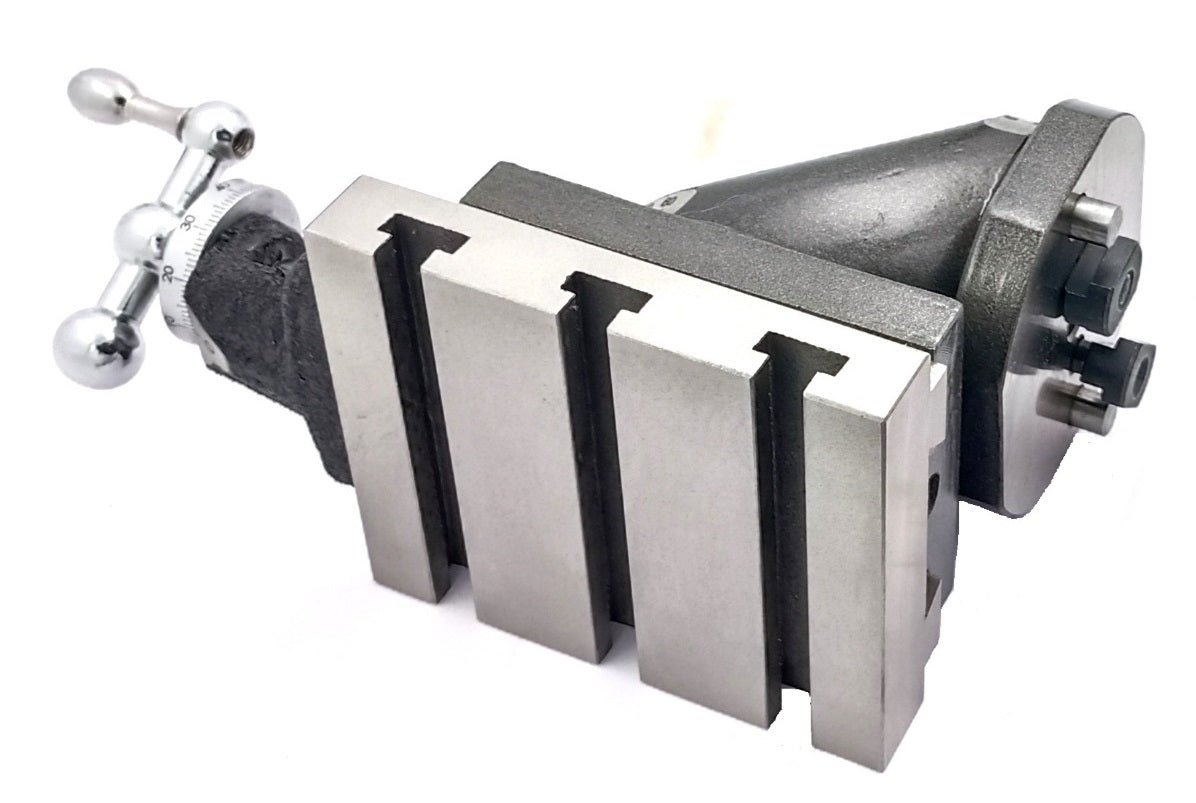

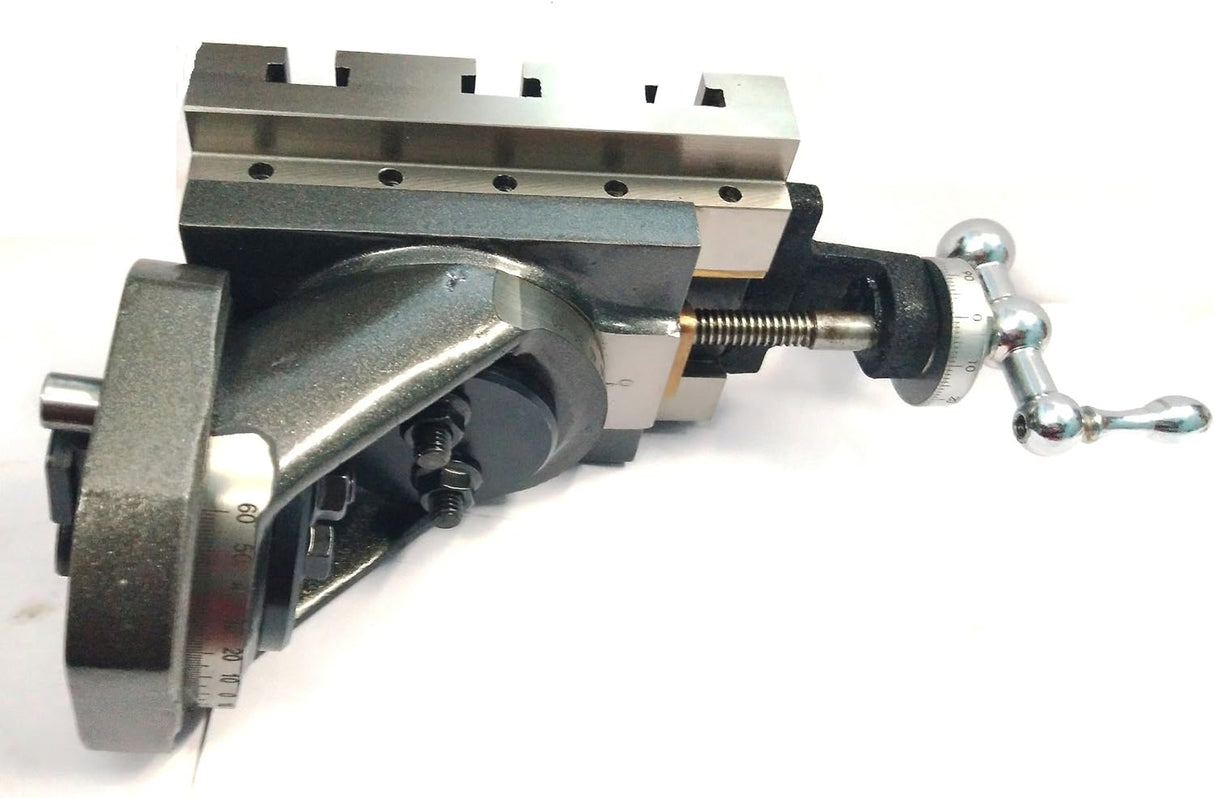

Vertical slide Dimensions:
Size: 125 mm x 100 mm
Provides a substantial working area for a variety of milling operations.
Base Features:
Slots for Clamping:
3 slots in the base provide secure clamping.
Pitch Circle Diameter (PCD): 46.19 mm
Facilitates robust and stable attachment to the lathe.
Construction:
Made from high-quality materials, ensuring durability and longevity.
Precision-engineered for stability and accuracy during milling.
Usability:
Suitable for both hobbyists and professional machinists.
Enhances the milling capabilities of the Myford Super 7 ML7 lathe.
Applications:
Ideal for milling, drilling, slotting, and other precise machining operations.
Expands the lathe's functionality, enabling vertical milling.

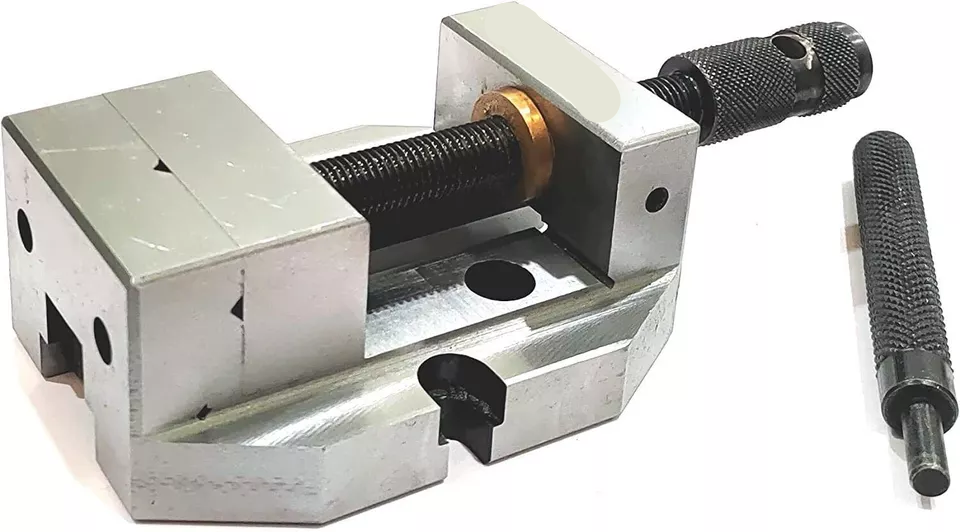

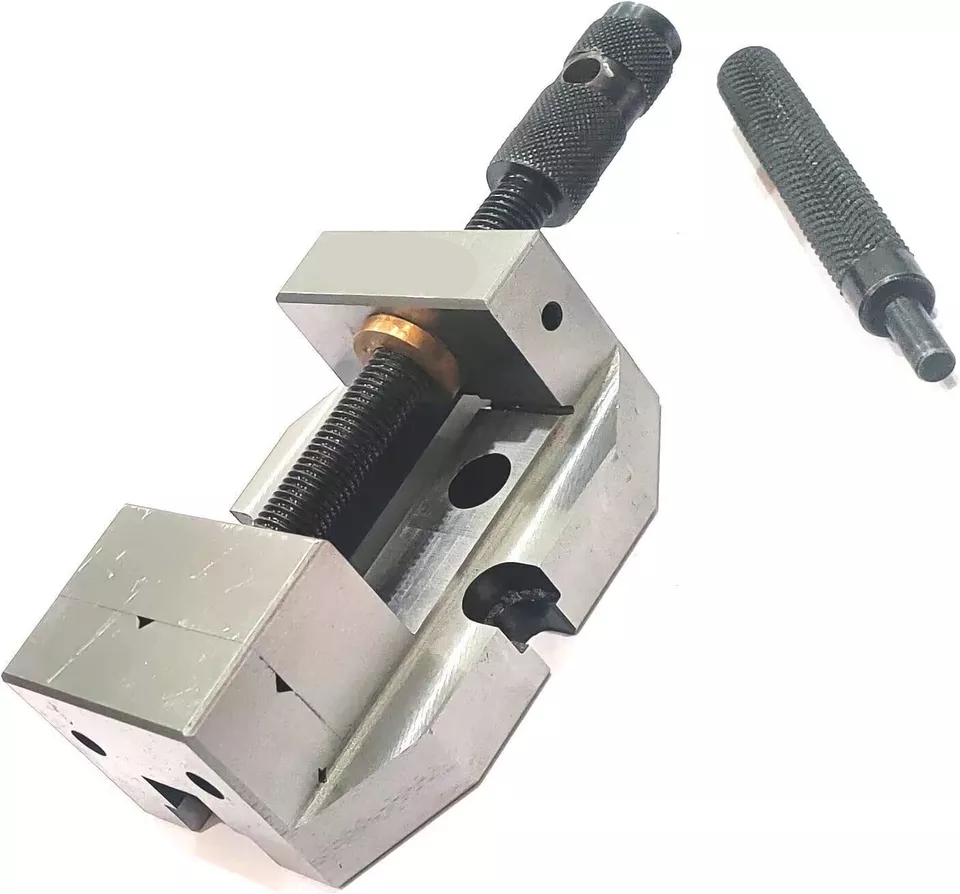

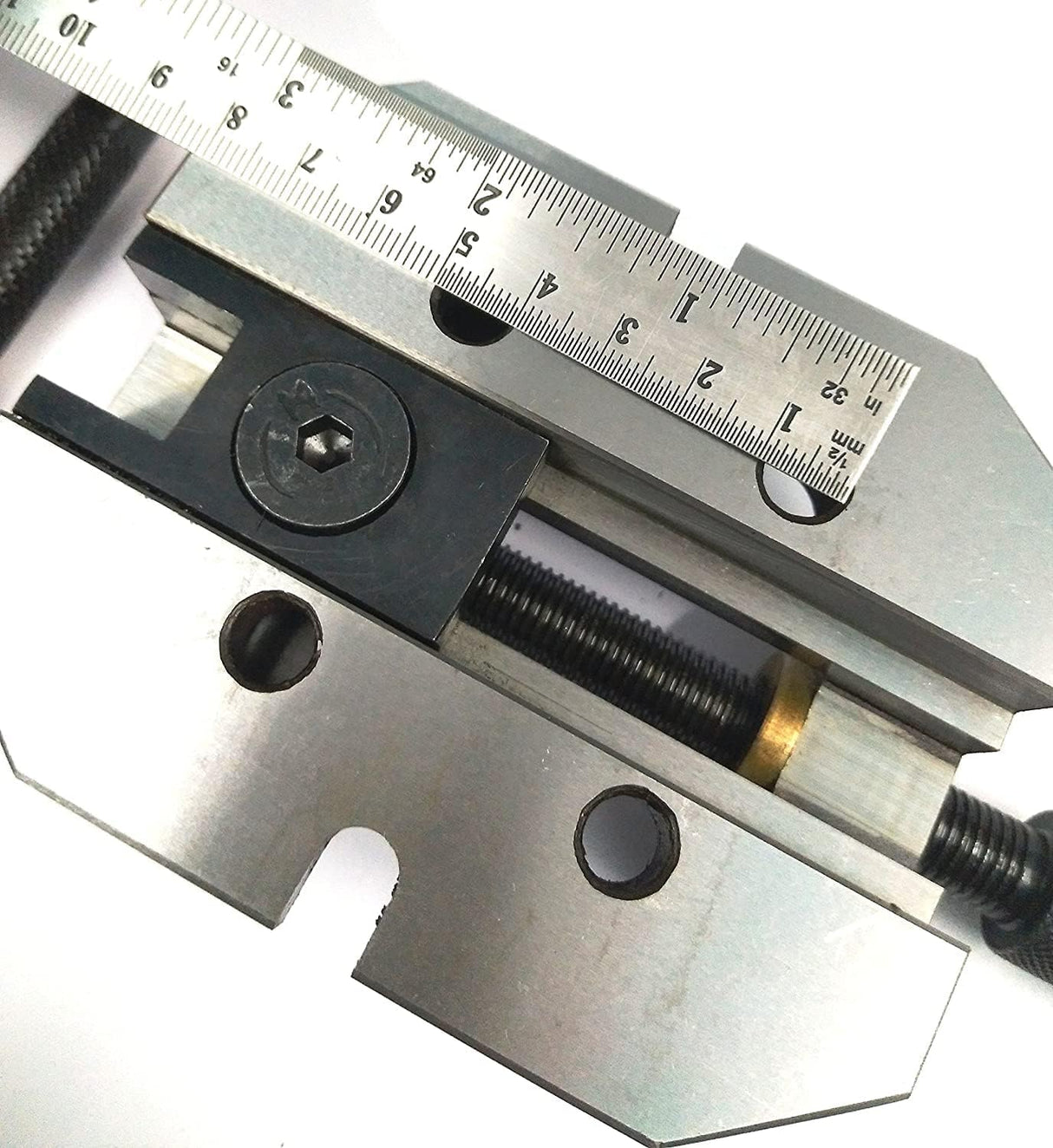

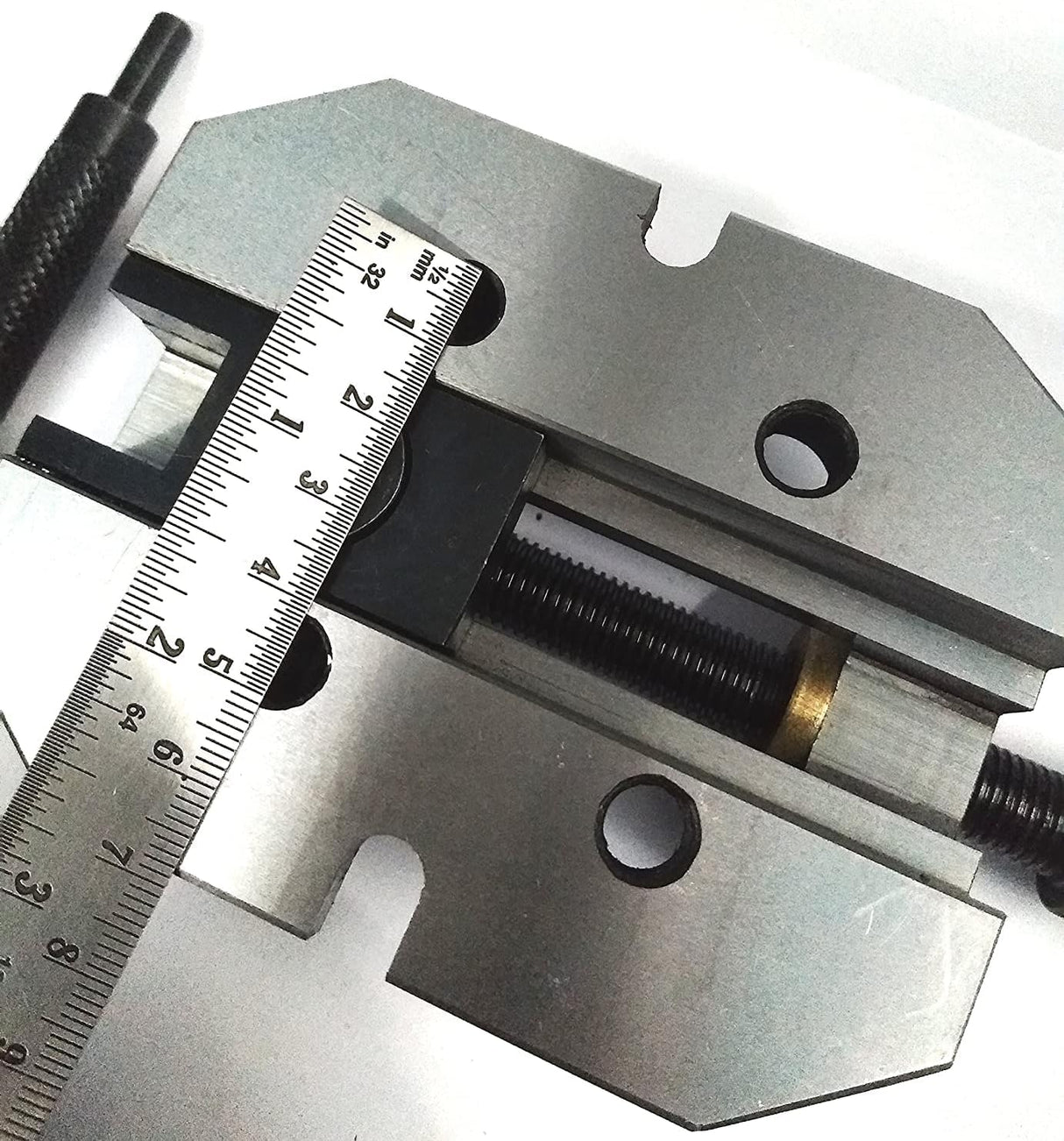

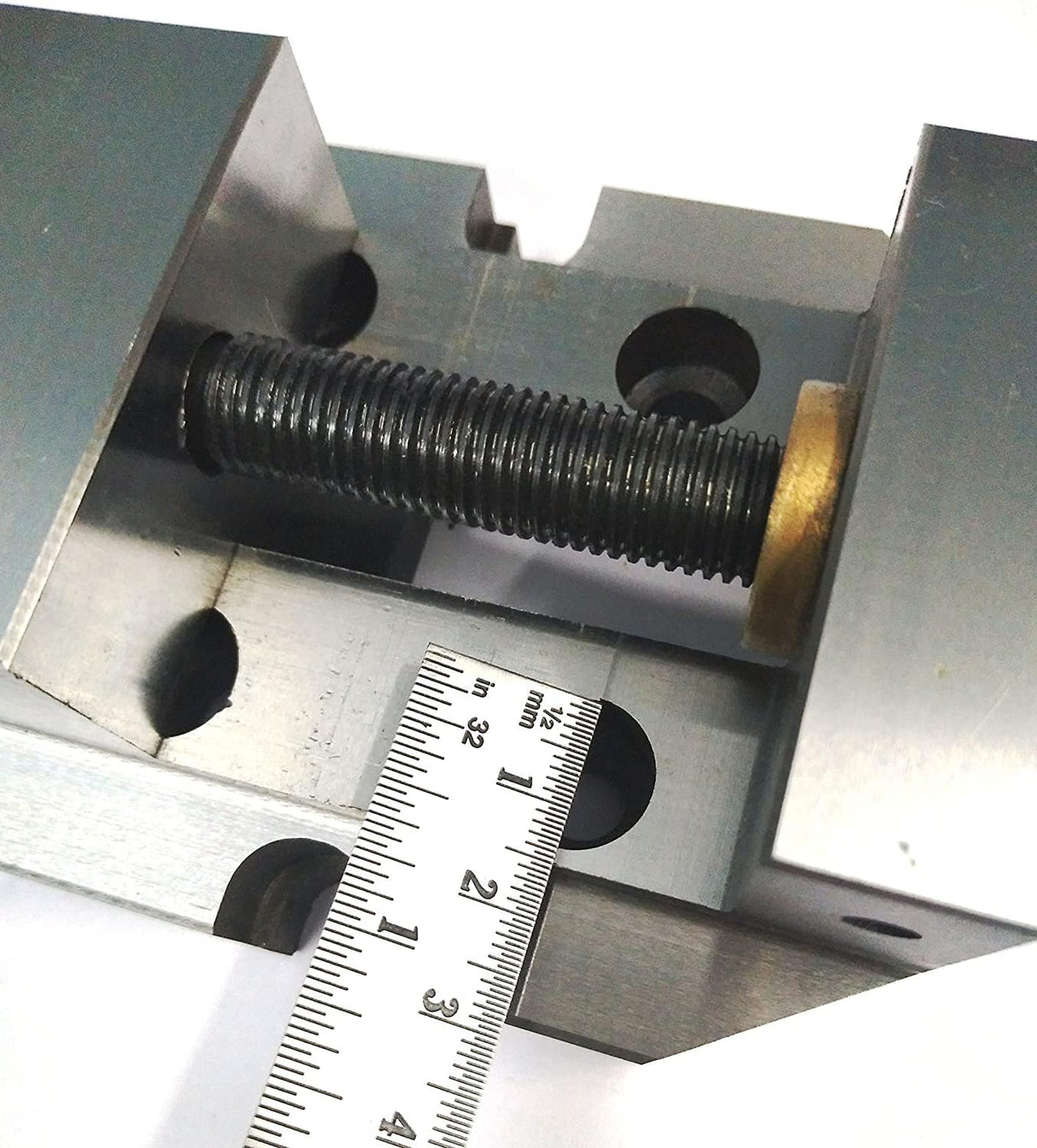

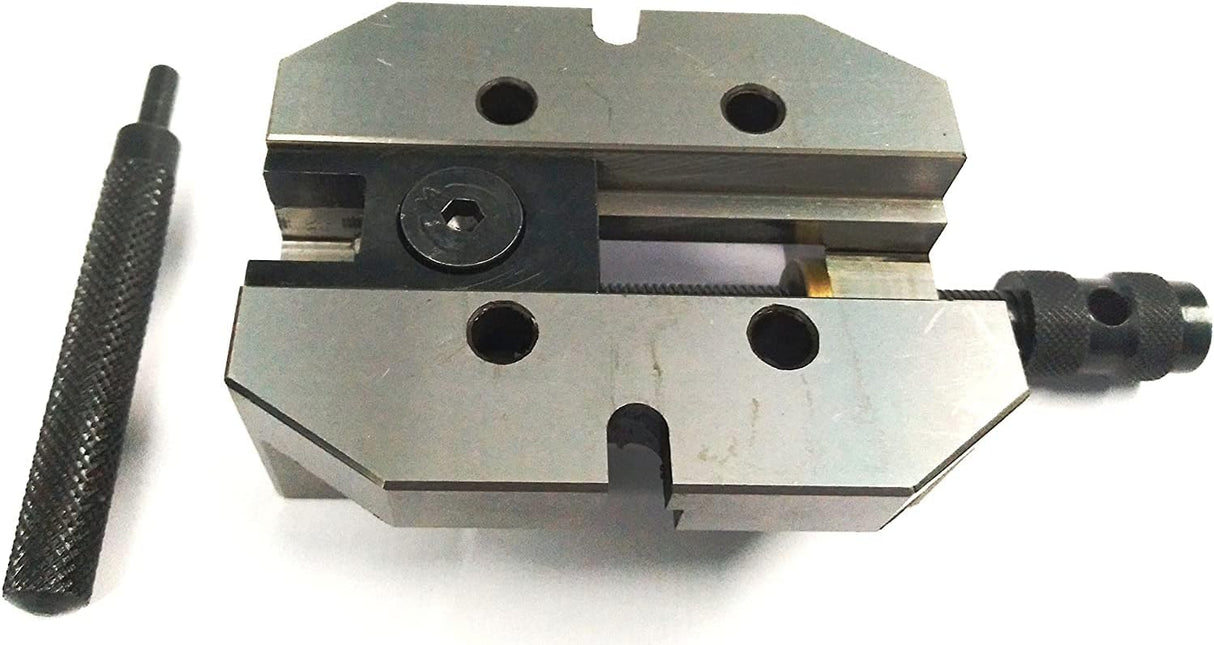

Precision Steel Grinding Vice - 2-3/8" (60mm) Jaw Width
Specifications:
Jaw Width: 2-3/8" (60mm)
Maximum Jaw Opening: 50mm
Distance between Mounting Slots: 75mm
Distance between Mounting Holes: 45mm
Height (Horizontal Orientation): 45mm
Height (Vertical Orientation): 110mm
Base Dimensions: 110mm (Length) x 85mm (Width)
Features:
Hardened Steel Construction: Made from high-quality hardened steel, this grinding vice offers superior strength and durability, ensuring long-lasting performance even in demanding machining environments.
Precision Ground Jaws: The jaws of this vice are meticulously ground to ensure precise clamping and positioning of workpieces, enabling accurate machining with tight tolerances.
Maximum Jaw Opening: With a maximum jaw opening of 50mm, this vice accommodates a wide range of workpiece sizes, providing versatility for various machining tasks.
Secure Mounting: Equipped with tee nuts for secure mounting, this vice provides stability and reliability during machining, minimising vibration and ensuring consistent results.
Compact Design: Despite its robust construction, this grinding vice features a compact design with a base dimension of 110mm (Length) x 85mm (Width), making it suitable for use in space-restricted work areas.
